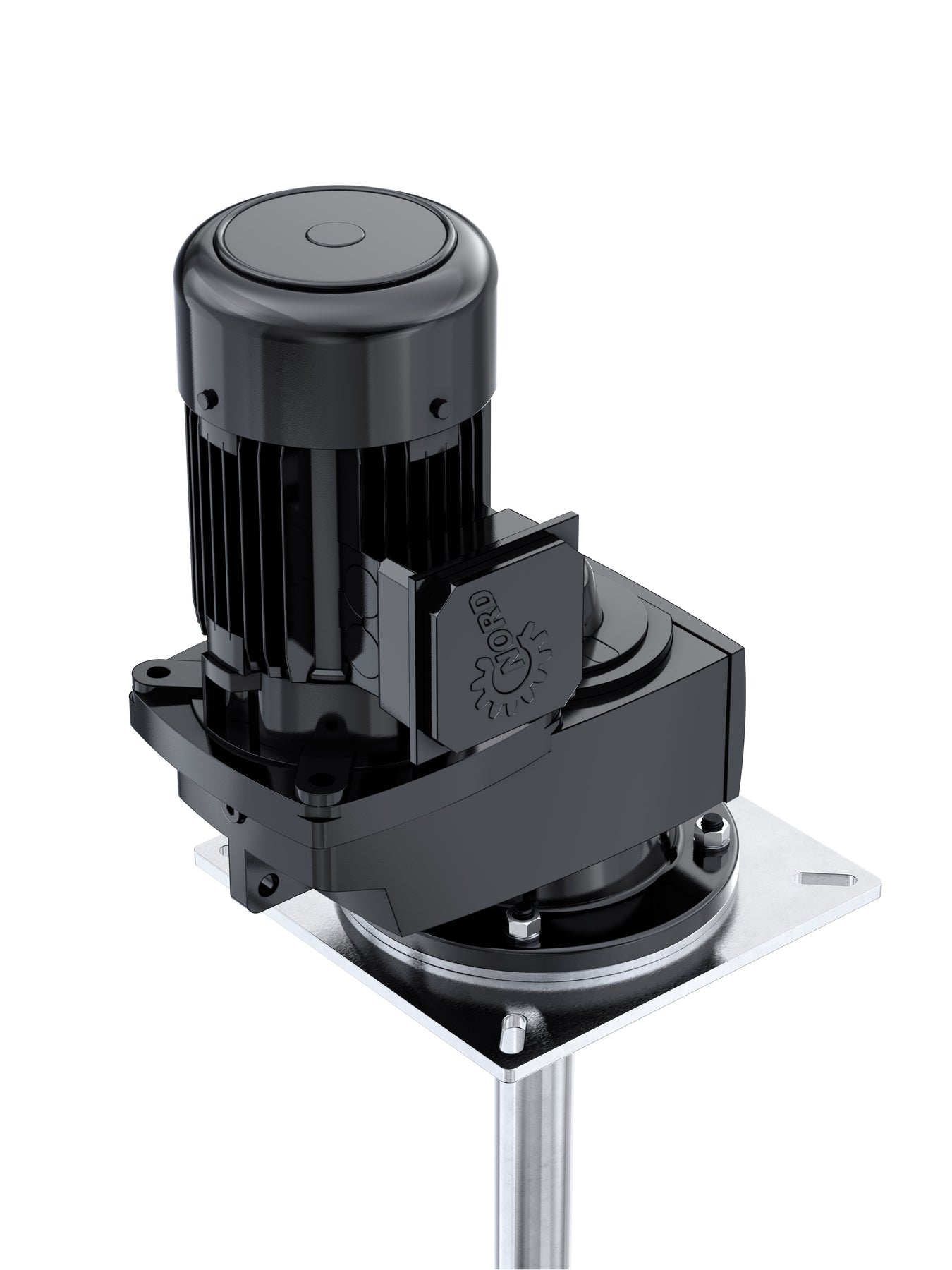

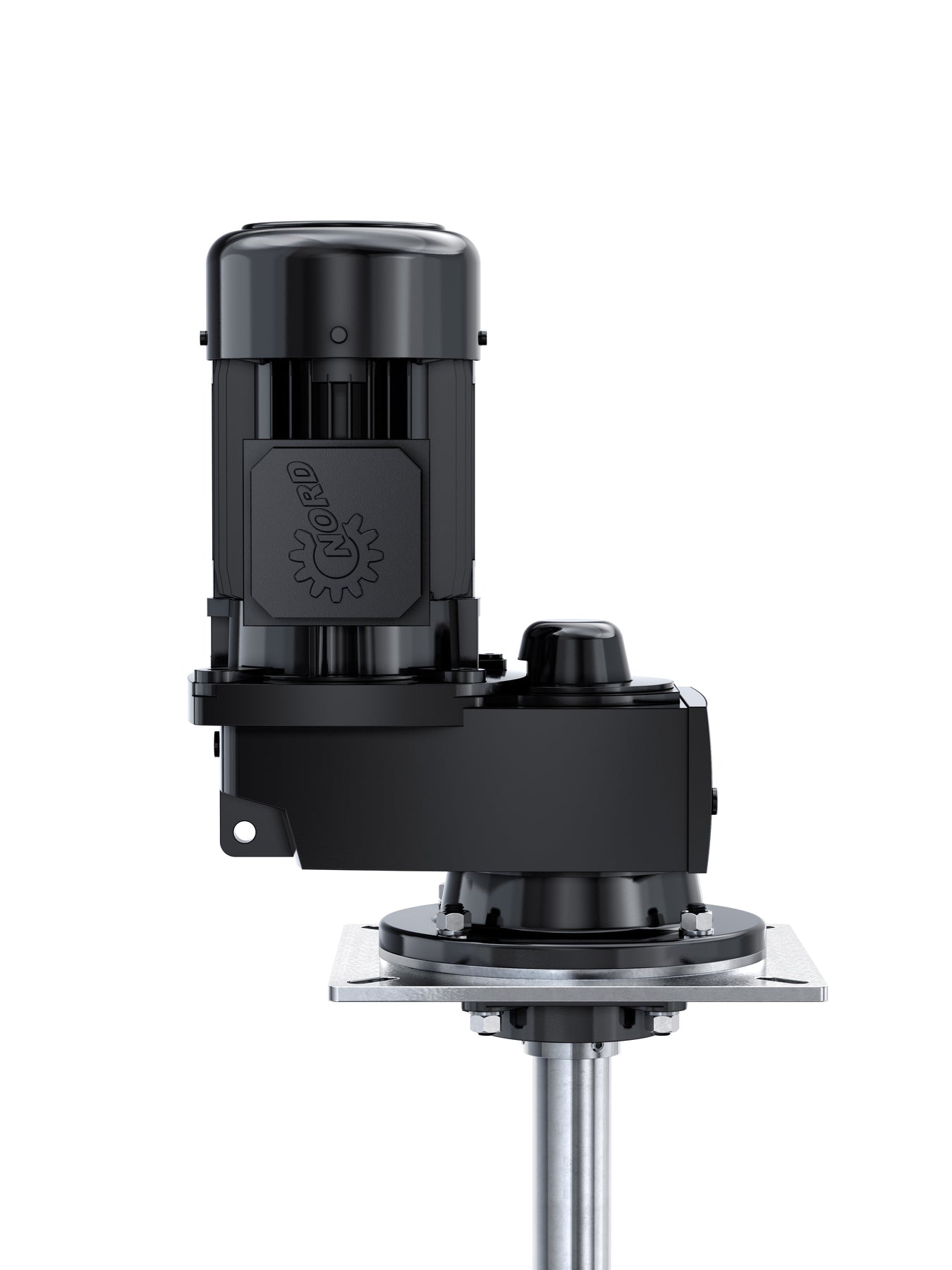

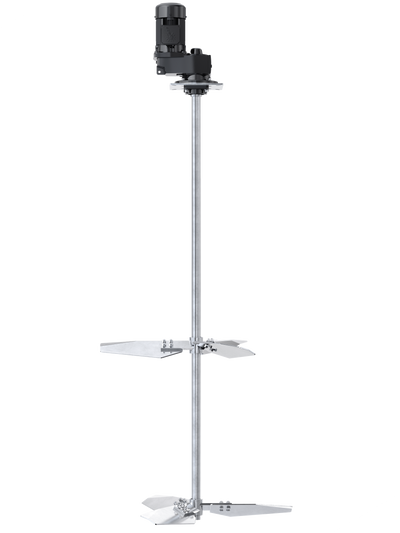

3 HP Raiden Plus Top Entry Plate Mount Mixer

Lead Time: 8 weeks $10,121
Customize Item


The Raiden Plus mixer line delivers a new quality in top entry mixers for large tank mixing applications.

The 3 HP Raiden Plus Plate Mount Mixer is equipped with a Totally Enclosed Fan Cooled (TEFC) electric motor. The motors are suitable for inside or outside applications carrying an IP55 enclosure rating that protects against water spray and dust ingress. This 3 HP mixer is perfect for USA or international applications. These motors are also inverter rated and can be safely wired into a variable speed control system. Let us know if you would like to add a Speed Controller to your Raiden Plus mixer. Suggested tank volume for this mixer 5,000 to 10,000 gallons.


Have a Question?

Download Specs Sheet


  • Item Number RDNPLUS030P-80
  • Gearbox Yes
  • Gearbox Ratio 25:1
  • Gear Type Premium Helical
  • Horsepower 3
  • Impeller Diameter 44
  • Impeller Material 316SS

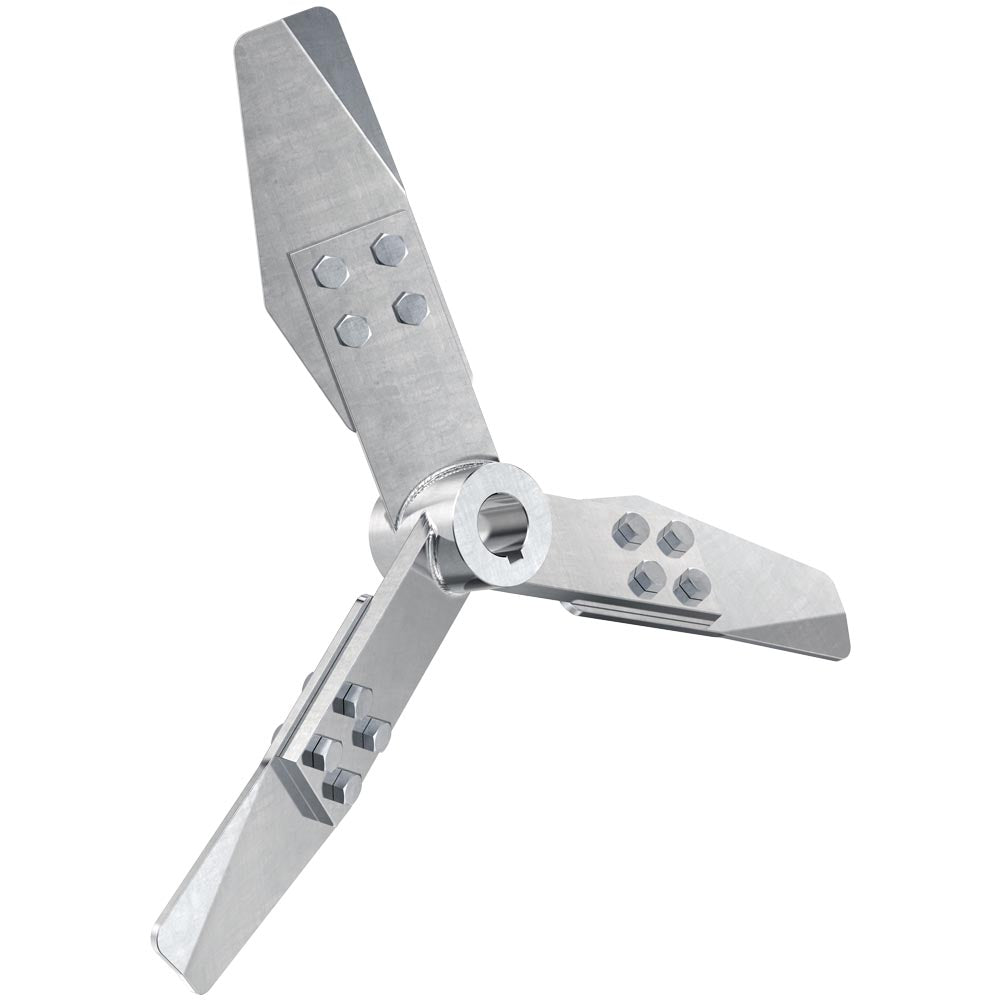

  • Impeller Type Hydrofoil (High Efficiency Impeller)
  • Motor Type TEFC
  • Mount Plate
  • Mount Dimension 12"x12" Plate, 3/8" Thick
  • Number of Impellers 2
  • Phase 3
  • RPM 68
  • Seal No
  • Shaft Diameter 2
  • Shaft Length 80"-120"
  • Shaft Material 316SS
  • Speed Controller No
  • Voltage 230/460
  • Weight 380
