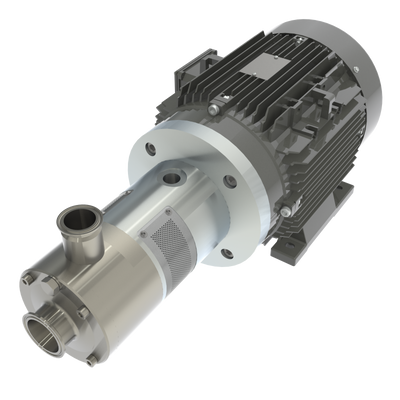

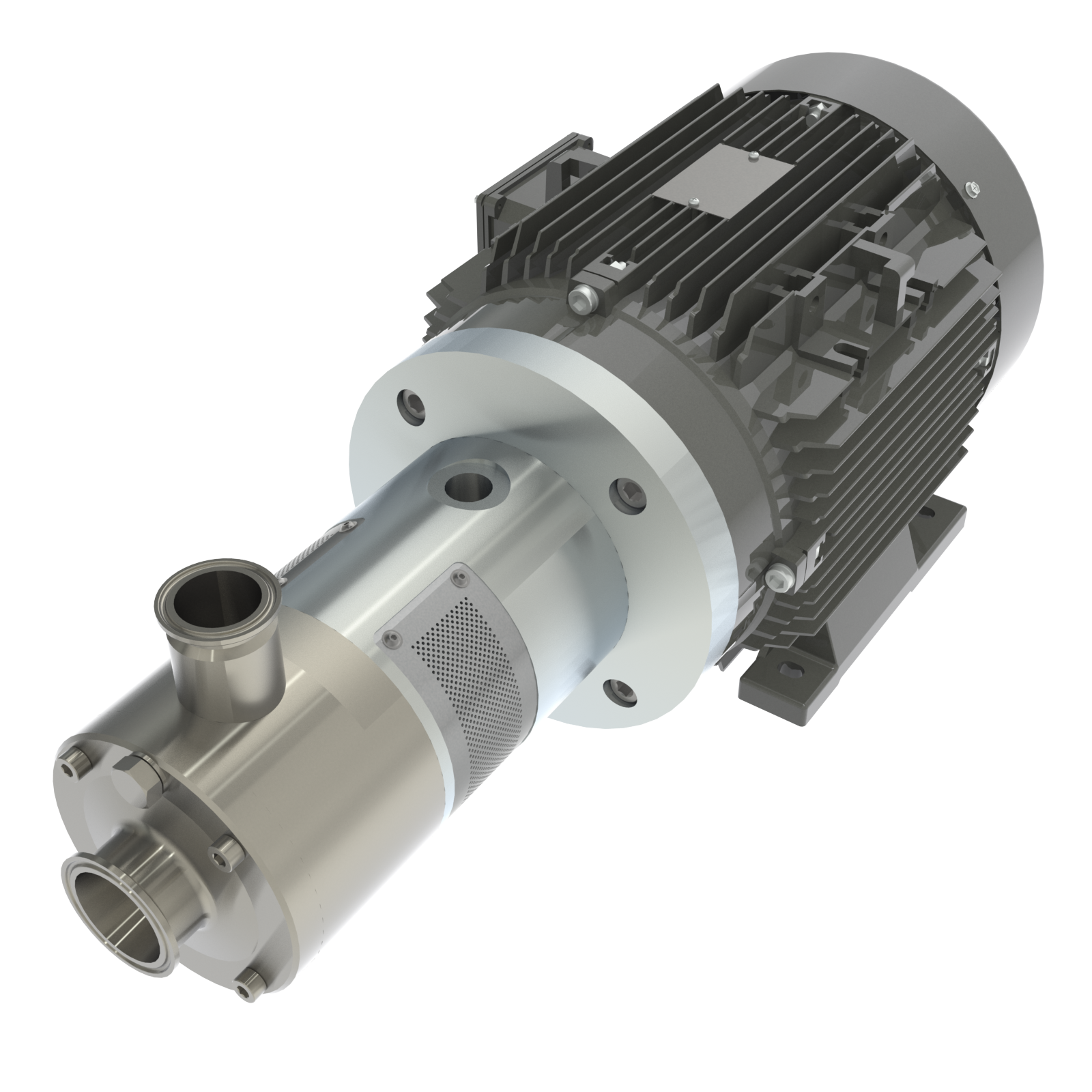

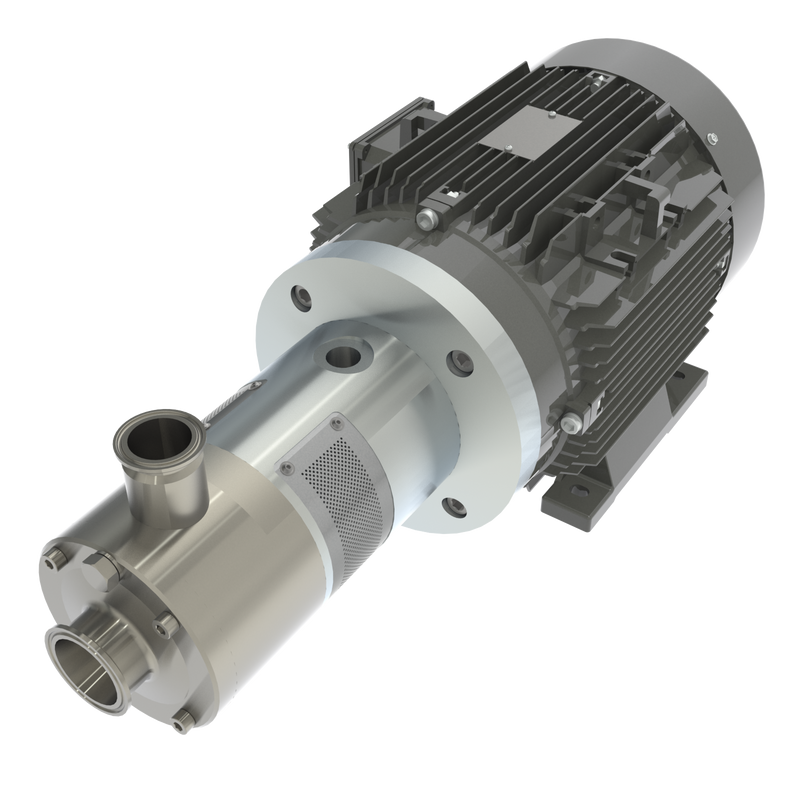

The ShearPro is a high intensity in-line mixer that can be used for blending, producing stable emulsions, ultra-fine dispersions, accelerating reactions, eliminating fish-eyes and hydrating polymers and gums to thicken products. The ShearPro can be customized with a variety of mixing tools to fit your process needs.
Use of a double mechanical seal requires purchase of seal reservoir to ensure proper cooling and lubrication between seal faces.

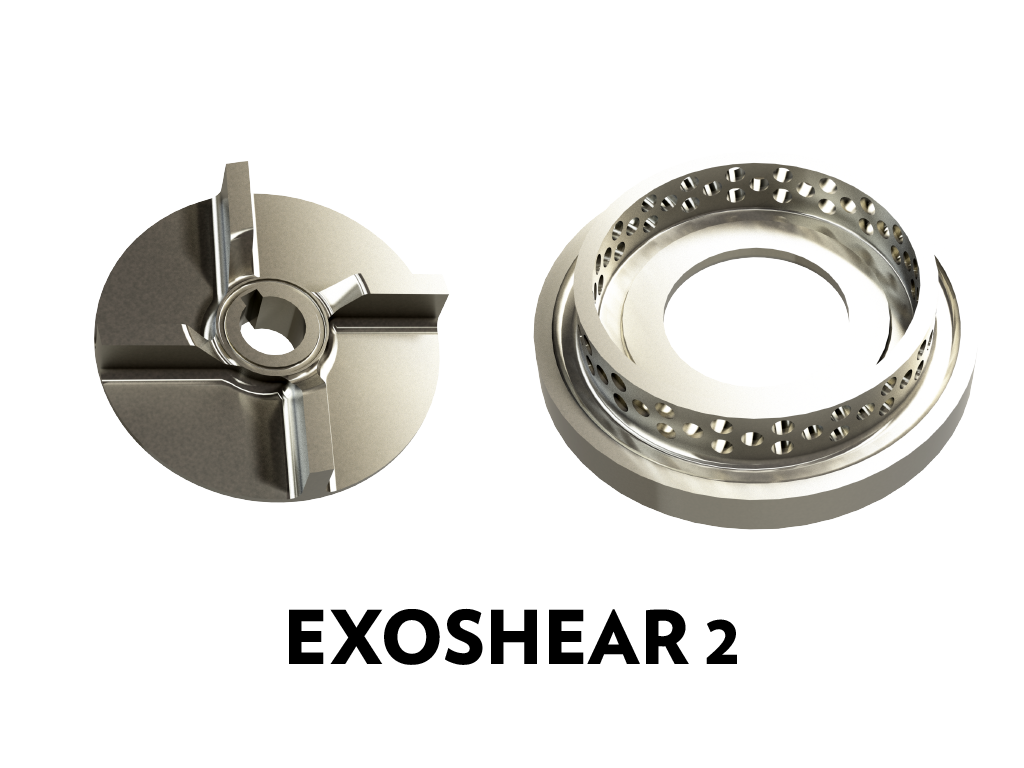

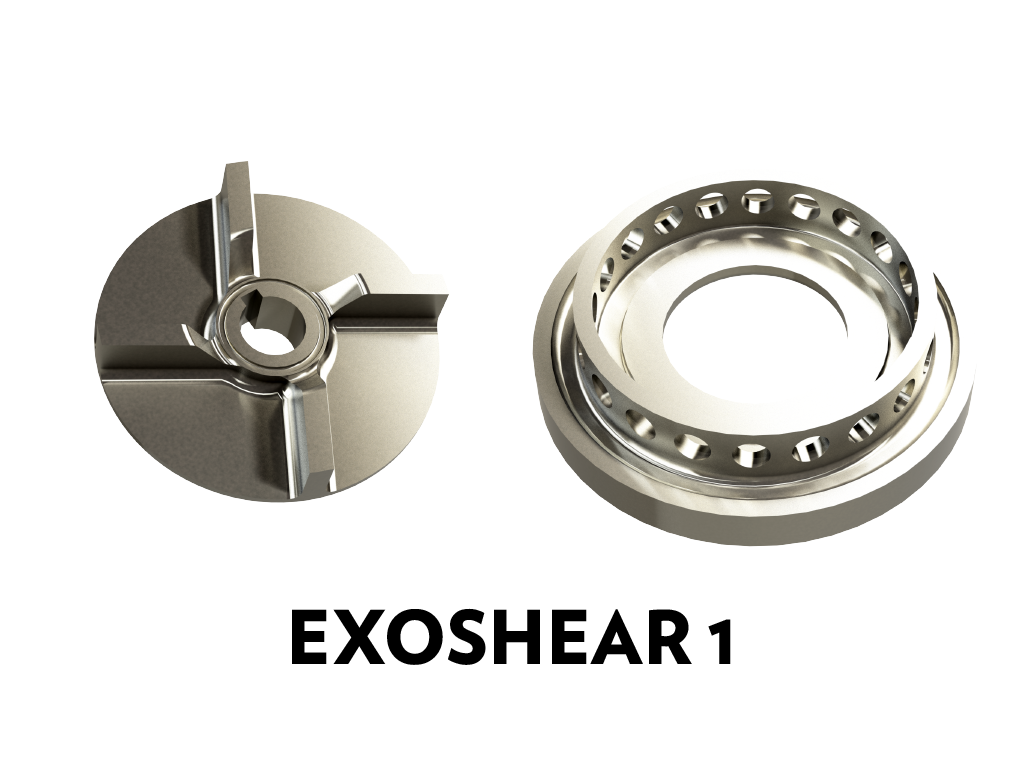

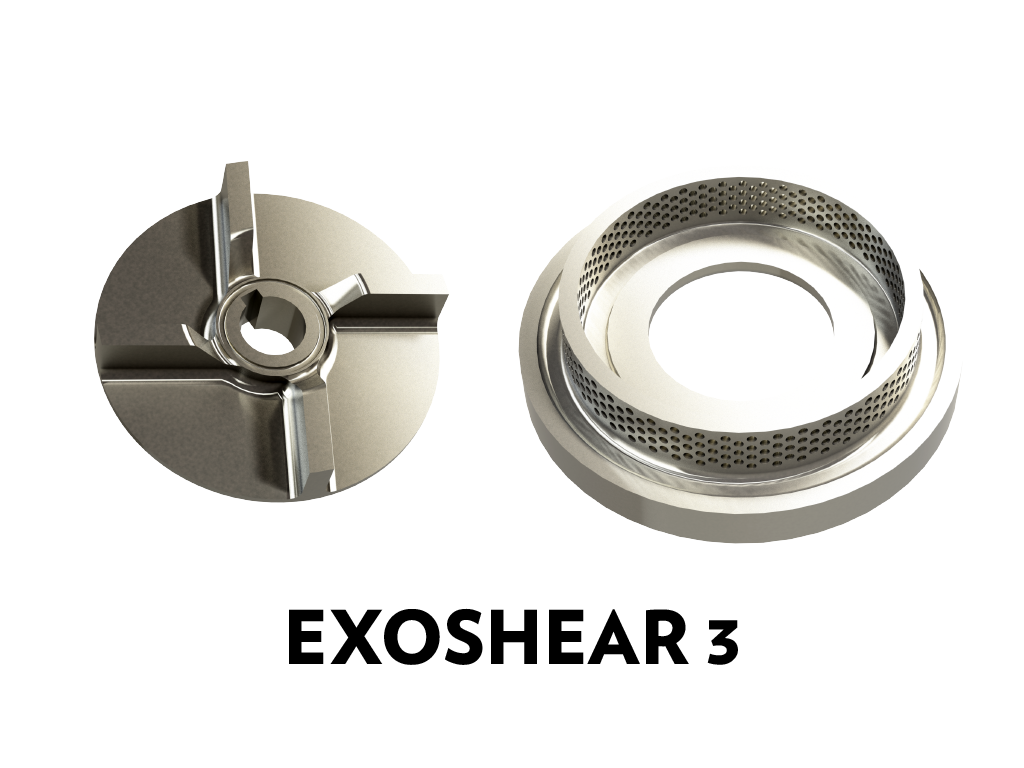

The ExoShear rotor stator provides a high flow rate and is commonly used in recirculating processes. Available in 3 configurations increasing in particle reduction stages.

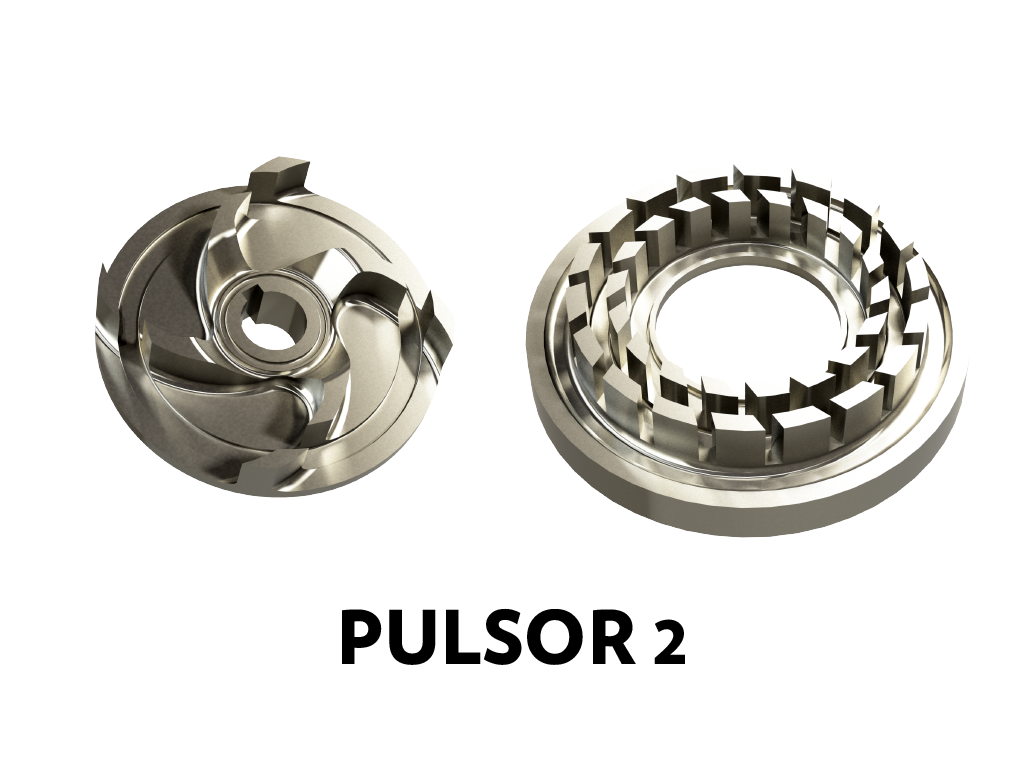

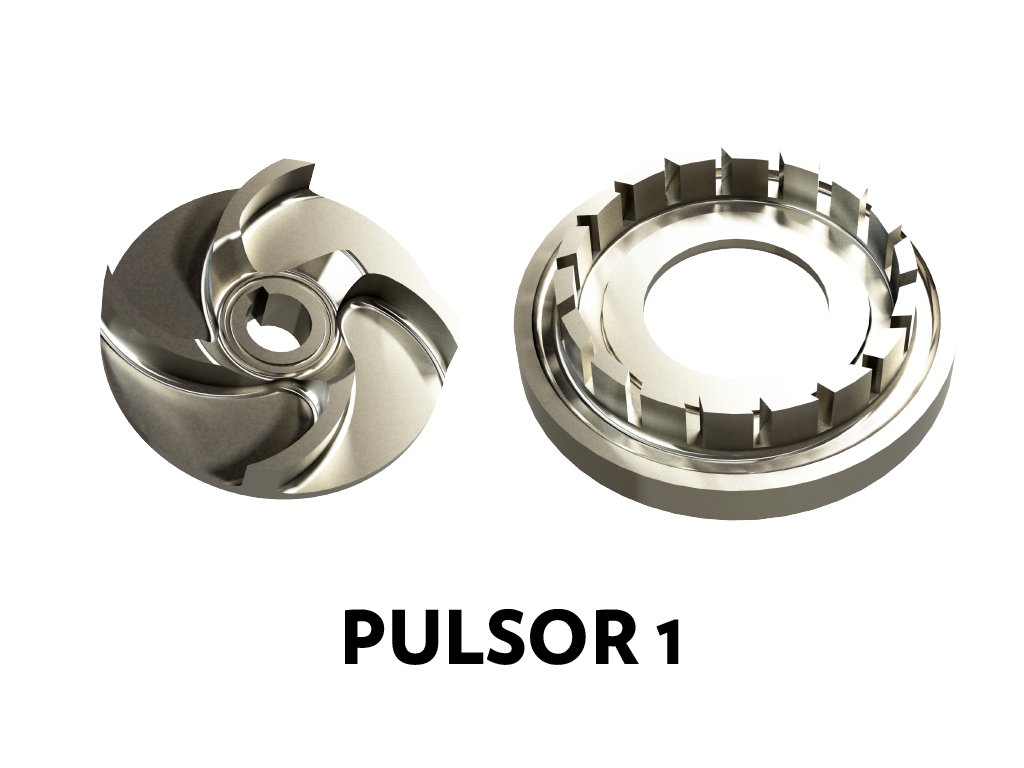

The Pulsor rotor stator uses a pumping rotor and toothed stator to provide moderate shear and medium flow capacity. The Pulsor is a great solution for tank-to-tank or recirculating processes where the final product can be achieved in multiple passes or with additional mixing downstream. Available in 2 configurations for increased pumping action.

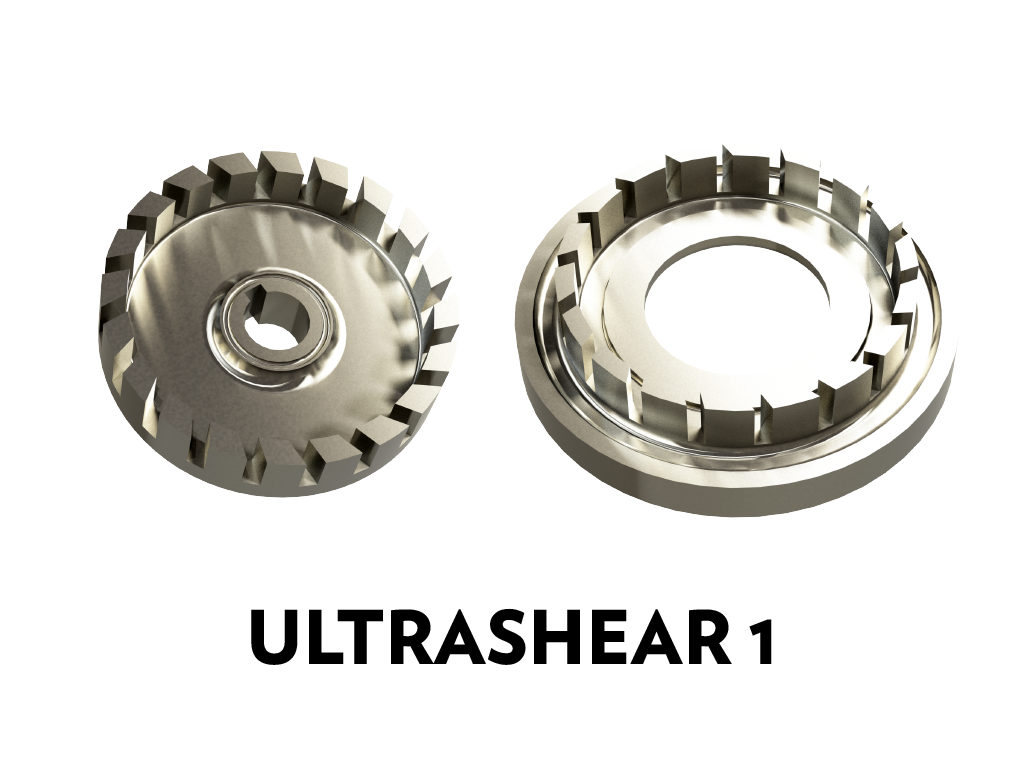

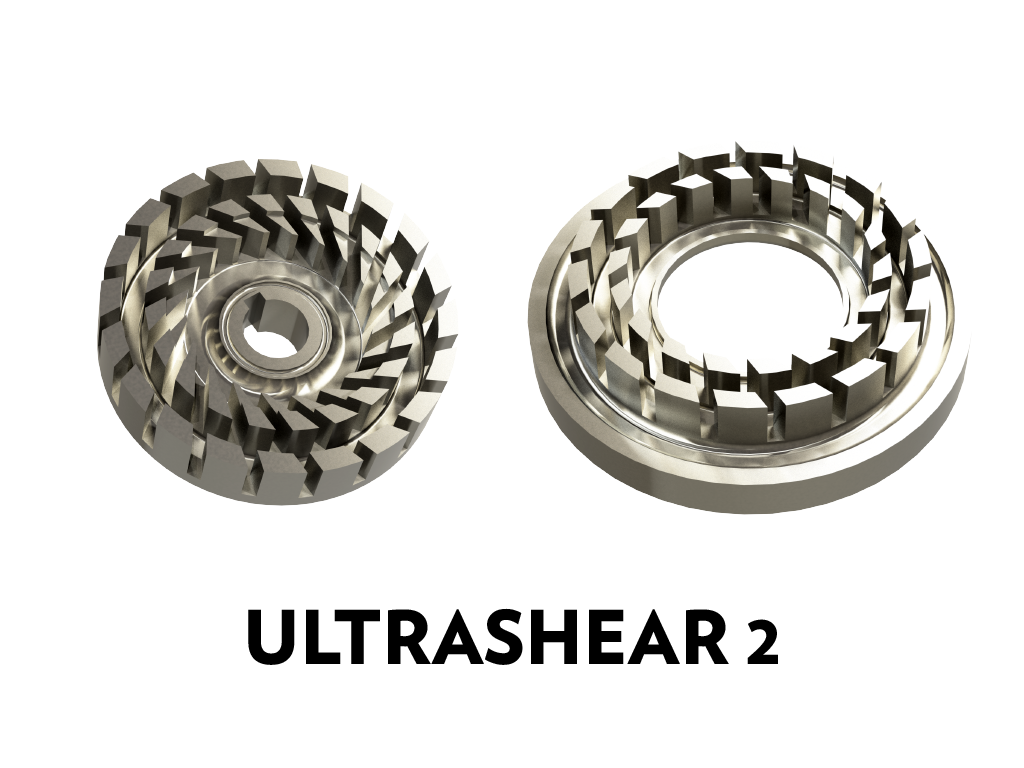

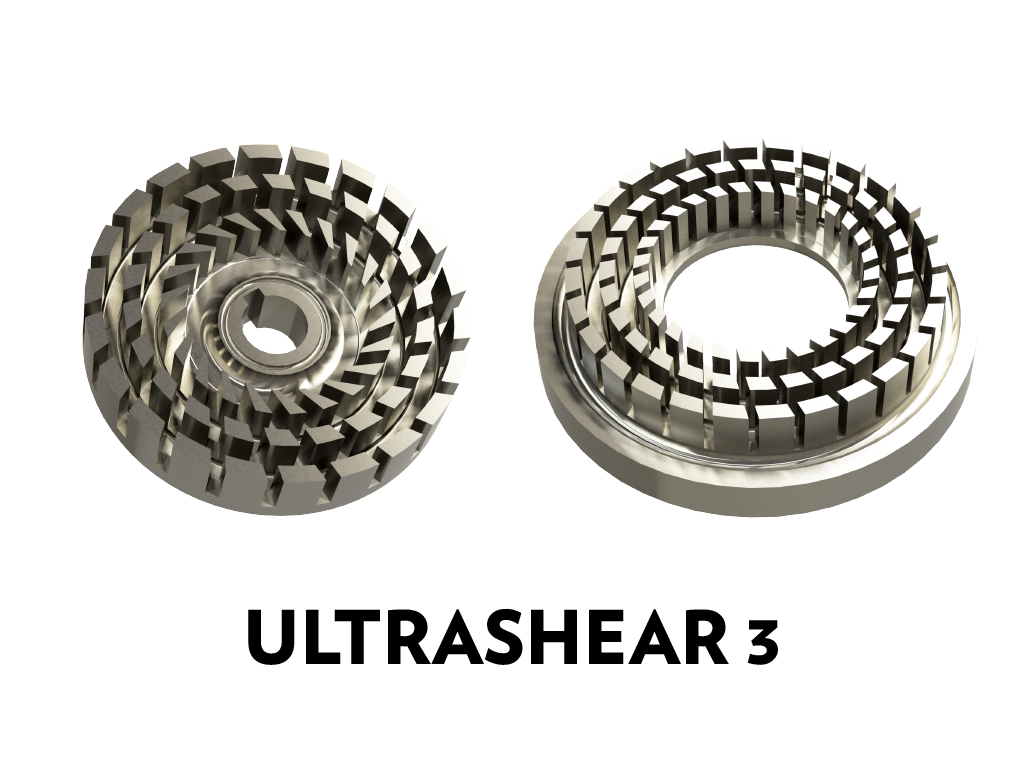

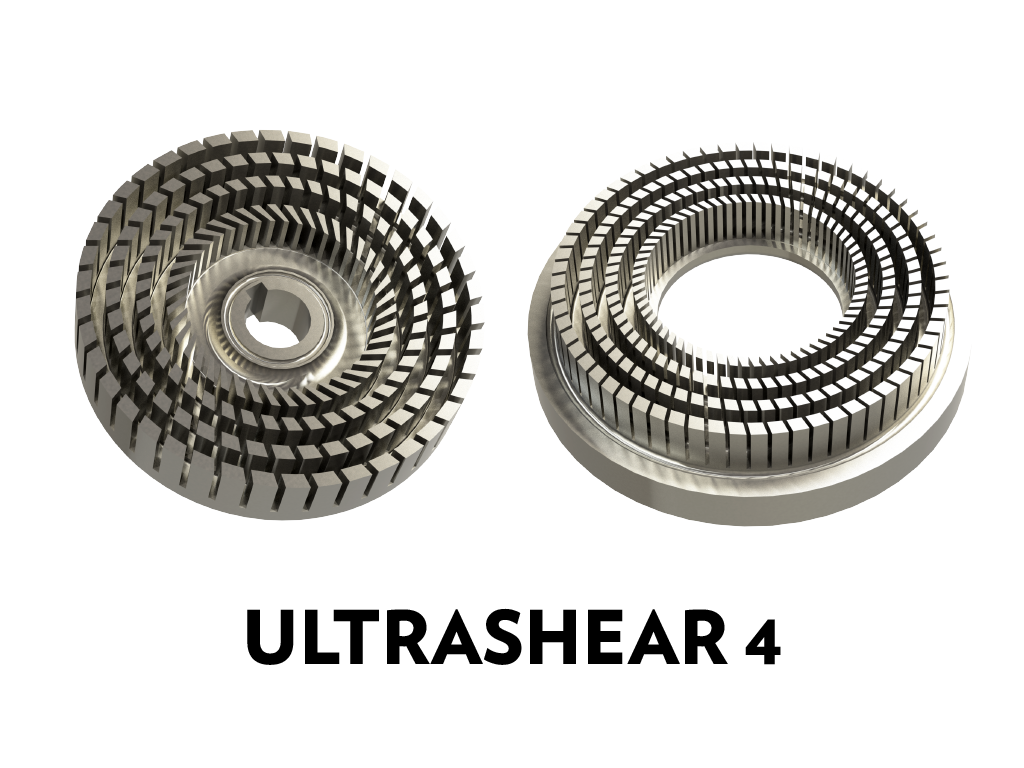

The UltraShear rotor stator provides a lower flow in exchange for the highest shear of the ShearPro tools. Use an UltraShear rotor stator to achieve the smallest particle size in a single pass through the ShearPro. Exceptional for use of thickening agents such as guar gum or polyacrylamide. Available in 4 configurations increasing in shear stages.
Experience the power of precision mixing with the ShearPro In-line Mixer - your go-to solution for versatile, high intensity in-line mixing, delivering unmatched results across various applications. Elevate your mixing processes and unlock unparalleled performance today!
- Item Number SP1010008-PDVES1
- Enclosure type IP55
- Horsepower 7.5 HP
- Impeller material 316SS
- Impeller type ExoShear 1
- Inlet fitting size 2 Tri-Clamp
- Lead time 45 Business Days
- Motor type TEFC Electric
- Mount Foot Mount
- Outlet fitting size 2 Tri-Clamp
- Phase 3 Ph.
- Rpm 3450
- Seal Double Mechanical - Viton
- Voltage 230/460V
What shipping methods do you offer?
UPS Package, FedEx Package, FedEx Freight
What are your payment options?
Credit Card and Pay Pal
Where are you shipping from?
All products are shipped from our plant in Jeffersonville, Indiana.
What time zone are you in?
Eastern Standard Time (NY)
How do I purchase with a PO?
Contact our sales team at firstname.lastname@example.org
What does lead time mean?
Lead time is the average number of business days until the product ships, it does not include shipping days.
