Small Batch | Laboratory | High Shear

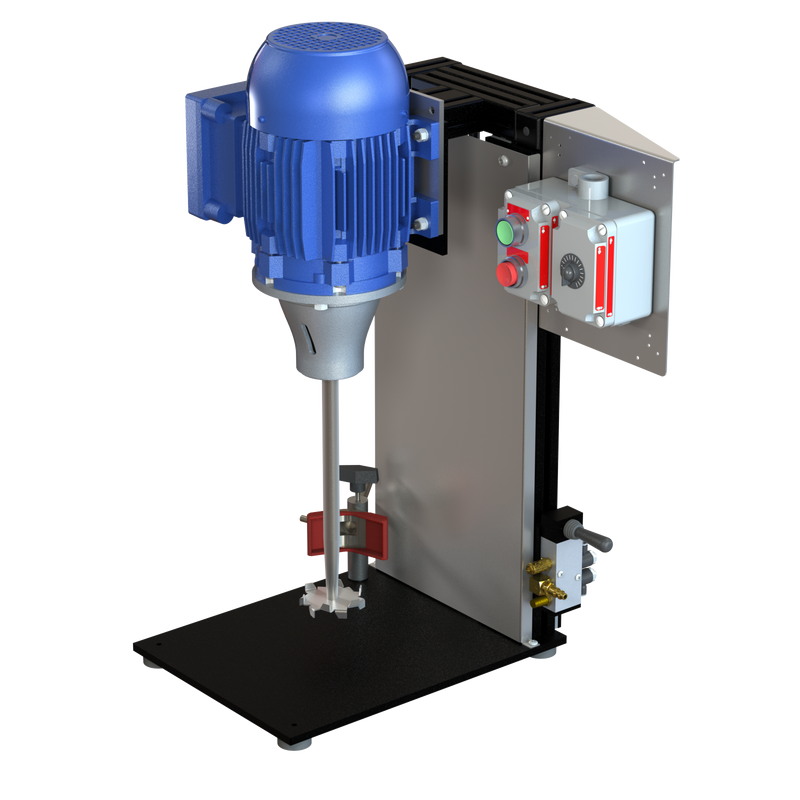

DP1 Explosion Proof Lab Benchtop Disperser

DP1 Explosion Proof Lab Benchtop Disperser
Small Batch | Laboratory | High Shear

DP1 Explosion Proof Lab Benchtop Disperser

Regular price $9,964.00
/
Lead Time: 7 Business Days
This high speed benchtop disperser provides high shear dispersion in small batch or laboratory settings. Easily control mixer speed to precisely optimize your blending processes.
Part Number: DP1015XDA

Bench Top Dispersers - Economical and Feature-Rich!

Unleash the true potential of cost-effective and high-performing mixing with the DP1 Line of bench top dispersers. This versatile high shear disperser effortlessly handles volumes ranging from 200 mL up to 5 gallons, catering to diverse batch sizes. Its unique container holder offers firm clamping across a wide diameter range, ensuring stability during the mixing process.

Experience unmatched adaptability with the one-step dispersion blade change-out feature, empowering operators to quickly fine-tune the process by using different blade sizes or geometries, perfectly accommodating the required shear level for each application. Safety is never compromised, as our explosion-proof disperser boasts an Inverter Duty Explosion Proof electric motor, ideal for use in hazardous environments.

Efficiency meets user-friendliness with the DP1 high-speed disperser line, featuring an air lift system that effortlessly moves the dispersion blade in and out of the mix. Operating controls are intuitive, facilitating smooth RPM adjustment and ensuring consistent dispersion results.

With an RPM range from 0 to 5000, these electric high shear mixers easily accommodate vessels up to 16” in height, catering to diverse mixing needs. For greater height requirements, explore our DP2 line of dispersers, offering equally exceptional performance.

Enhance your mixing processes with the DP1 Line of bench top dispersers, a cost-effective solution without compromising on features. Uncover the possibilities of efficient and hassle-free mixing for a wide range of applications!

  • Item Number DP1015XDA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 1.5 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 3 in.u0026 4 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 7 Business Days
  • Lift height 14 in.
  • Lift type Air
  • Max vessel height 16 in.
  • Motor type Explosion Proof Inverter Duty
  • Number of impellers 2
  • Phase 1 Ph.
  • Rpm 500-5000
  • Shaft diameter .75 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 30 in.
  • Total height raised 42 in.
  • Voltage 115V
  • Volume 200ml - 5 gal.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
