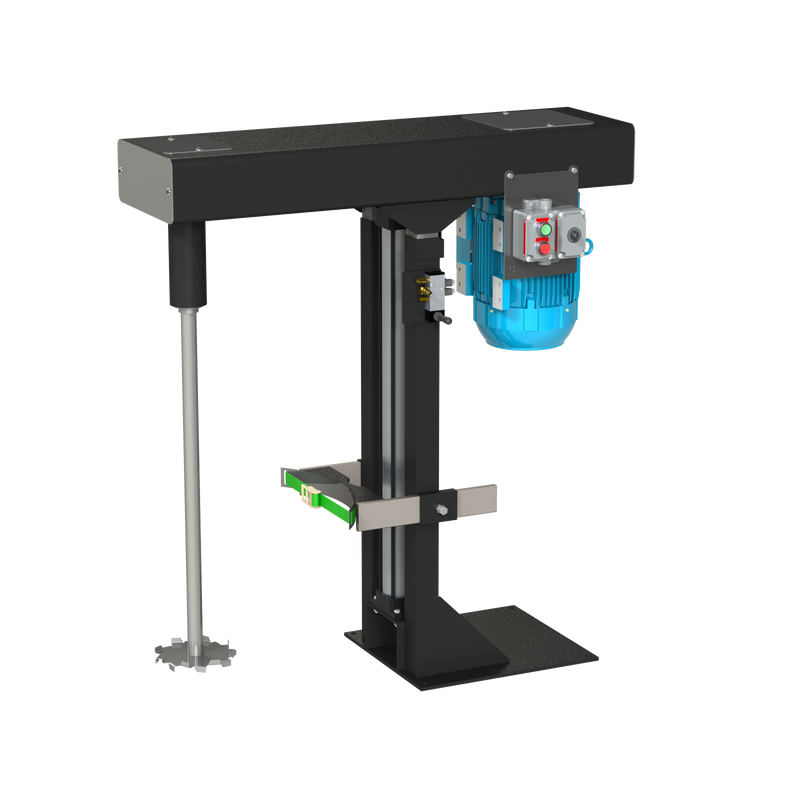

DP3 Series of High-Speed Dispersers - Perfect for 30-100 Gallon Volumes!
The DP3 Series of high-speed dispersers is expertly designed to accommodate mixing in volumes ranging from 30 to 100 gallons. Specially crafted to handle 55-gallon drums and similarly shaped vessels, this high shear disperser features an air lift system, providing up to 36" additional lift capacity for seamless blade changes, precise blade positioning, and effortless vessel movement to and from the disperser.
Experience unparalleled dispersing and blending capabilities with the DP3 Series, effortlessly handling products up to 15,000cps. The one-step dispersion blade change-out empowers operators to swiftly fine-tune the process using different size dispersion blades or blade geometries, perfectly accommodating the required shear level for each application.
Safety is paramount - our DP3 Series boasts an explosion-proof mixer, utilizing an Inverter Duty Explosion Proof electric motor, ensuring safe operations even in hazardous environments.
Operating from 0 to 1900 RPM, these electric high shear mixers efficiently accommodate vessels up to 38" in height, catering to diverse mixing needs. For greater height requirements, explore our DP4 line of dispersers, delivering exceptional performance.
Maximize your mixing efficiency with the DP3 Series of high-speed dispersers, meticulously designed for volumes from 30 to 100 gallons. Experience effortless and precise mixing for a wide range of applications, even in challenging environments!
- Item Number DP3030XBA
- Air lift requirement 80psi @ 1cfm
- Enclosure type IP55
- Horsepower 3 HP
- Impeller attachment Bolted onto internally threaded shaft
- Impeller diameter 5 in.
- Impeller material 316SS
- Impeller type Dispersion Blade
- Lead time 15 Business Days
- Lift height 36 in.
- Lift type Air
- Max vessel height 40 in.
- Motor type Explosion Proof Inverter Duty
- Number of impellers 1
- Phase 3 Ph.
- Rpm 400-4000
- Shaft diameter 1.5 in.
- Shaft material 316SS
- Speed controller Variable Frequency Drive (VFD)
- Total height lowered 53 in.
- Total height raised 89 in.
- Voltage 460V
- Volume 20-55 gals.
