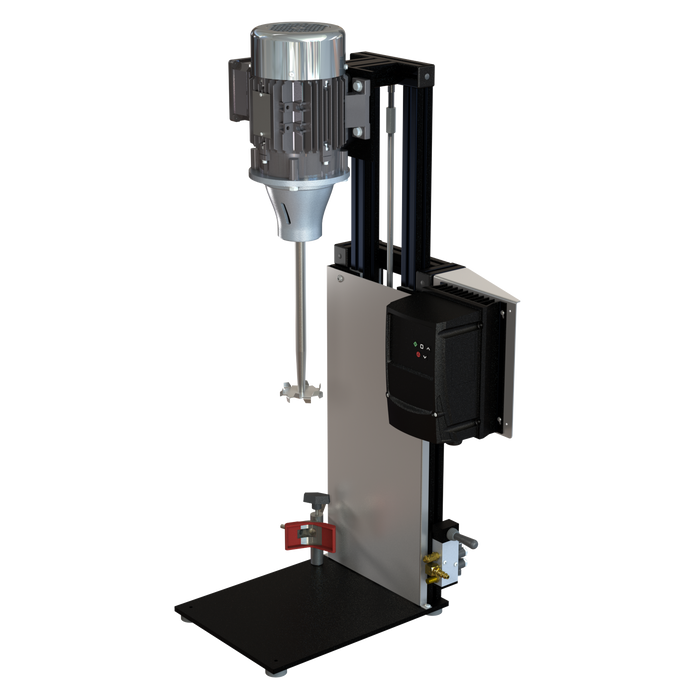

Bench Top Dispersers - Economical and Feature-Rich!
Our DP1 Line of bench top dispersers stand as a top-notch choice, offering an optimal balance between economy and functionality in the market. Designed to handle a wide range of volumes, from 200 mL up to 5 gallons, this high shear disperser accommodates various batch sizes with ease. Its unique container holder ensures a secure and firm clamp for vessels of different diameters, providing excellent stability during the mixing process.
Experience unparalleled versatility with the one-step dispersion blade change-out feature, allowing operators to quickly adapt the process using different blade sizes or geometries tailored to specific shear level requirements. This disperser is equipped a Totally Enclosed Fan Cooled (TEFC) electric motor, IP55 rated for safeguarding against water spray and dust ingress, ensuring reliable and safe operations.
Simplicity meets efficiency with the DP1 high-speed disperser line, equipped with an air lift system that effortlessly moves the dispersion blade in and out of the mix. Operating controls are user-friendly, complemented by an RPM readout, ensuring consistent dispersion results every time.
With a wide RPM range of 0-5000, these electric high shear mixers can accommodate vessels up to 16” in height, catering to various mixing needs. For greater height requirements, explore our DP2 line of dispersers, delivering equally exceptional performance.
Embrace cost-effective and feature-rich mixing solutions with the DP1 Line of bench top dispersers, delivering outstanding results with utmost ease of use. Maximize your mixing potential for diverse applications!
- Item Number DP1010VDE
- Air lift requirement 80psi @ 1cfm
- Enclosure type IP55
- Horsepower 1 HP
- Impeller attachment Bolted onto internally threaded shaft
- Impeller diameter 2 in.u0026 3 in.
- Impeller material 316SS
- Impeller type Dispersion Blade
- Lead time 7 Business Days
- Lift height 12 in.
- Lift type Electric
- Max vessel height 15 in.
- Motor type TEFC Electric
- Number of impellers 2
- Phase 1 Ph.
- Rpm 500-5000
- Shaft diameter .75 in.
- Shaft material 316SS
- Speed controller Variable Frequency Drive (VFD)
- Total height lowered 29 in.
- Total height raised 41 in.
- Voltage 115V
- Volume 200ml - 5 gal.
What shipping methods do you offer?
UPS Package, FedEx Package, FedEx Freight
What are your payment options?
Credit Card and Pay Pal
Where are you shipping from?
All products are shipped from our plant in Jeffersonville, Indiana.
What time zone are you in?
Eastern Standard Time (NY)
How do I purchase with a PO?
Contact our sales team at firstname.lastname@example.org
What does lead time mean?
Lead time is the average number of business days until the product ships, it does not include shipping days.
