1000+ Gallon | Heavy Duty Construction

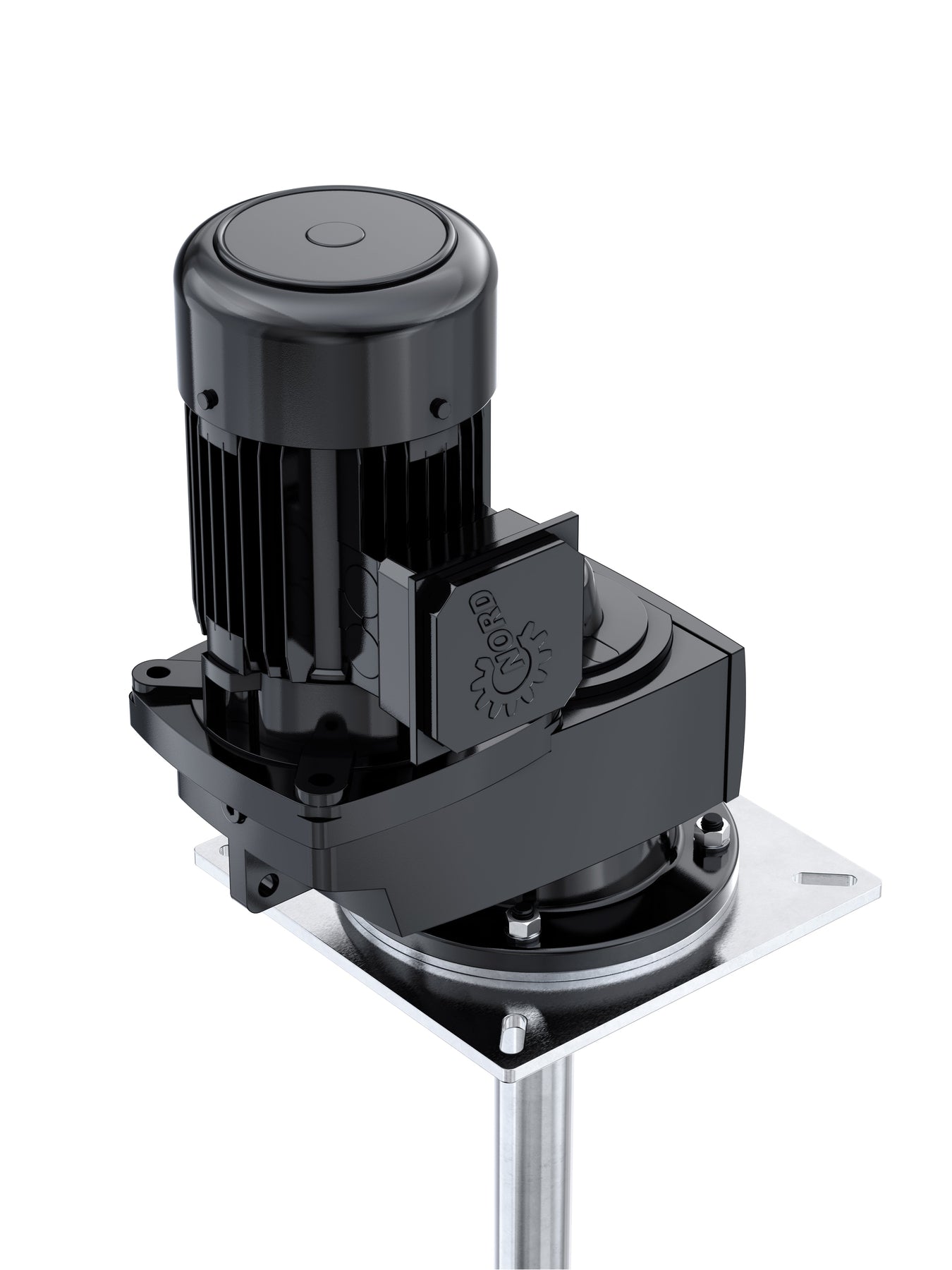

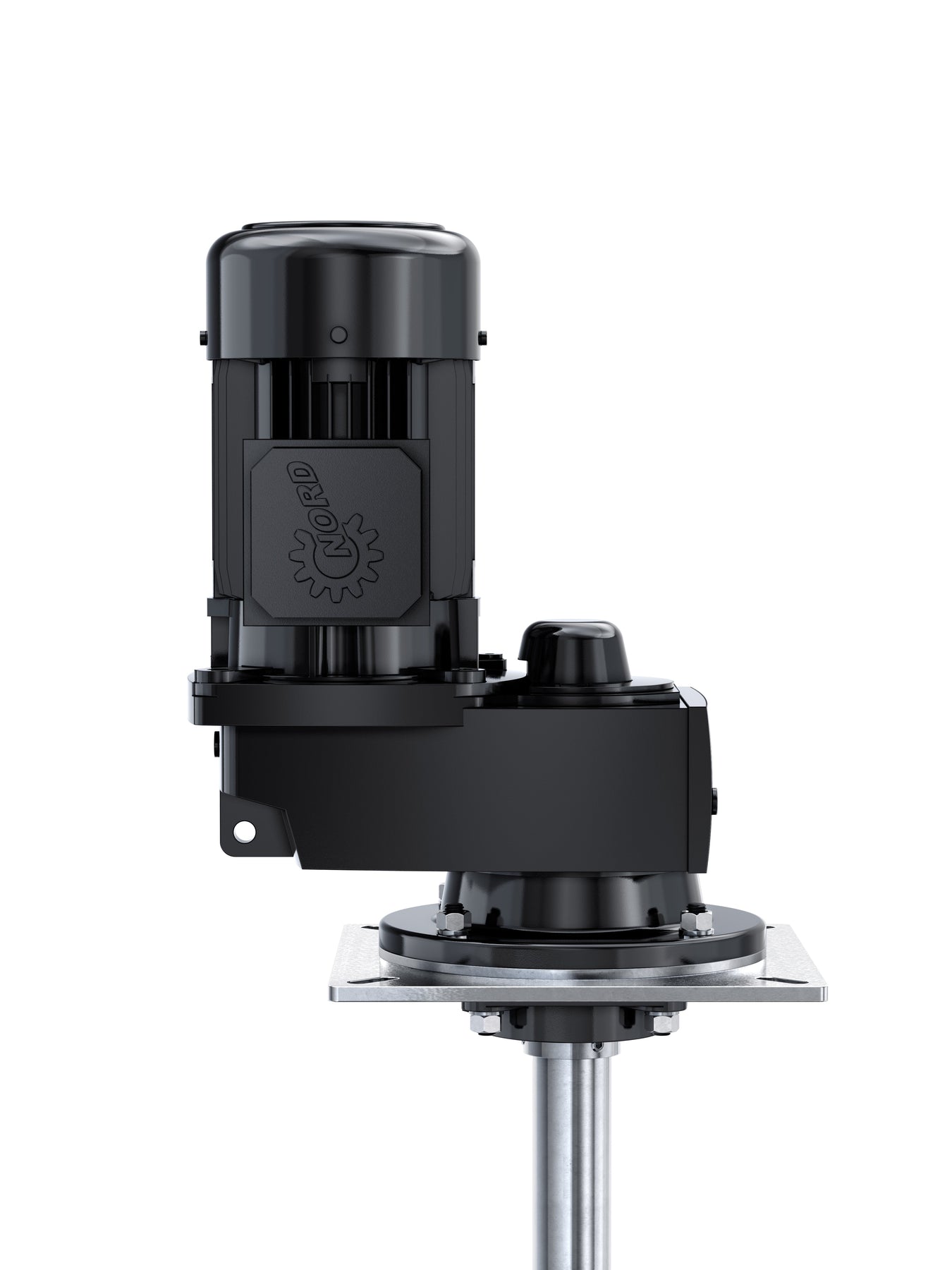

3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer

3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer
3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer
3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer
3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer
1000+ Gallon | Heavy Duty Construction

3 HP Explosion Proof Raiden Plus Top Entry Plate Mount Mixer

Regular price $11,076.00
/
Lead Time: 3 Business Days
The Explosion Proof Raiden Plus mixer provides low maintenance, heavy duty mixing in hazardous environments. Designed for high volume applications.
Part Number: RDNPLUS030PX-80

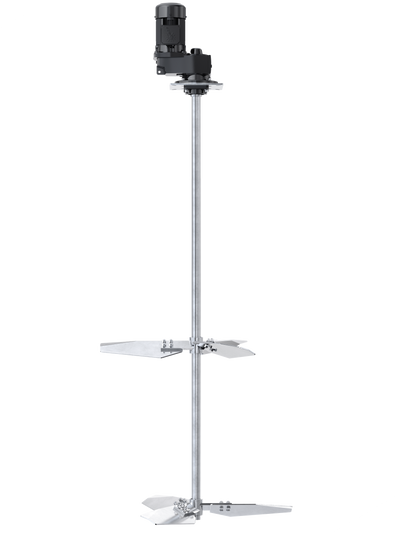

Our top of the line Raiden Plus top-entry mixer offers extreme durability and increased mixing power from most other agitators. Designed for applications over 1,000 gallons and a wide range of viscosities, the Raiden Series provides a low maintenance and long lasting mixer solution to your process. The Raiden Plus mixer is equipped with a 3 horsepower Explosion Proof electric motor. The motors are IP55 rated enclosures that protect against water spray and dust ingress. Raiden Plus motors are rated and badged for 230/460V, 3 Phase 60Hz or 200/400V, 3 Phase 50Hz operation. These motors are also inverter rated and can be safely wired into a variable speed control system. All Raiden Plus mixers utilize a helical gearbox to provide high torque in even the most challenging applications. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. This Raiden Plus mixer attaches easily and securely to a bridge or plate attachment on a vessel. Select your desired mixing shaft length and two appropriately sized hydrofoil impellers will be matched to your mixer.

  • Item Number RDNPLUS030PX-80
  • Enclosure type IP55
  • Gearbox ratio 25.88:1
  • Horsepower 3 HP
  • Impeller attachment Keyed with set screws
  • Impeller diameter 44 in.
  • Impeller material 316SS

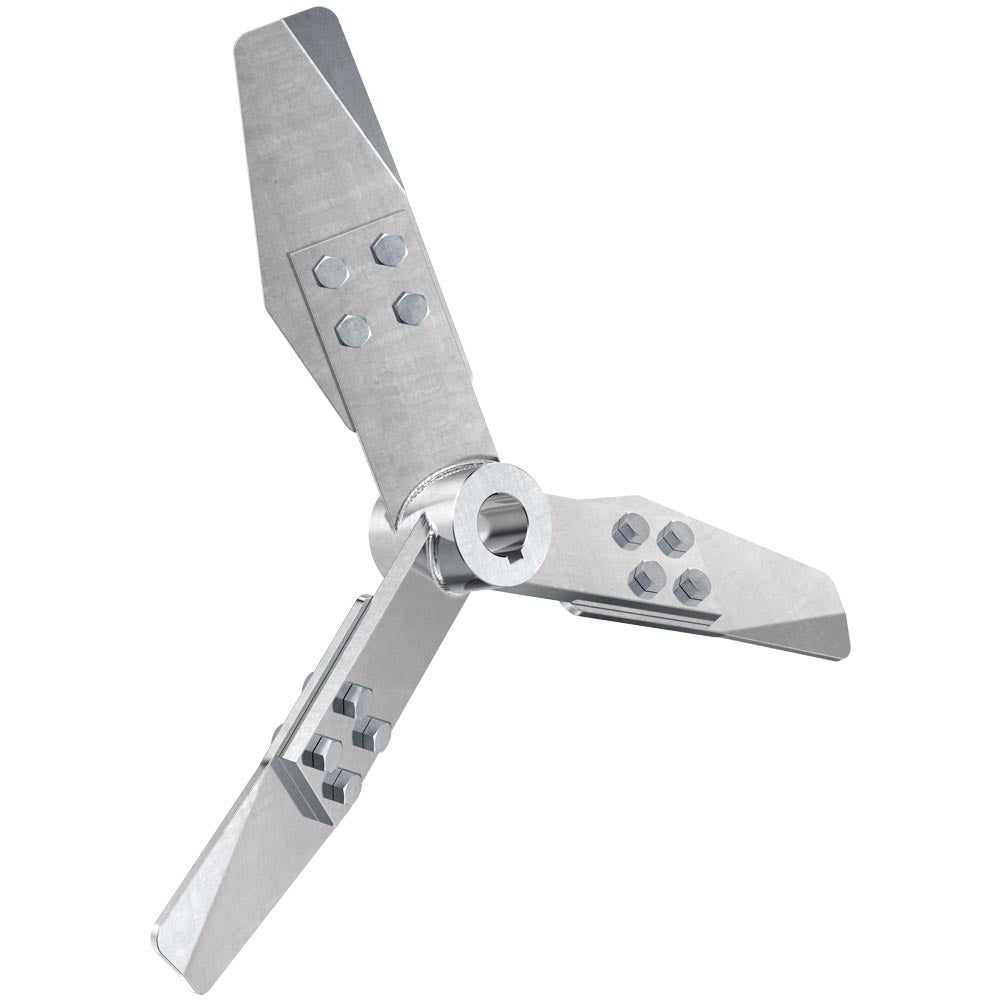

  • Impeller type Hydrofoil
  • Lead time 3 Business Days
  • Motor type Explosion Proof Inverter Duty
  • Mount Plate
  • Mount dimension 12x12x3/8
  • Number of impellers 2
  • Phase 3 Ph.
  • Rpm 68
  • Shaft diameter 2 in.
  • Shaft length 80 in.
  • Shaft material 316SS
  • Voltage 230/460V
  • Weight 440 lbs.
