20-1000 Gallon | Tank Mounted | Sanitary

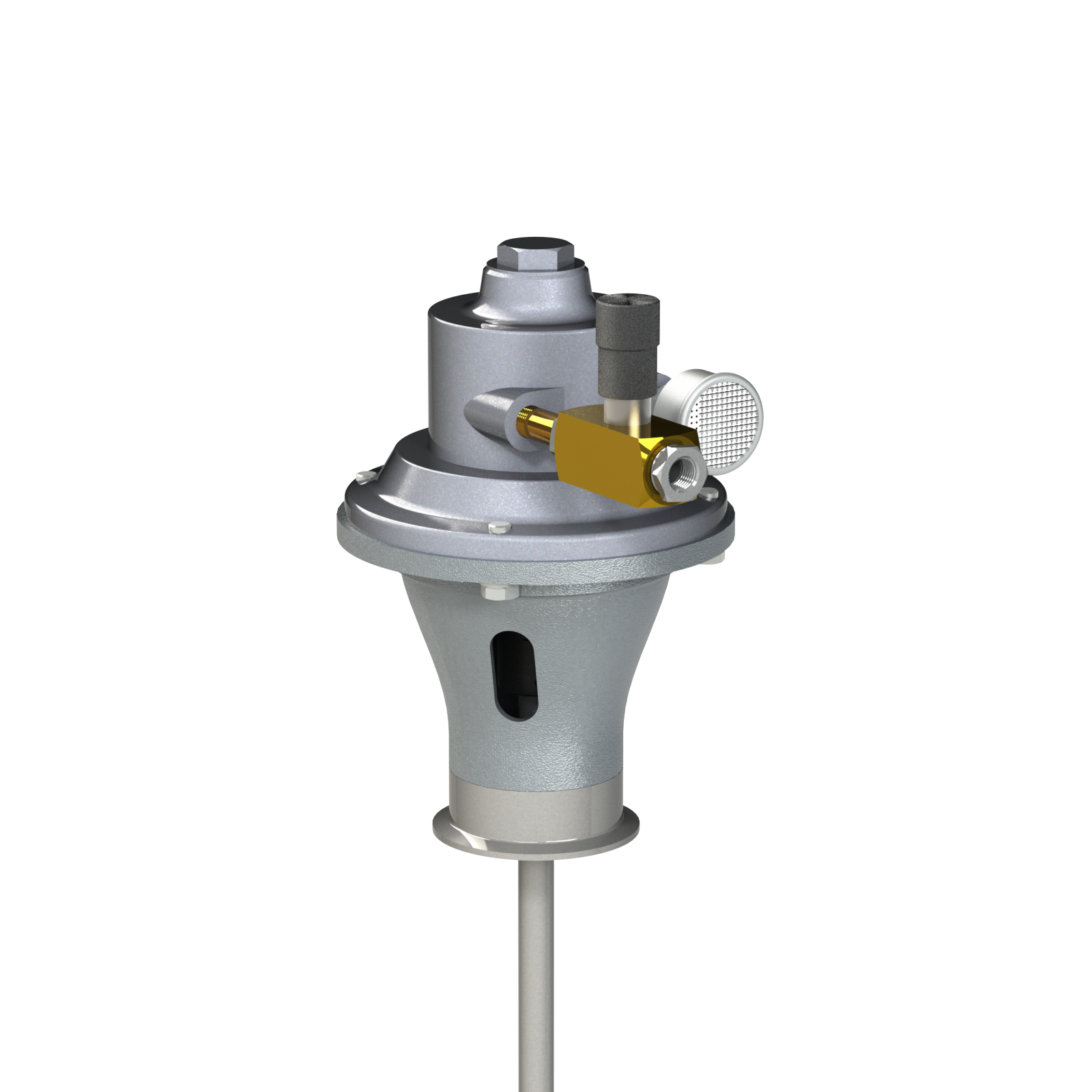

Air Direct Drive Tri-Clamp Mount Mixer

Air Direct Drive Tri-Clamp Mount Mixer
Air Direct Drive Tri-Clamp Mount Mixer
Air Direct Drive Tri-Clamp Mount Mixer
Air Direct Drive Tri-Clamp Mount Mixer
20-1000 Gallon | Tank Mounted | Sanitary

Air Direct Drive Tri-Clamp Mount Mixer

Regular price $2,919.00
/
Lead Time: 3 Business Days
Favored for their sanitary applications, these tri-clamp mounted mixers utilize a shaft seal to prevent contamination of your liquid ingredients while processing. Easily attach this mixer directly to 3" tri-clamp fittings on your vessel.
Part Number: TCM075ADD-26

Lightweight, durable, portable and sanitary - our tri-clamp mixers are utilized across numerous processing industries.

The features of our tri-clamp mixers include:

  • Easy attachment to a 3 in. tri-clamp fitting
  • Includes FDA lip shaft seal for mixer and liquid ingredient protection
  • Constructed with a heavy-duty air motor for safety in hazardous environments
  • Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
  • Option to select desired horsepower and shaft length
  • Appropriate propeller or hydrofoil impeller matched to the selected horsepower and shaft length.

  • Item Number TCM075ADD-26
  • Air motor requirement 30cfm @ 100psi
  • Horsepower 3/4 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller material 316SS
  • Impeller type Propeller
  • Lead time 3 Business Days
  • Motor type Air Motor
  • Mount Tri-Clamp
  • Mount dimension 3 in.
  • Number of impellers 1
  • Rpm 0-3000
  • Seal FDA Lip Seal
  • Shaft diameter .625 in.
  • Shaft length 26 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
