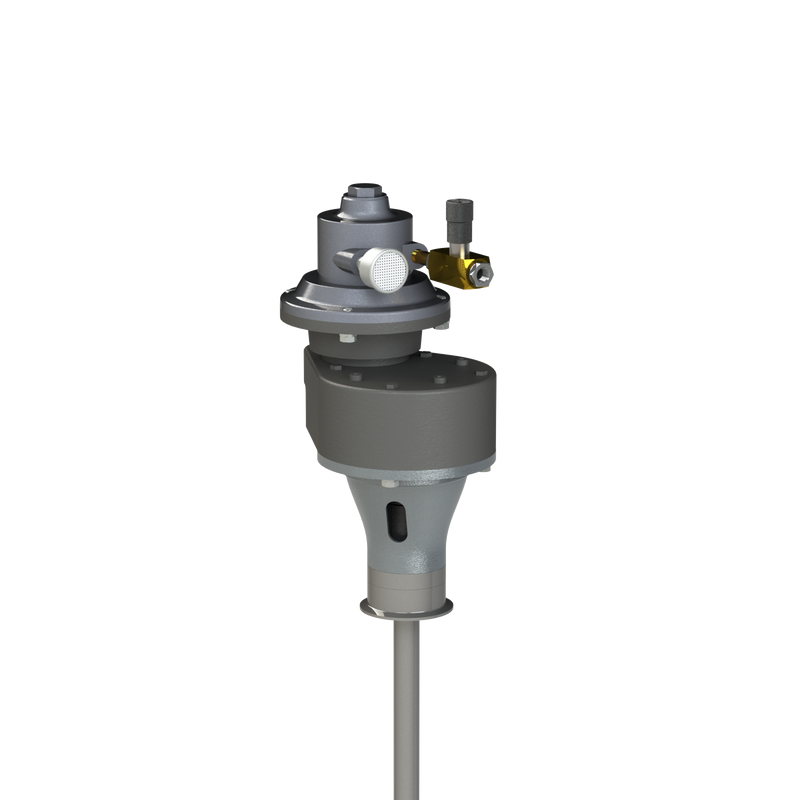

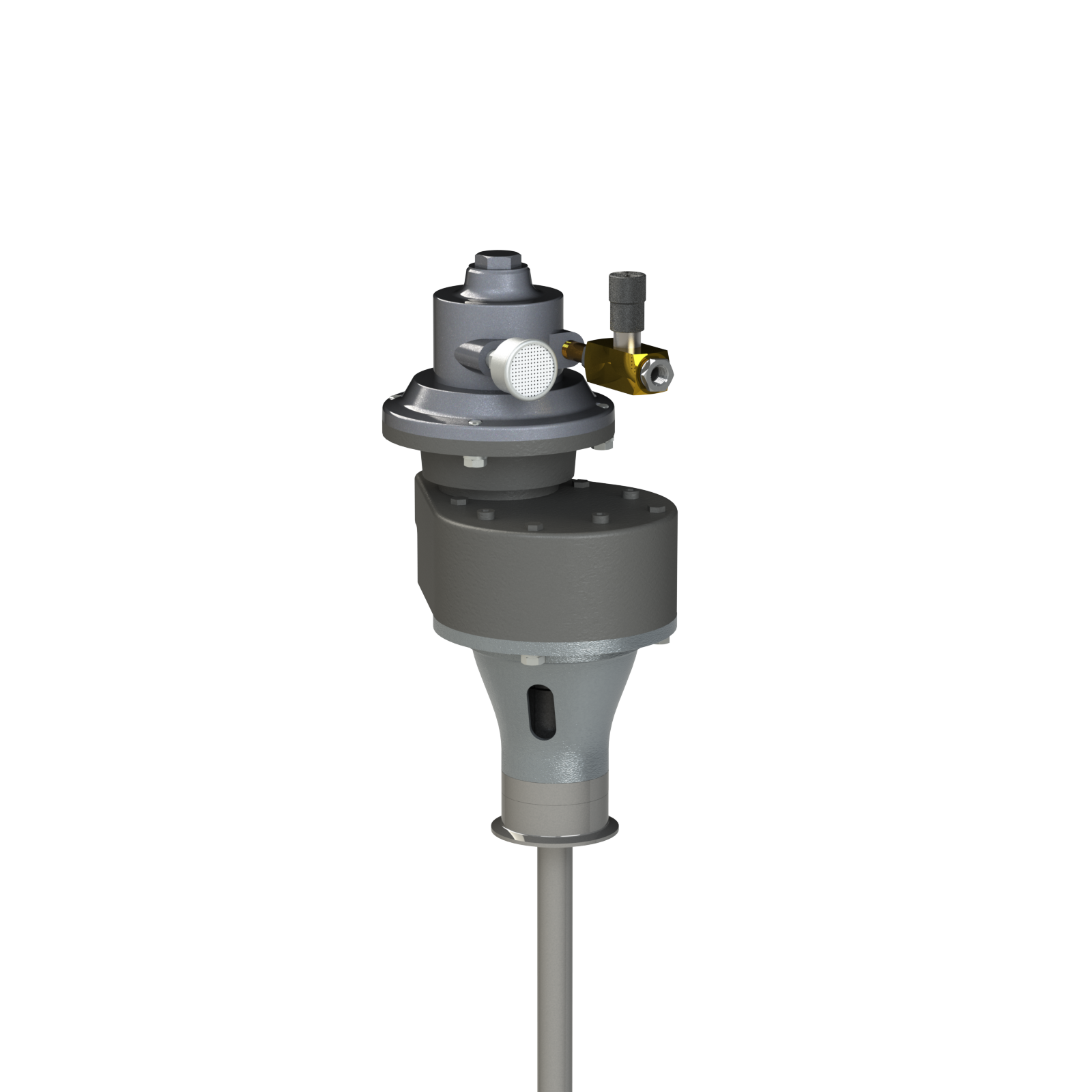

Lightweight, durable, portable and sanitary - our tri-clamp mixers are utilized across numerous processing industries.
The features of our tri-clamp mixers include:
- Easy attachment to a 3 in. tri-clamp fitting
- Includes FDA lip shaft seal for mixer and liquid ingredient protection
- Constructed with a heavy-duty air motor for safety in hazardous environments
- Gearbox allows for lower RPMs and higher torque
- Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
- Option to select desired horsepower and shaft length
- Appropriate propeller or hydrofoil impeller matched to the selected horsepower and shaft length.
- Item Number TCM075AGD-24
- Air motor requirement 30cfm @ 100psi
- Gearbox ratio 5:1
- Horsepower 3/4 HP
- Impeller attachment Set screw
- Impeller diameter 10 in.
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 3 Business Days
- Motor type Air Motor
- Mount Tri-Clamp
- Mount dimension 3 in.
- Number of impellers 1
- Rpm 0-600
- Seal FDA Lip Seal
- Shaft diameter 1 in.
- Shaft length 24 in.
- Shaft material 316SS
- Speed controller Brass Precision Needle Valve
