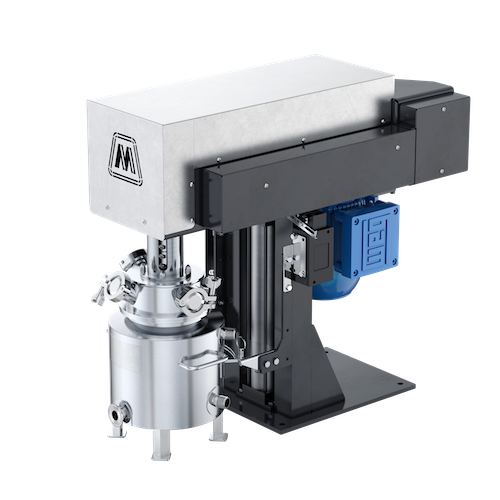

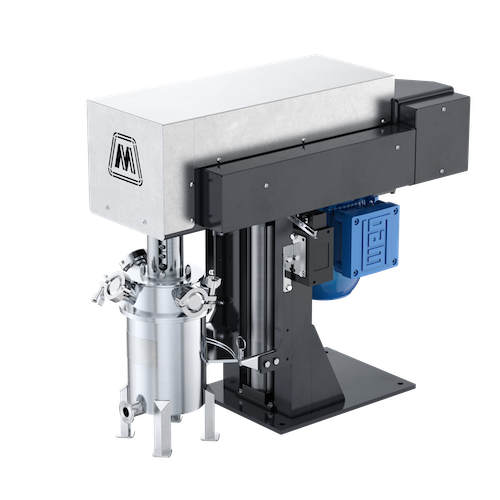

This 1 gallon dual shaft disperser is equipped with an anchor impeller and dispersion blade to efficiently and effectively mix ultra-high viscosity products. Our 1 gallon dual shaft disperser can easily handle products with viscosity up to 1.5million cps. The mixers are operated independently to allow for speed variations as the product or application rheology changes. Standard motor options include TEFC electric motor or explosion proof inverter duty rated electric motor. The stainless steel tank can be upgraded to include an insulated jacket for heating or cooling fluids.
- Item Number DSM11GSS-21
- Enclosure type IP55
- Horsepower 1 HPDisperser, 1/3 HPAnchor
- Impeller diameter Dispersion Blade: 2 in.
- Impeller material 316SS
- Impeller type Dispersion Blade, Anchor
- Lead time 45 Business Days
- Lift type Air
- Motor type TEFC Electric
- Phase 3 Ph.
- Rpm Disperser: 8100, Anchor: 88
- Shaft material 316SS
- Speed controller Variable Frequency Drive (VFD)
- Total height lowered 30 in.
- Total height raised 44 in.
- Volume 1 gal.
