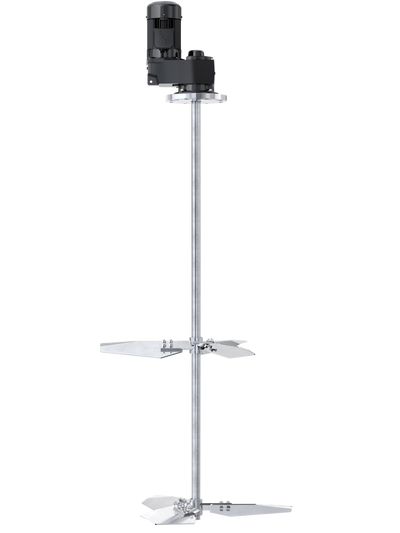

10 HP Raiden Plus Top Entry Flange Mount Mixer

Lead Time: 3 weeks $12,377
Customize Item

Details

The Raiden Plus mixer line delivers a new quality in top entry mixers for large tank mixing applications.

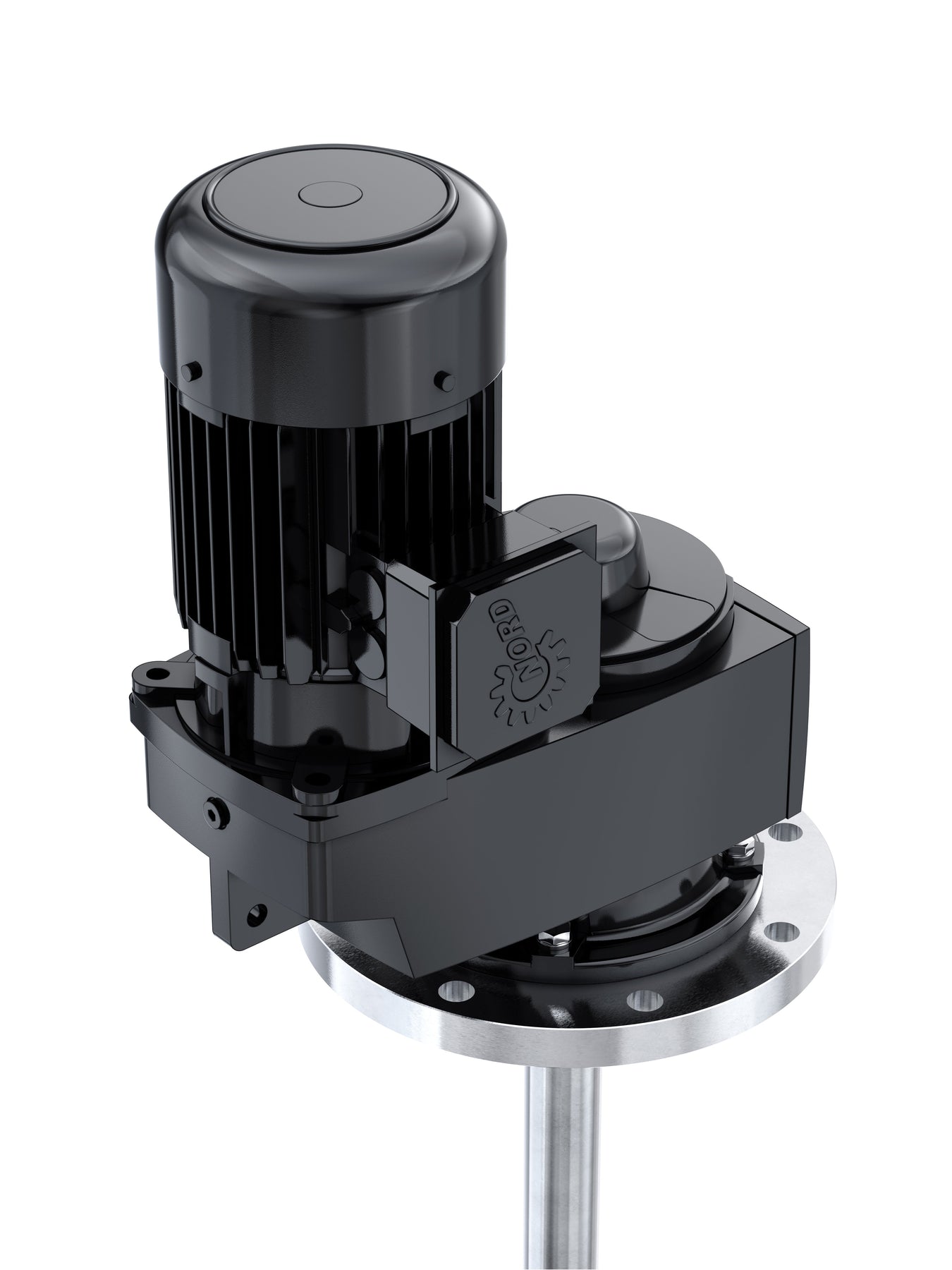

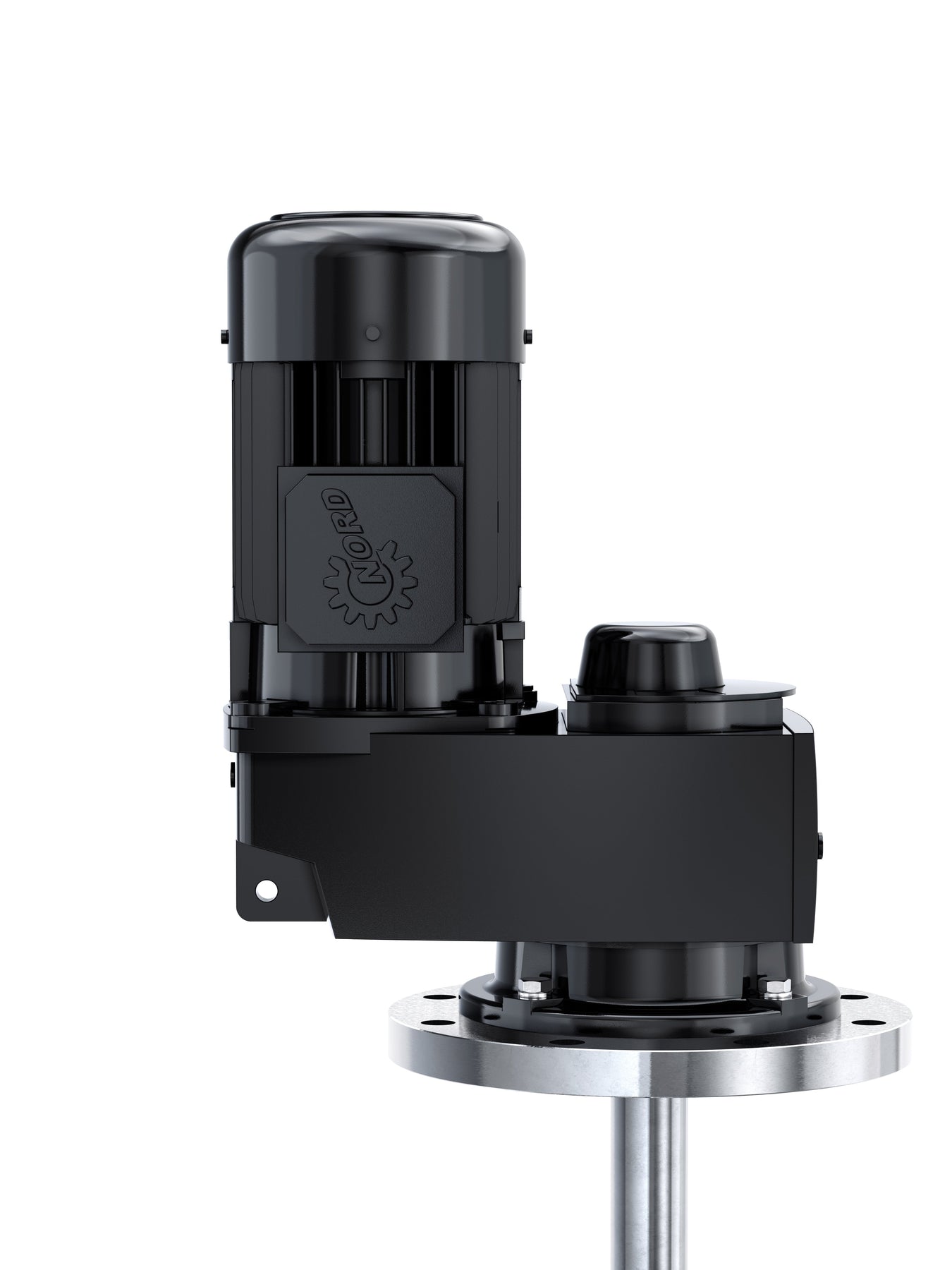

The 10 HP Raiden Plus Flange Mount Mixer is equipped with a Totally Enclosed Fan Cooled (TEFC) electric motor. The motors are suitable for inside or outside applications carrying an IP55 enclosure rating that protects against water spray and dust ingress. This 10 HP mixer is perfect for USA or international applications. These motors are also inverter rated and can be safely wired into a variable speed control system. Let us know if you would like to add a Speed Controller to your Raiden Plus mixer. Suggested tank volume for this mixer 5,000 to 10,000 gallons.



Have a question?

Fill out my online form.
Download Specs Sheet

Specifications

  • Item Number RDNPLUS100F-90
  • Gearbox Yes
  • Gearbox Ratio 25:1
  • Gear Type Premium Helical
  • Horsepower 10

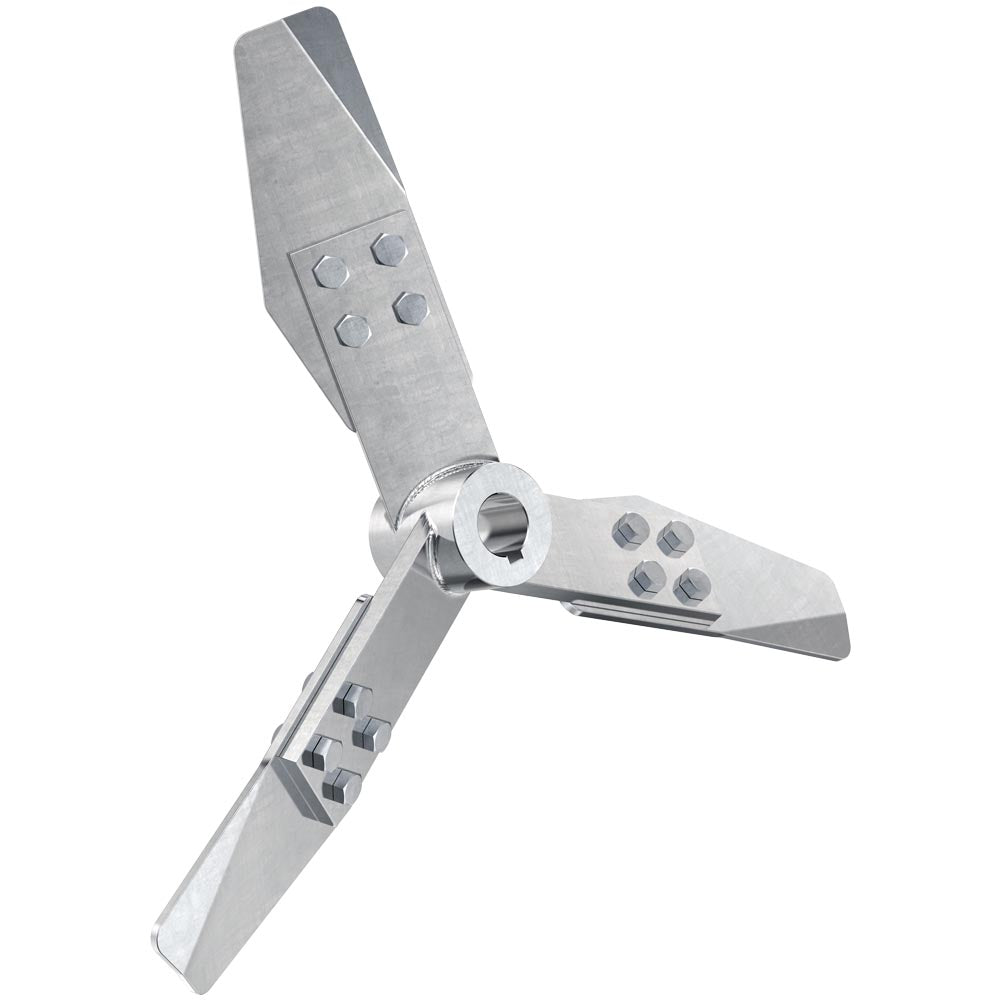

  • Impeller Diameter 52
  • Impeller Material 316SS
  • Motor Type TEFC
  • Mount Flange
  • Mount Dimension 8" ANSI Cl150 Flange
  • Phase 3
  • RPM 68
  • Seal Yes
  • Seal Type FDA LIP/SB40
  • Shaft Diameter 2.5
  • Shaft Length 90"-132"
  • Voltage 230/460
  • Weight 728
