350 Gal SS Tote & Mixer System (1000cps)
350 Gal SS Tote & Mixer System (1000cps)
350 Gal SS Tote & Mixer System (1000cps)

350 Gal SS Tote & Mixer System (1000cps)

Default Title
Lead Time: 10 business days $4,858
Customize Item

Details

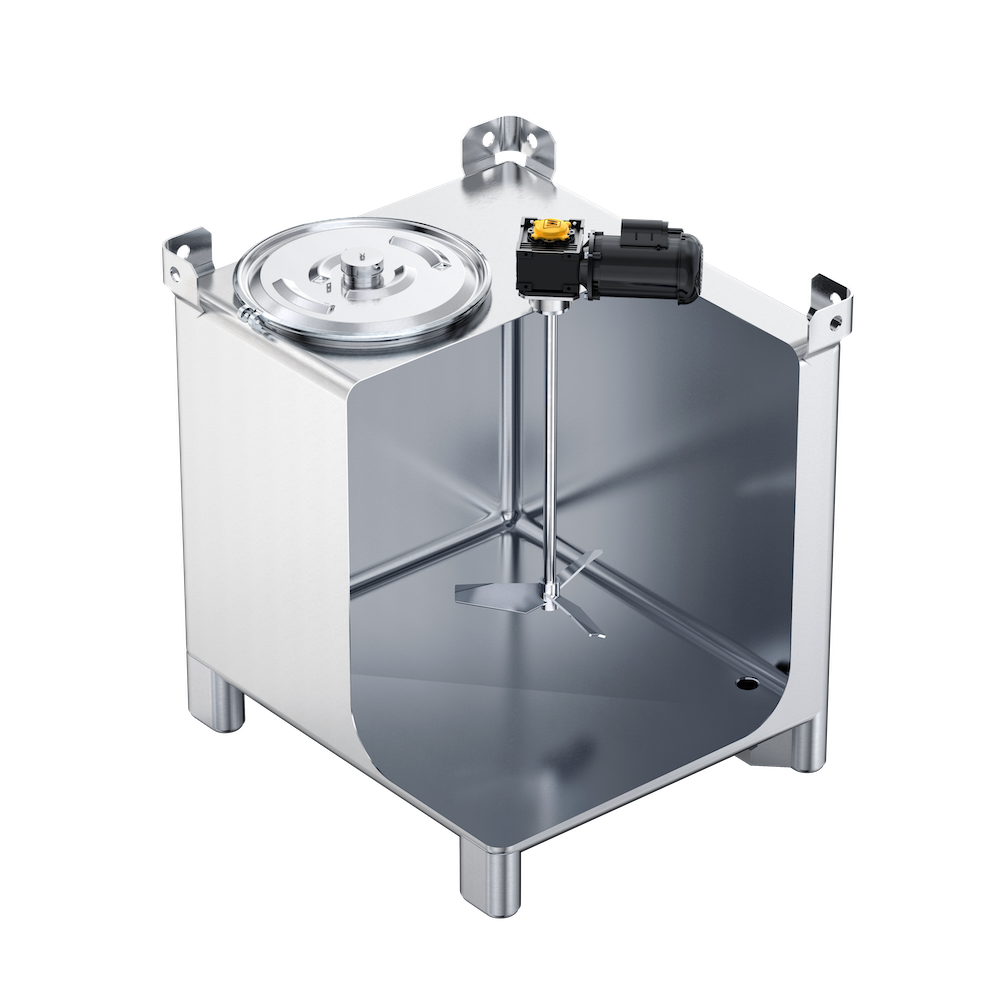

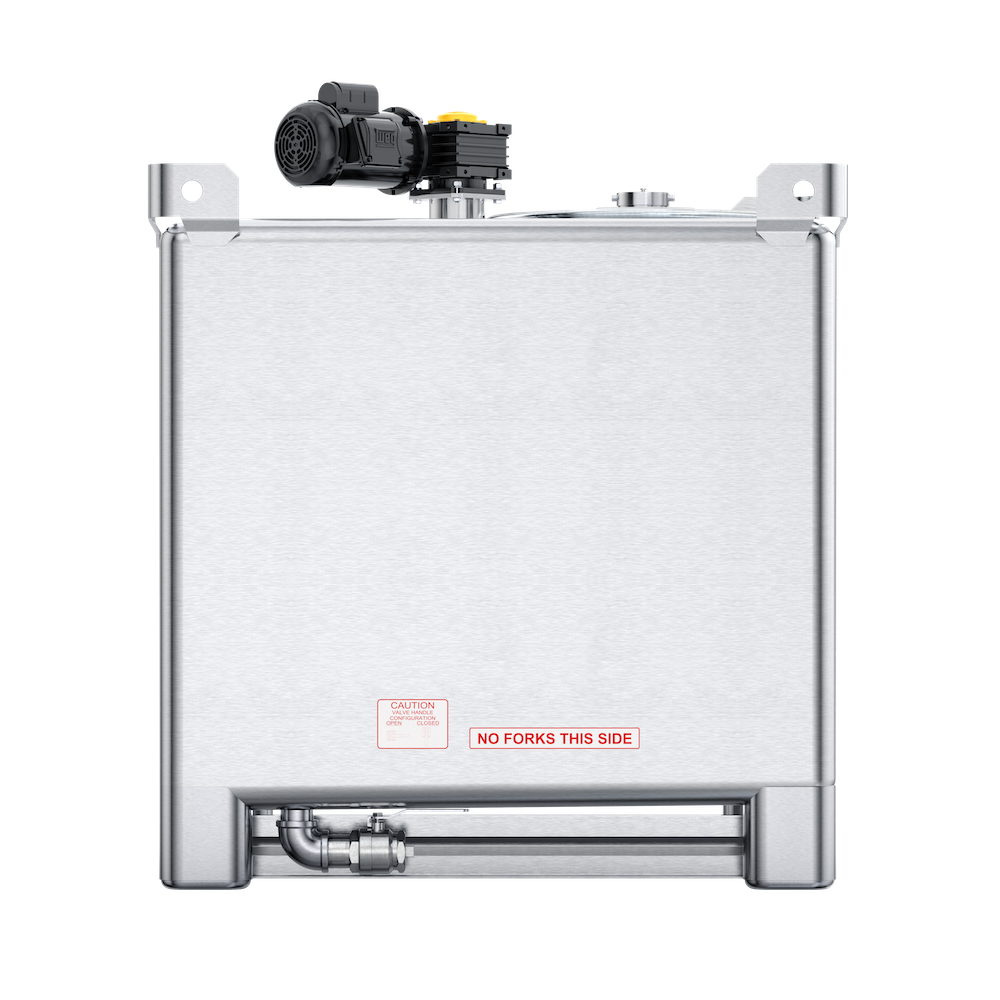

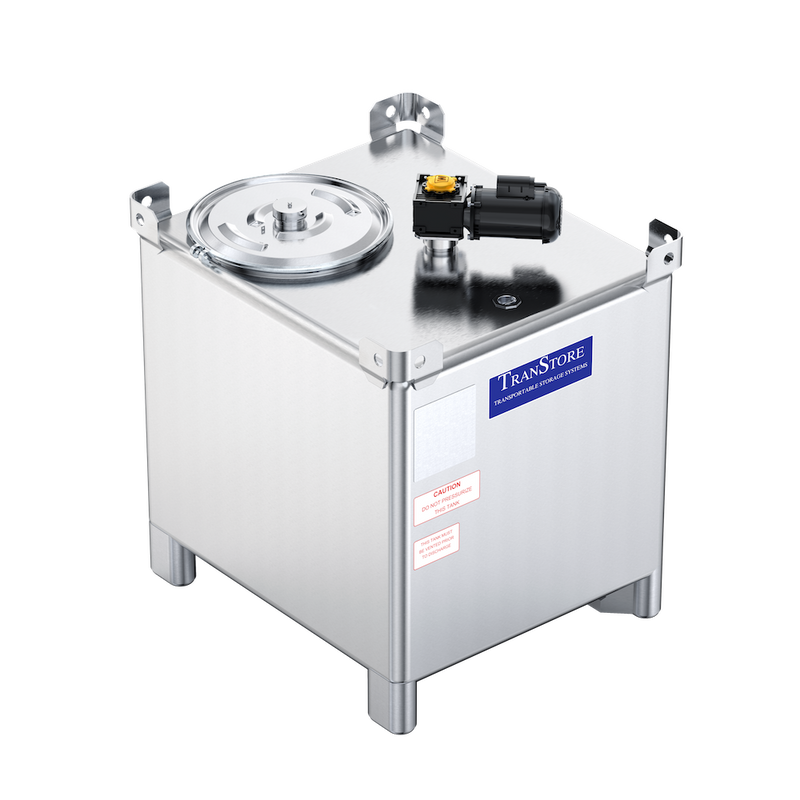

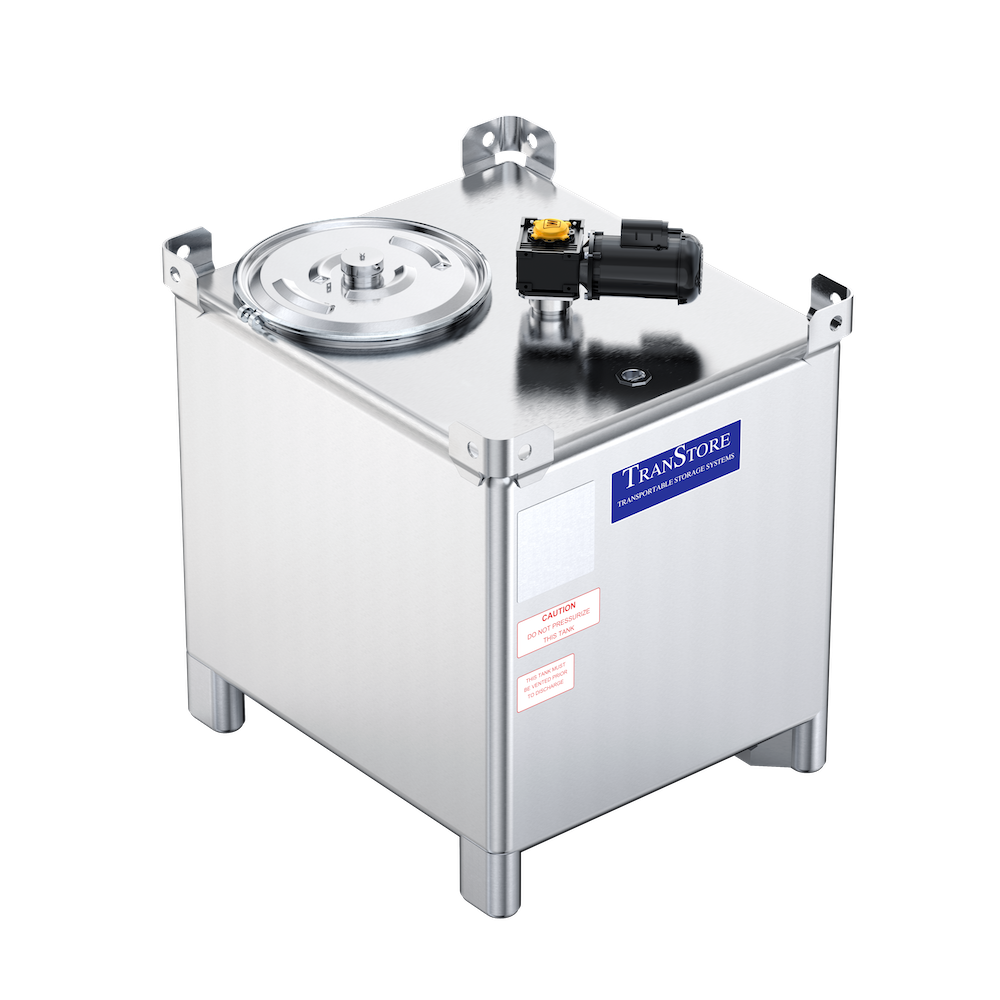

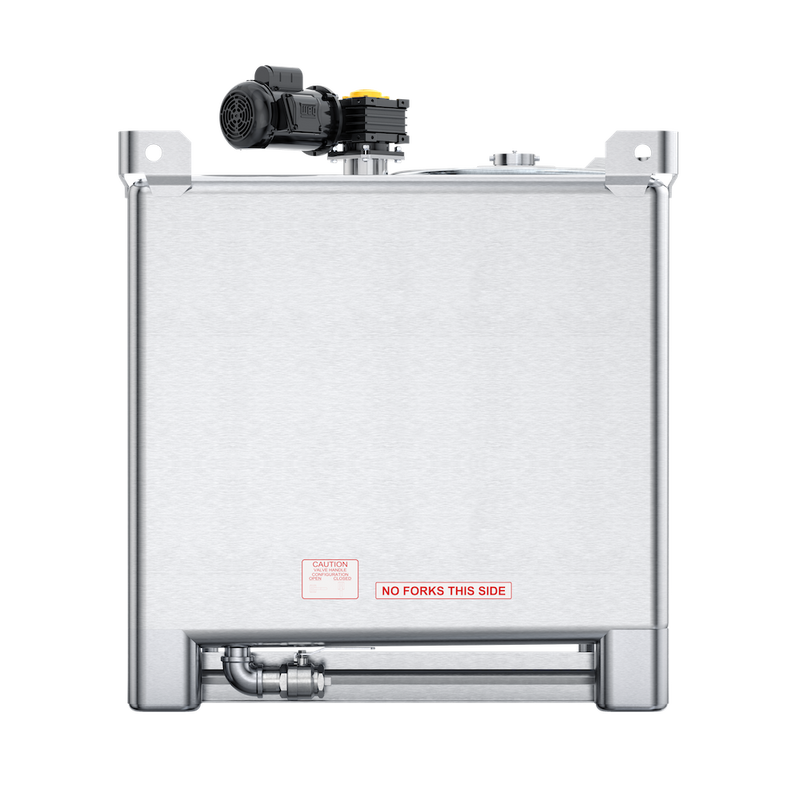

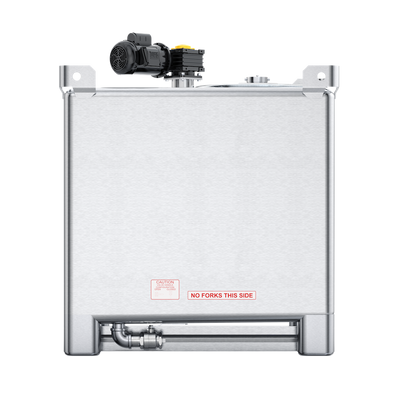

Unlike any other tote and mixing system in the industry, our custom tote
is designed to facilitate your mixing process. With the offset manway,
you have optimal access to your process fluids and allow for excellent
placement of your mixing system. By combining craftsmanship with
standardized specifications, we are able to offer this one-of-a-kind system
with fast lead times to get your operation started.

Have a Question?

Download Specs Sheet

Specifications

  • Item Number SYS4TST00350-1000
  • Bottom Head Sloped
  • Bottom Head Fitting 2 in NPT w/ elbow and stainless ball valve
  • External Material 304SS
  • External Surface Finish 2B welds visible cleaned and deburred
  • Gearbox Enclosure Aluminum
  • Gearbox Ratio 10:1 @ 175 RPM
  • Gear Type Worm Drive
  • Horsepower 0.5
  • Impeller Attachment Set screw
  • Impeller Diameter 18 in
  • Impeller Material 316SS
  • Impeller Type Hydrofoil
  • Lid Type 22.5 in diameter w/ 2 in plug vent/fill, EPDM gasket
  • Lifting Lugs (4) stacking leg positioners/lifting lugs
  • Max Vessel Height 47 in
  • Mobility Fork lift rated
  • Motor Type TEFC, IP55, 110V switch cord (9ft) and plug
  • Mount 3 in Threaded Mount, 304SS Wetted
  • Number of Impellers 1
  • Phase 1
  • Seal Type Mixer-viton, ambient
  • Shaft Diameter 1.25 in
  • Shaft Length 32 in
  • Shaft Material 316SS
  • Shell Thickness 10 Gage
  • Top Head Fitting 1 2" Bung with 2” plug vent/fill and EPDM gasket
  • Total Height 60 in
  • Total Volume 350 Gal
  • Voltage 110V
  • Volume Working 300 Gal
  • Weight 556 lbs
  • Wetted Surface Finish 2B Welds visible cleaned and deburred
