350 Gal SS Tote Mixing Tank

Default Title
Lead Time: 4 business days $3,580
Customize Item

Details

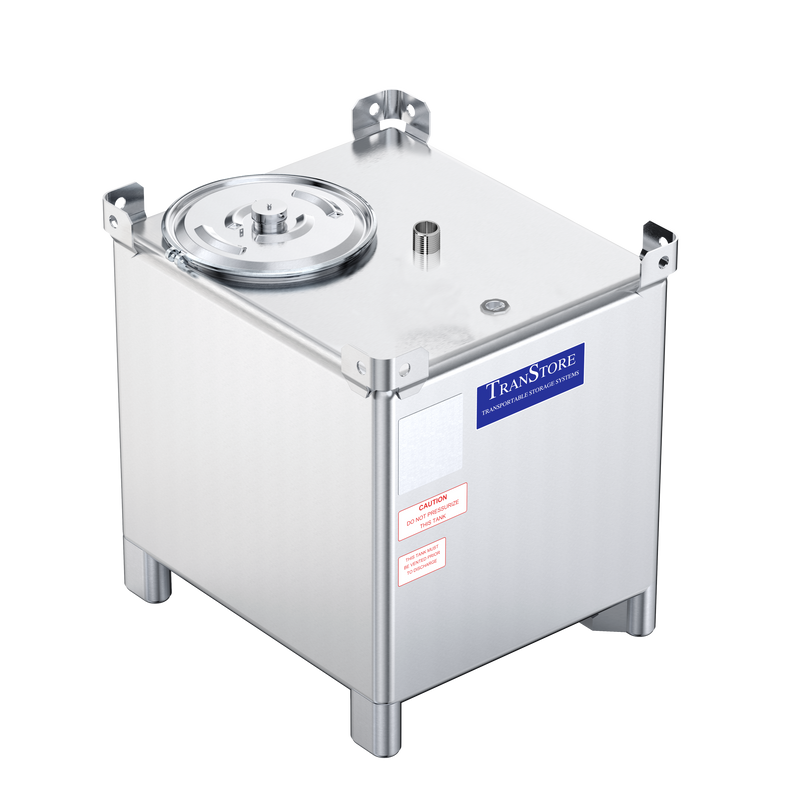

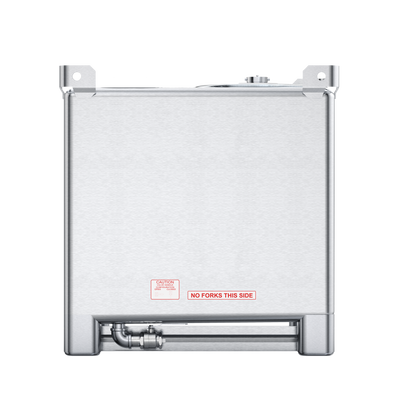

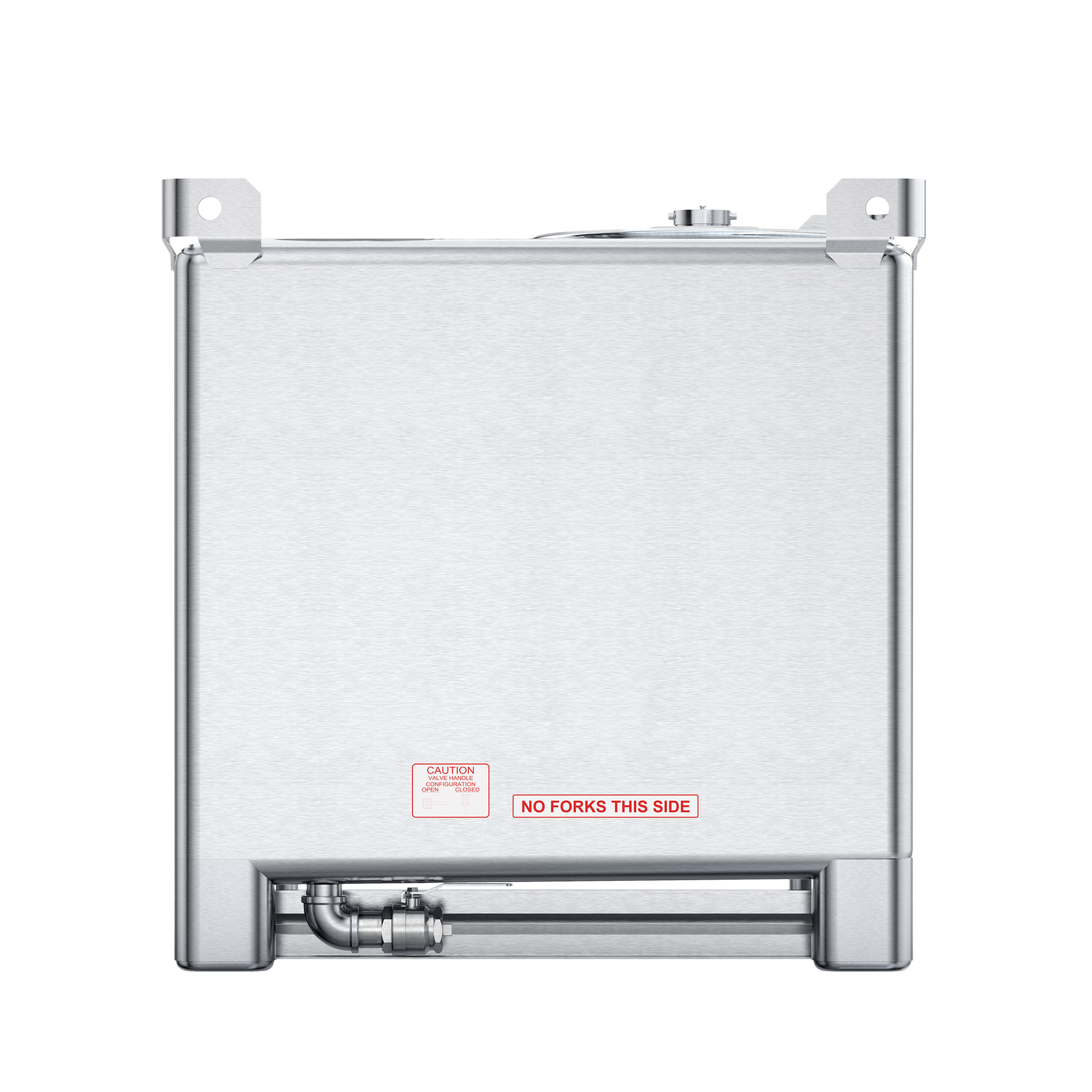

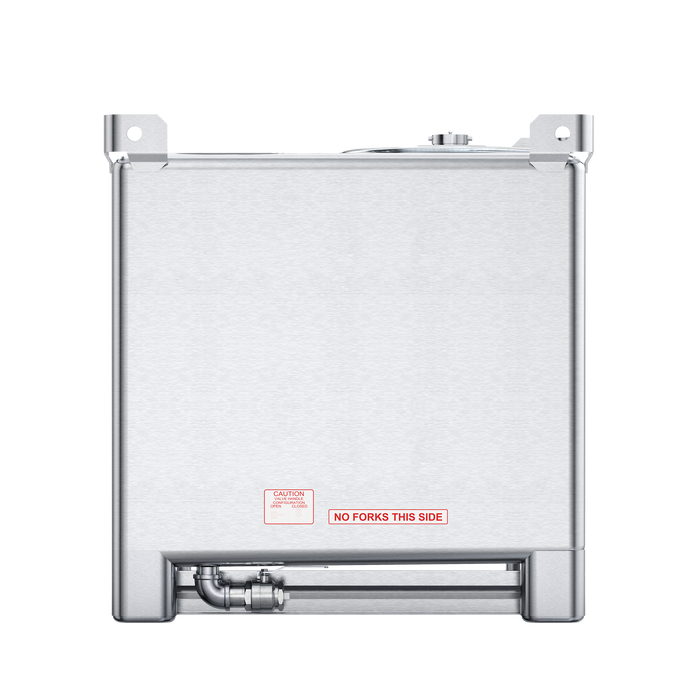

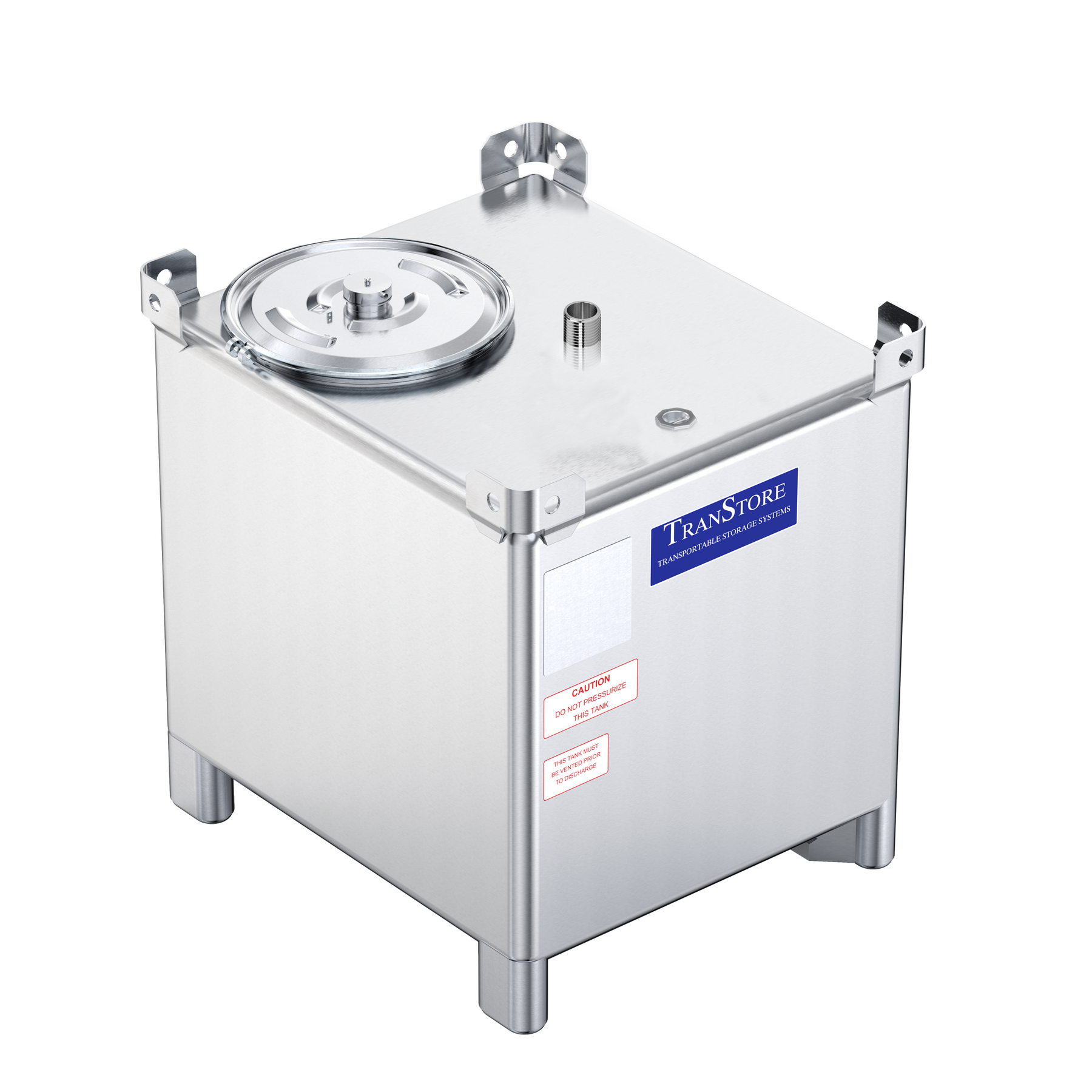

Our custom IBC tote is uniquely designed to accommodate a mounted mixer or remain a storage tote. The tote is internally and externally finished with a 2B polish. With an offset manway, the mixer mounts to a fitting centered on the tote head, allowing for greater control and even mixing of process liquids. An attached 2" 316SS ball valve on the bottom of the tote allows for easy drainage and a plug is included for storage. When empty, totes can be stacked 3 high.

Have a Question?

Download Specs Sheet

Specifications

  • Item Number S4TST00350
  • Bottom Head Sloped
  • Bottom Head Fitting 2 in NPT w/ elbow and stainless ball valve
  • External Material 304SS
  • External Surface Finish 2B welds visible cleaned and deburred
  • Lid Type 22.5 in diameter w/ 2 in plug vent/fill, EPDM gasket
  • Lifting Lugs (4) stacking leg positioners/lifting lugs
  • Max Vessel Height 47 in
  • Mobility Fork lift rated
  • Mount 3 in Threaded Mount, 304SS Wetted
  • Shell Thickness 10 Gage
  • Top Head Fitting 1 2" Bung with 2” plug vent/fill and EPDM gasket
  • Total Height 60 in
  • Total Volume 350 Gal
  • Volume Working 300 Gal
  • Weight 556 lbs
  • Wetted Surface Finish 2B Welds visible cleaned and deburred
