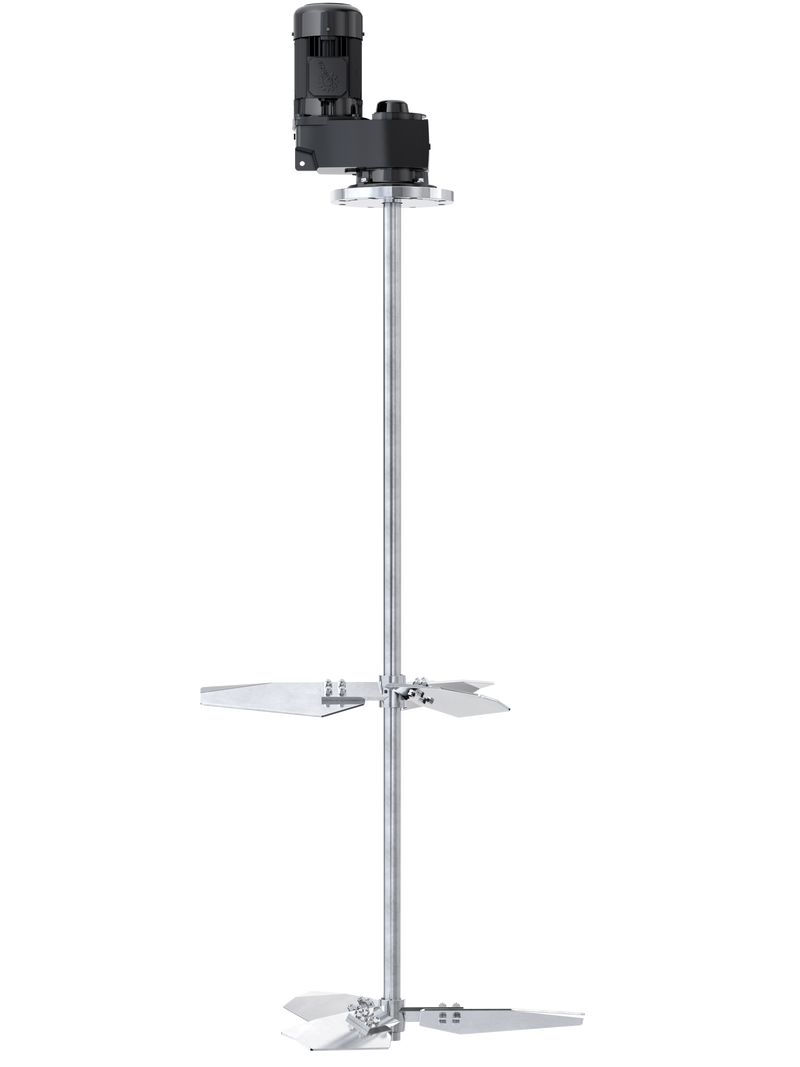

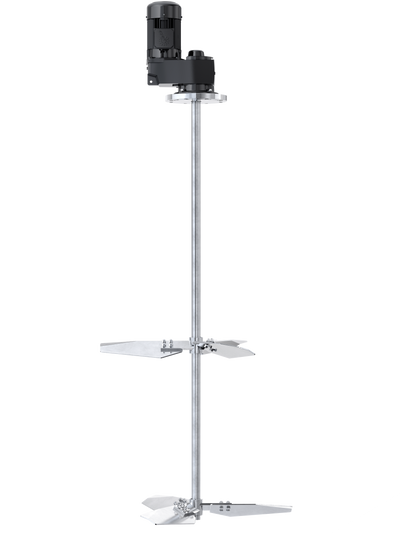

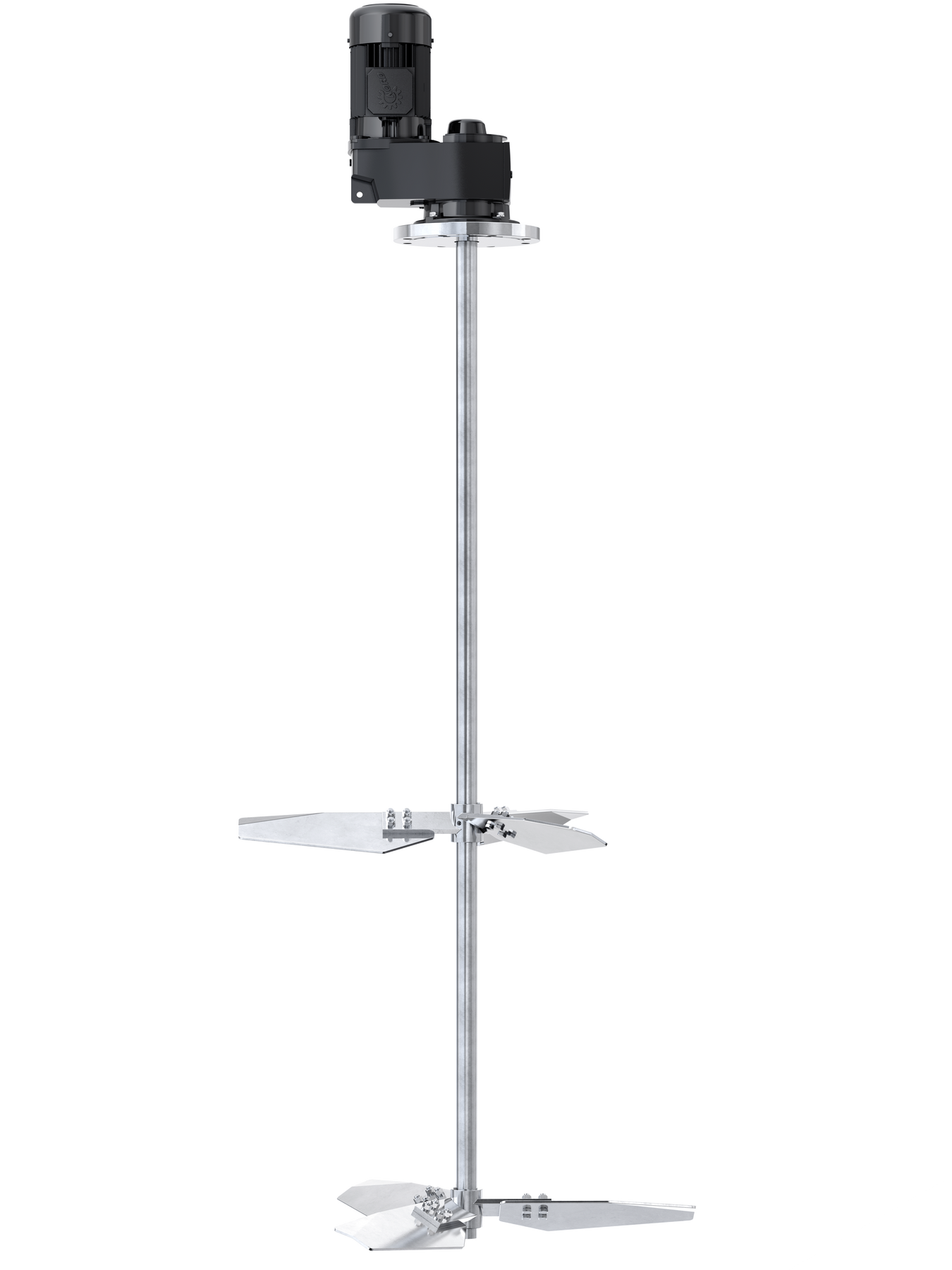

Our top of the line Raiden Plus top-entry mixer offers extreme durability and increased mixing power from most other agitators. Designed for applications over 1,000 gallons and a wide range of viscosities, the Raiden Series provides a low maintenance and long lasting mixer solution to your process.
Features of the Raiden Plus mixer:
- 5 horsepower Explosion Proof electric motor, safe integration with variable speed control systems
- IP55 rated enclosures for protection against water spray and dust ingress
- Motors rated and badged for 230/460V, 3 Phase 60Hz or 200/400V, 3 Phase 50Hz operation

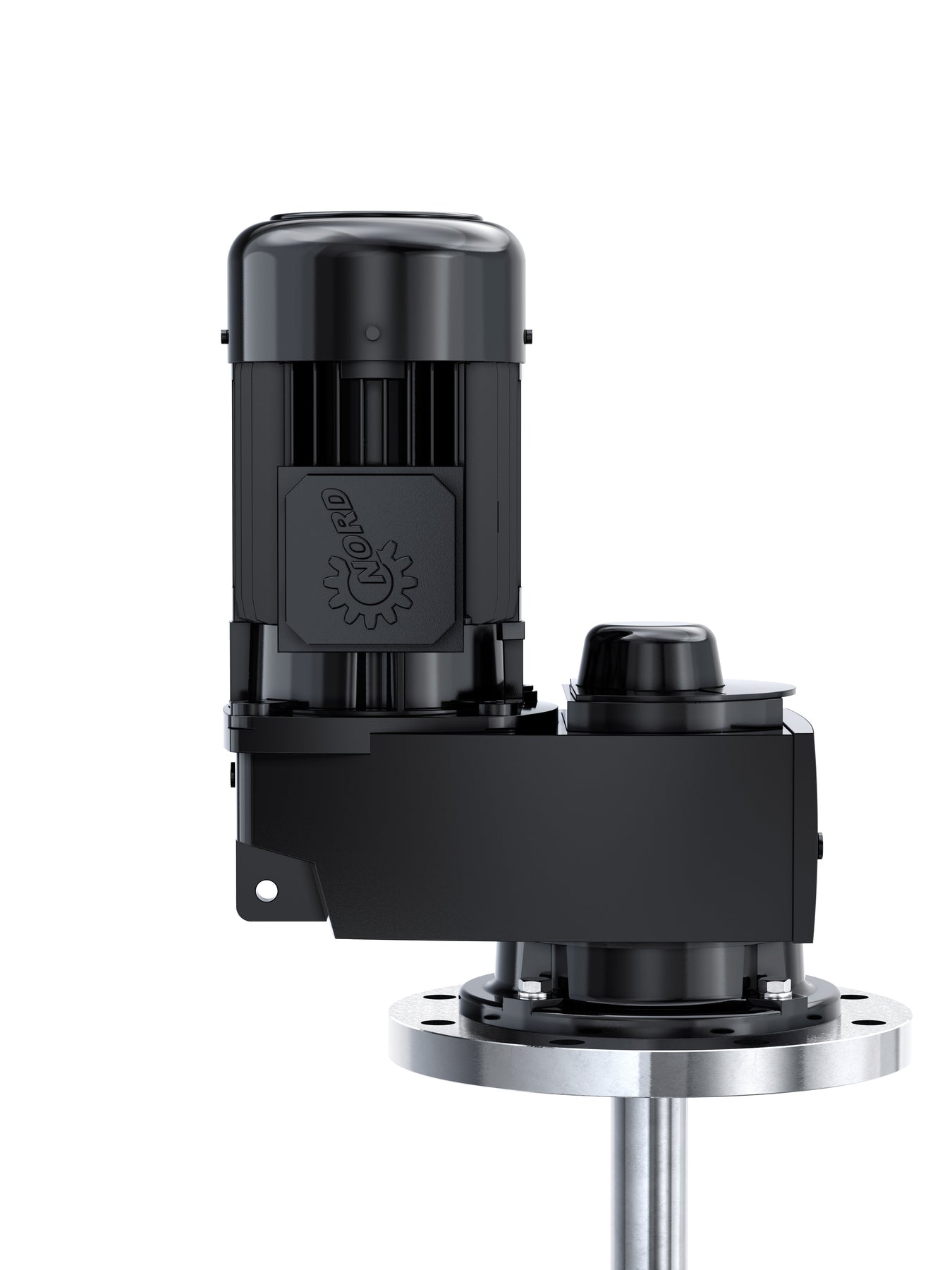

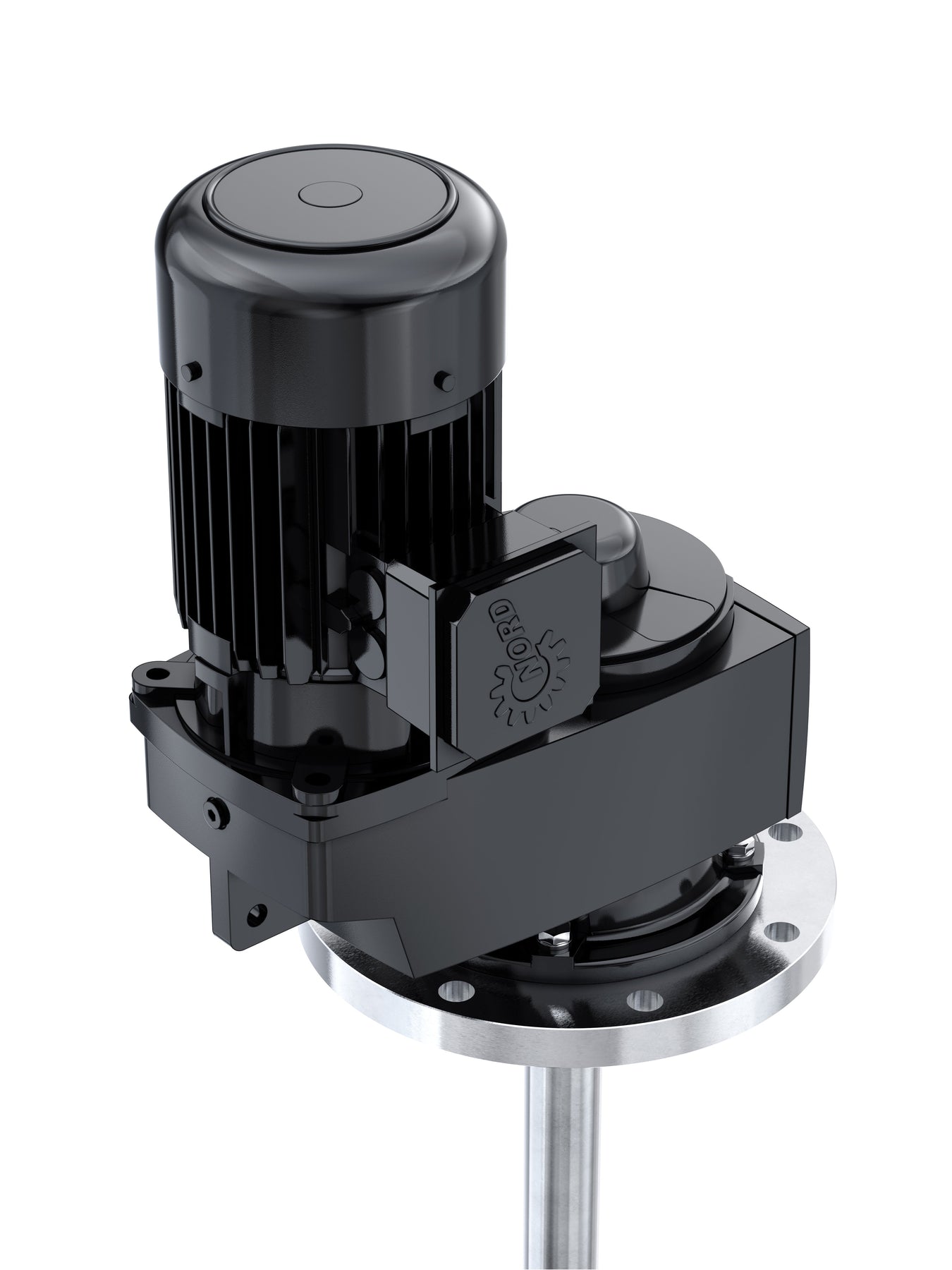

- Helical gearbox for high torque in challenging applications
- Wetted materials constructed of 316 or 304 grade stainless steel for corrosion and abrasion resistance
- Easily and securely attaches to an 8 inch 150# ANSI flange
- Customizable mixing shaft length options available

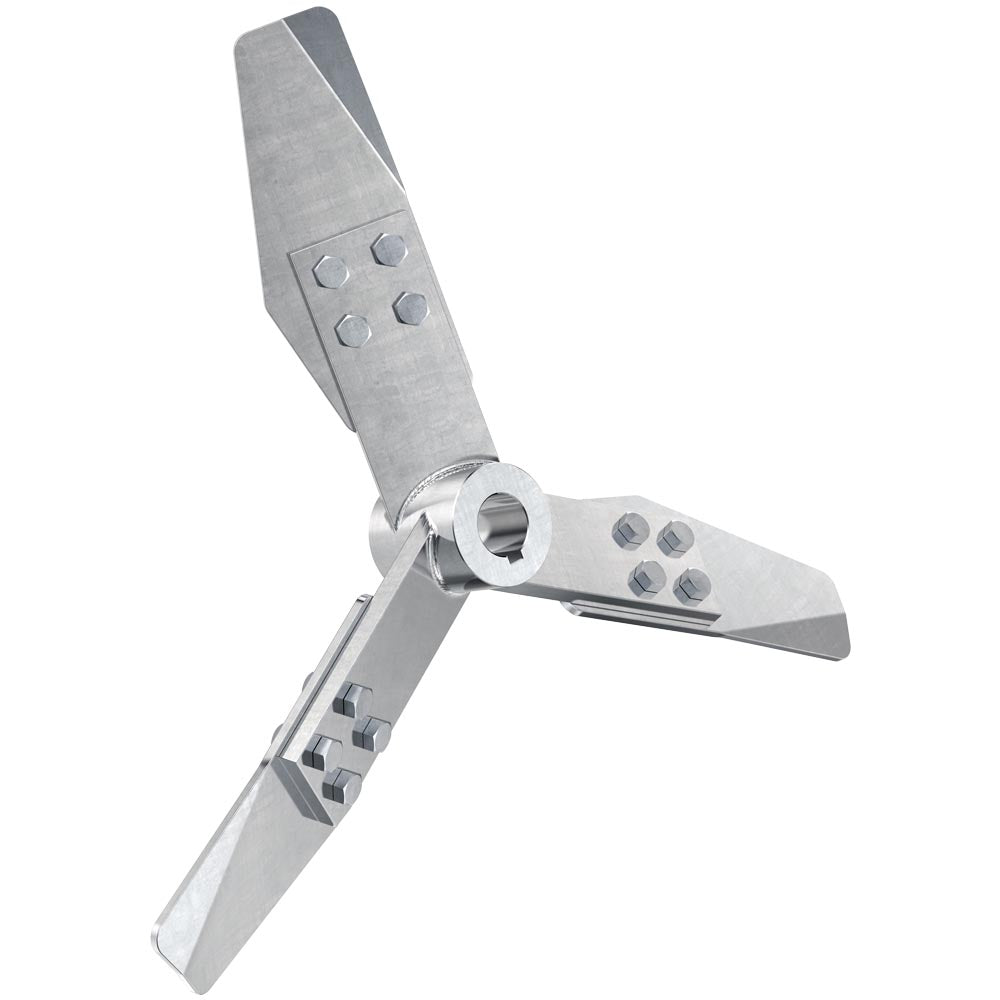

- Two appropriately sized hydrofoil impellers matched to the mixer
- Item Number RDNPLUS050FX-80-FDA
- Enclosure type IP55
- Gearbox ratio 25.88:1
- Horsepower 5 HP
- Impeller attachment Keyed with set screws
- Impeller diameter 48 in.
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 20 Business Days
- Motor type Explosion Proof Inverter Duty
- Mount 150# ANSI Flange
- Mount dimension 8 in.
- Number of impellers 2
- Phase 3 Ph.
- Rpm 68
- Seal FDA Lip Seal
- Shaft diameter 2 in.
- Shaft length 80 in.
- Shaft material 316SS
- Voltage 230/460V
- Weight 540 lbs.
