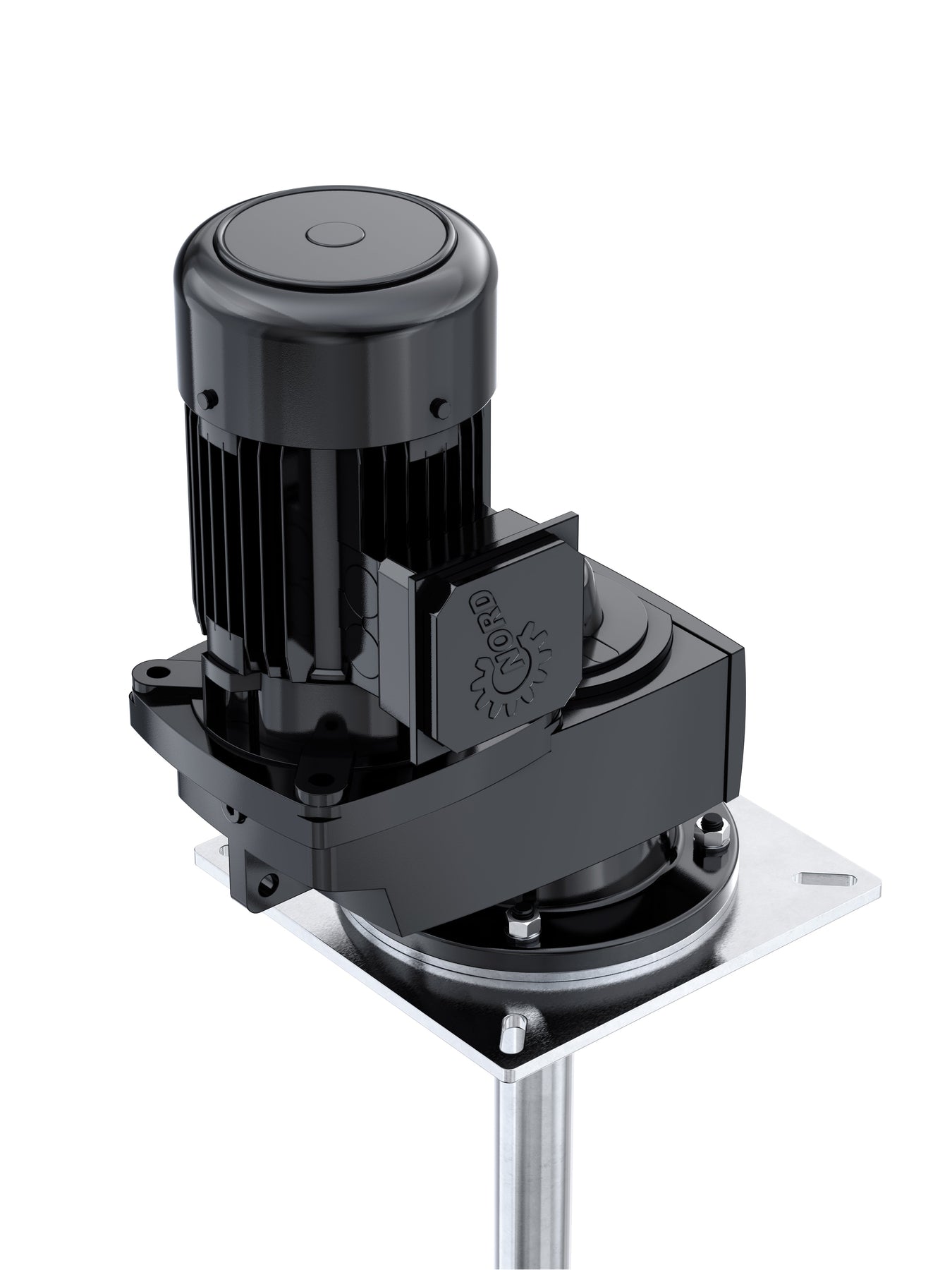

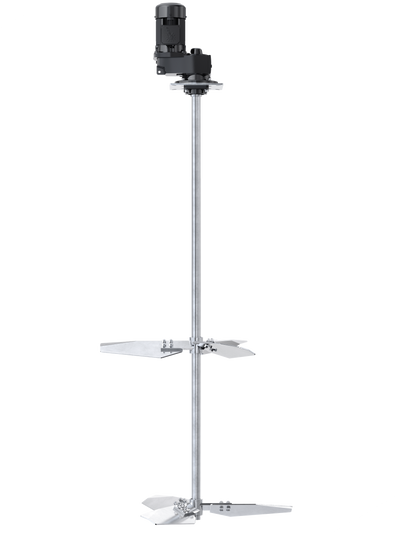

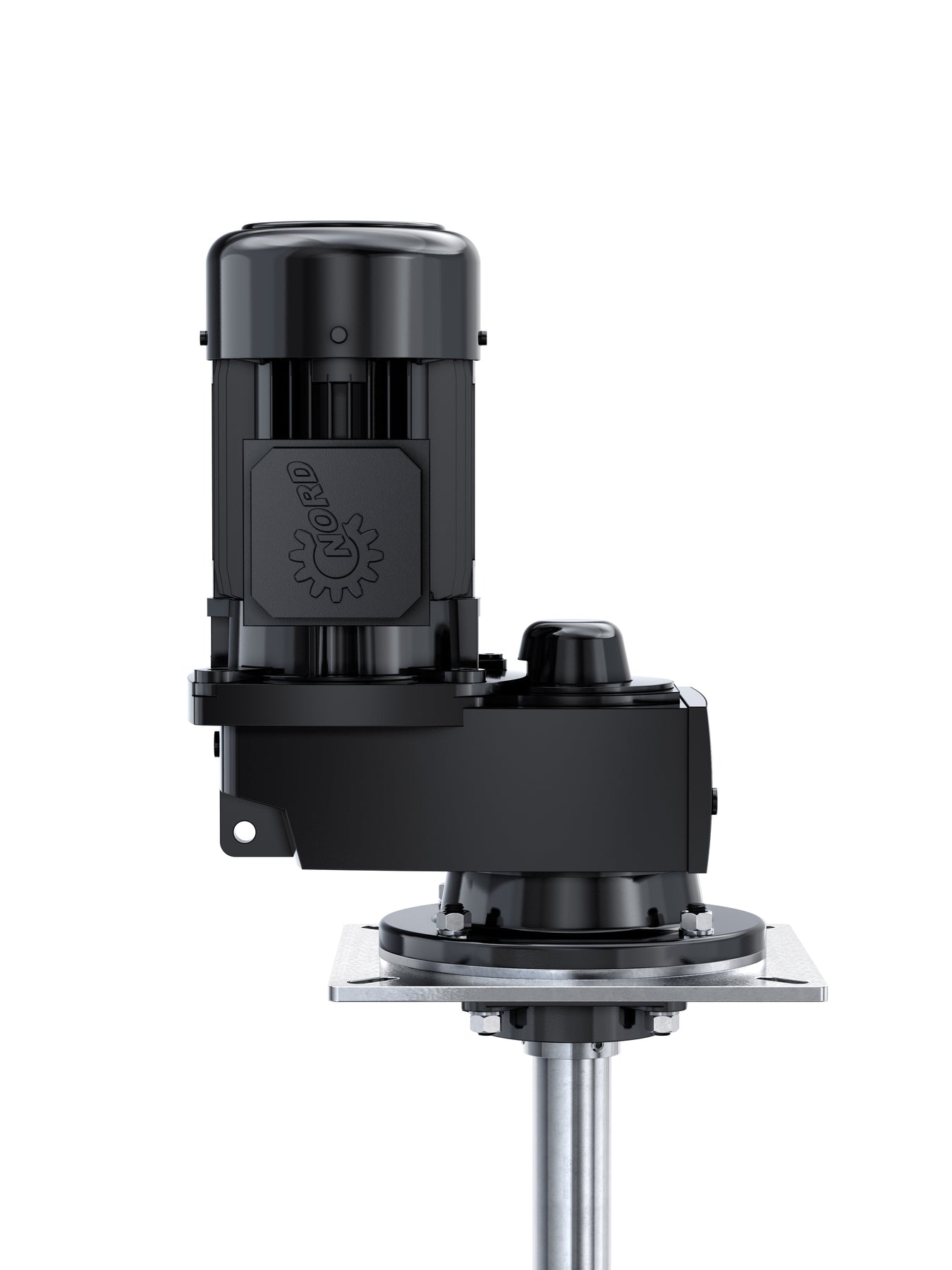

Our top of the line Raiden Plus top-entry mixer offers extreme durability and increased mixing power from most other agitators. Designed for applications over 1,000 gallons and a wide range of viscosities, the Raiden Series provides a low maintenance and long lasting mixer solution to your process.
Features of the Raiden Plus mixer:
- 7.5 horsepower electric motor
- IP55 rated enclosures for protection against water spray and dust ingress
- Motors rated and badged for 230/460V, 3 Phase 60Hz or 200/400V, 3 Phase 50Hz operation
- Helical gearbox for high torque in challenging applications
- Wetted materials constructed of 316 or 304 grade stainless steel for corrosion and abrasion resistance
- Easily and securely attaches with a 12" x 12" standard plate configuration
- Customizable mixing shaft length options available

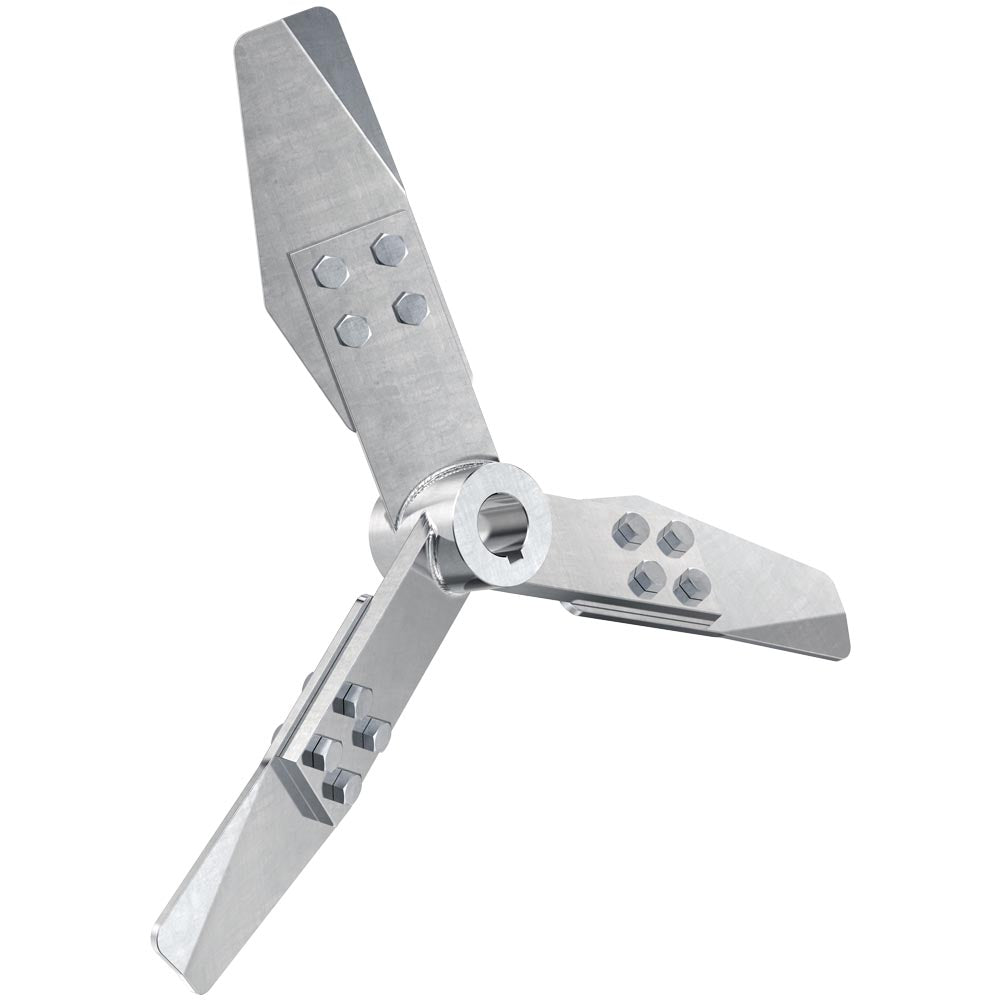

- Two appropriately sized hydrofoil impellers matched to the mixer
- Item Number RDNPLUS075P-90
- Enclosure type IP55
- Gearbox ratio 22.39:1
- Horsepower 7.5 HP
- Impeller attachment Keyed with set screws
- Impeller diameter 48 in.
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 20 Business Days
- Motor type TEFC Electric
- Mount Plate
- Mount dimension 16x16x1/2
- Number of impellers 2
- Phase 3 Ph.
- Rpm 78
- Shaft diameter 2.5 in.
- Shaft length 90 in.
- Shaft material 316SS
- Voltage 230/460V
- Weight 635 lbs.
