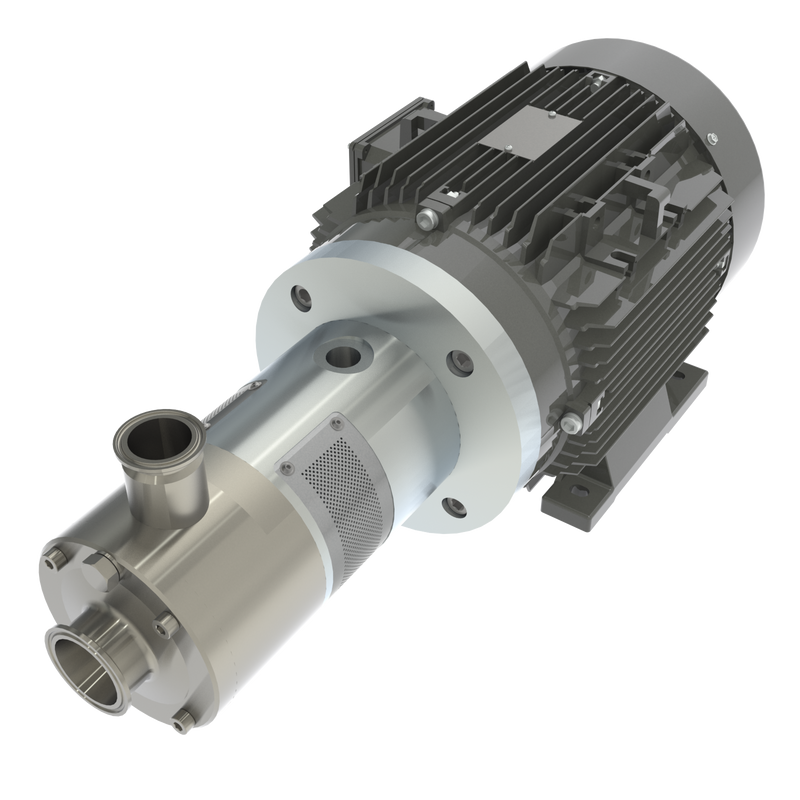

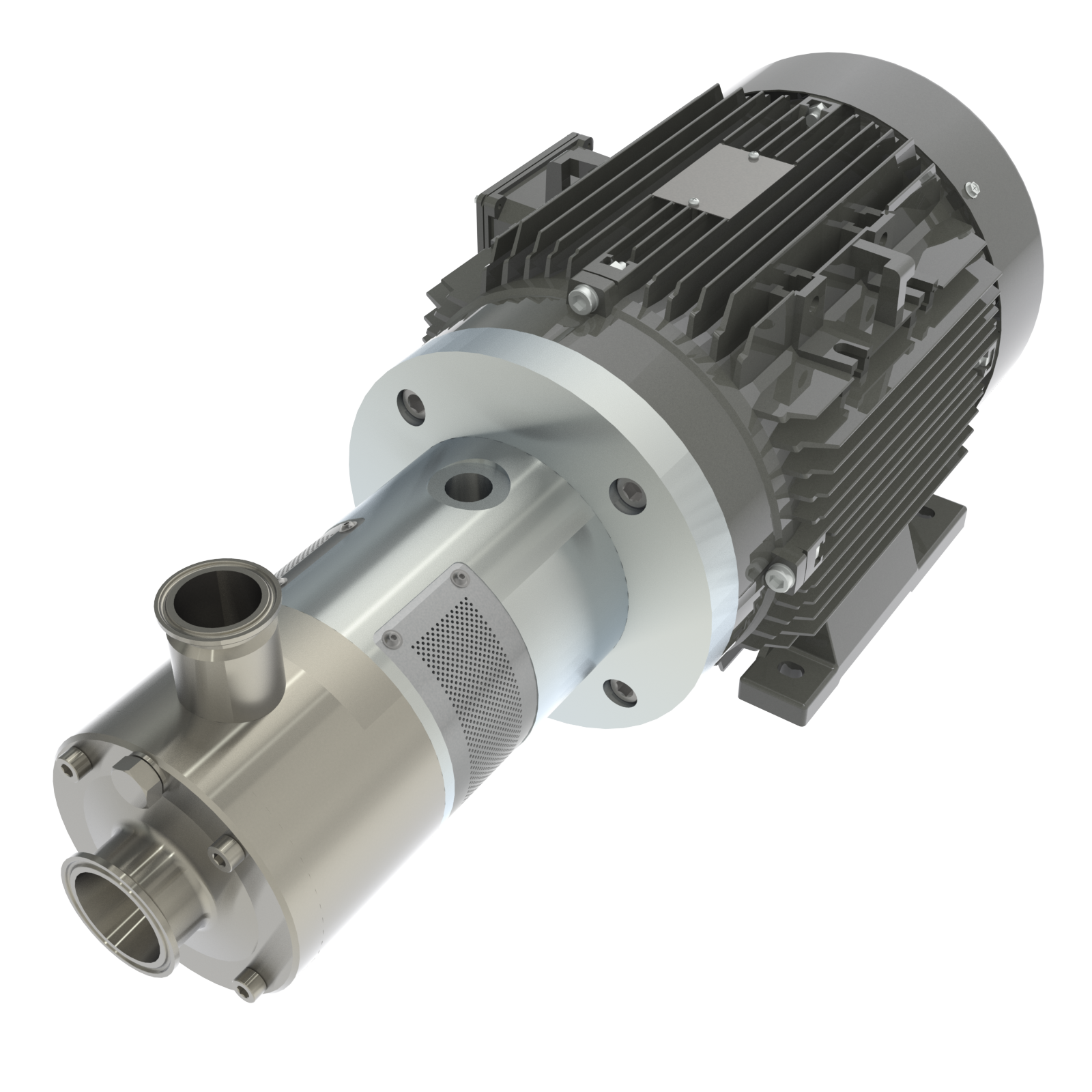

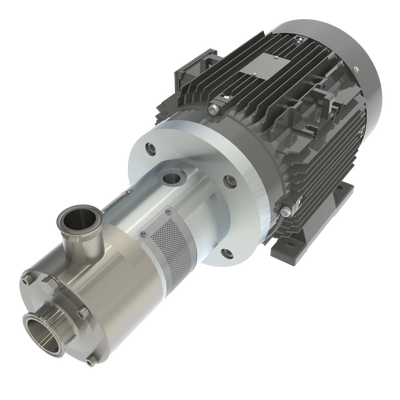

The ShearPro is a high intensity in-line mixer that can be used for blending, producing stable emulsions, ultra-fine dispersions, accelerating reactions, eliminating fish-eyes and hydrating polymers and gums to thicken products. The ShearPro can be customized with a variety of mixing tools to fit your process needs.
Use of a double mechanical seal requires purchase of seal reservoir to ensure proper cooling and lubrication between seal faces.

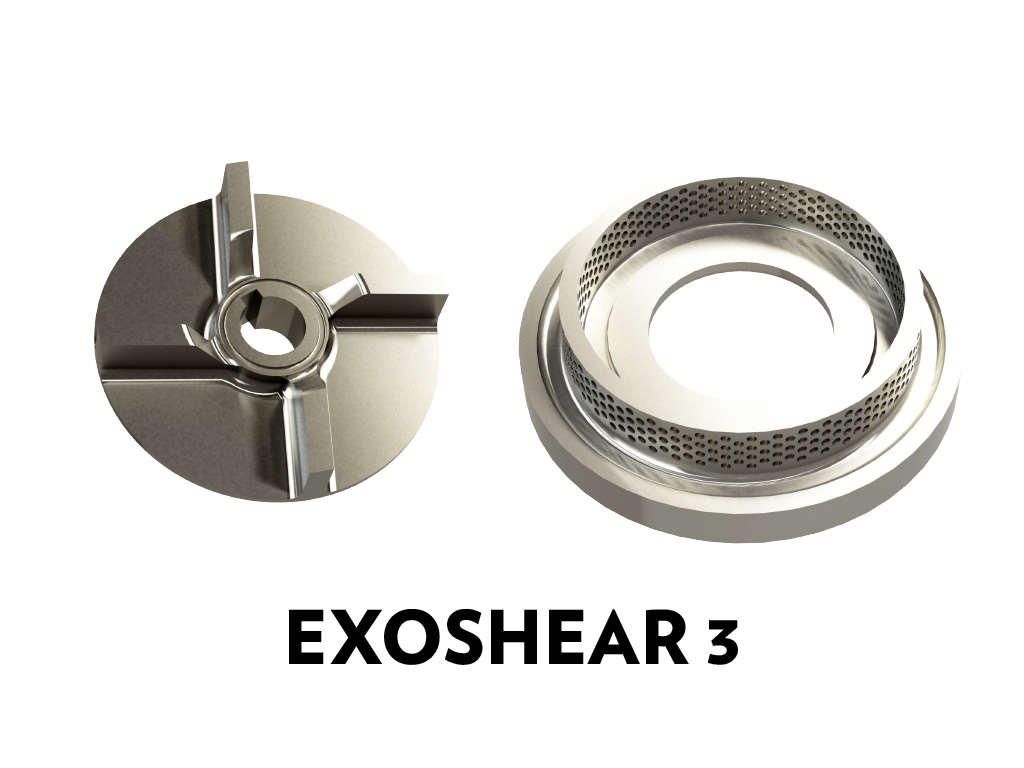

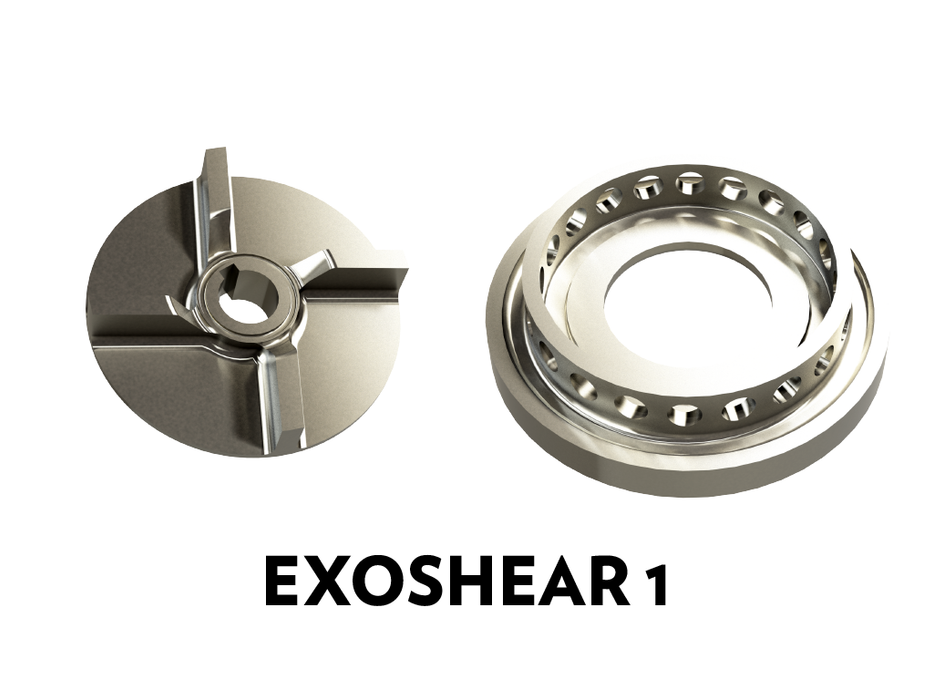

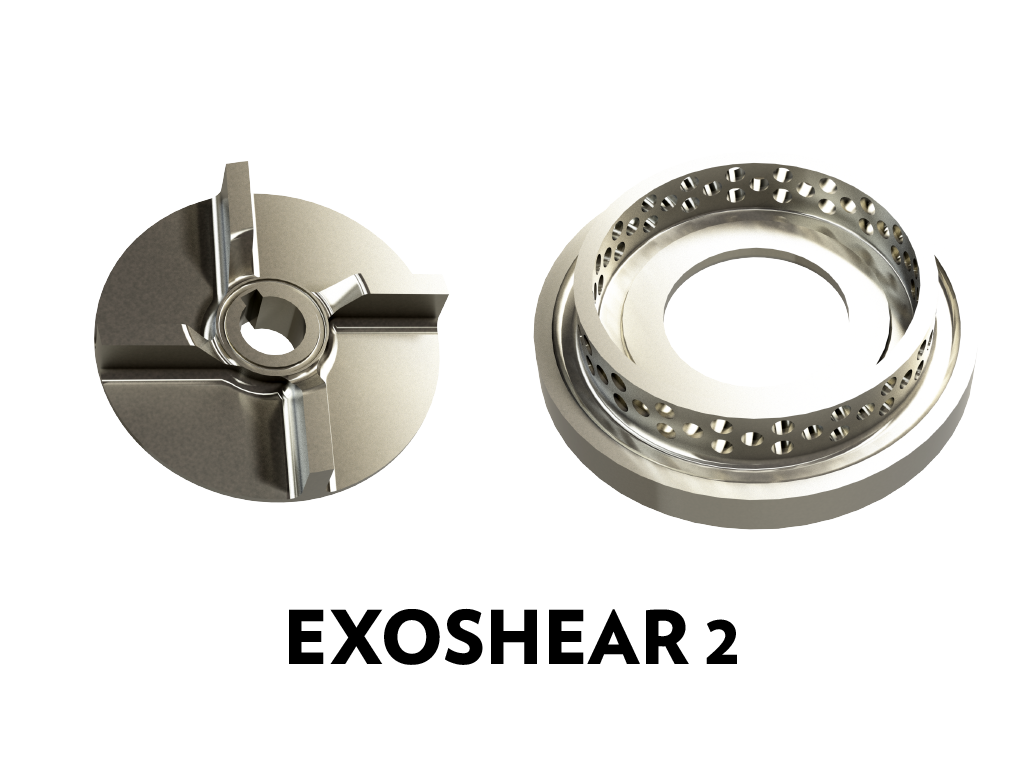

The ExoShear rotor stator provides a high flow rate and is commonly used in recirculating processes. Available in 3 configurations increasing in particle reduction stages.

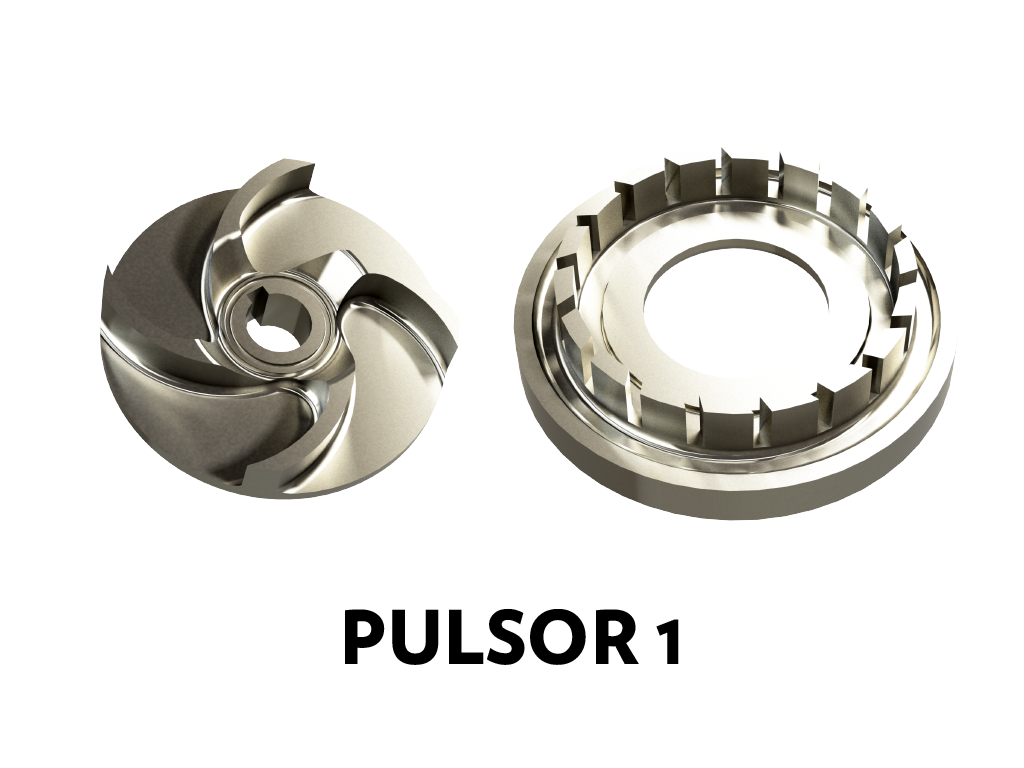

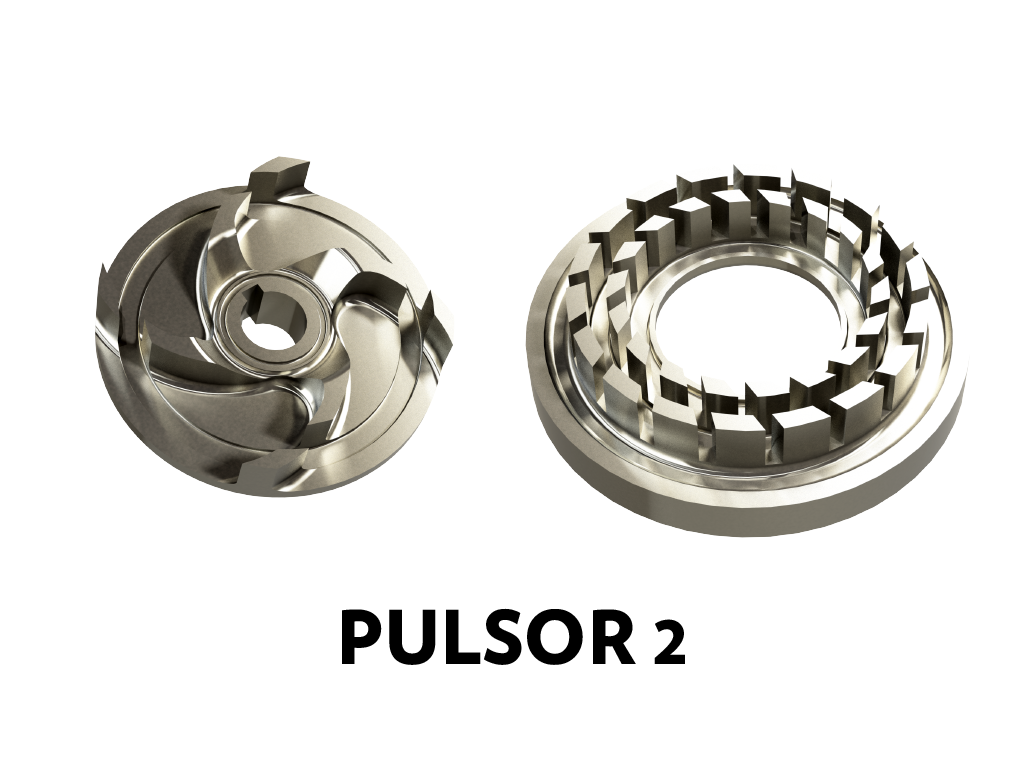

The Pulsor rotor stator uses a pumping rotor and toothed stator to provide moderate shear and medium flow capacity. The Pulsor is a great solution for tank-to-tank or recirculating processes where the final product can be achieved in multiple passes or with additional mixing downstream. Available in 2 configurations for increased pumping action.

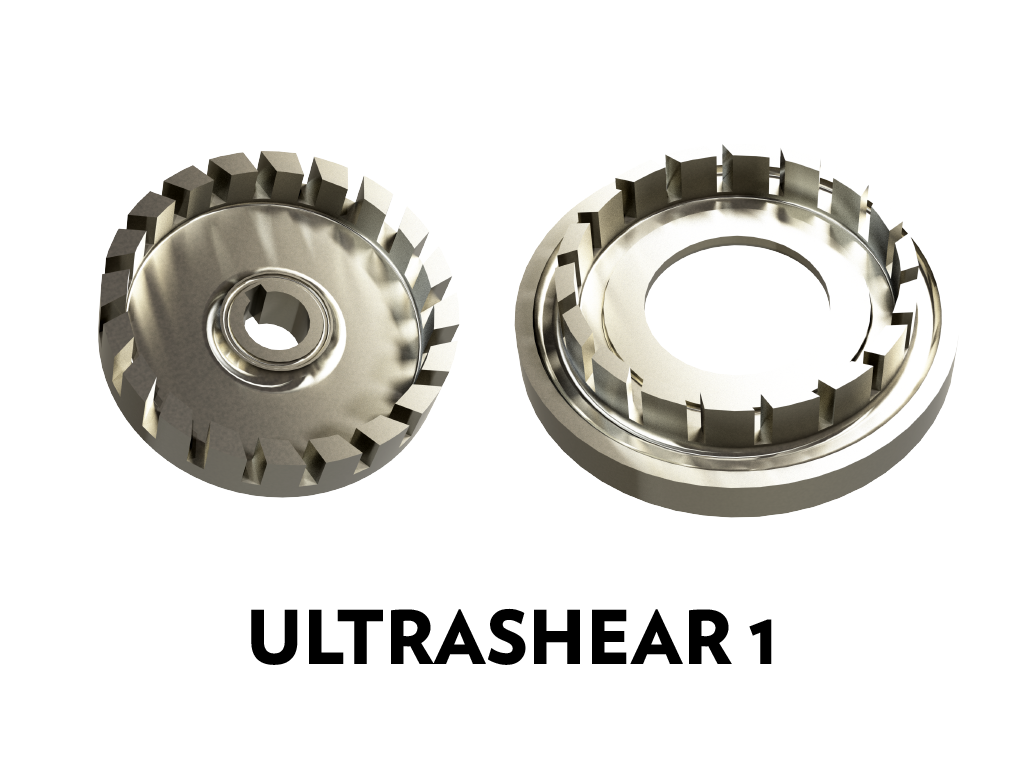

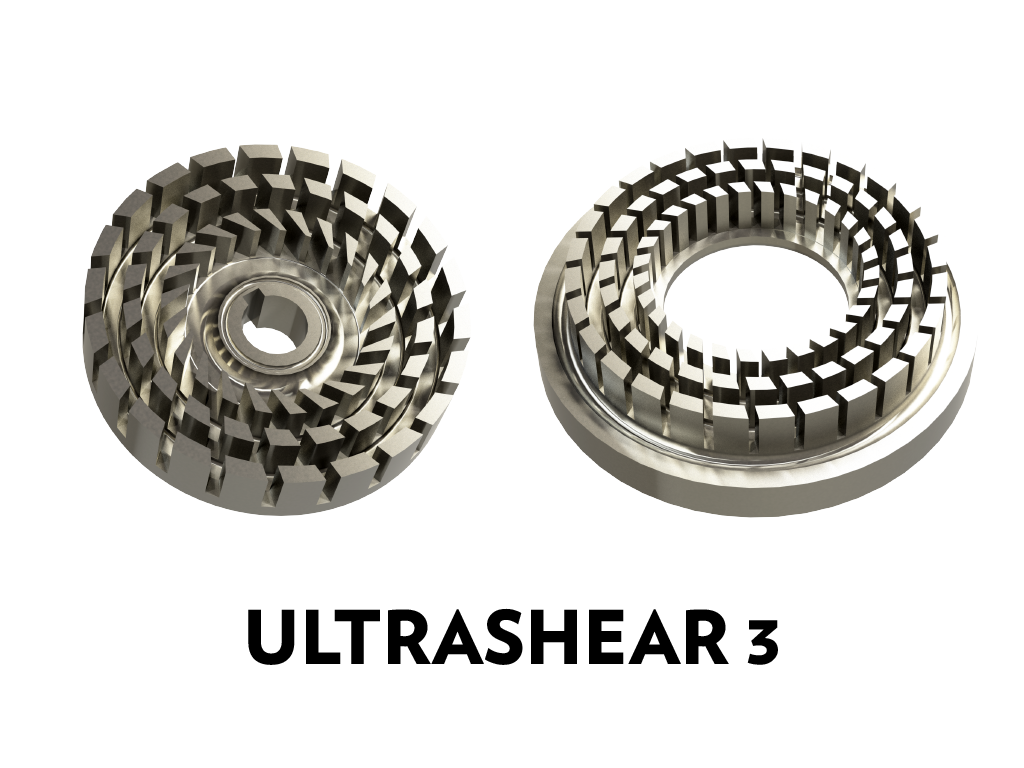

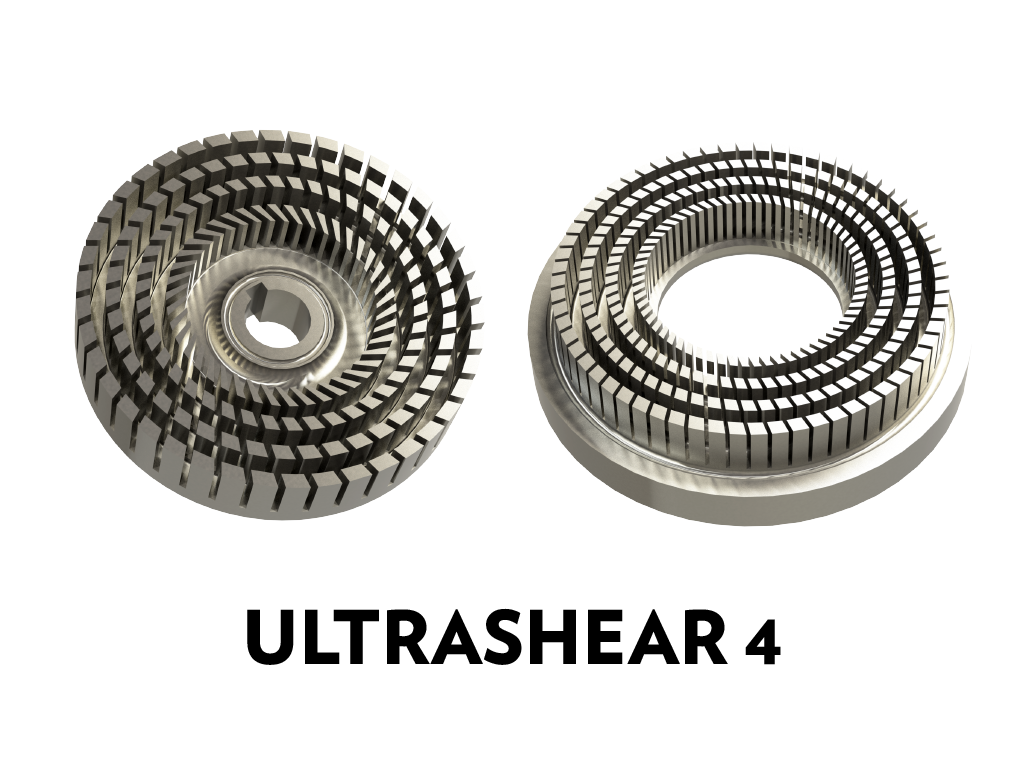

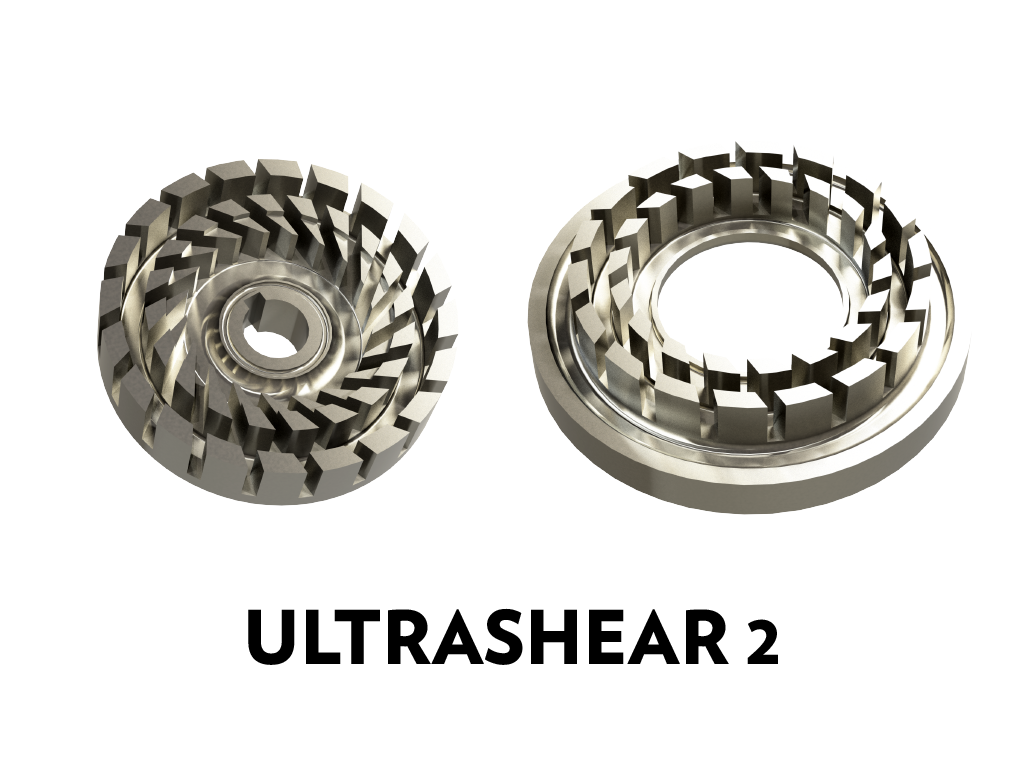

The UltraShear rotor stator provides a lower flow in exchange for the highest shear of the ShearPro tools. Use an UltraShear rotor stator to achieve the smallest particle size in a single pass through the ShearPro. Exceptional for use of thickening agents such as guar gum or polyacrylamide. Available in 4 configurations increasing in shear stages.
Have a Question?
- Item Number SP1005008-PDVES1
- Enclosure Type IP55
- Horsepower 7.5
- Impeller Material 316SS
- Impeller Type Rotor Stator
- Inlet Fitting Size 2" Triclamp
- Motor Type TEFC / Explosion Proof / Stainless Steel
- Mount Foot Mount
- Outlet Fitting Size 1.5" Triclamp
- Phase 3
- RPM 3450
- Seal Material Viton
- Seal Type Mechanical
- Voltage 230/460 V
- Wetted Material 316SS
