7.5HP SP1010 ShearPro Inline Rotor Stator

Regular price $20,416.00
/
Lead Time: 45 Business Days
An ultra high shear in-line batch and recirculation mixer providing precise emulsions and homogenizations. Customize shear stages with a variety of rotor stator heads to optimize your processing capabilities.
Part Number: SP1010008-PDVES1

The ShearPro is a high intensity in-line mixer that can be used for blending, producing stable emulsions, ultra-fine dispersions, accelerating reactions, eliminating fish-eyes and hydrating polymers and gums to thicken products. The ShearPro can be customized with a variety of mixing tools to fit your process needs.

Use of a double mechanical seal requires purchase of seal reservoir to ensure proper cooling and lubrication between seal faces.

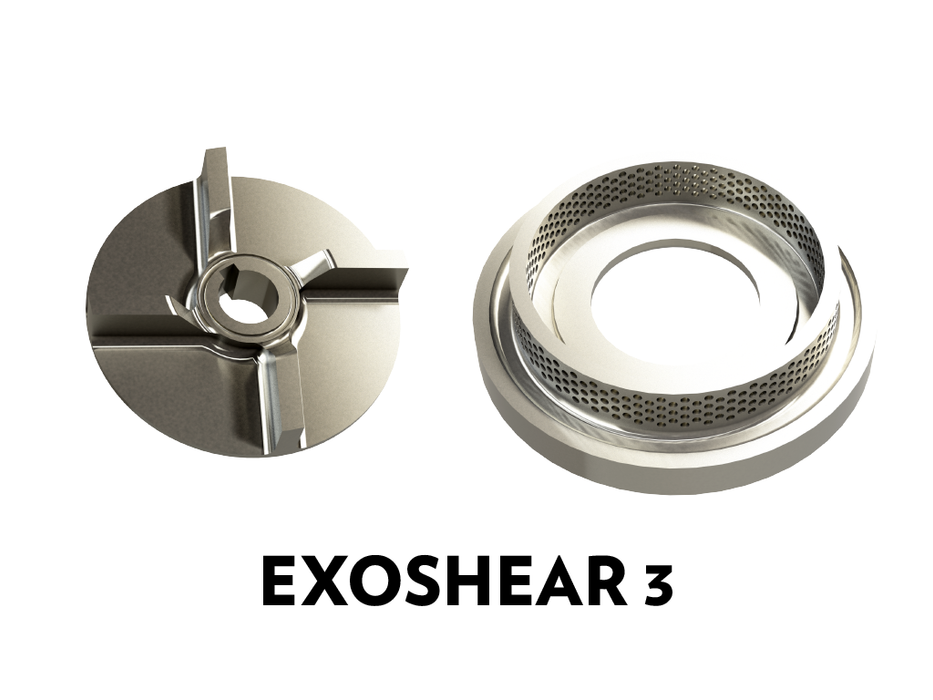

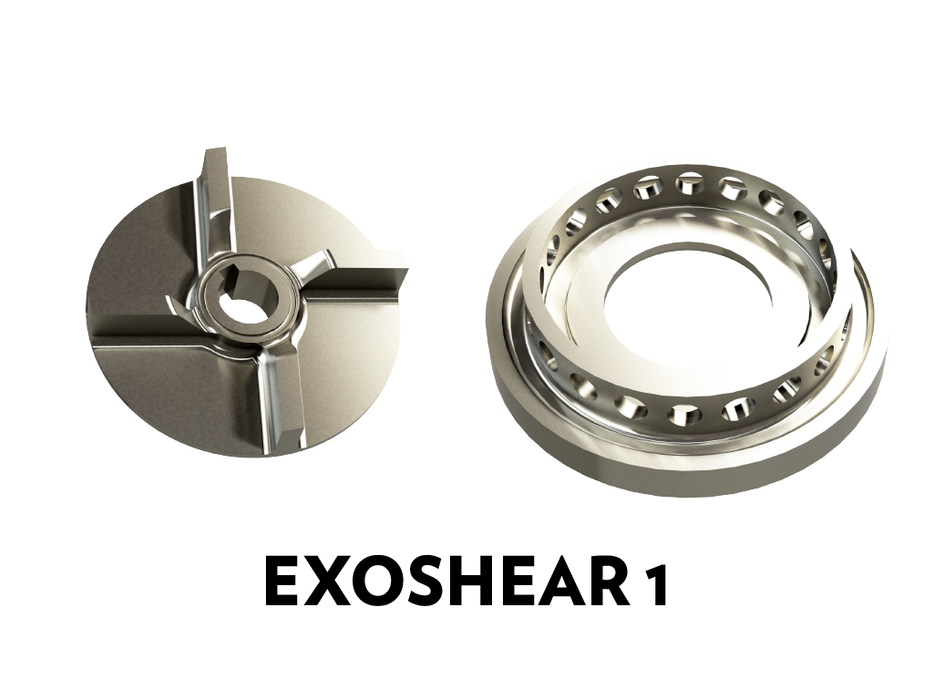

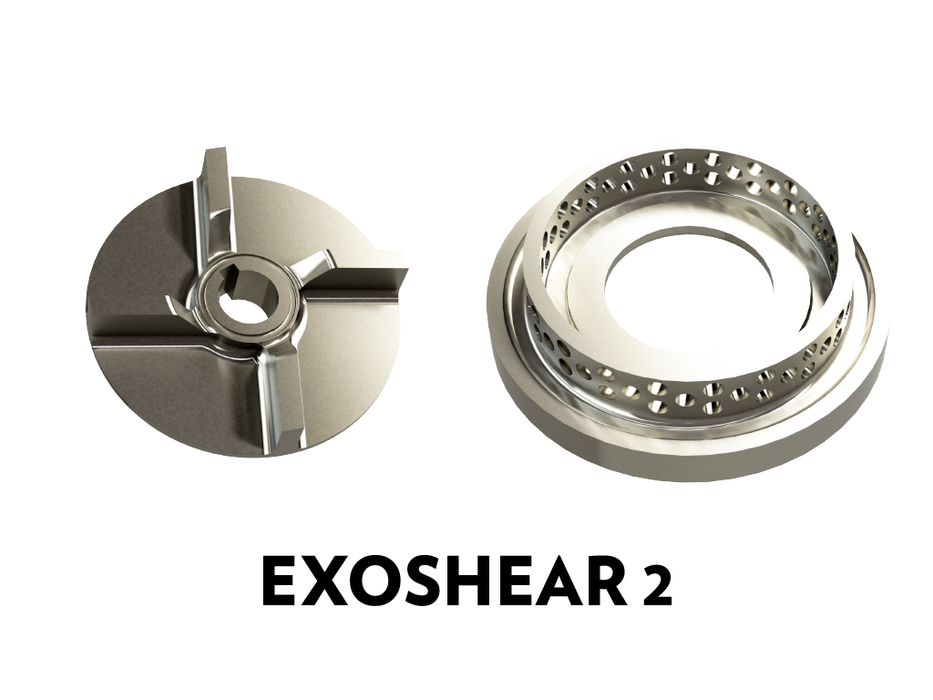

The ExoShear rotor stator provides a high flow rate and is commonly used in recirculating processes. Available in 3 configurations increasing in particle reduction stages.

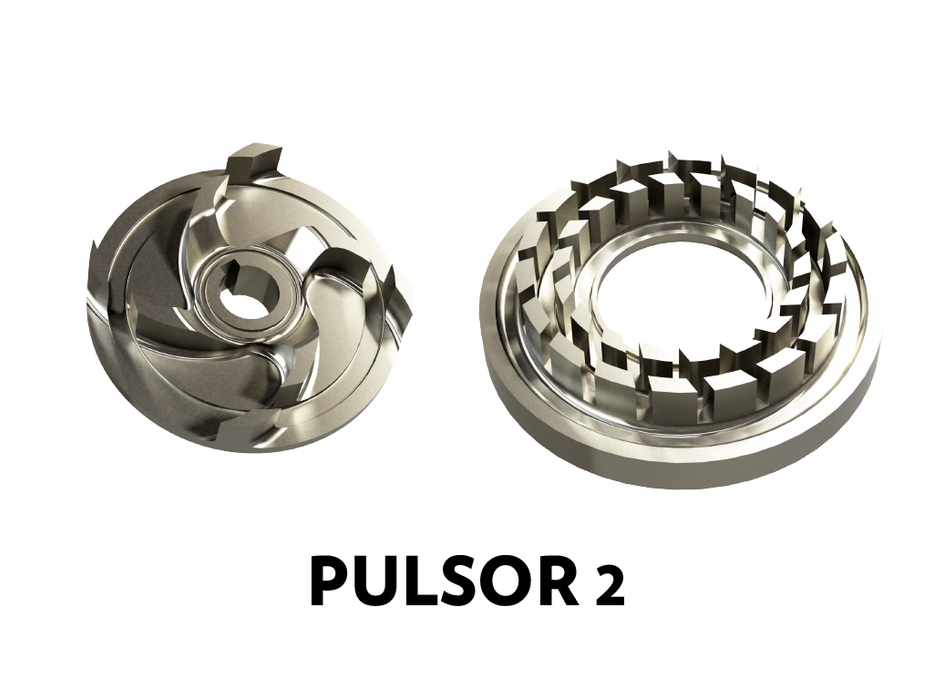

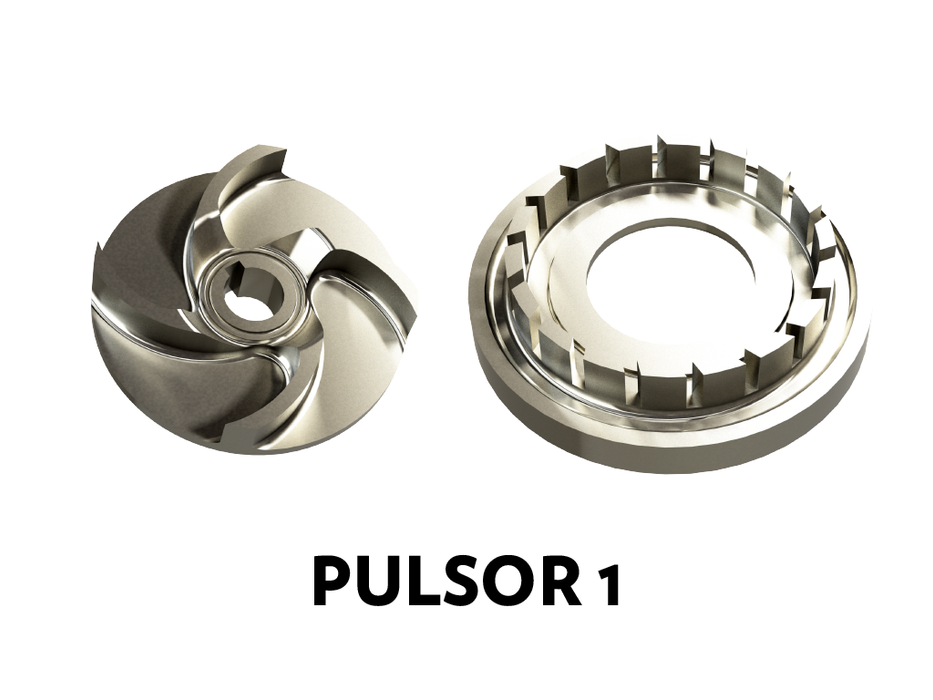

The Pulsor rotor stator uses a pumping rotor and toothed stator to provide moderate shear and medium flow capacity. The Pulsor is a great solution for tank-to-tank or recirculating processes where the final product can be achieved in multiple passes or with additional mixing downstream. Available in 2 configurations for increased pumping action.

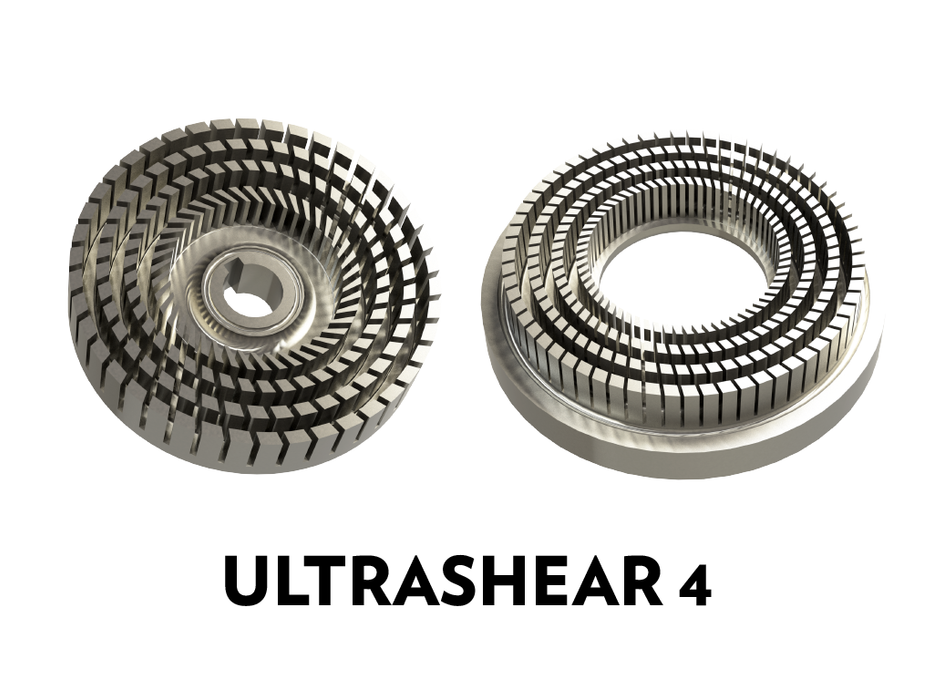

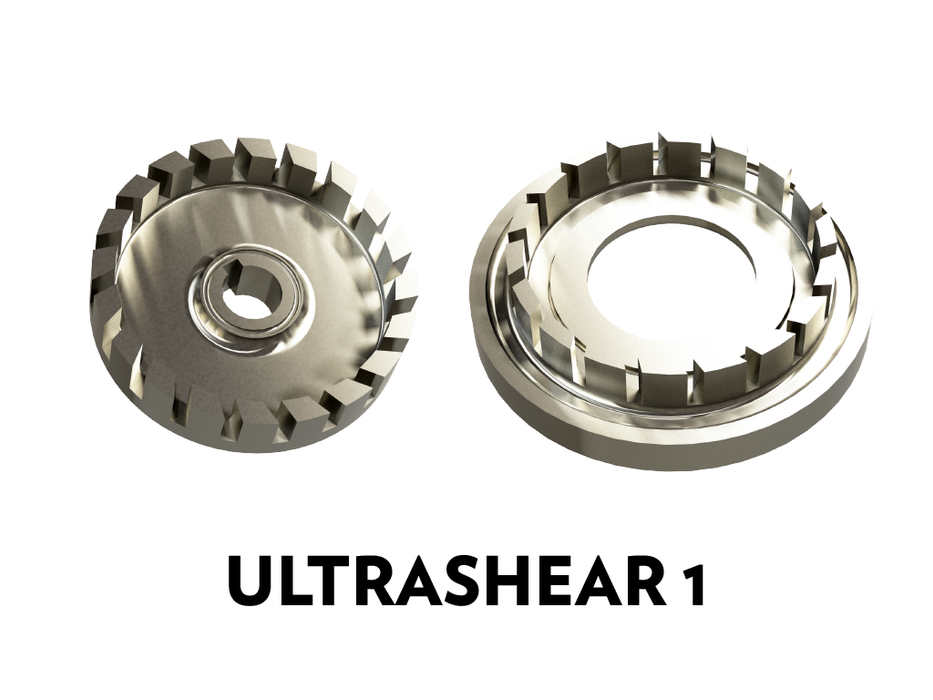

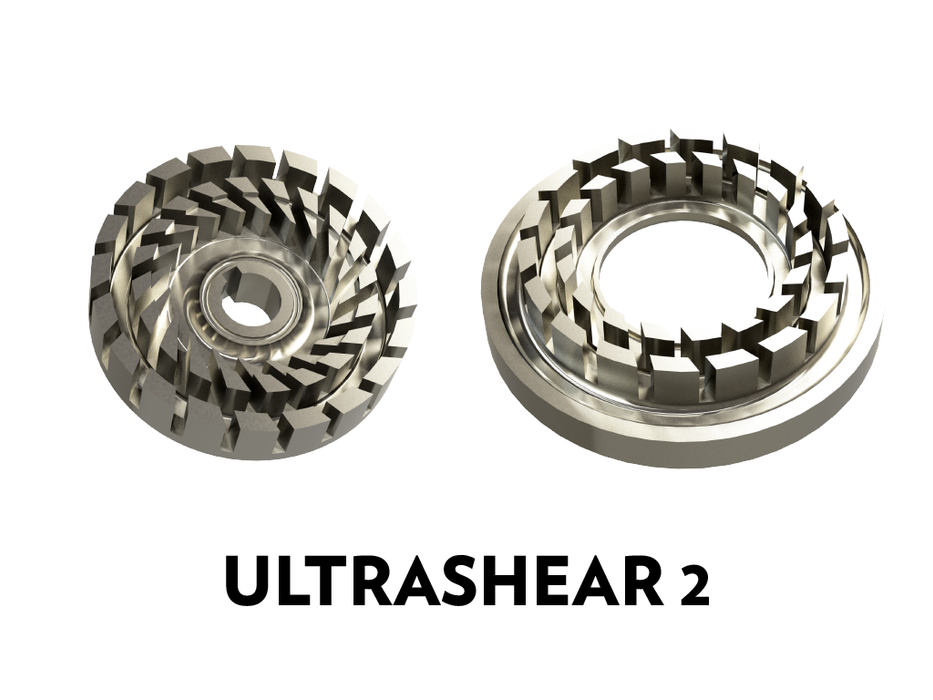

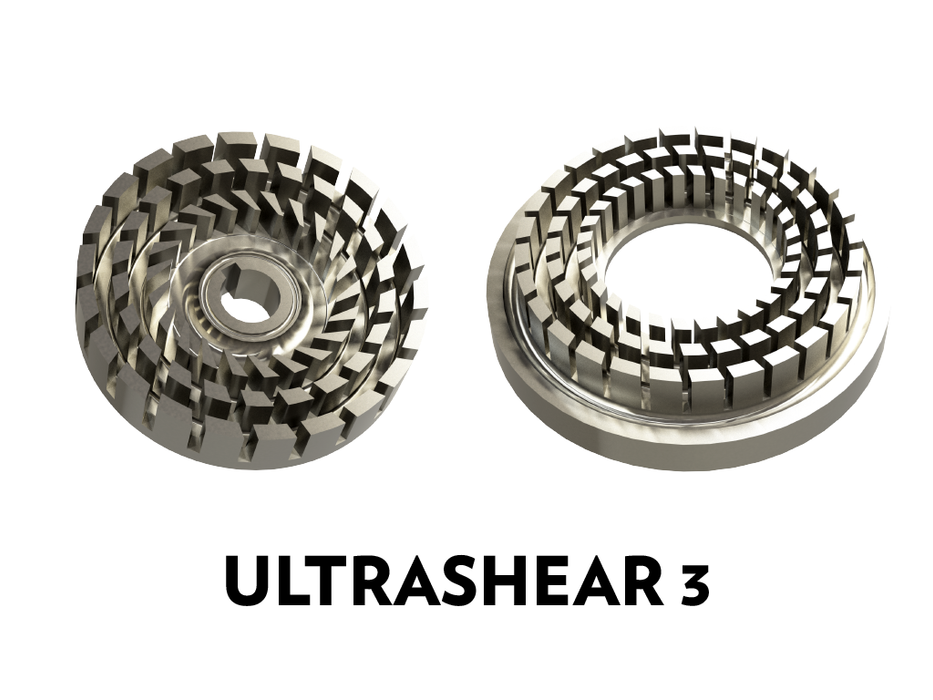

The UltraShear rotor stator provides a lower flow in exchange for the highest shear of the ShearPro tools. Use an UltraShear rotor stator to achieve the smallest particle size in a single pass through the ShearPro. Exceptional for use of thickening agents such as guar gum or polyacrylamide. Available in 4 configurations increasing in shear stages.

  • Item Number SP1010008-PDVES1
  • Enclosure type IP55
  • Horsepower 7.5 HP
  • Impeller material 316SS
  • Impeller type ExoShear 1
  • Inlet fitting size 2 Tri-Clamp
  • Lead time 45 Business Days
  • Motor type TEFC Electric
  • Mount Foot Mount
  • Outlet fitting size 2 Tri-Clamp
  • Phase 3 Ph.
  • Rpm 3450
  • Seal Double Mechanical - Viton
  • Voltage 230/460V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
