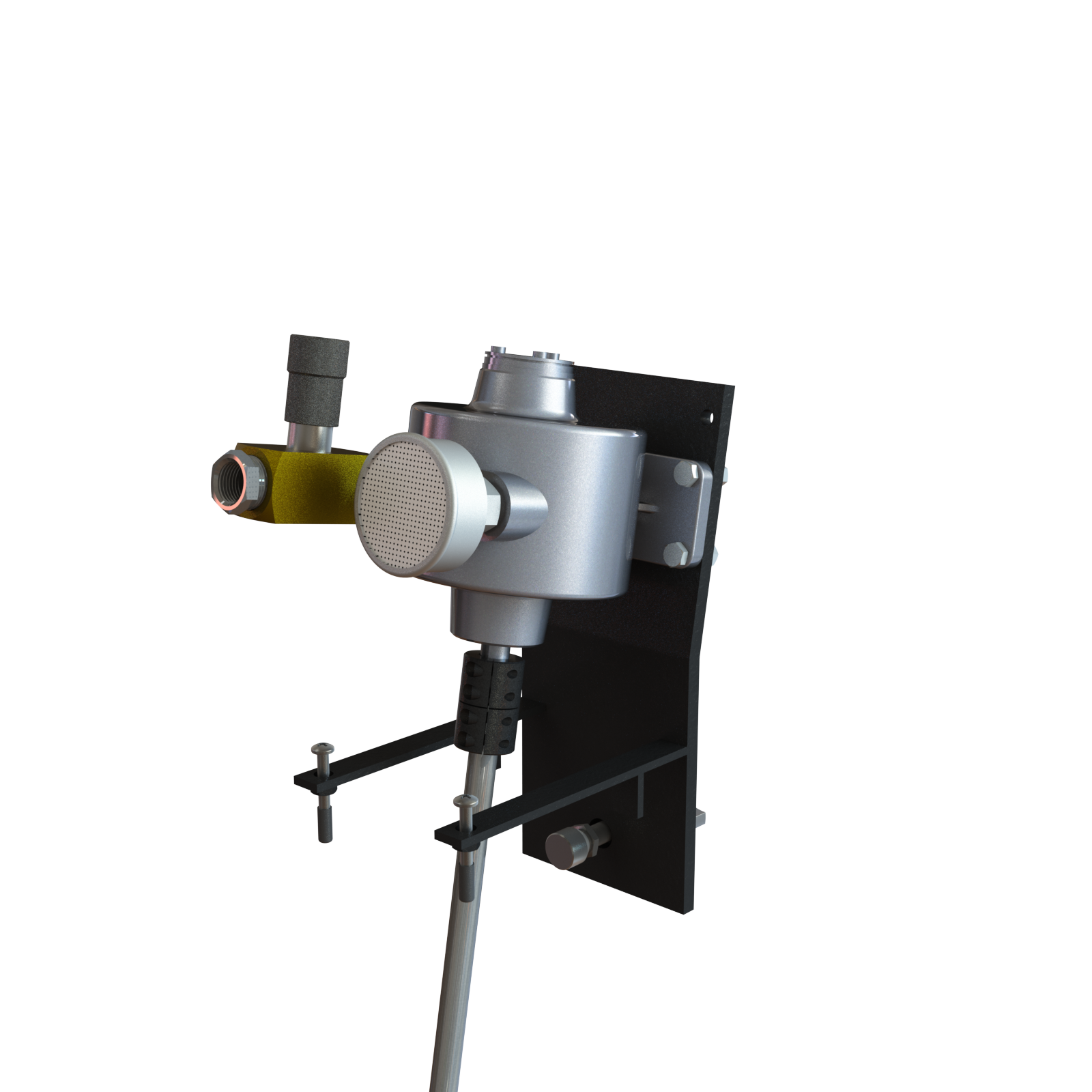

Drum clamp mixers are a versatile drum mixer, allowing for mixing in open or lidded drums. Mount directly to the side of an open drum or slip the shaft and impeller through standard 2" bung fittings to mix in closed vessels.
- Equipped with a heavy-duty air motor for safe use in hazardous environments
- Wetted materials made of 316 or 304 grade stainless steel for high corrosion and abrasion resistance

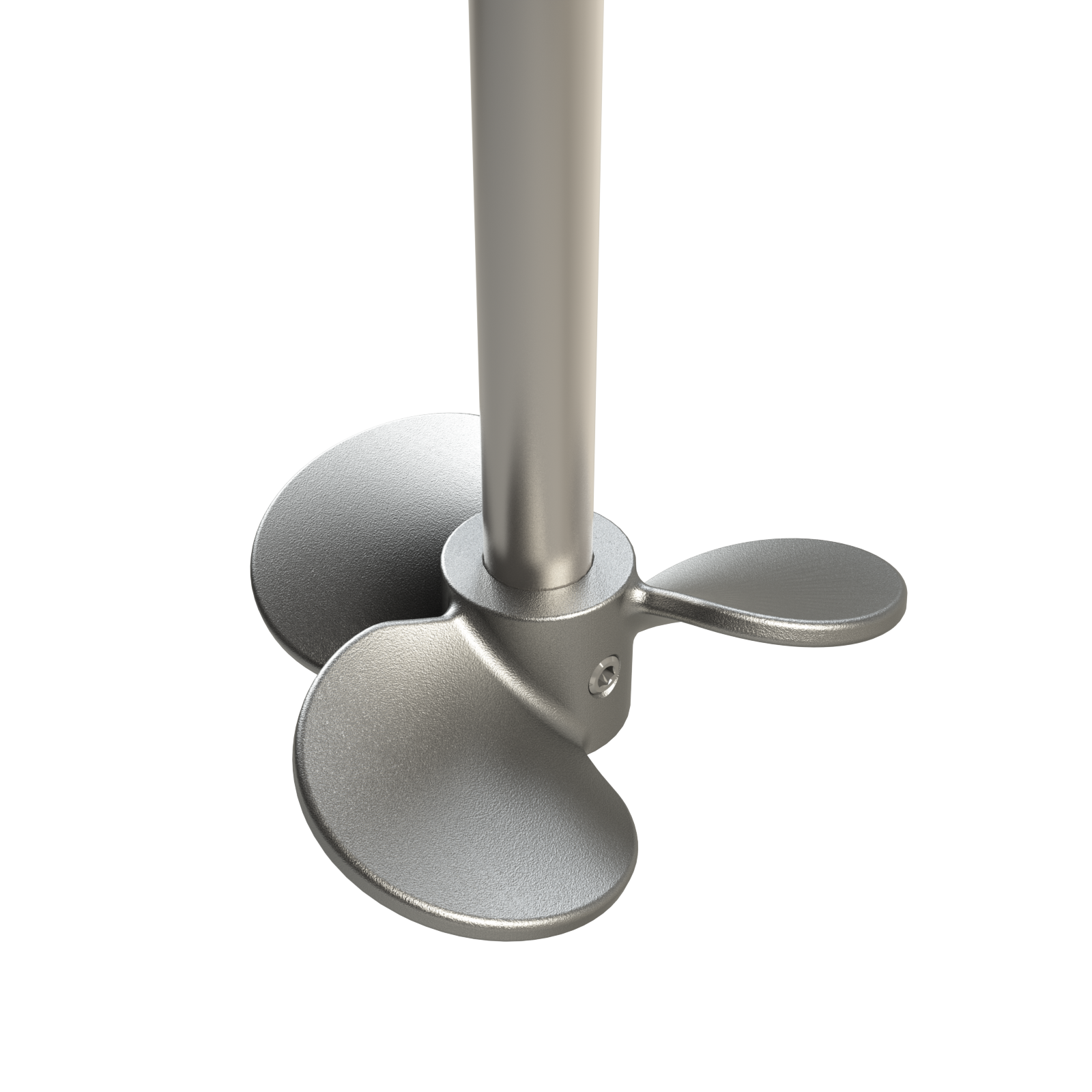

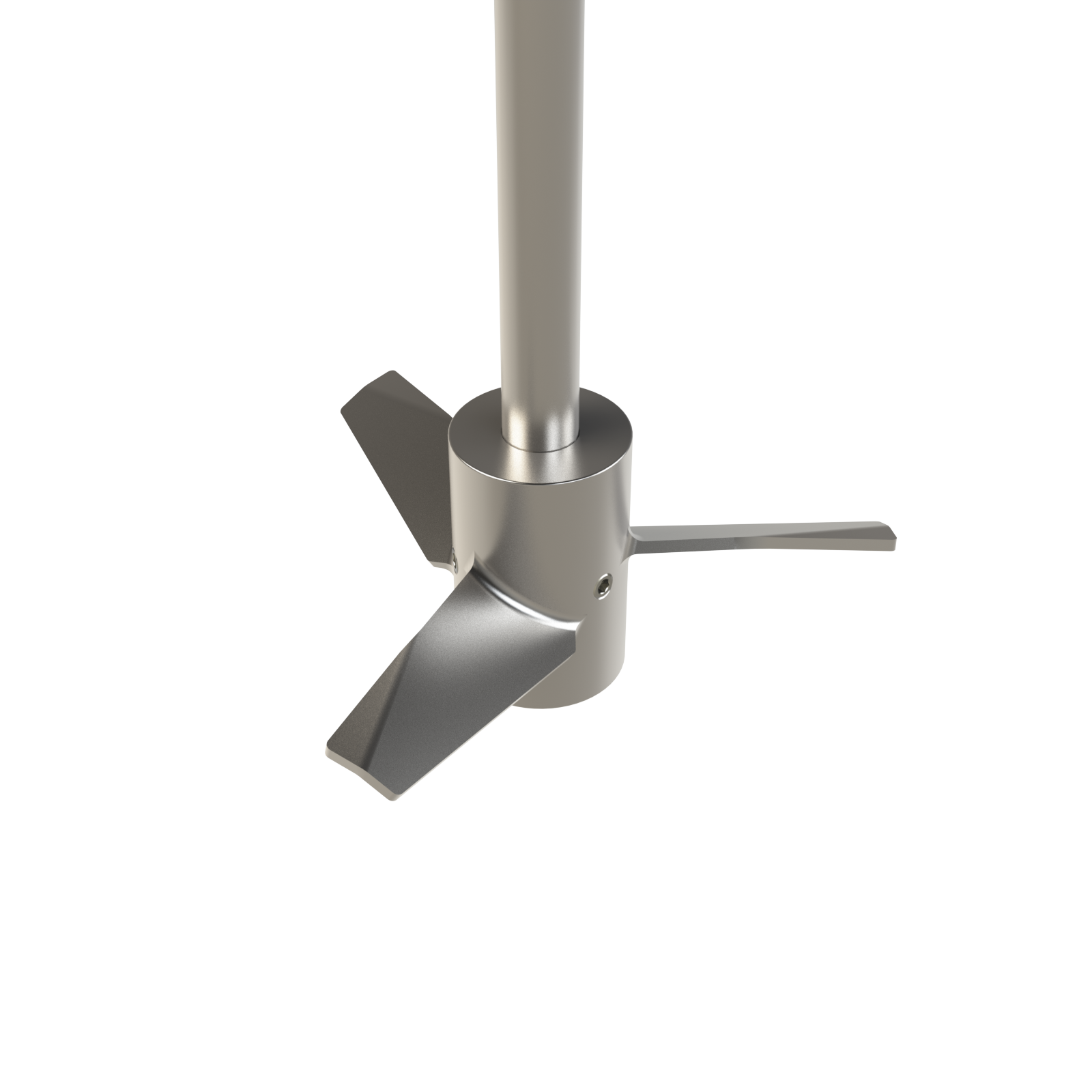

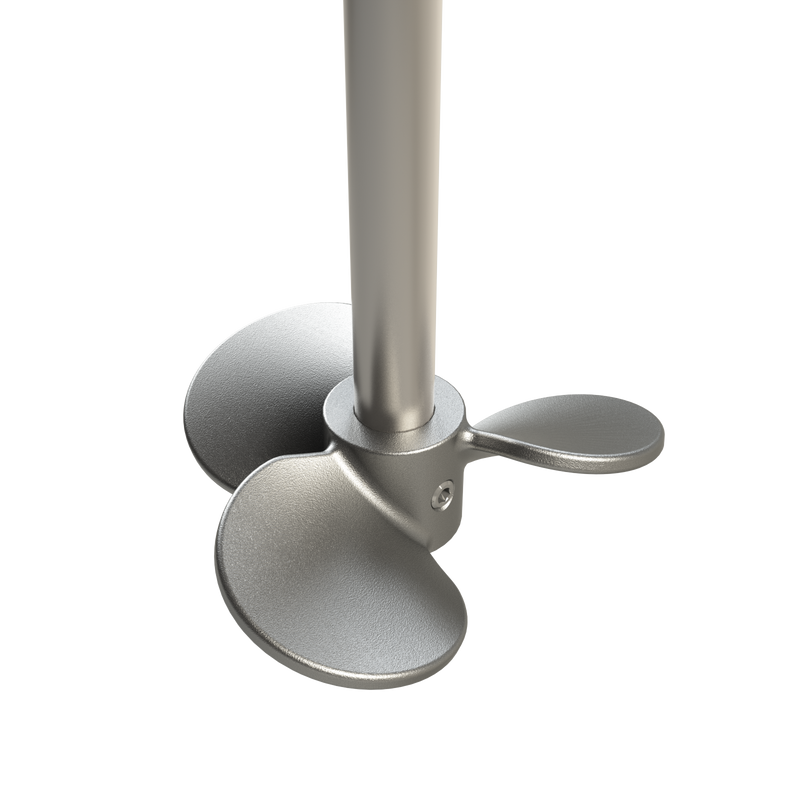

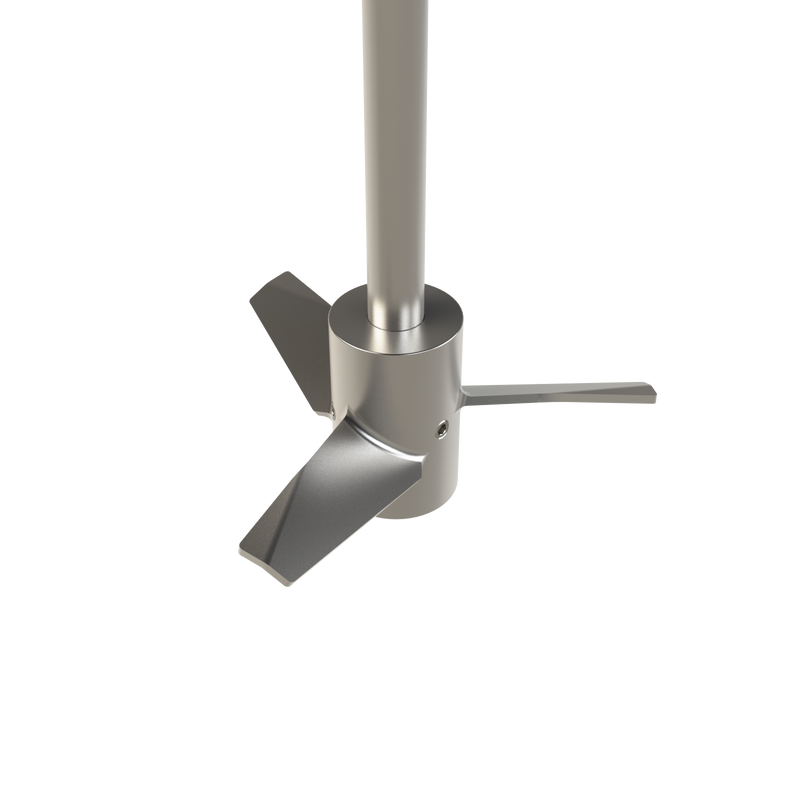

- Offers options for selecting horsepower and an appropriately sized propeller or hydrofoil impeller matched to the mixer
- Item Number DCM075ADD
- Air motor requirement 30cfm @ 100psi
- Horsepower 3/4 HP
- Impeller attachment Set screw
- Impeller diameter 4 in.
- Impeller material 316SS
- Impeller type Folding Impeller
- Lead time 3 Business Days
- Motor type Air Motor
- Mount Drum Clamp Mount
- Mount dimension 2 NPT
- Number of impellers 1
- Rpm 0-3000
- Shaft diameter .625 in.
- Shaft length 28 in.
- Shaft material 316SS
- Speed controller Brass Precision Needle Valve
- Voltage 115V
