20-1000 Gallon | Lightweight & Portable

Air Direct Drive Economy Clamp

Regular price $2,126.00
/
Lead Time: 3 Business Days

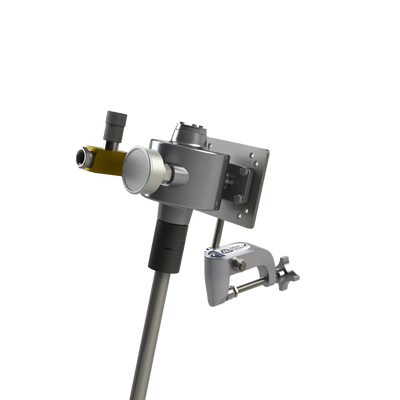

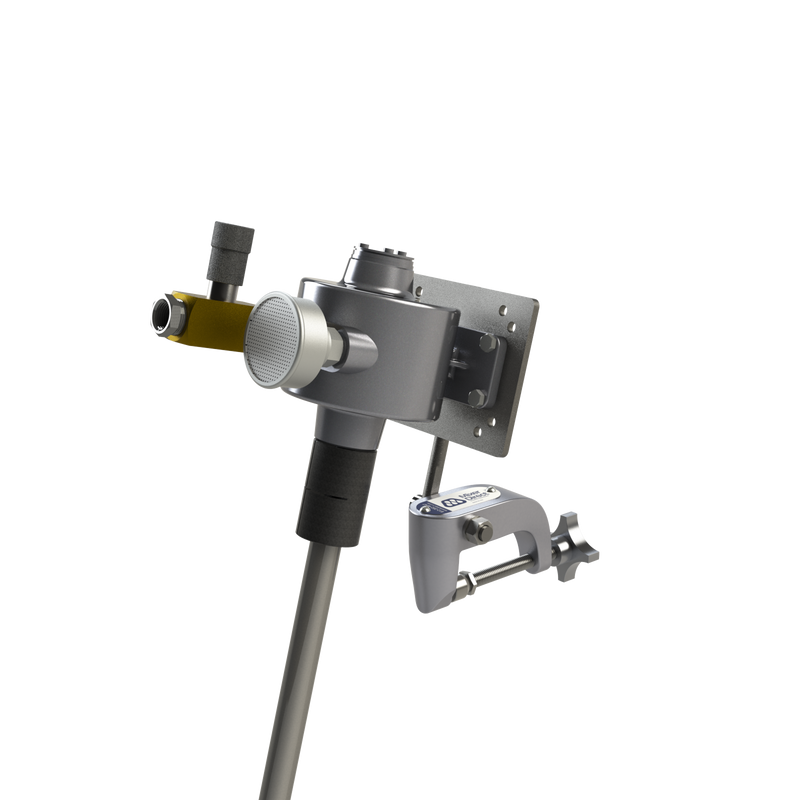

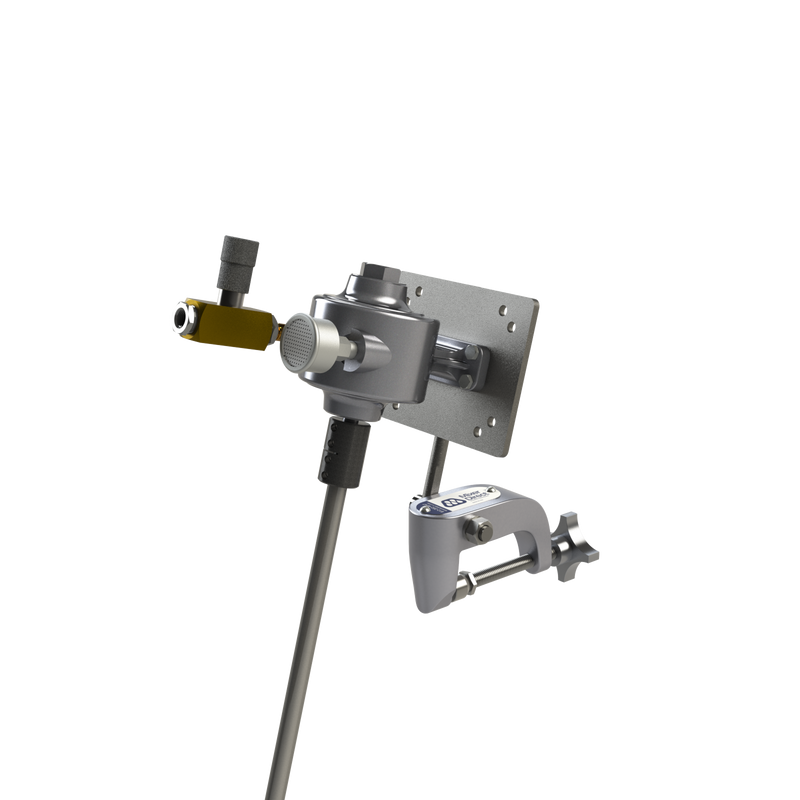

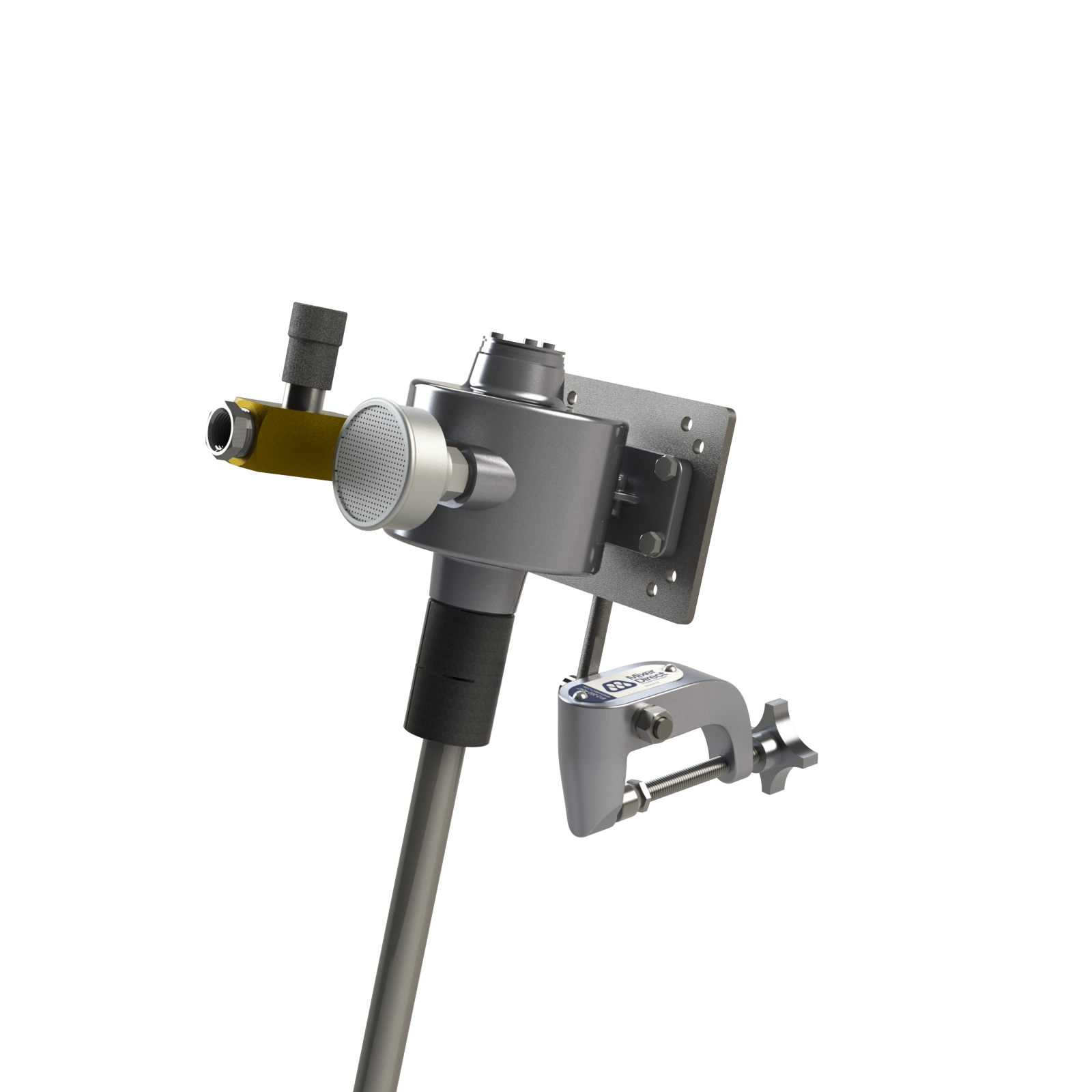

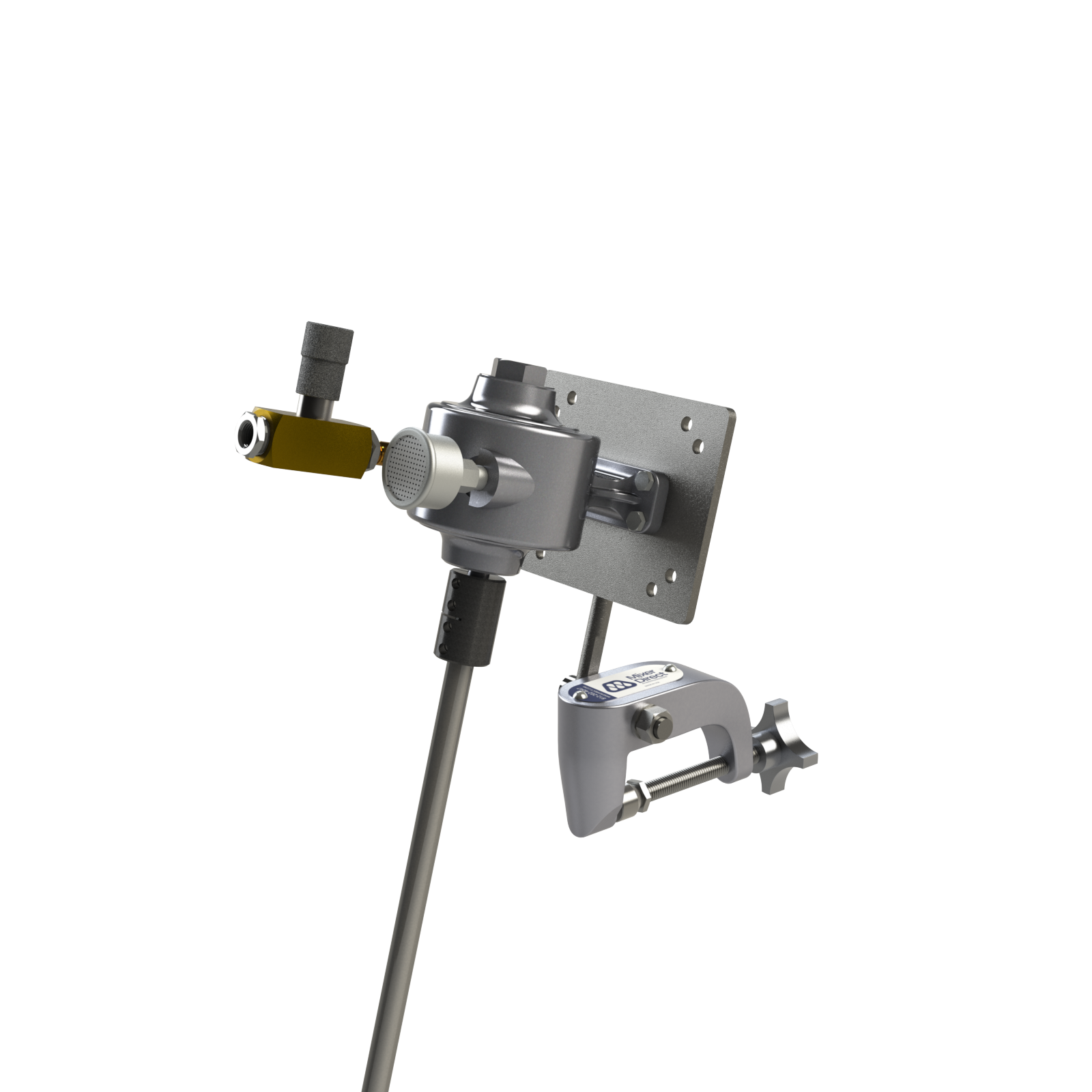

This highly portable economy clamp mounted mixer is designed to mix volumes under 1000 gallons. Lightweight and adjustable, mount this mixer directly to a vessel or mixer stand for increased versatility in your process.
Part Number: ECM150ADD-24

Adjustable positioning, light weight and highly portable, the economy clamp mount mixer is a popular choice for applications that need versatility. Constructed with a heavy duty air motor, this clamp mounted mixer is safe for use in hazardous environments and requires minimal maintenance. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller will be matched to your mixer.

  • Item Number ECM150ADD-24
  • Air motor requirement 30cfm @ 100psi
  • Horsepower 1.5 HP

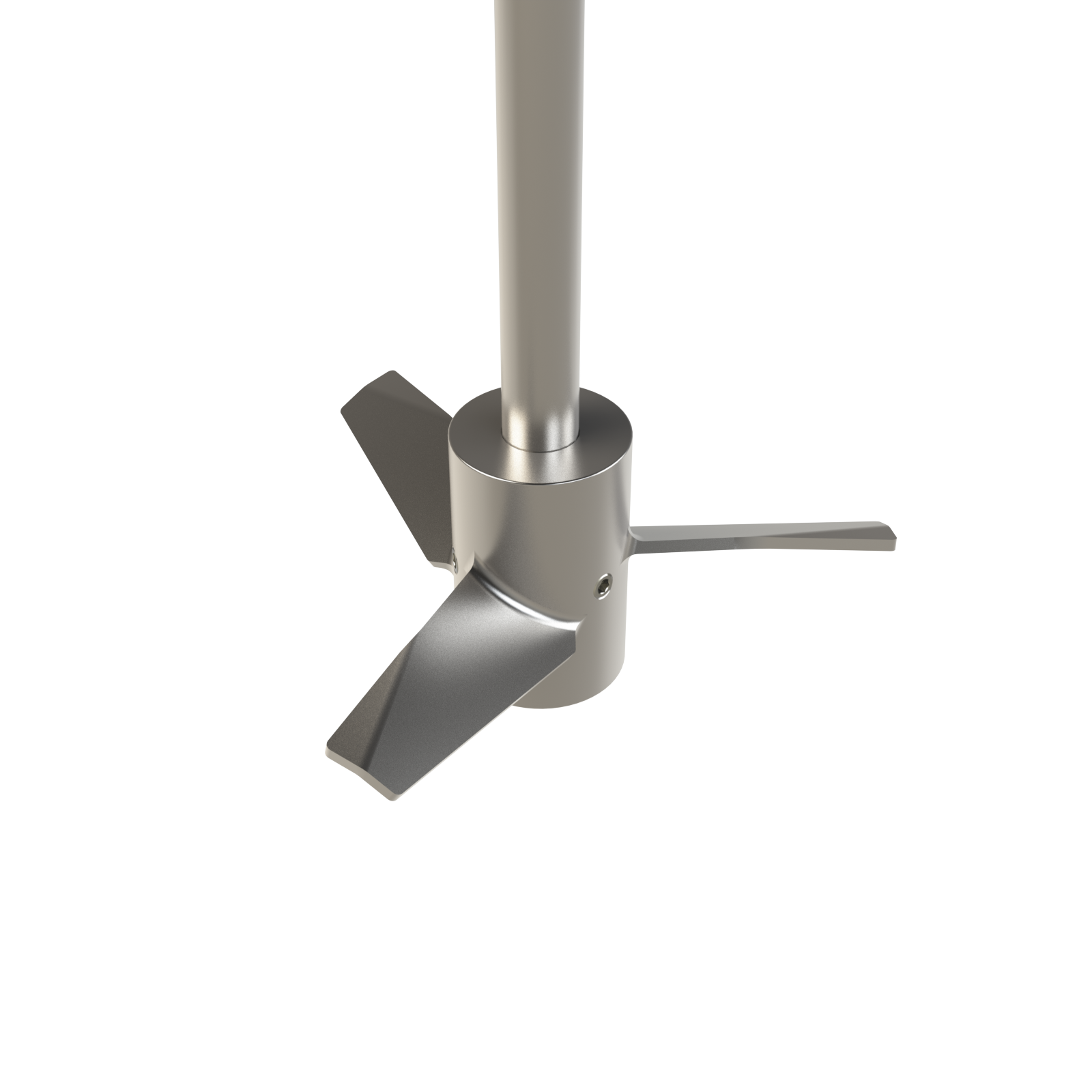

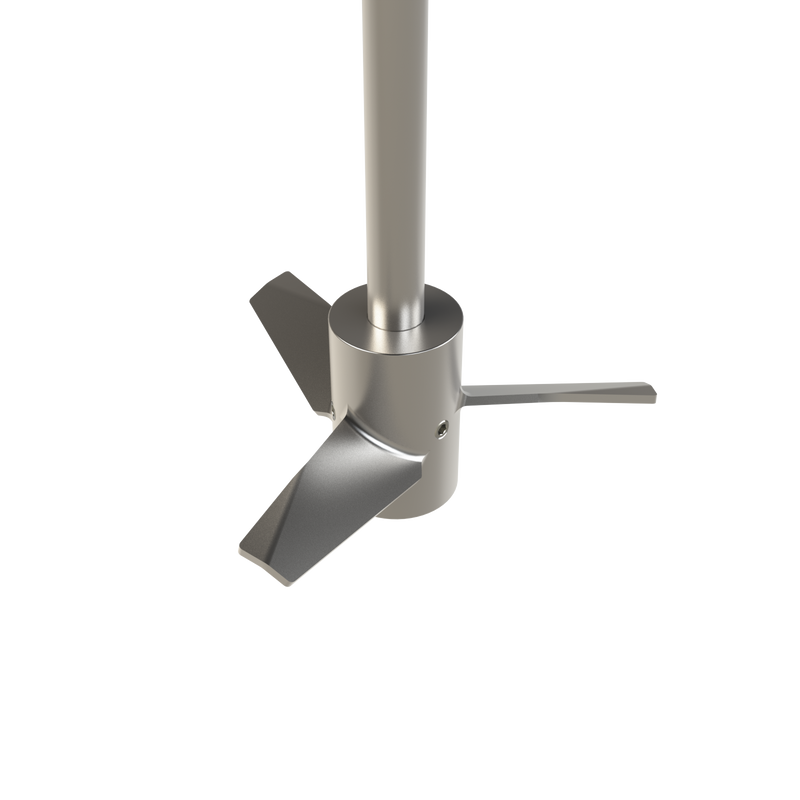

  • Impeller attachment Set screw
  • Impeller diameter 5 in.
  • Impeller material 316SS

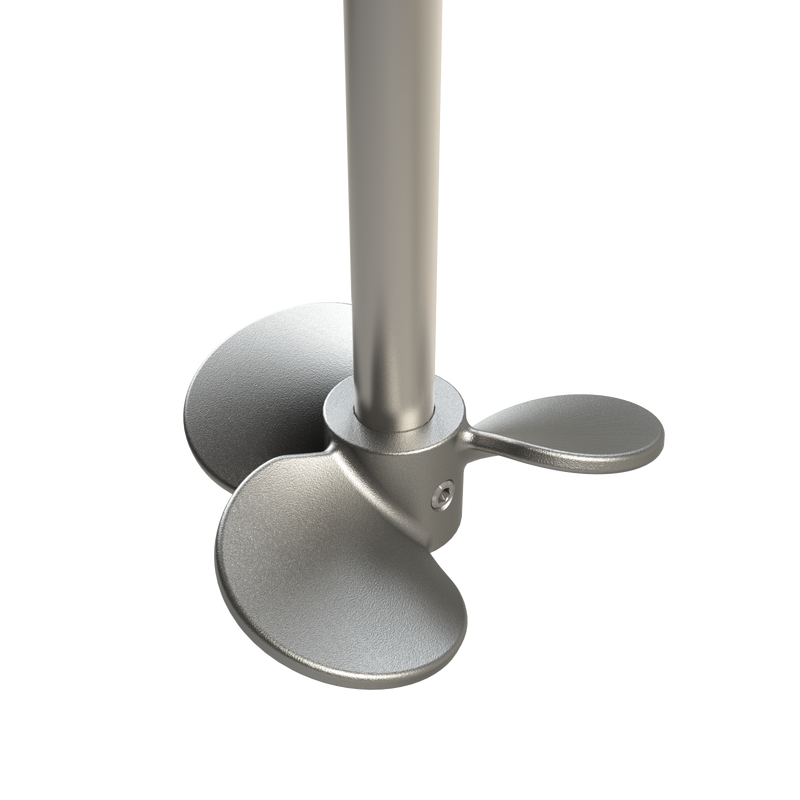

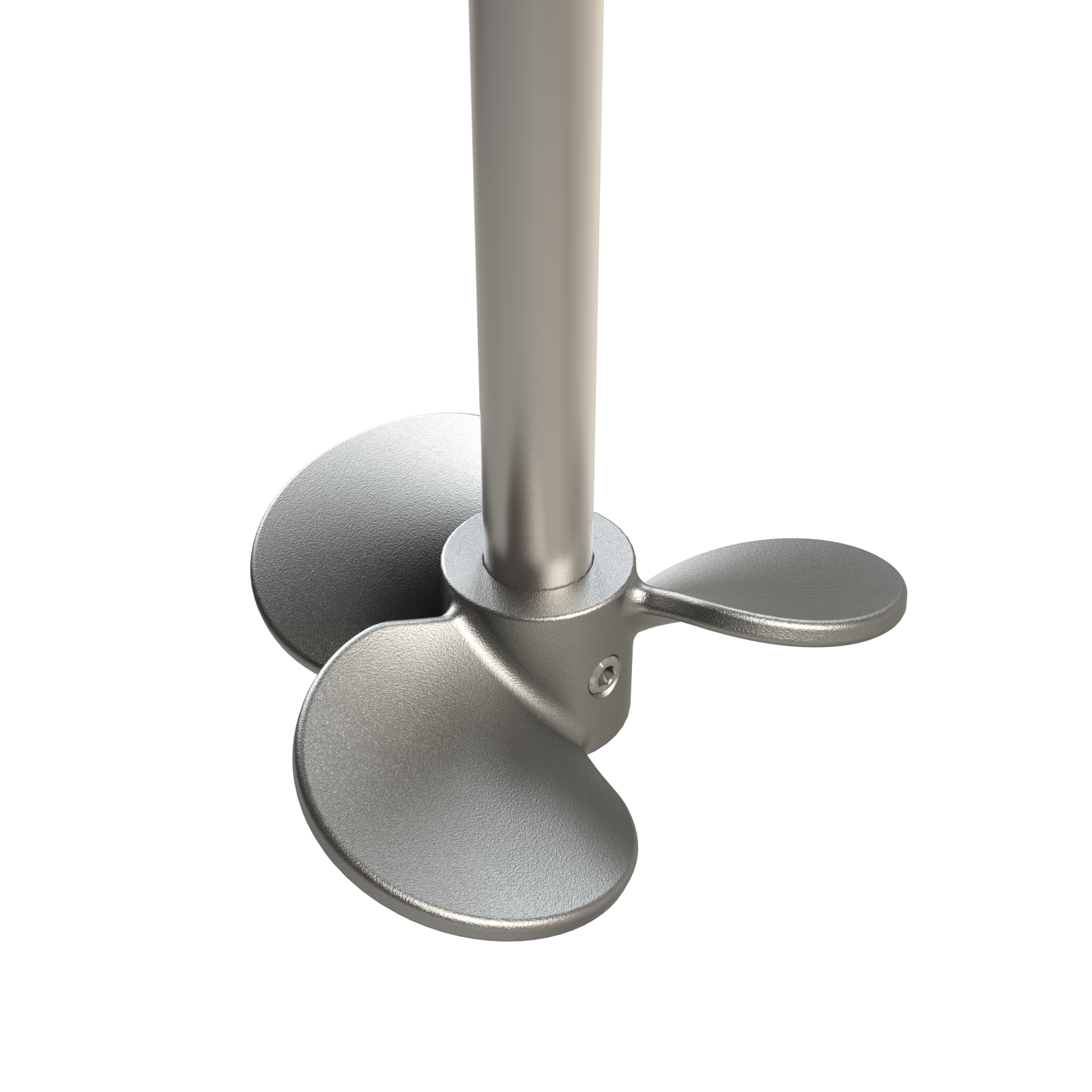

  • Impeller type Propeller
  • Lead time 3 Business Days
  • Motor type Air Motor
  • Mount Economy Clamp
  • Mount dimension 3.5 in.Max Opening
  • Number of impellers 1
  • Rpm 0-3000
  • Shaft diameter 1 in.
  • Shaft length 24 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
