20-1000 Gallon | Top Entry Mixer

Air Direct Drive Plate Mount Mixer

Air Direct Drive Plate Mount Mixer
Air Direct Drive Plate Mount Mixer
Air Direct Drive Plate Mount Mixer
Air Direct Drive Plate Mount Mixer
20-1000 Gallon | Top Entry Mixer

Air Direct Drive Plate Mount Mixer

Regular price $2,456.00
/
Lead Time: 3 Business Days
Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to a bridge on open top vessels. A low maintenance solution to many processing applications.
Part Number: PLT075ADD

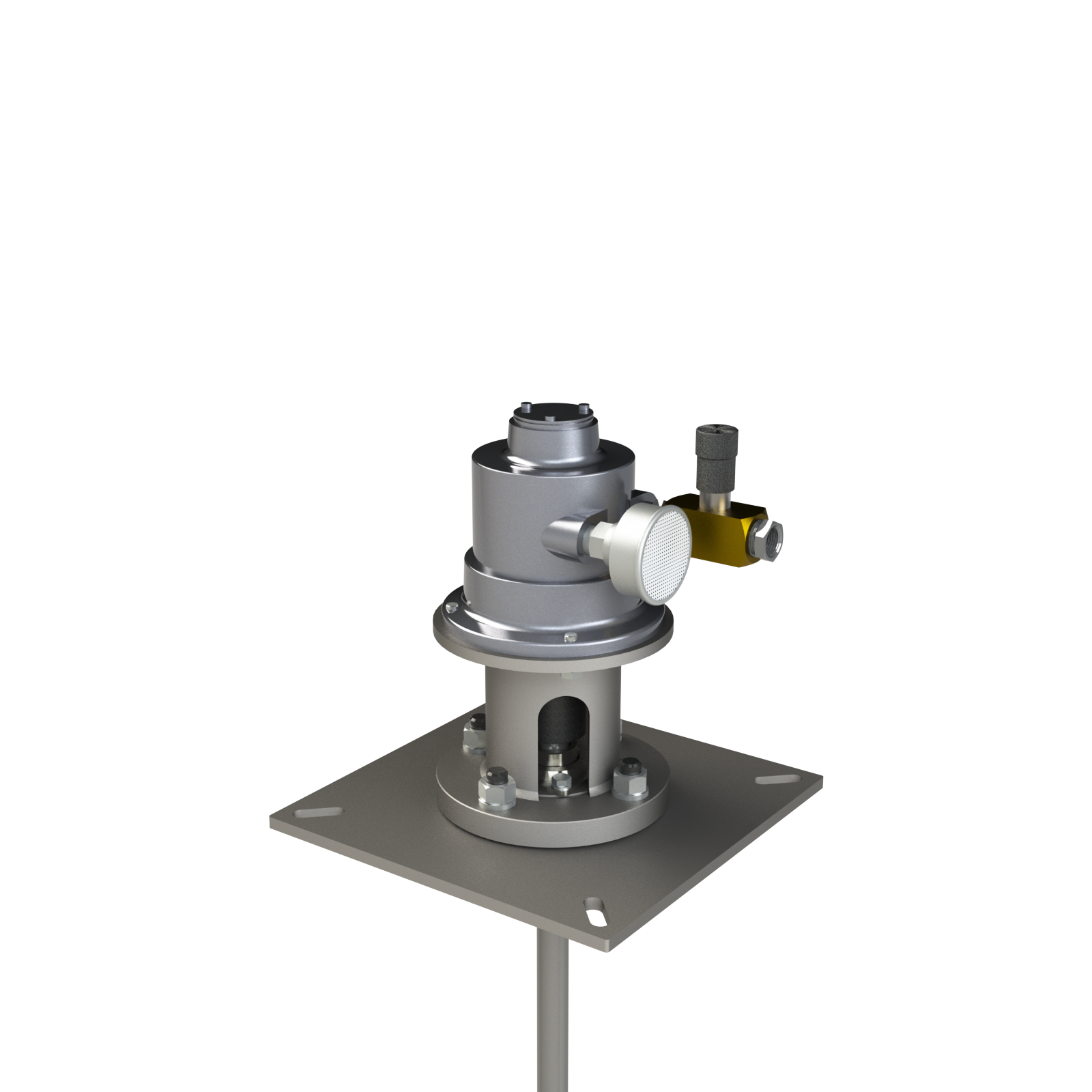

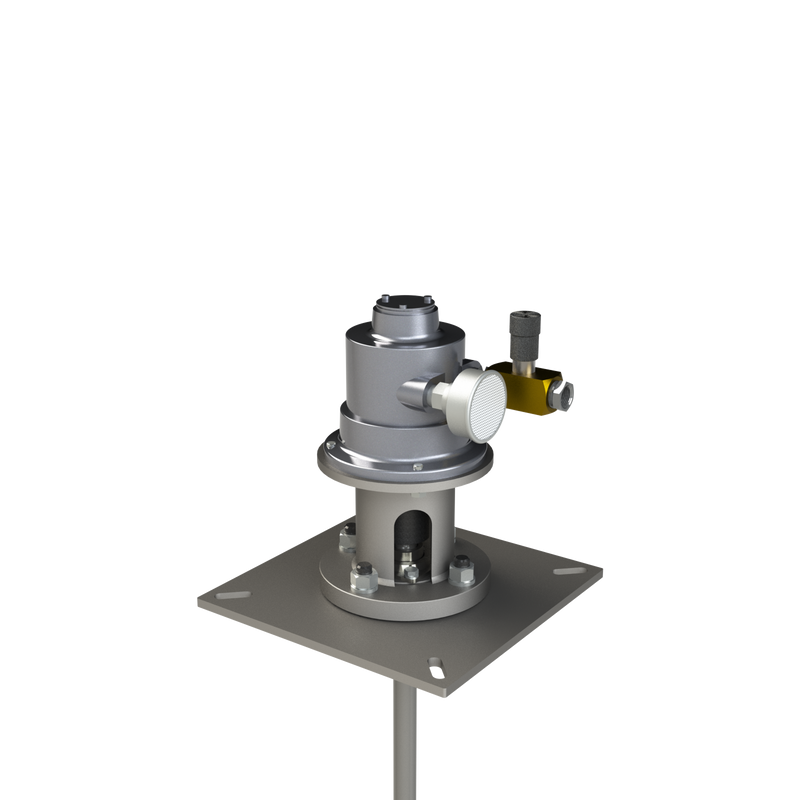

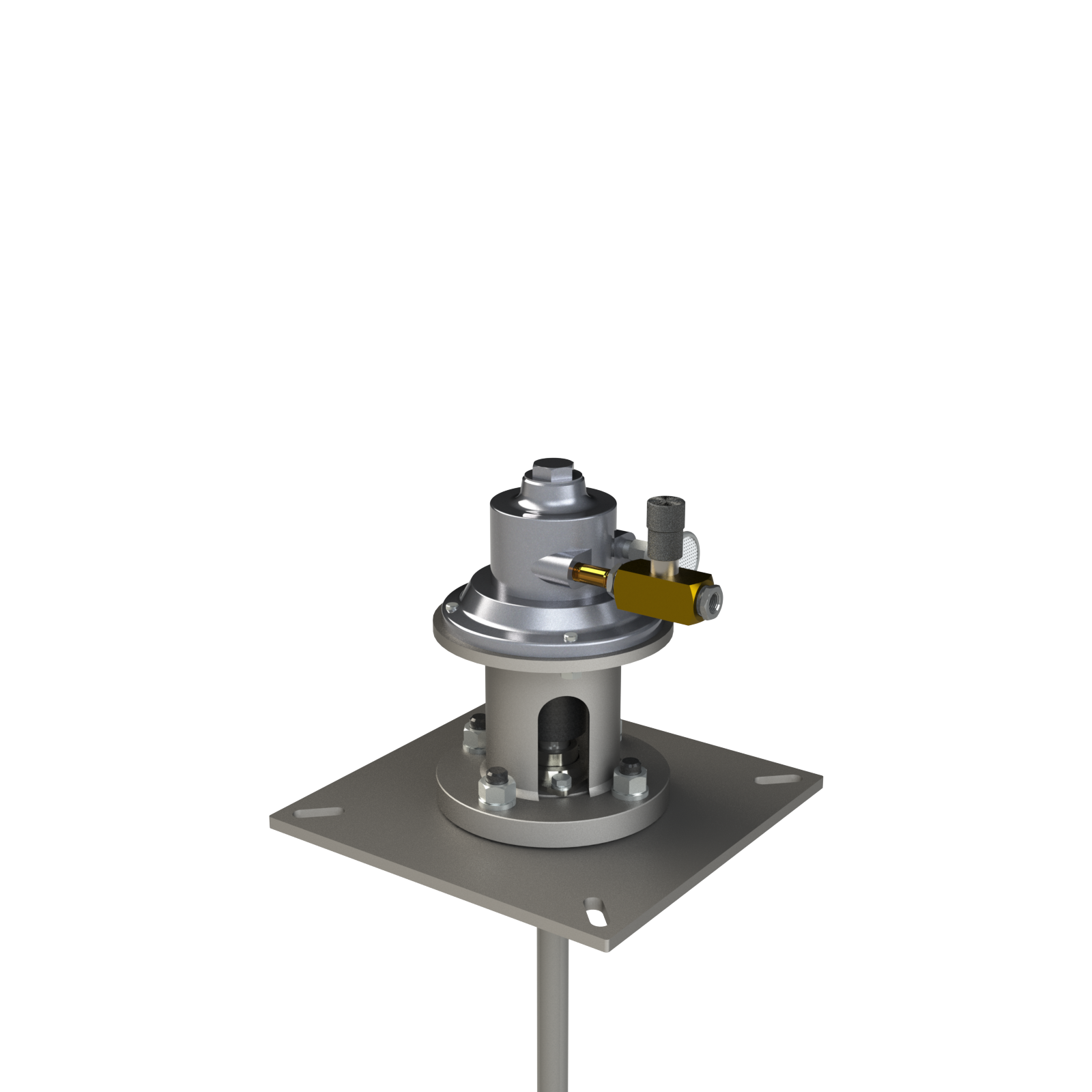

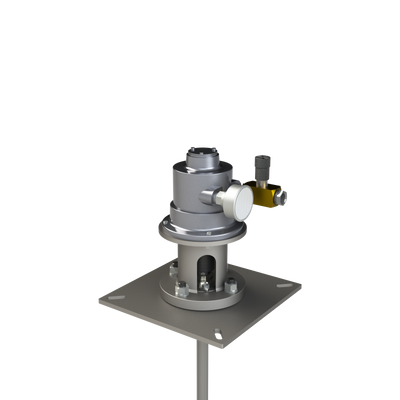

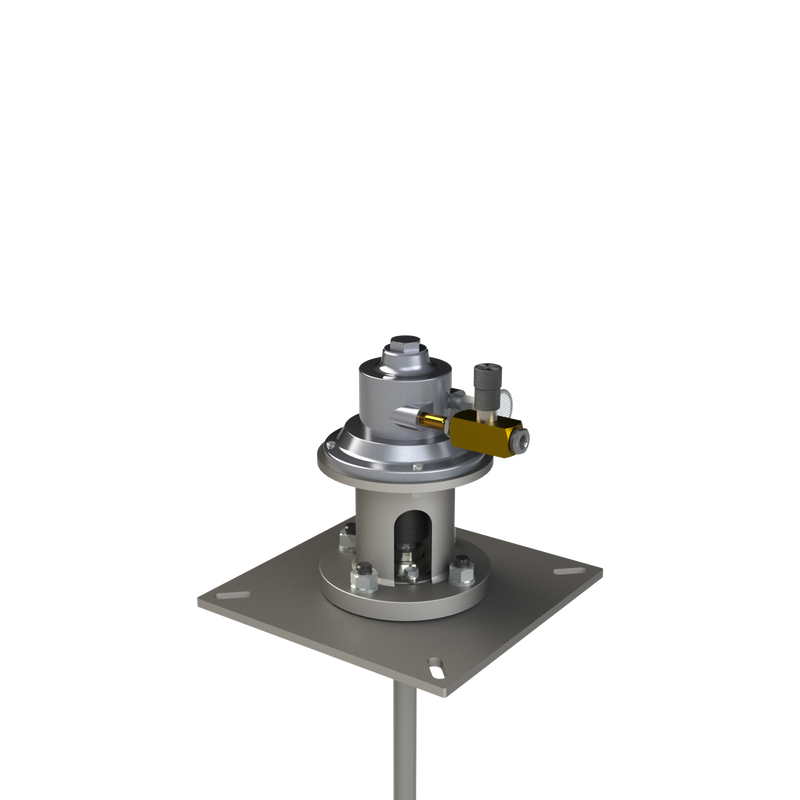

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processses without sacrificing mixing or blending capabilities. It is designed for heavy duty applications with an extra flange mounted support bearing and all welded construction. Constructed with a heavy duty air motor, this flange mounted mixer is safe for use in hazardous environments and requires minimal maintenance. This mixer mounts easily and securely to a bridge or C-channels across the top of the tank. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Add a Viton Lip Seal for increased protection to the mixer and liquid ingredients. Select your horsepower and an appropriately sized high efficiency impeller will be matched to your mixer.

  • Item Number PLT075ADD
  • Air motor requirement 30cfm @ 100psi
  • Horsepower 3/4 HP
  • Impeller attachment Set screw

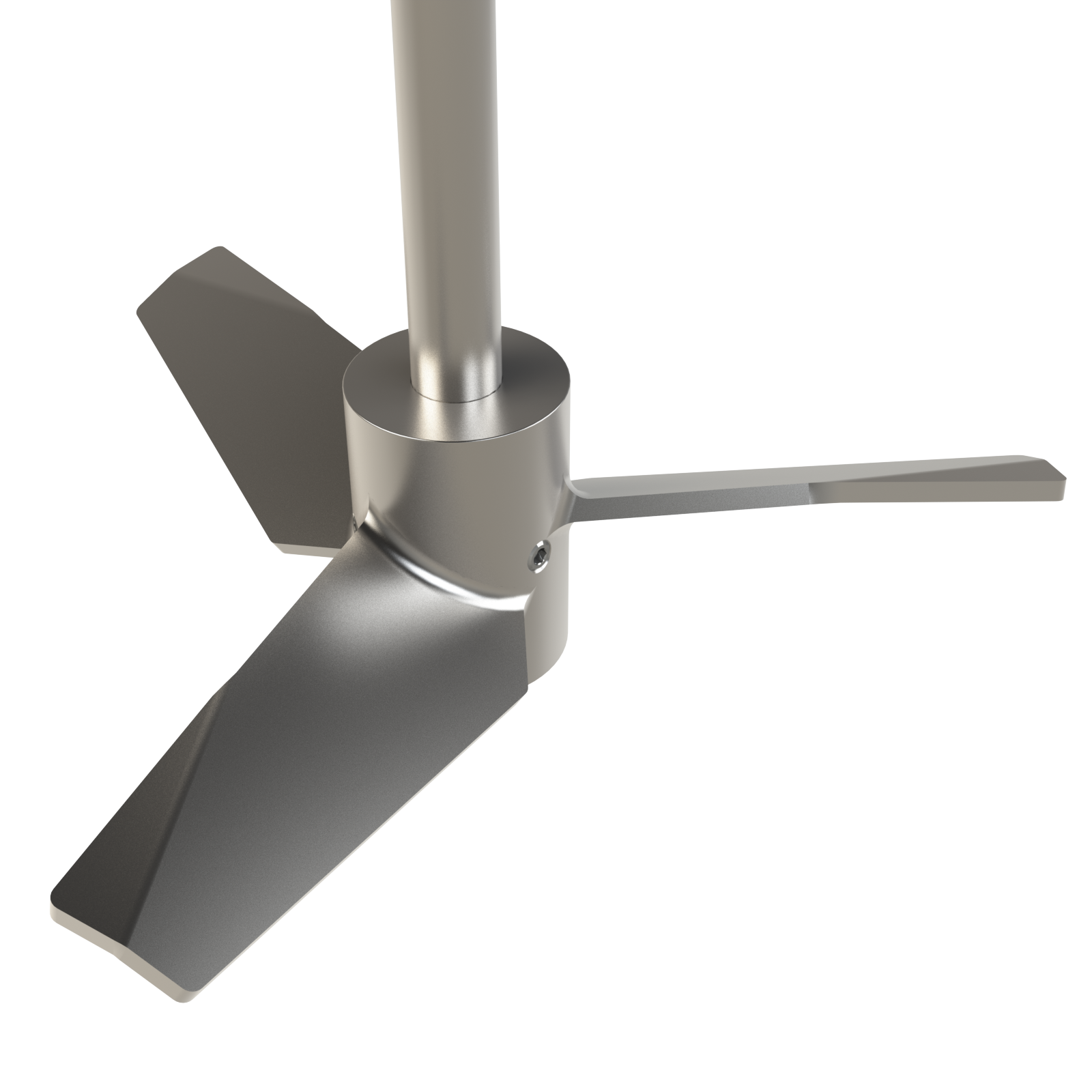

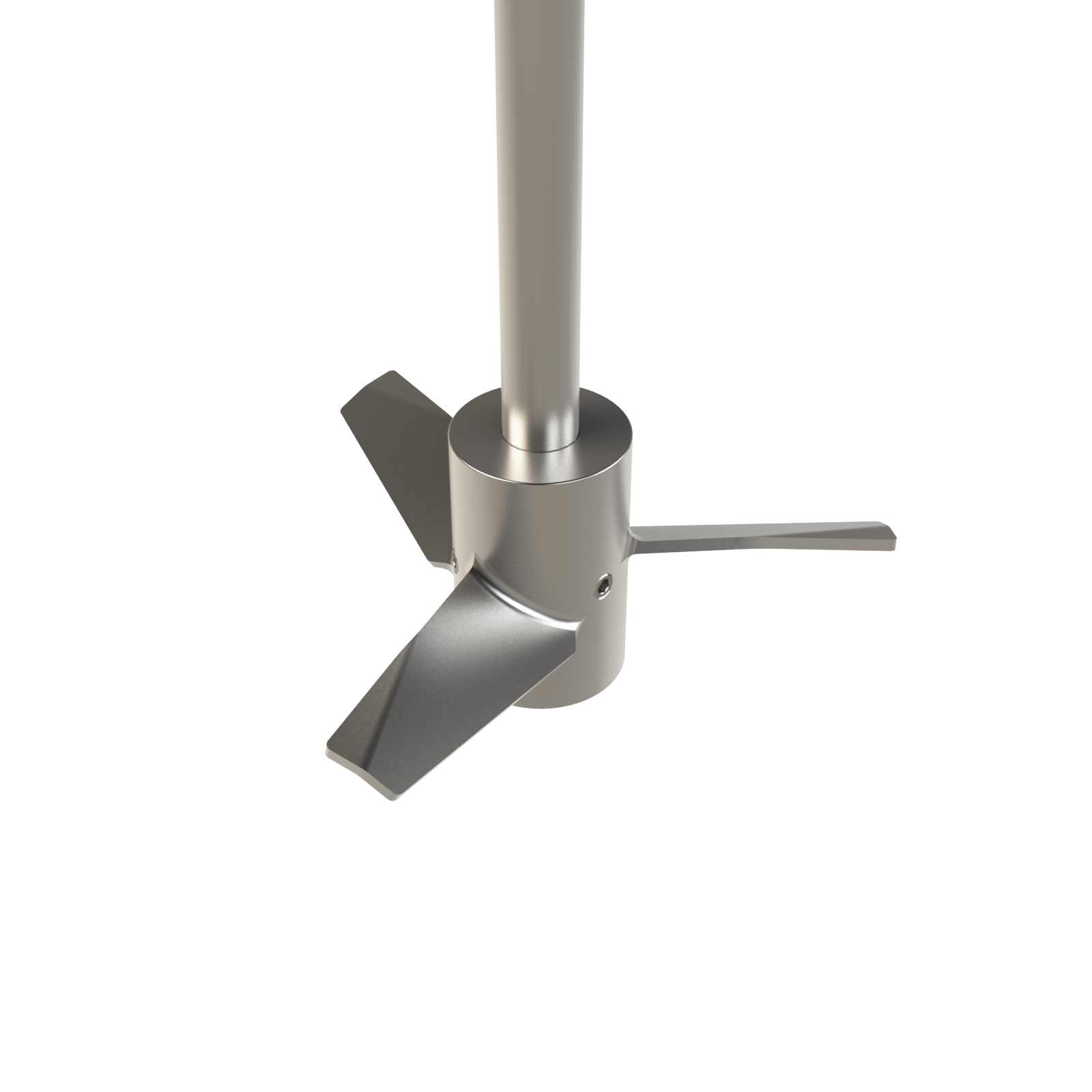

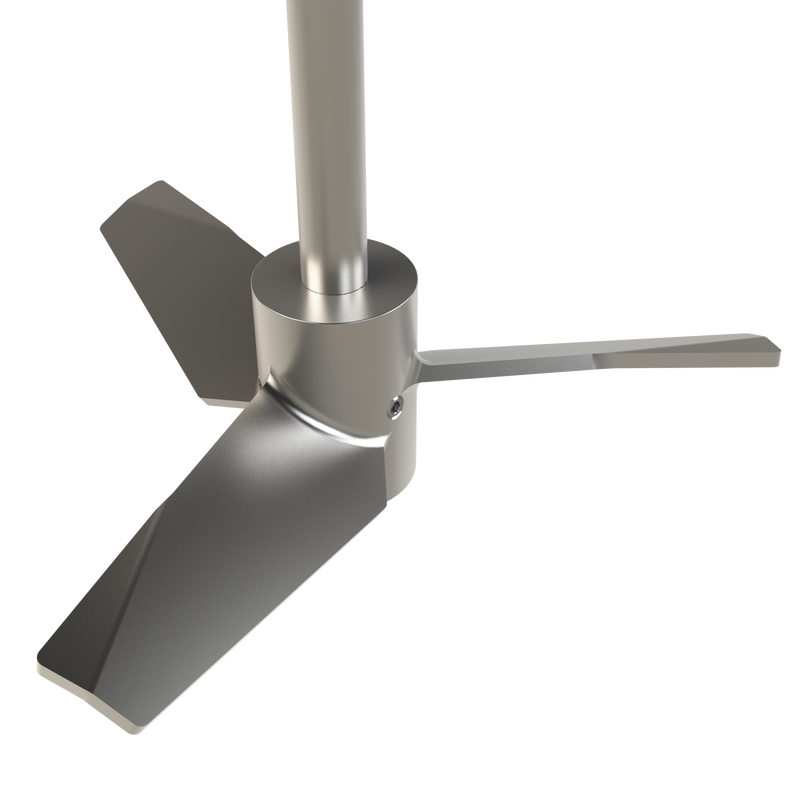

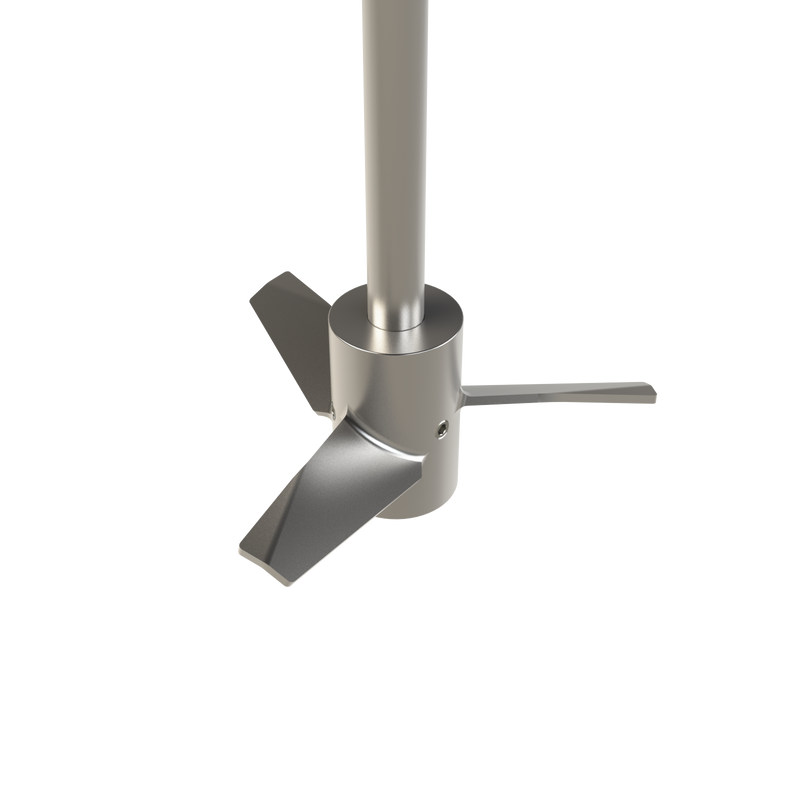

  • Impeller diameter 4 in.
  • Impeller material 316SS
  • Impeller type Propeller
  • Lead time 3 Business Days
  • Motor type Air Motor
  • Mount Plate
  • Mount dimension 12x12x3/8
  • Number of impellers 1
  • Rpm 0-3000
  • Shaft diameter 1 in.
  • Shaft length 36 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
