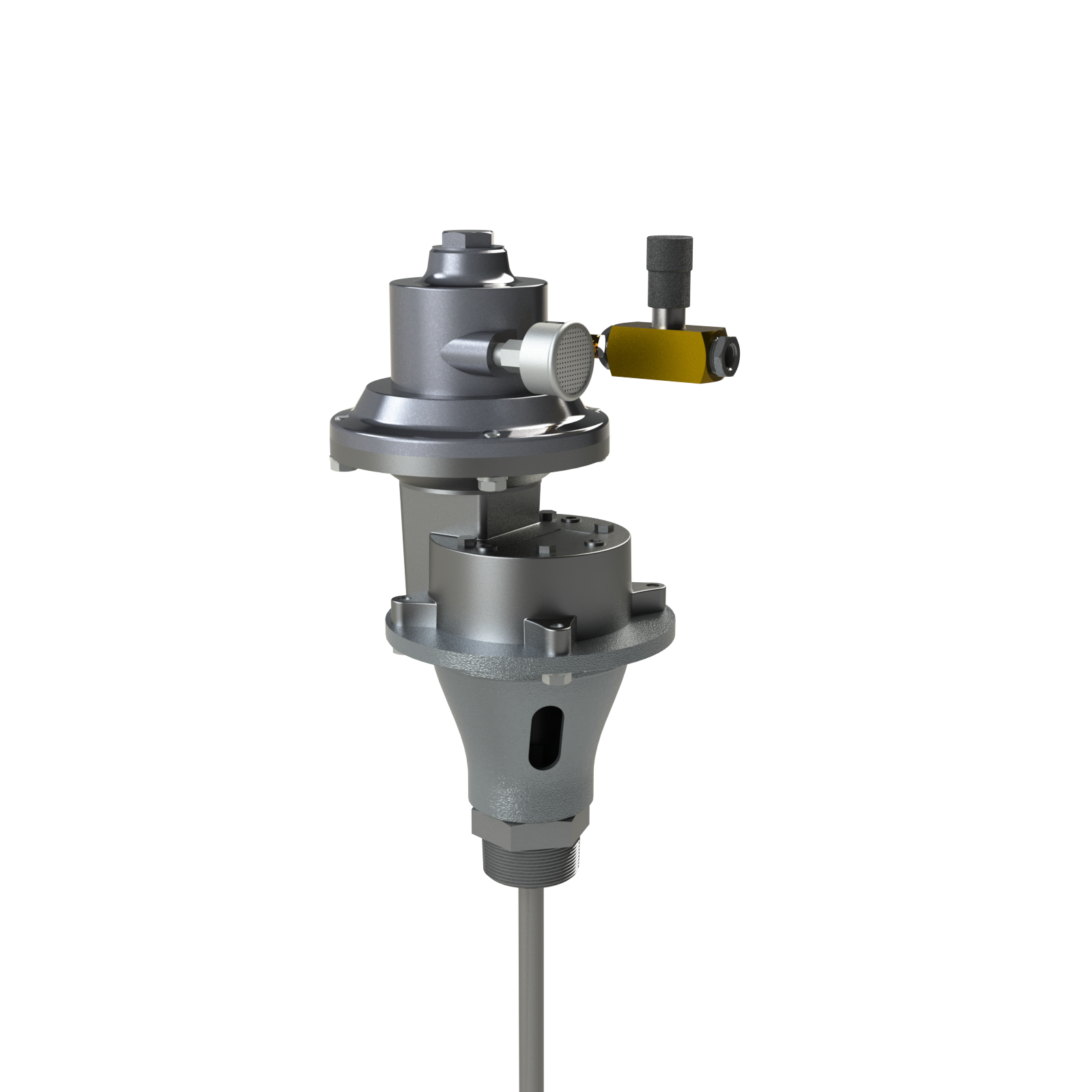

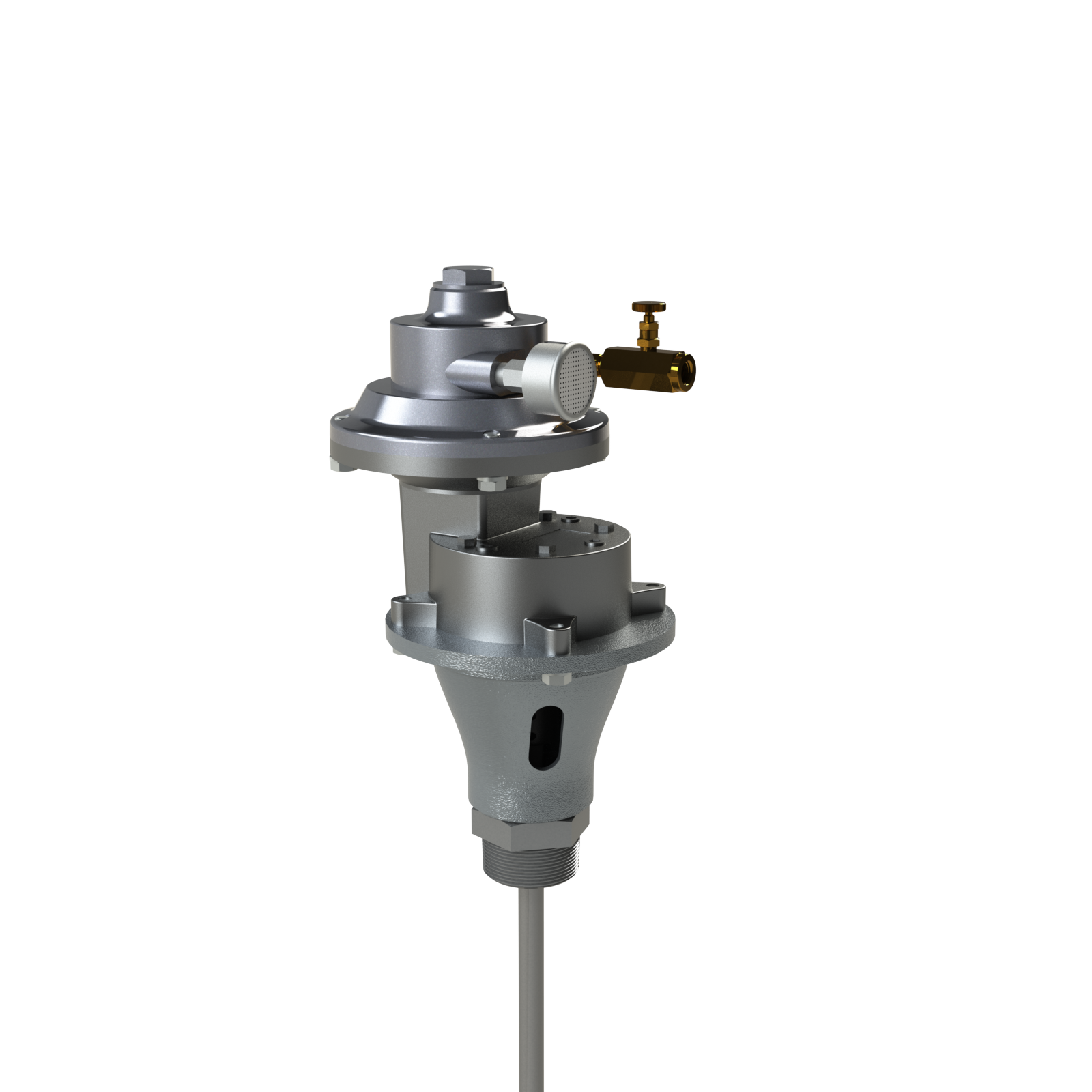

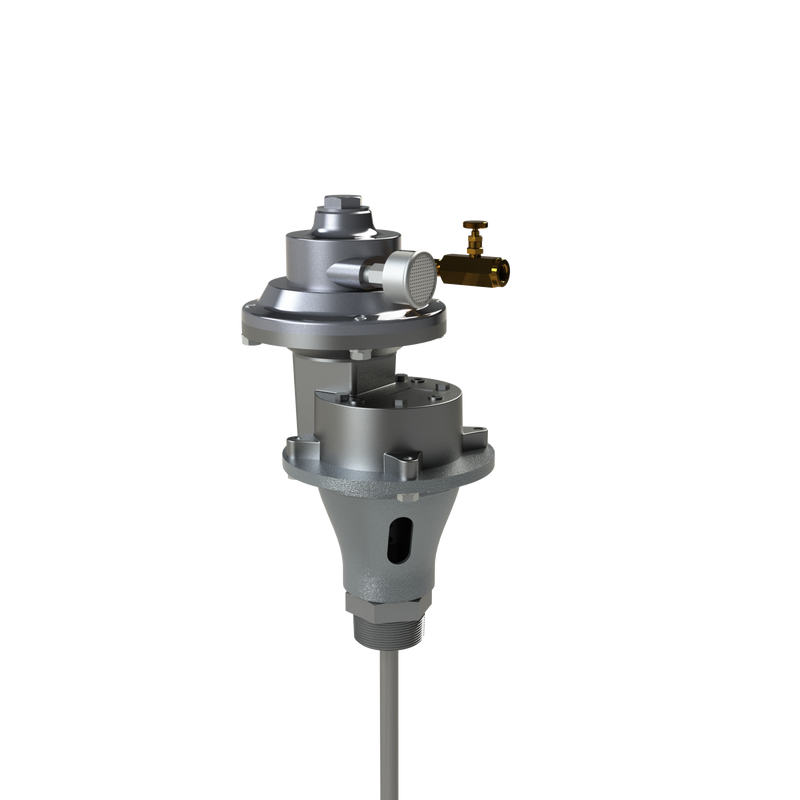

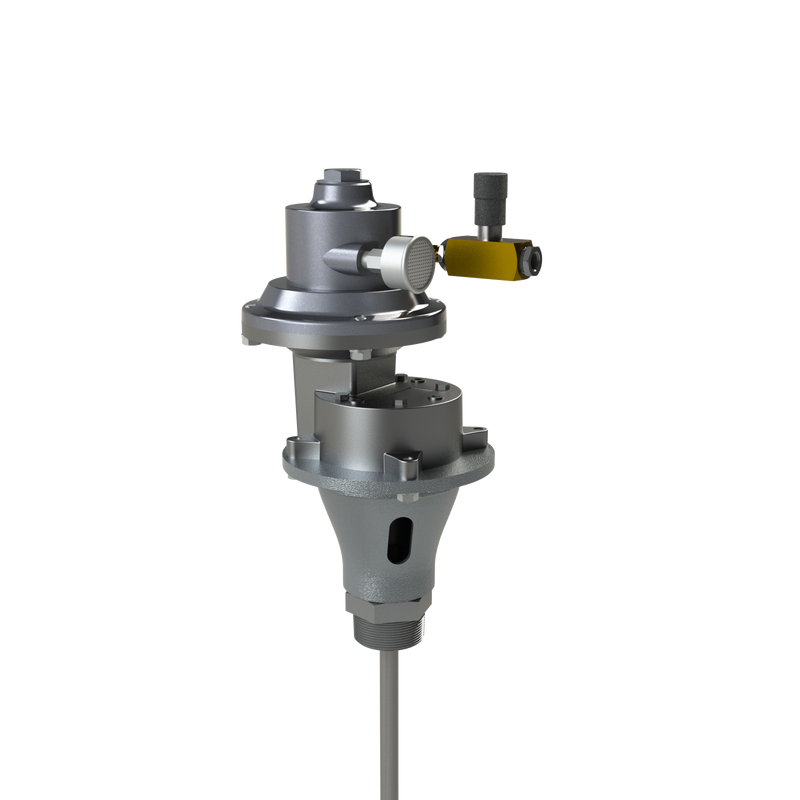

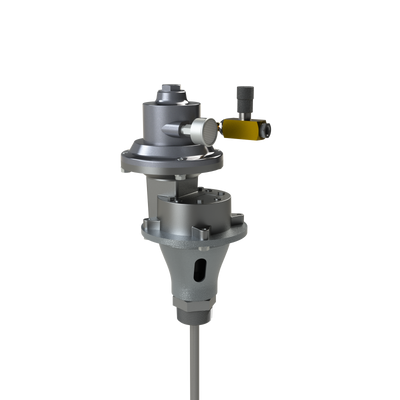

This bung mounted drum mixer threads directly into standard 2" NPT bung fittings, allowing for mixing in drums and vessels with closed lids.
Features of our bung mounted mixers include:
- Compatible with both side and center placed bung openings

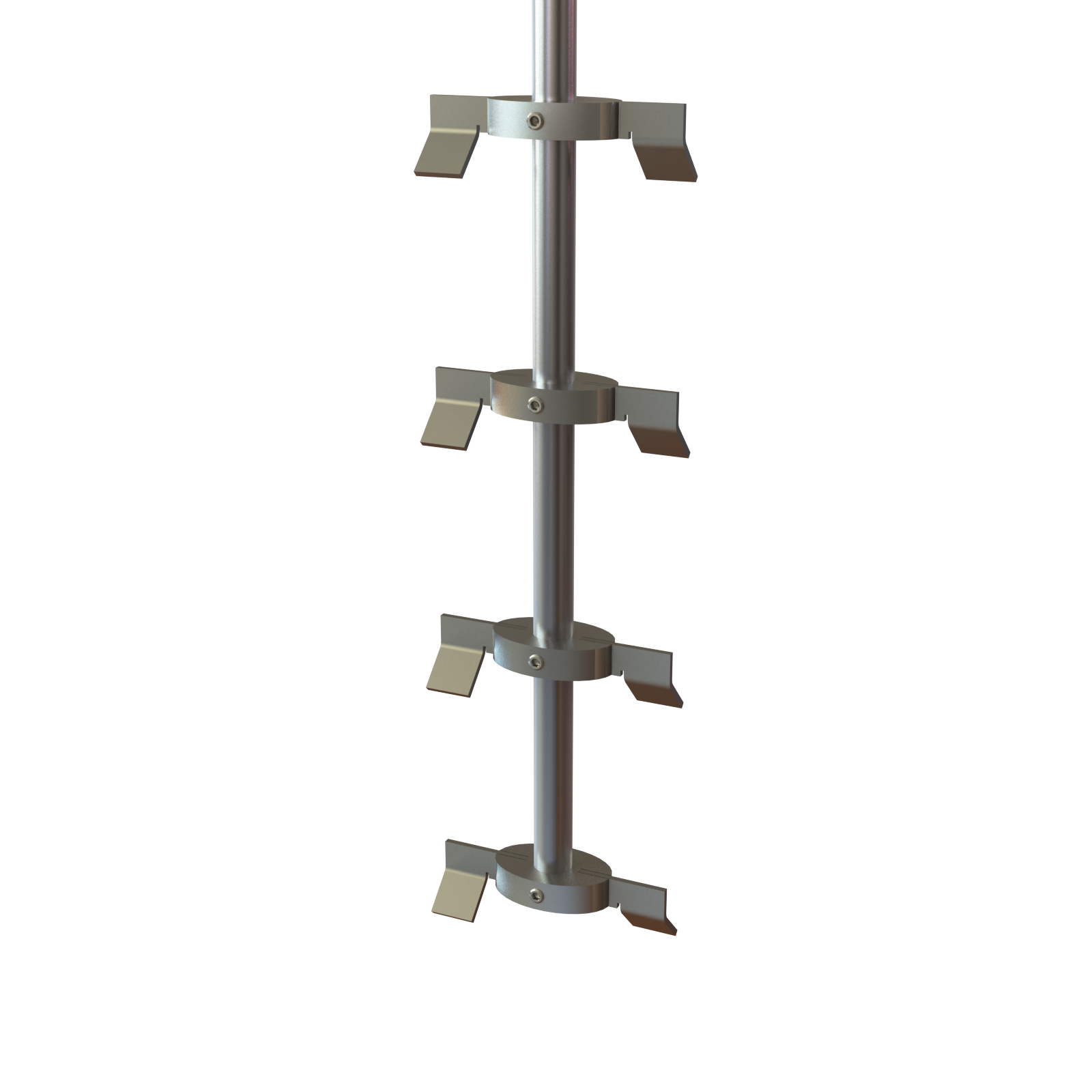

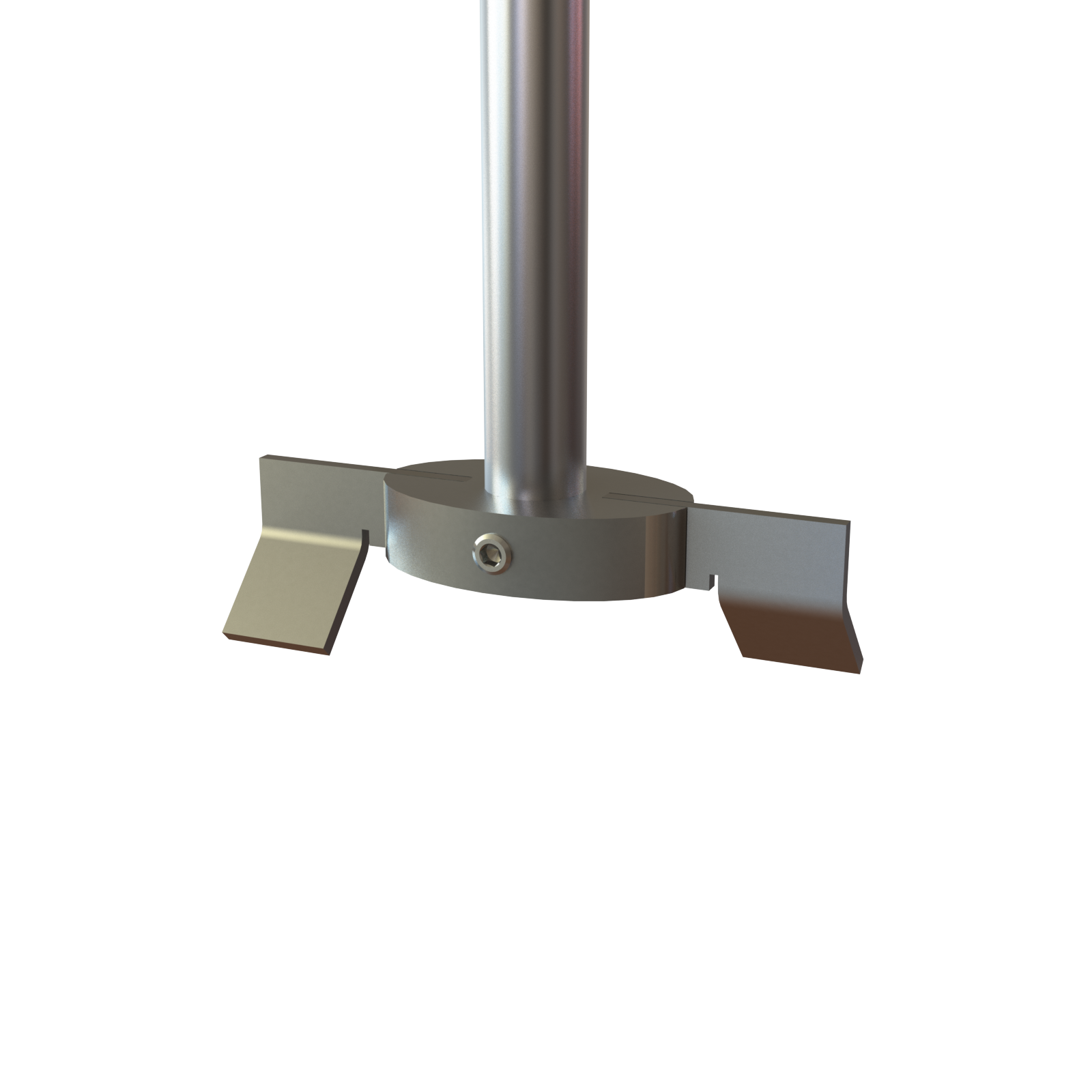

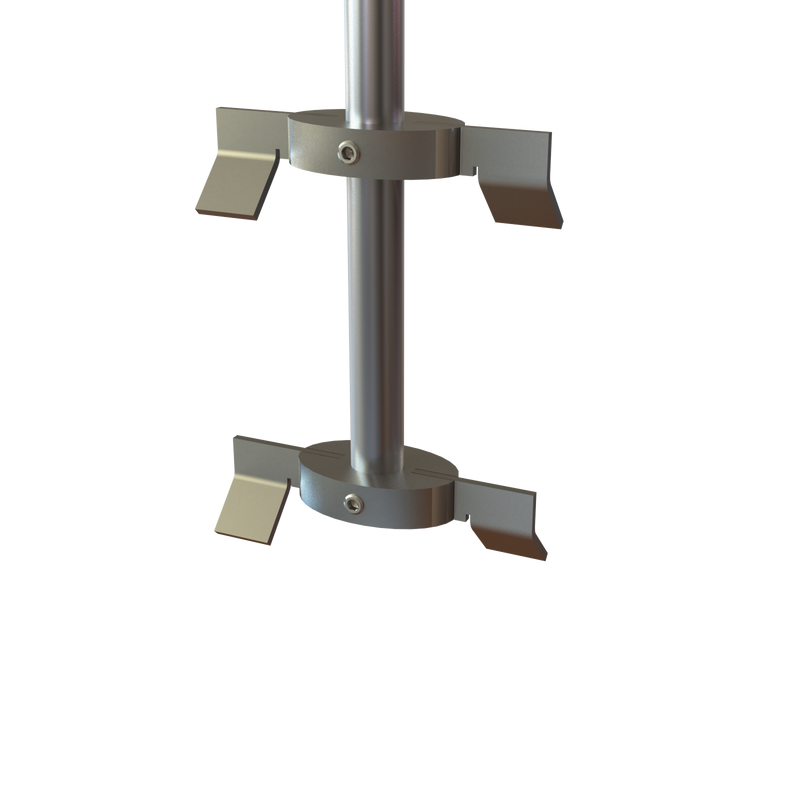

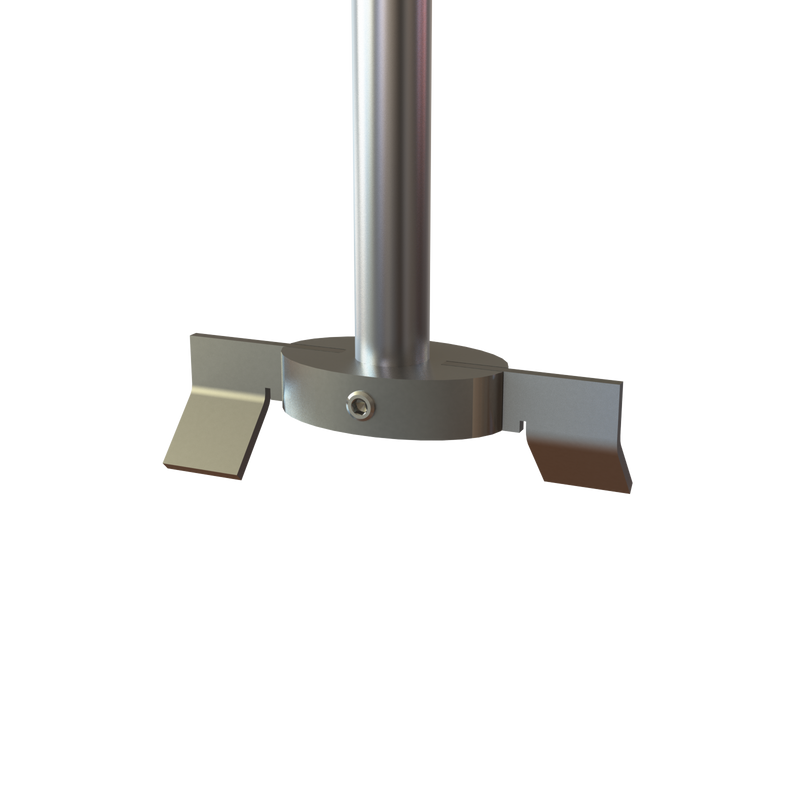

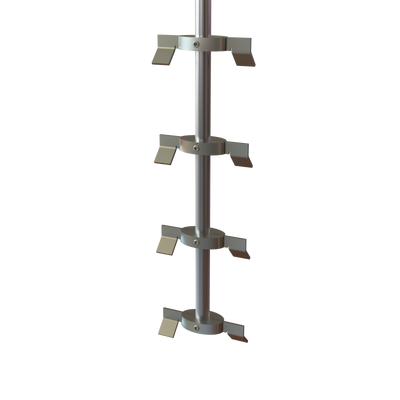

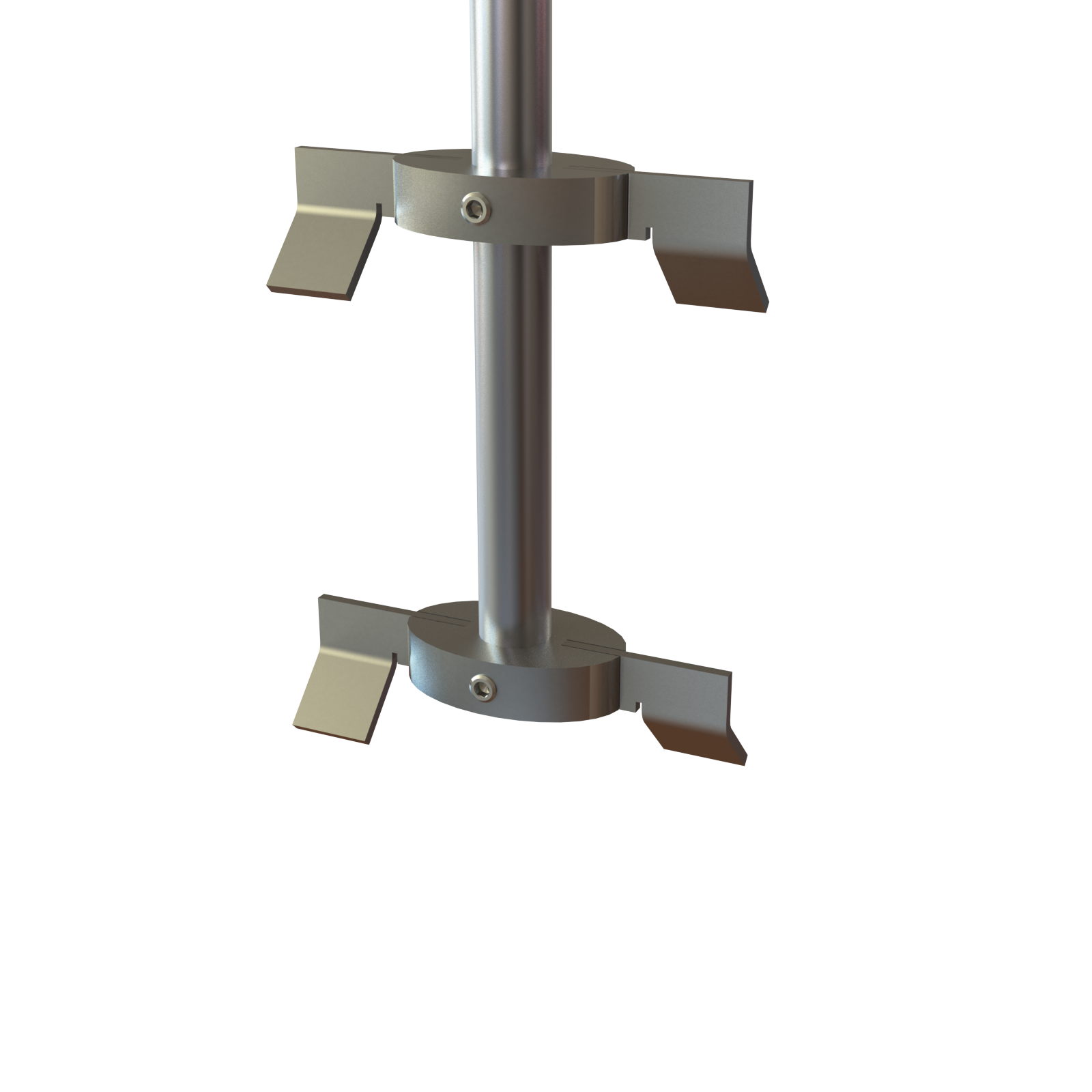

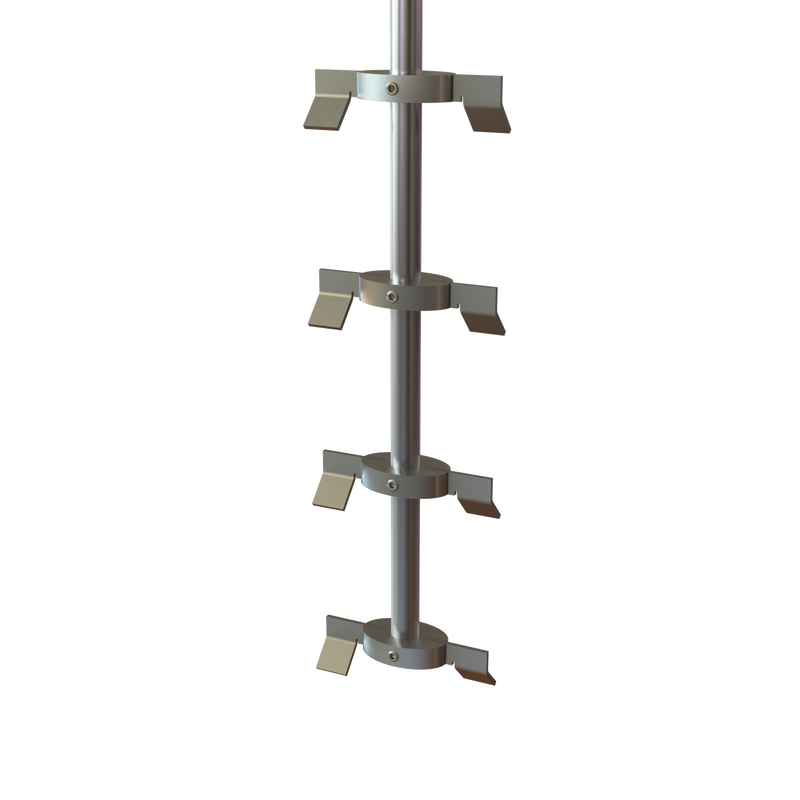

- Folding impeller designed to slip through a bung opening and open when the motor is powered on
- Heavy-duty air motor for safe use in hazardous environments
- Gearbox allows for lower RPMs and higher torque
- Heat-treated aluminum housing for durability and lightweight portability
- Wetted materials made of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
- Offers options for selecting horsepower, and an appropriately sized folding impeller will be matched to the mixer.
- Item Number BUG075AGD-S-28
- Air motor requirement 80cfm @ 100psi
- Gearbox ratio 5:1
- Horsepower 1.5 HP
- Impeller attachment Set screw
- Impeller diameter 4 in.
- Impeller material 316SS
- Impeller type Folding Impeller
- Lead time 3 Business Days
- Motor type Air Motor
- Mount Bung Mount
- Mount dimension 2 NPT

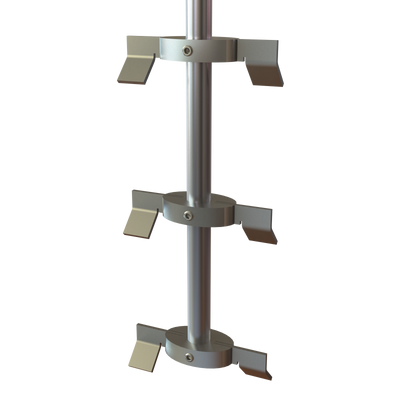

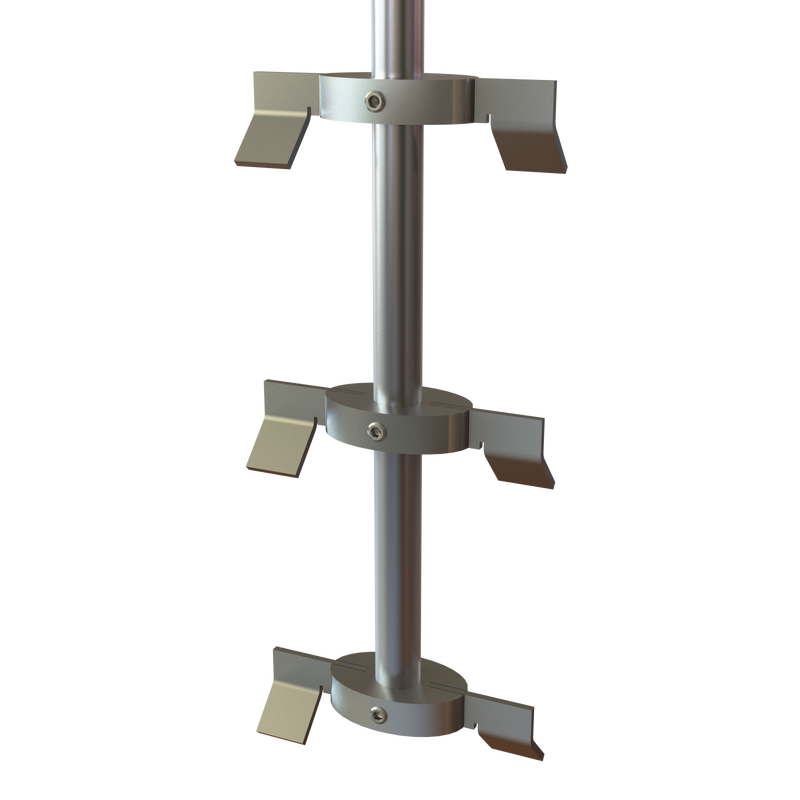

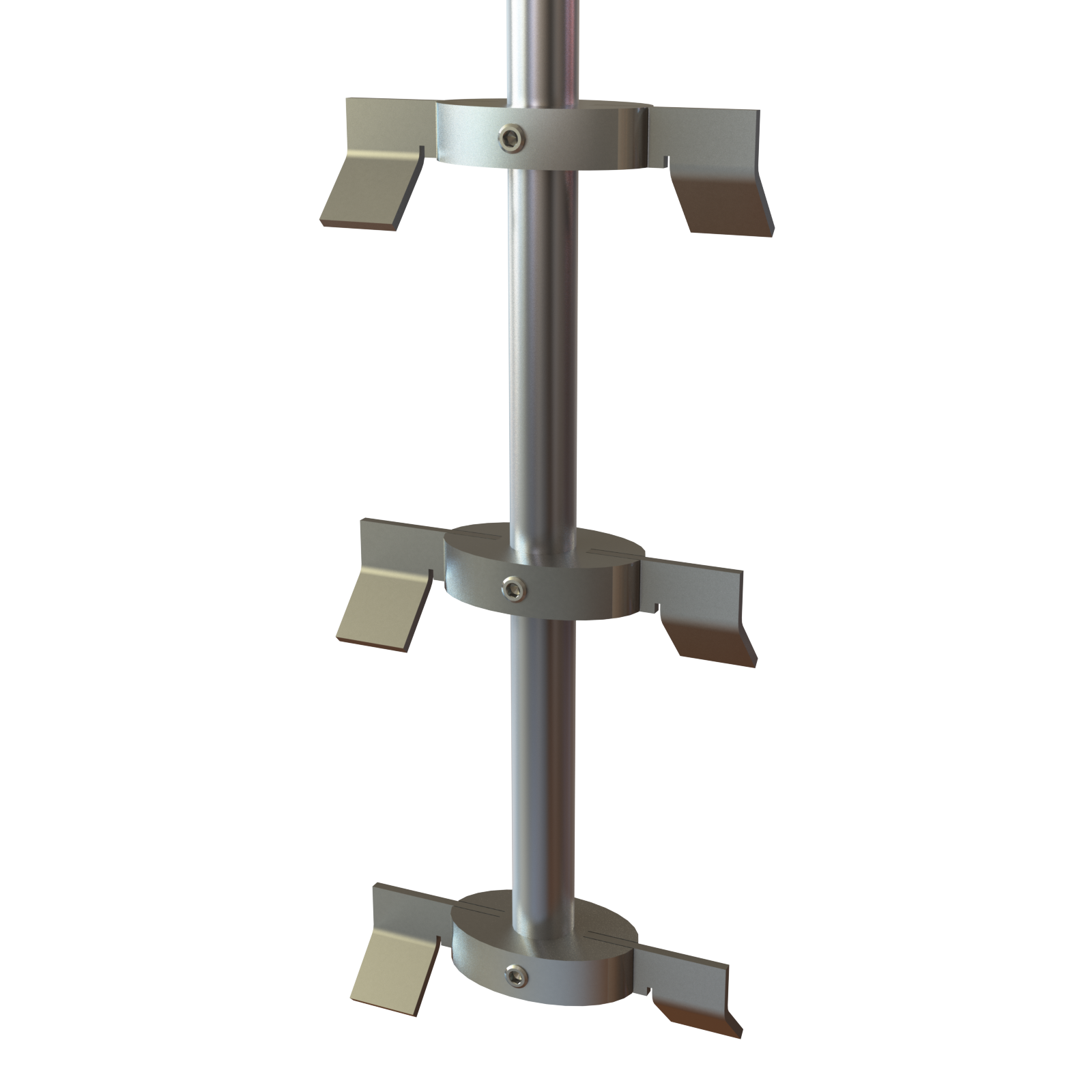

- Number of impellers 3
- Rpm 0-600
- Seal Viton Lip Seal
- Shaft diameter .625 in.
- Shaft length 28 in.
- Shaft material 316SS
- Speed controller Brass Precision Needle Valve
