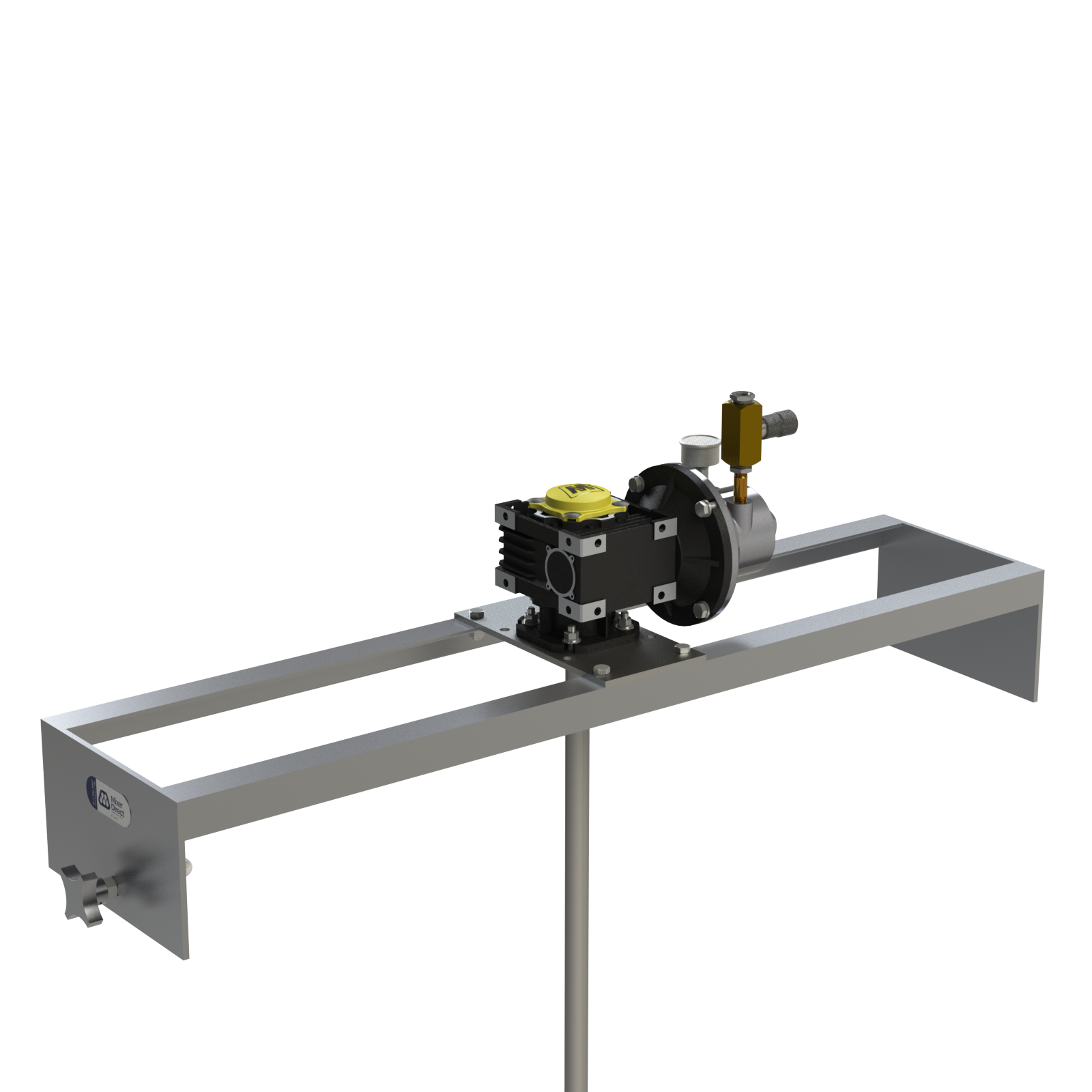

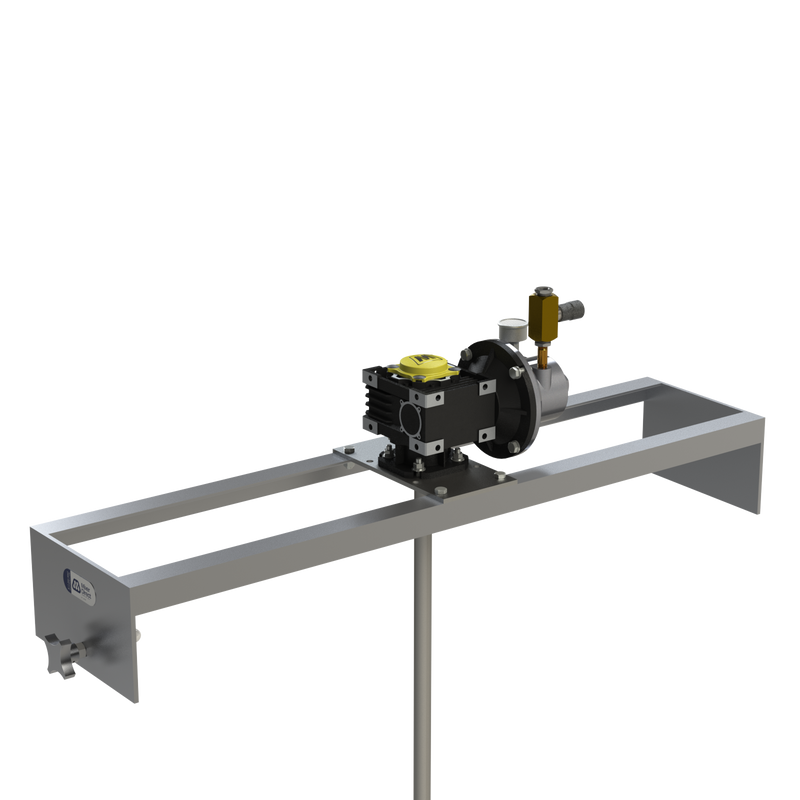

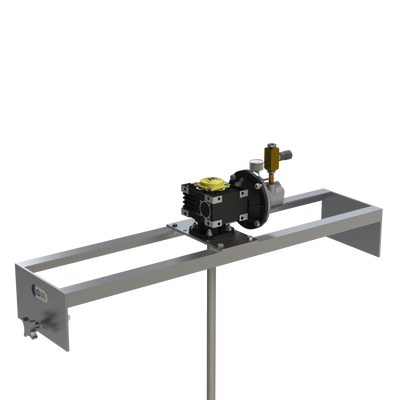

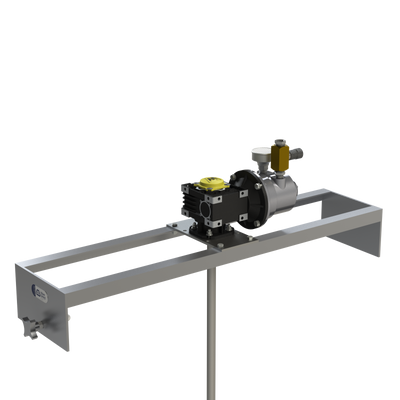

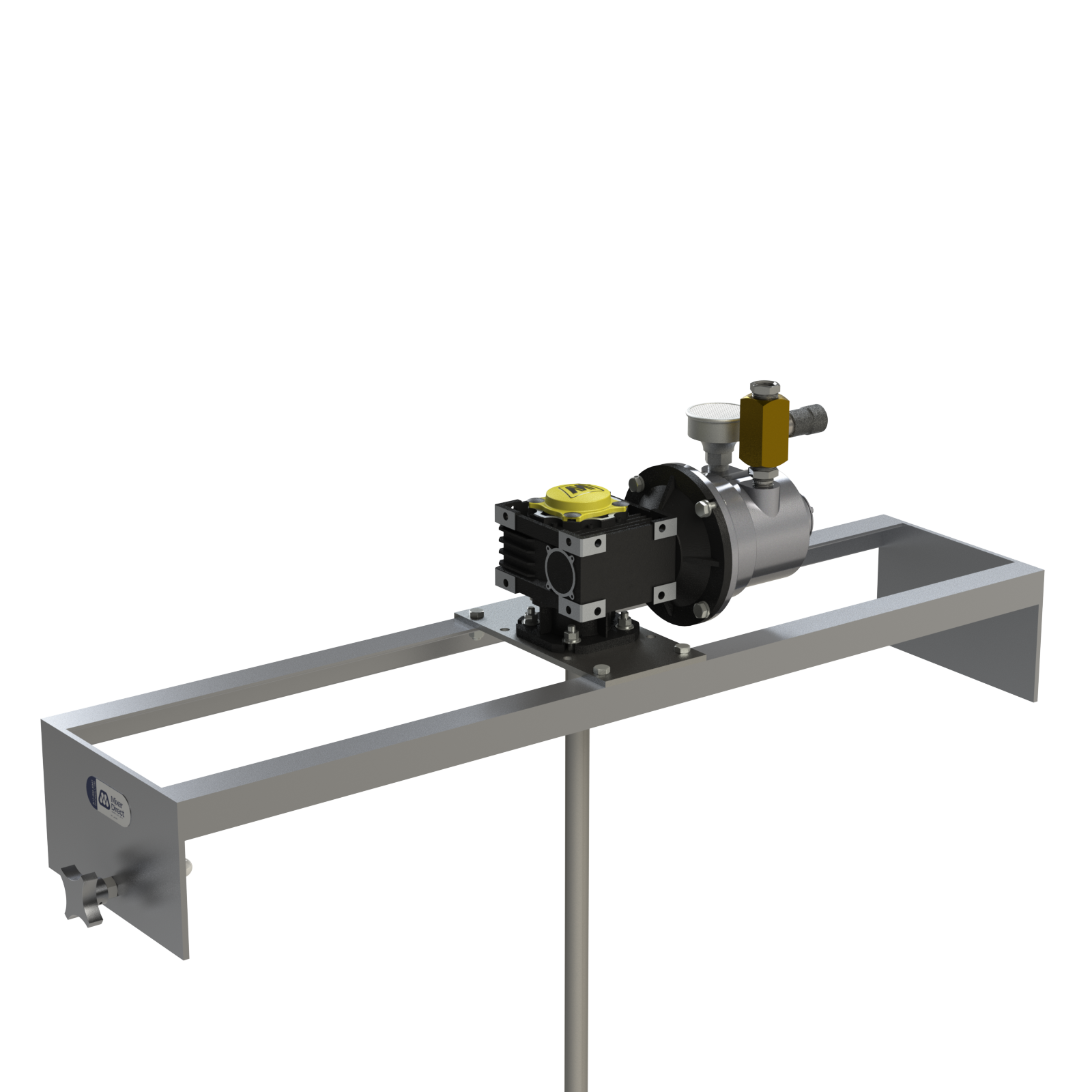

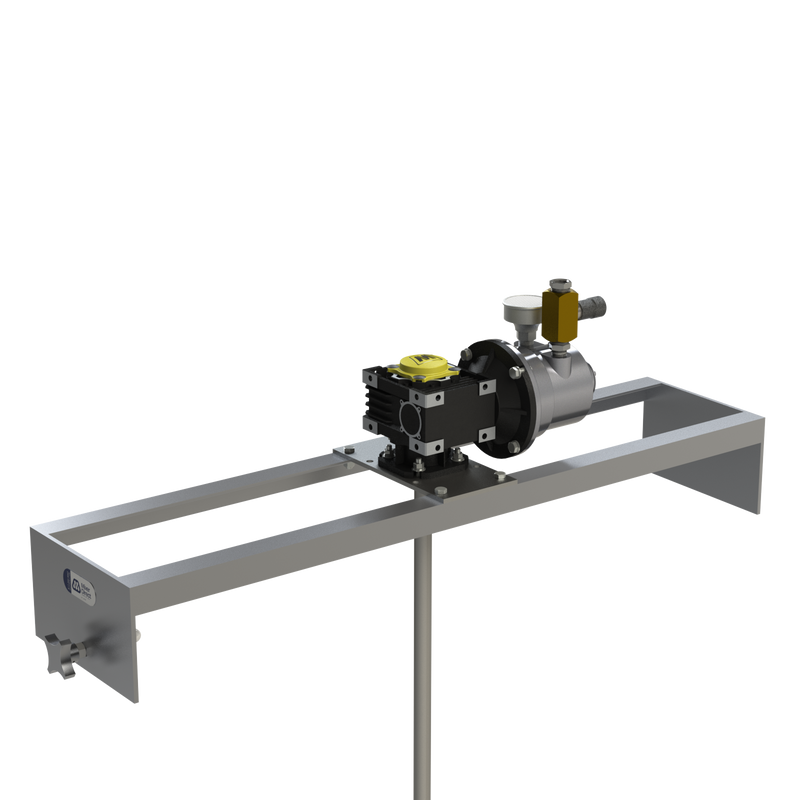

Designed to mix in IBC Totes, the lightweight tote bracket mount mixer can fit a range of 40-42" to accomodate most totes. This mixer also works well on any tank where mounting on top with a bracket would be appropriate. Features a lightweight aluminum frame which provides the strength to support the mixer and ability to easily change applications. Constructed with a heavy duty air motor, this mixer is safe for use in hazardous environments and requires minimal maintenance. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller, hydrofoil impeller, or folding impeller will be matched to your mixer.
- Item Number TBE075AGD
- Air motor requirement 30cfm @ 100psi
- Gearbox ratio 7.5:1
- Horsepower 3/4 HP
- Impeller attachment Set screw
- Impeller diameter 10 in.
- Impeller material 316SS

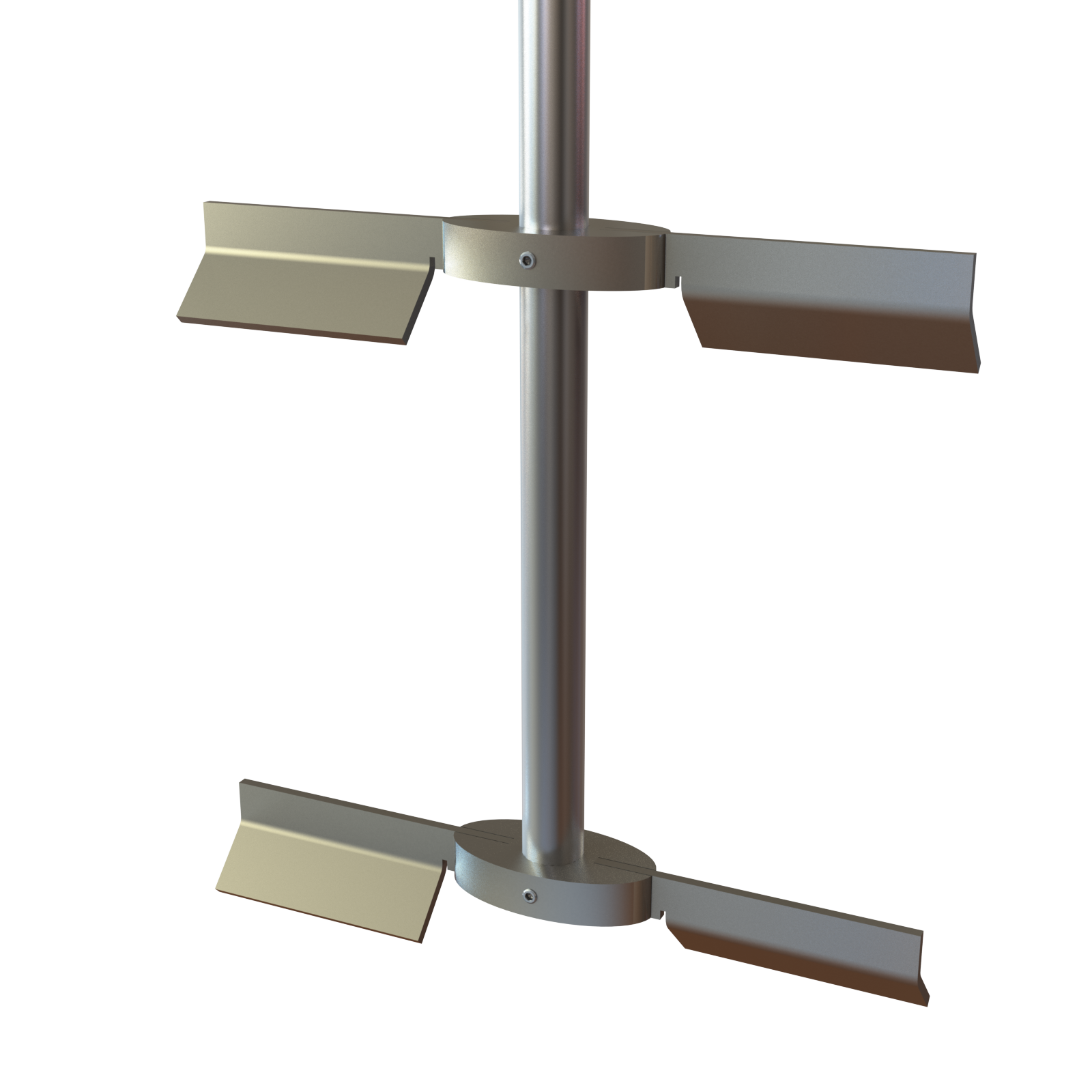

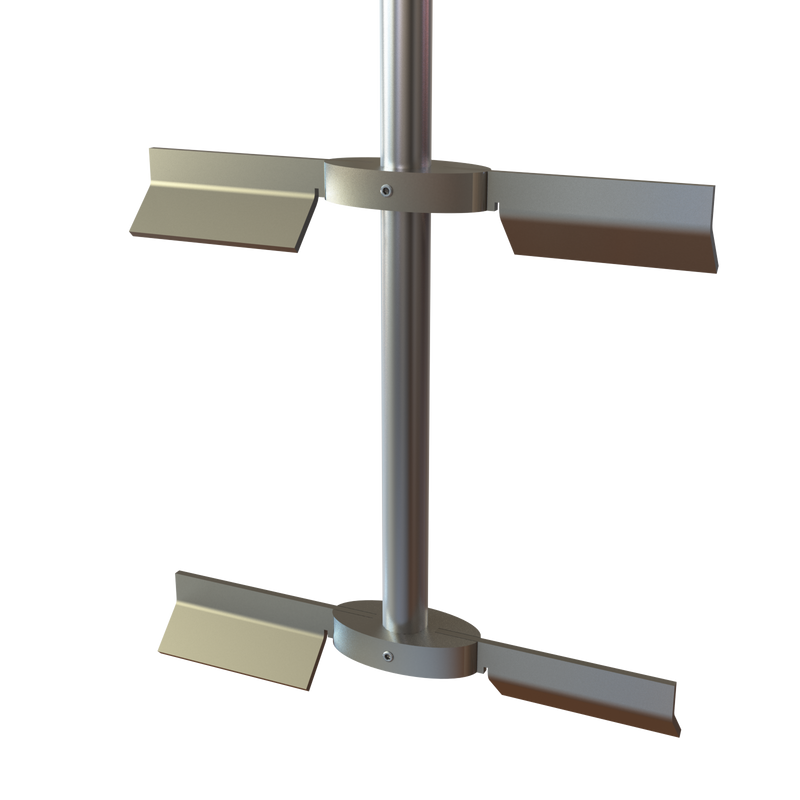

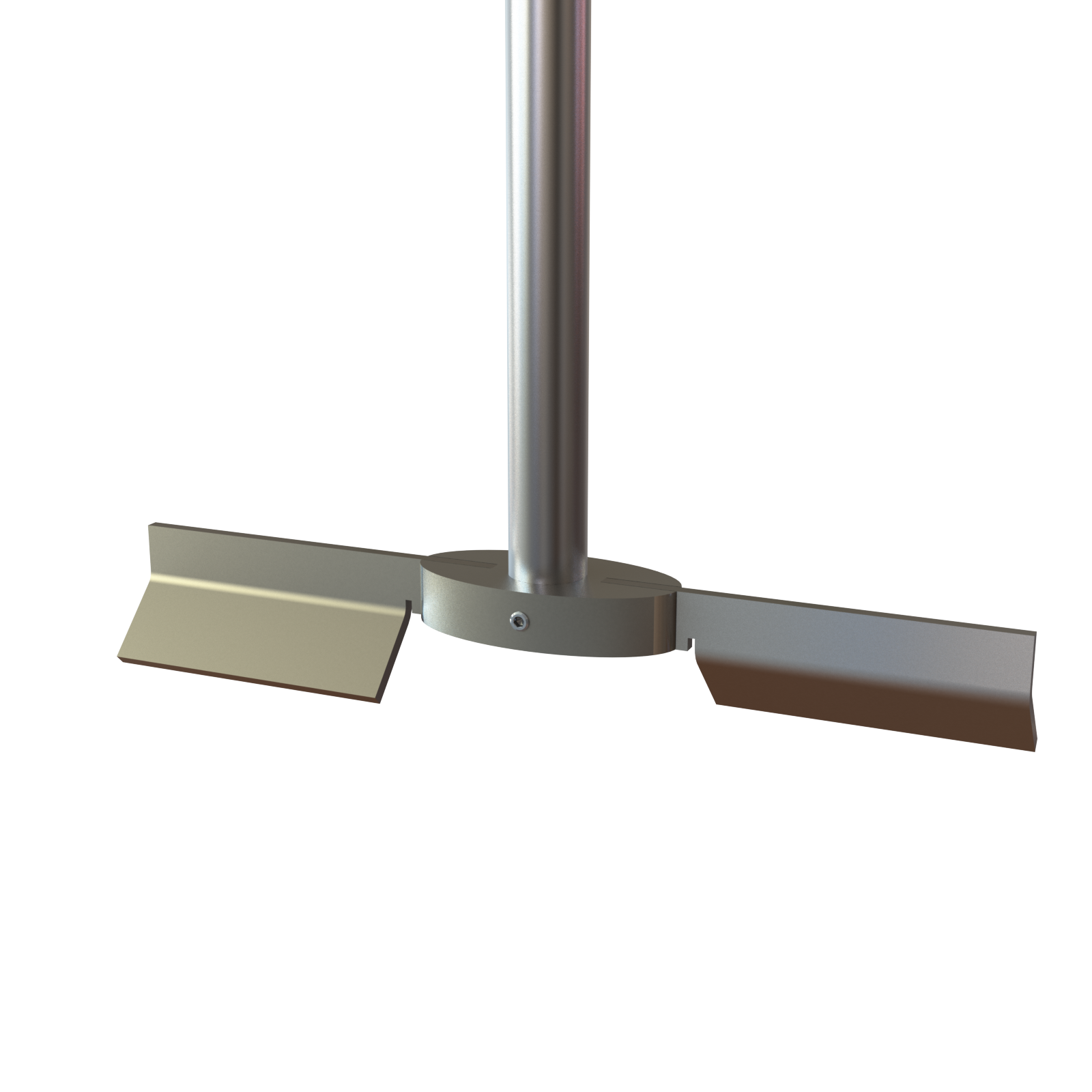

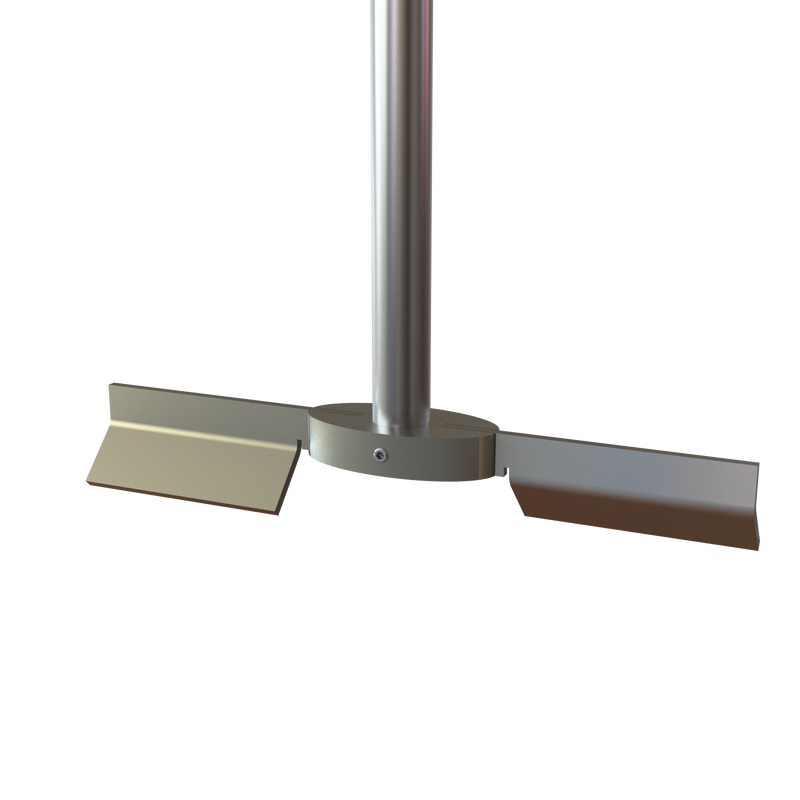

- Impeller type Folding Impeller
- Lead time 3 Business Days
- Motor type Air Motor
- Mount Lightweight Tote Bracket
- Mount dimension 40-42 x 10
- Number of impellers 2
- Rpm 0-400
- Shaft diameter 1 in.
- Shaft length 32 in.
- Shaft material 316SS
- Speed controller Brass Precision Needle Valve
