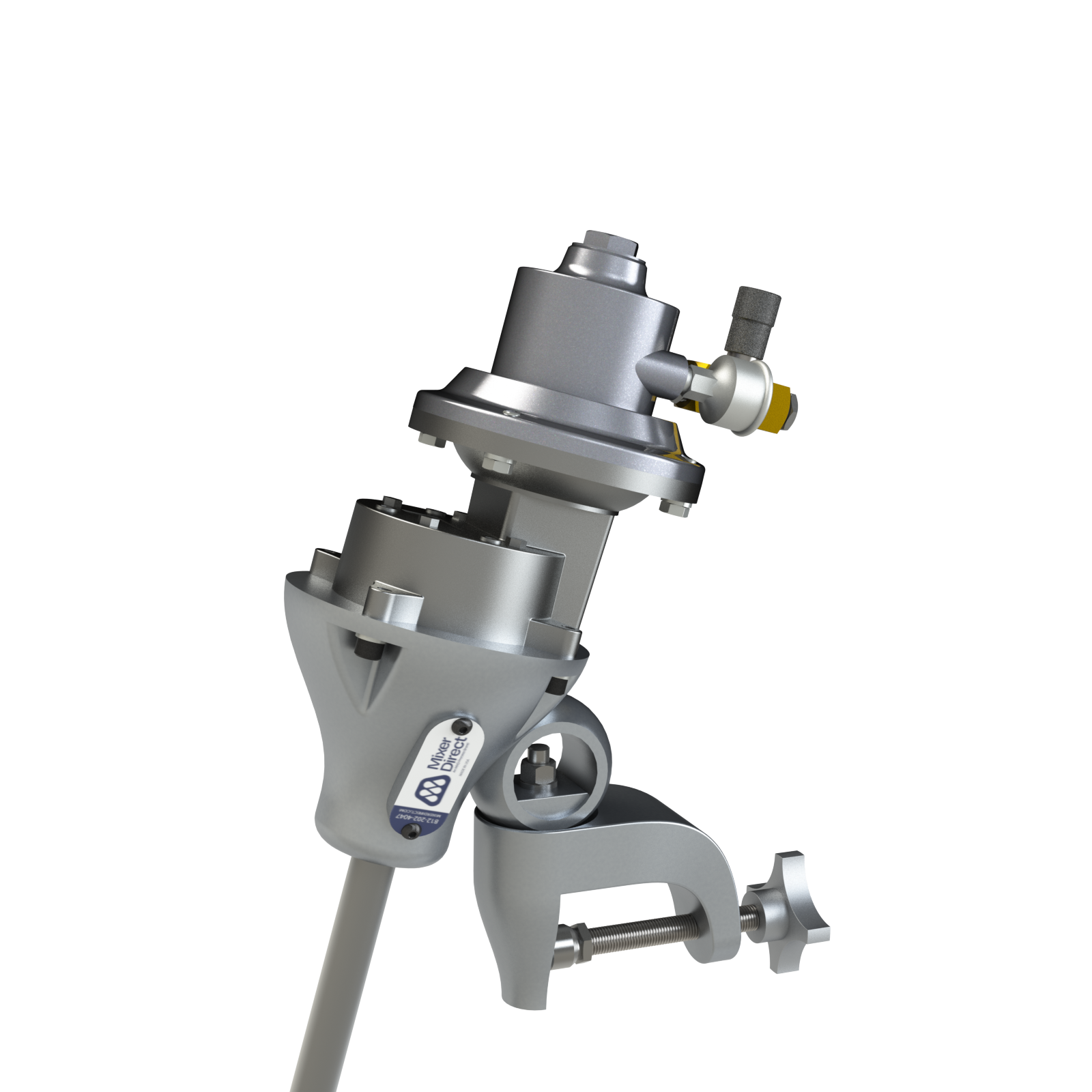

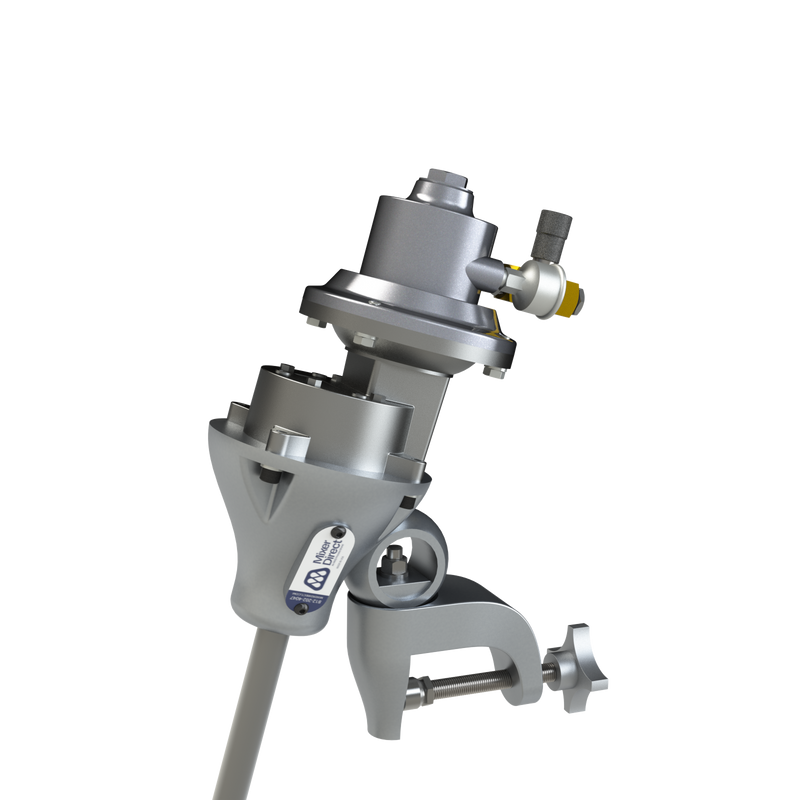

Air Gear Drive Heavy Duty Clamp Mount Mixer

20-1000 Gallon | Heavy Duty & Portable

Air Gear Drive Heavy Duty Clamp Mount Mixer

Name: Air Gear Drive Heavy Duty Clamp Mount Mixer
Brand: Mixer Direct
SKU: HDC075AGD-28
Price: 2137.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

The workhorse of our portable mixer line, the heavy duty clamp mount mixer offers increased shaft stability and horizontal adjustment at the clamp for optimal placement of the impeller in your mixing vessel. Highly portable and durable.

Part Number: HDC075AGD-28

{"id":40378857586711,"title":"3\/4 \/ 28","option1":"3\/4","option2":"28","option3":null,"sku":"HDC075AGD-28","requires_shipping":true,"taxable":true,"featured_image":{"id":29971737575447,"product_id":6831756902423,"position":1,"created_at":"2022-11-07T12:13:49-05:00","updated_at":"2022-11-07T12:13:49-05:00","alt":null,"width":1600,"height":1600,"src":"\/\/www.mixerdirect.com\/cdn\/shop\/products\/HDCAGDSize1RBQ.png?v=1667841229","variant_ids":[40378857586711,40378857619479,40378857652247,40378857685015,40378857717783,40378857750551,40378857783319,40378857816087,40378857848855,40378857881623]},"available":true,"name":"Air Gear Drive Heavy Duty Clamp Mount Mixer - 3\/4 \/ 28","public_title":"3\/4 \/ 28","options":["3\/4","28"],"price":213700,"weight":21319,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":null,"id":22311808401431,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.mixerdirect.com\/cdn\/shop\/products\/HDCAGDSize1RBQ.png?v=1667841229"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

The heavy duty clamp mount mixer is the workhorse of our portable mixer line. A heat treated aluminum housing provide both outstanding durability and lightweight portability.

Our heavy duty clamp mount mixer includes:

Lower support bearing included to reduce radial shaft load on the motor, extending longevity
Adjustability for shaft positioning on two axes of rotation
Constructed with a heavy-duty air motor for safe use in hazardous environments
Gearbox allows for lower RPMs and higher torque
Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
Option to select desired horsepower and shaft length
Appropriate propeller or hydrofoil impeller matched to the selected horsepower and shaft length

Item Number HDC075AGD-28
Air motor requirement 30cfm @ 100psi
Enclosure type IP55
Gearbox ratio 5:1
Horsepower 3/4 HP
Impeller attachment Set screw
Impeller diameter 11 in.
Impeller material 316SS
Impeller type Hydrofoil
Lead time 3 Business Days
Motor type Air Motor
Mount Heavy Duty Clamp
Mount dimension 3.5 in.Max Opening
Number of impellers 1
Rpm 0-600
Shaft diameter 1 in.
Shaft length 28 in.
Shaft material 316SS
Speed controller Brass Precision Needle Valve
