20-1000 Gallon | Top Entry Mixer

Air Gear Drive Plate Mount Mixer

Air Gear Drive Plate Mount Mixer
Air Gear Drive Plate Mount Mixer
Air Gear Drive Plate Mount Mixer
Air Gear Drive Plate Mount Mixer
20-1000 Gallon | Top Entry Mixer

Air Gear Drive Plate Mount Mixer

Regular price $3,638.00
/
Lead Time: 5 Business Days
Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to a bridge on open top vessels. A low maintenance solution to many processing applications.
Part Number: PLT075AGD

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processses without sacrificing mixing or blending capabilities. It is designed for heavy duty applications with an extra flange mounted support bearing and all welded construction. Constructed with a heavy duty air motor, this flange mounted mixer is safe for use in hazardous environments and requires minimal maintenance. This mixer mounts easily and securely to a bridge or C-channels across the top of the tank. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Add a Viton Lip Seal for increased protection to the mixer and liquid ingredients. Select your horsepower and an appropriately sized high efficiency impeller will be matched to your mixer.

  • Item Number PLT075AGD
  • Air motor requirement 30cfm @ 100psi
  • Gearbox ratio 5:1
  • Horsepower 3/4 HP
  • Impeller attachment Set screw
  • Impeller diameter 10 in.
  • Impeller material 316SS

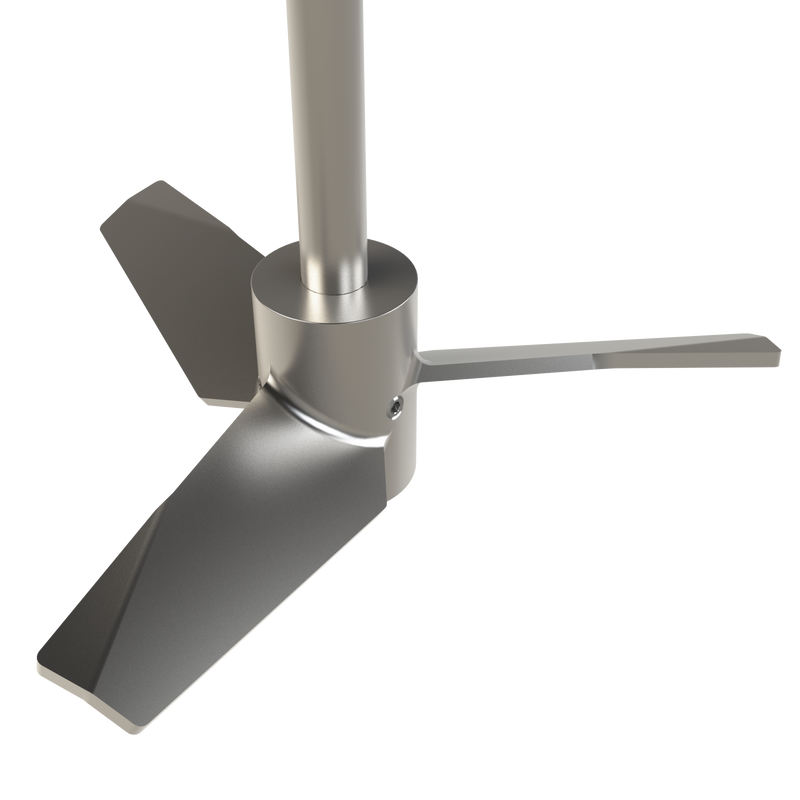

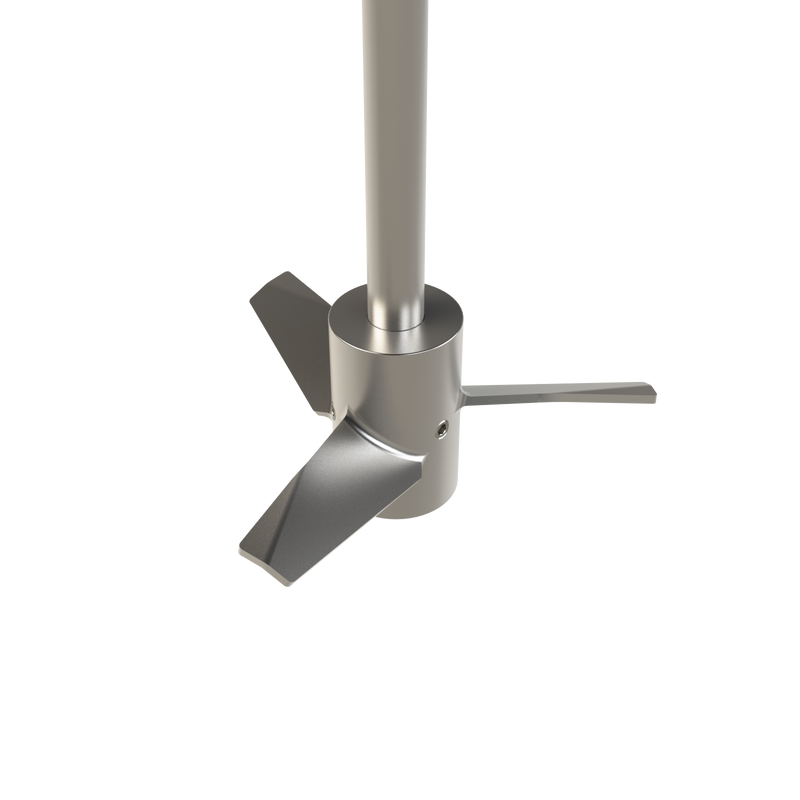

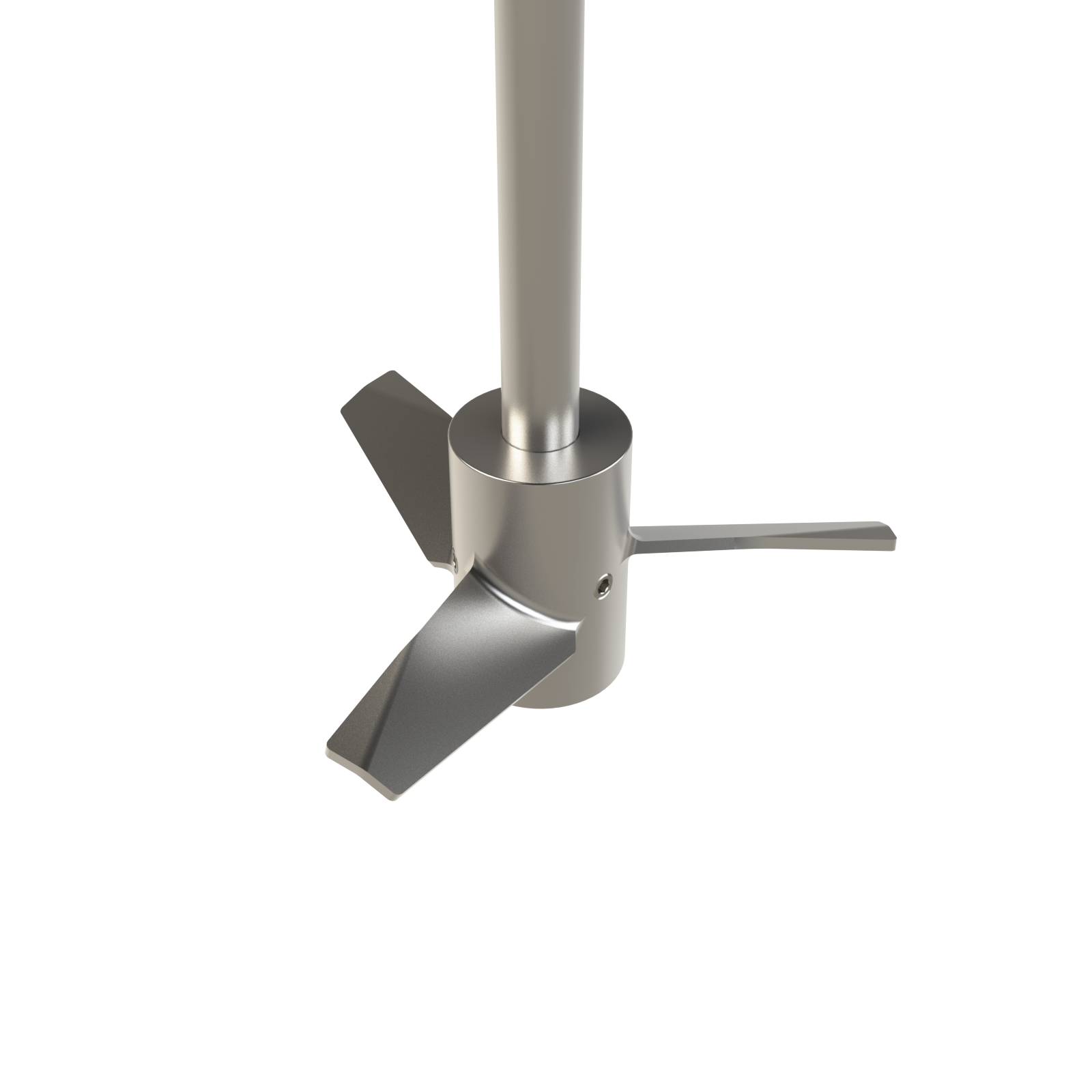

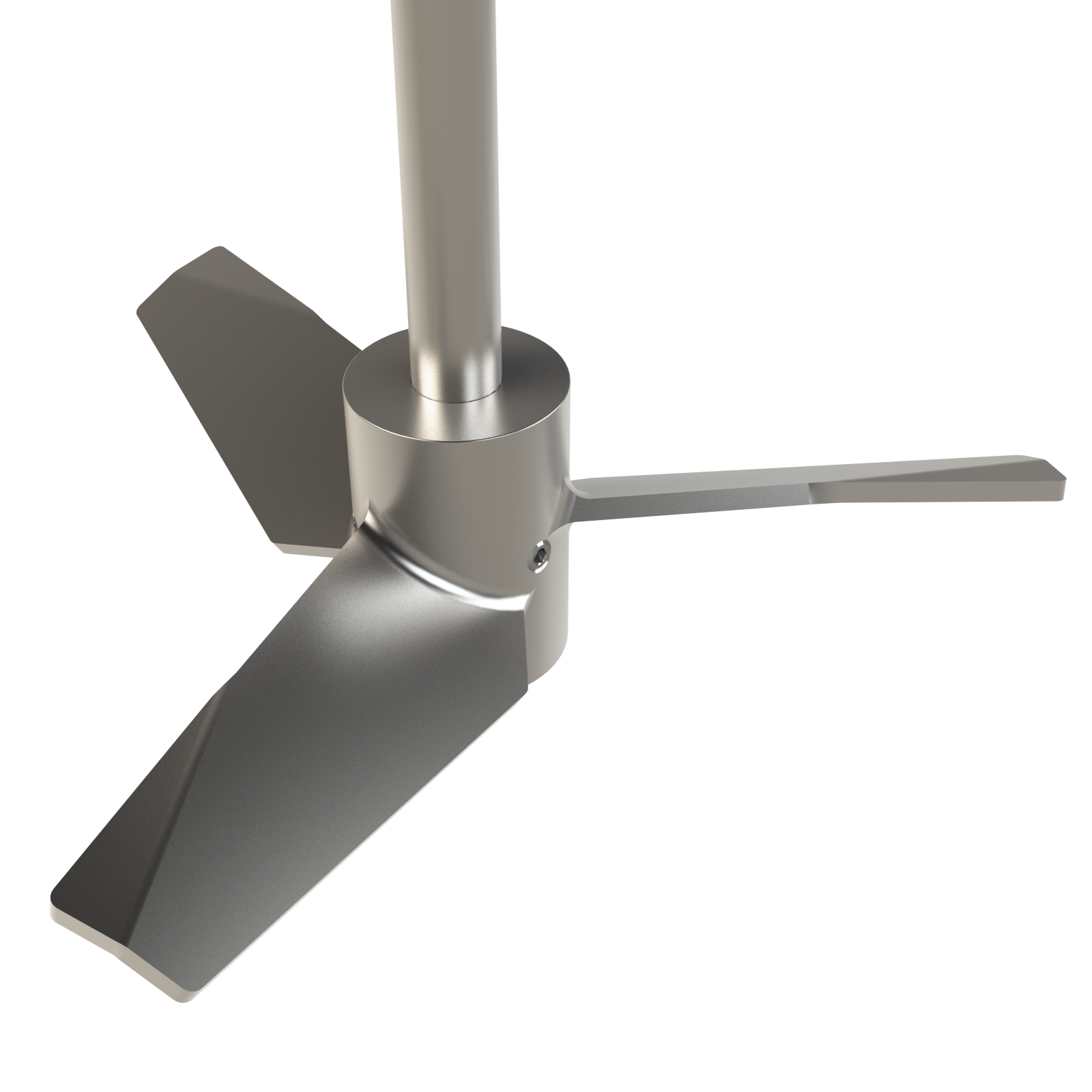

  • Impeller type Hydrofoil
  • Lead time 5 Business Days
  • Motor type Air Motor
  • Mount Plate
  • Mount dimension 12x12x3/8
  • Number of impellers 1
  • Rpm 0-600
  • Shaft diameter 1 in.
  • Shaft length 48 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
