20-1000 Gallon | Variable Width Bracket

Air Gear Drive Tote Bracket Mount Mixer

Regular price $4,039.00
/
Lead Time: 4 Business Days

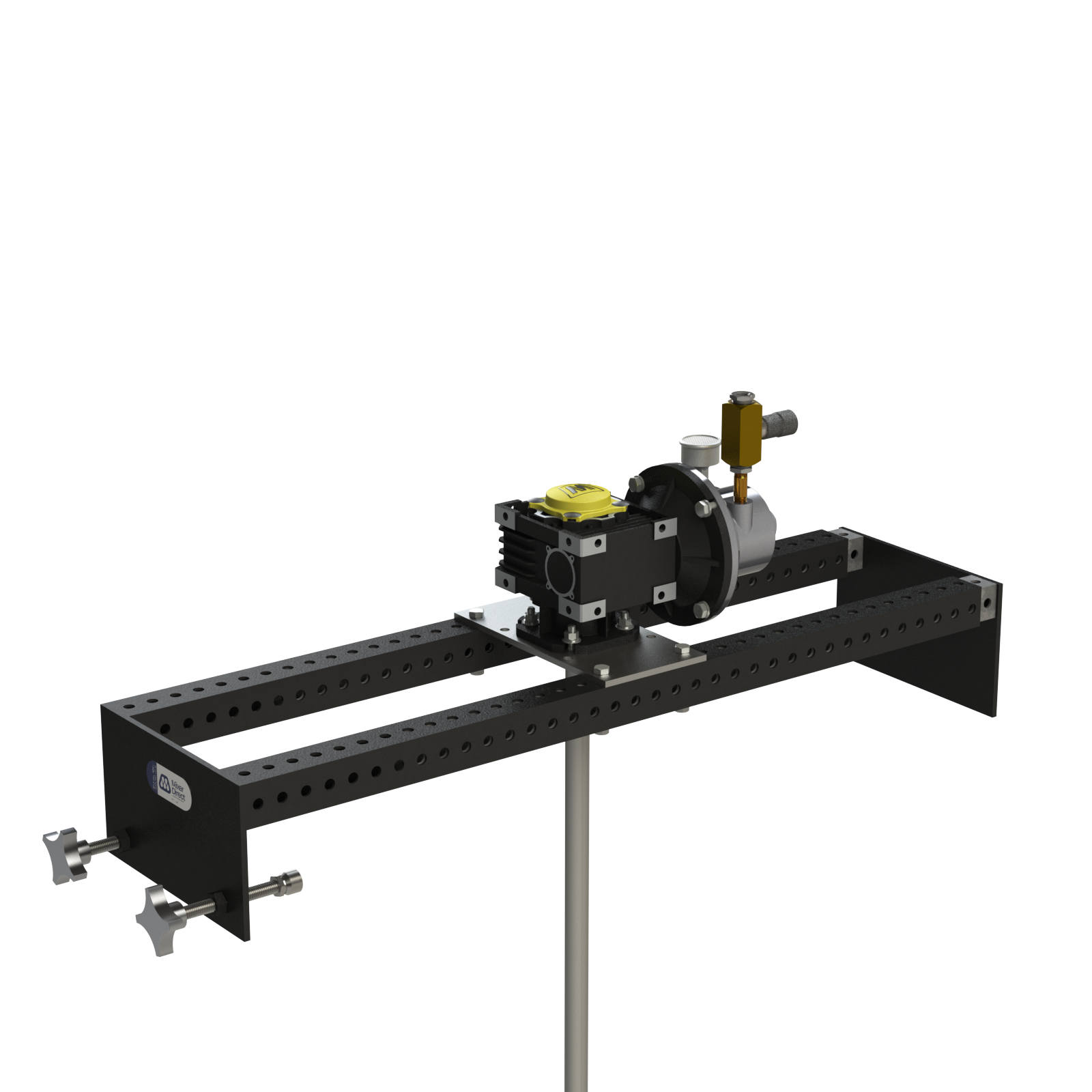

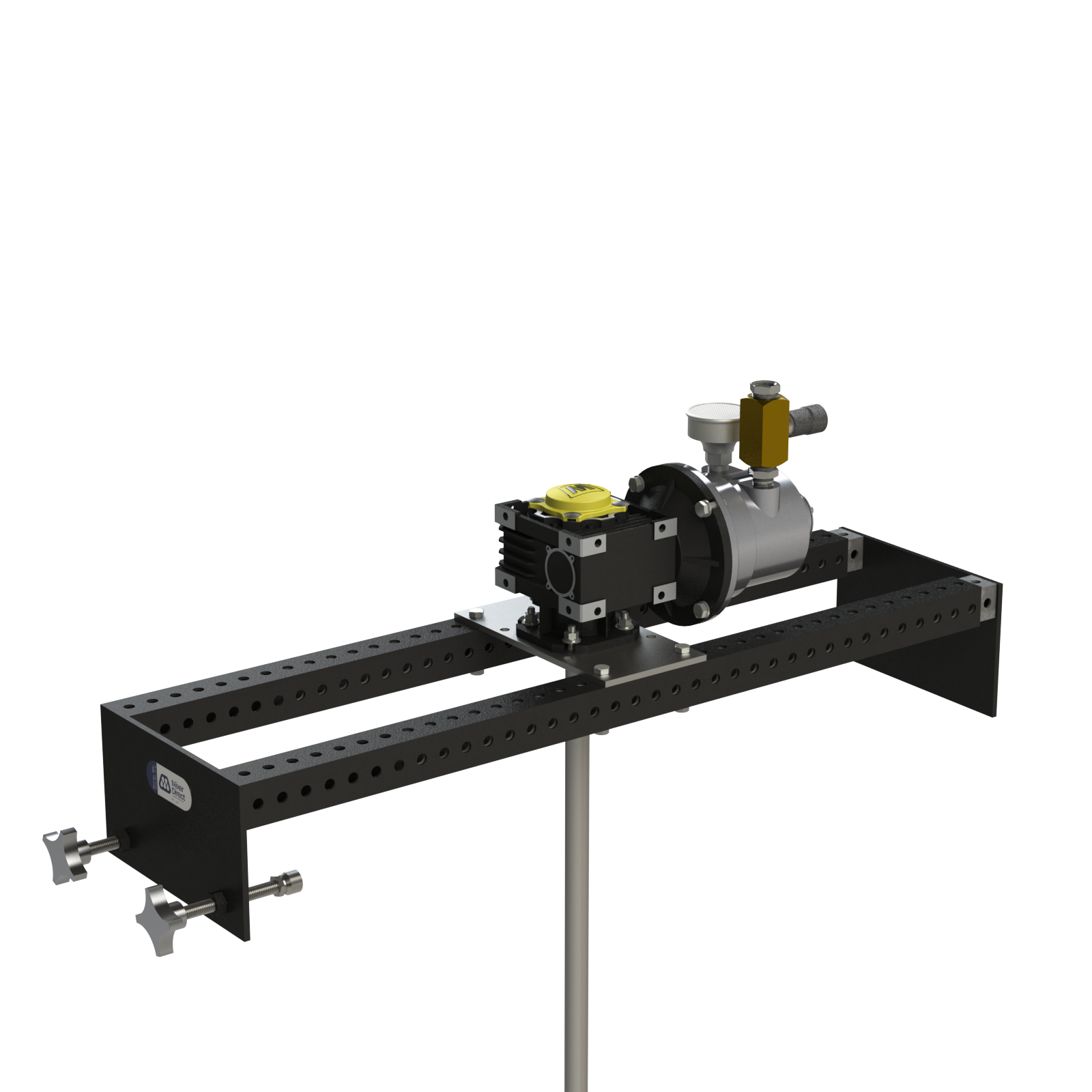

Uniquely designed to quickly and easily attach to a standard IBC tote or other open top vessel, this tote mixer provides a portable solution to mixing ingredients directly in their shipping or storage vessel. Easily adjust the width of the bracket to securely attach to a variety of vessels.
Part Number: TBM075AGD

Our tote bracket mount mixers provide a simple mixing solution for IBC totes and open top vessels. The unique tote bracket frame is designed to accommodate widths from 36"- 48" while maintaining stability and strength to support the mixer motor. Constructed with a heavy duty air motor, this mixer is safe for use in hazardous environments and requires minimal maintenance. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller, hydrofoil impeller, or folding impeller will be matched to your mixer.

  • Item Number TBM075AGD
  • Air motor requirement 30cfm @ 100psi
  • Gearbox ratio 7.5:1
  • Horsepower 3/4 HP
  • Impeller attachment Set screw
  • Impeller diameter 10 in.
  • Impeller material 316SS

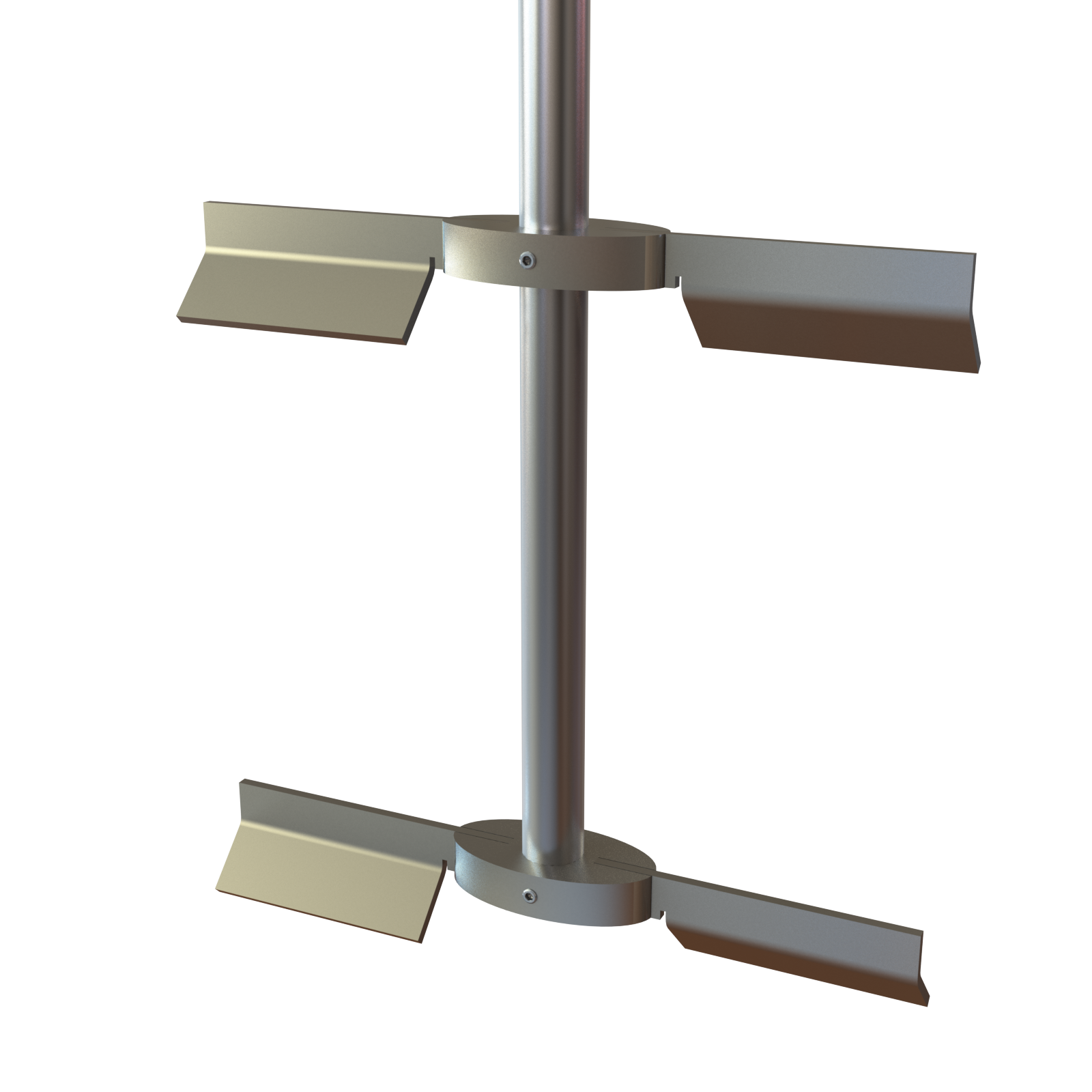

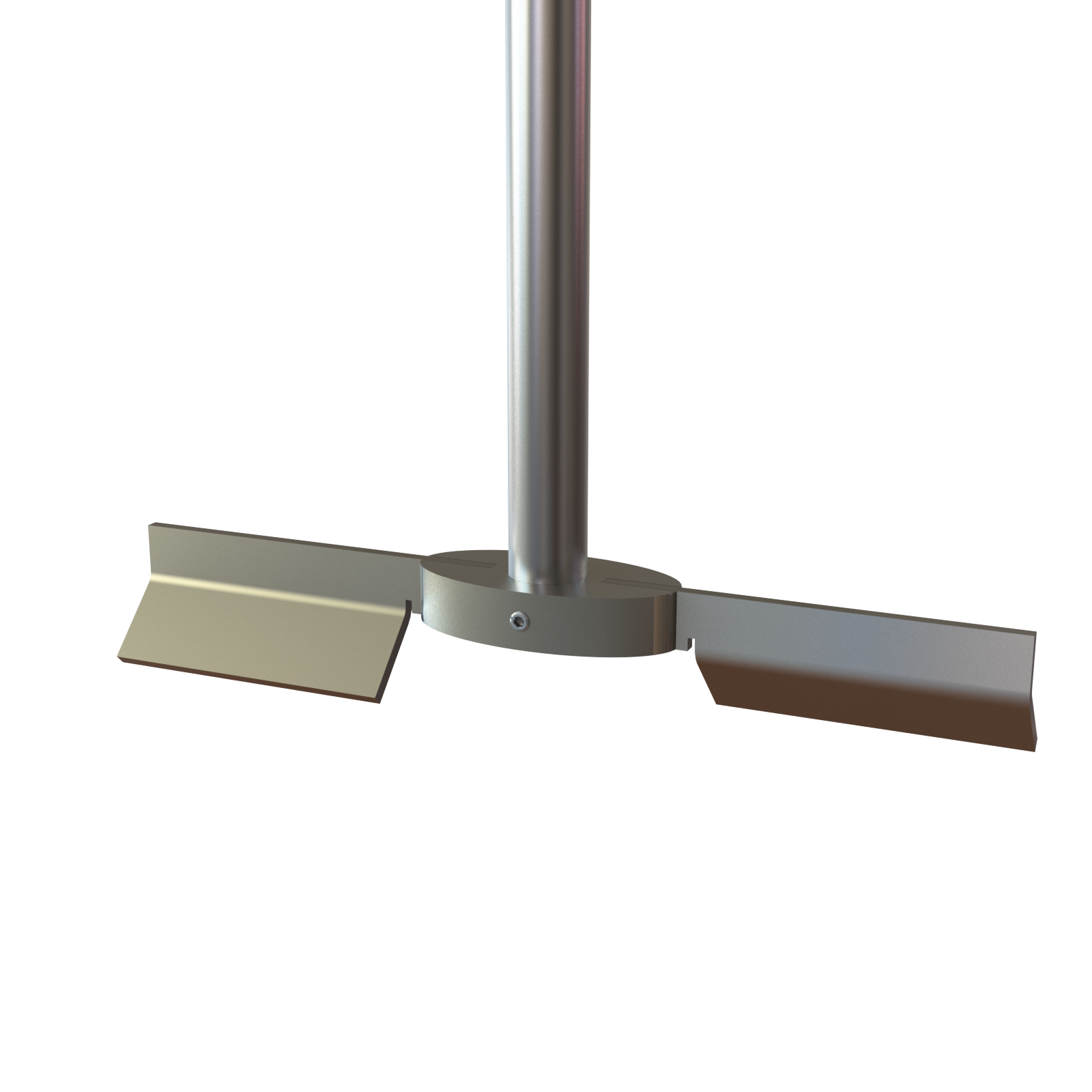

  • Impeller type Folding Impeller
  • Lead time 4 Business Days
  • Motor type Air Motor
  • Mount Tote Bracket
  • Mount dimension 36-48 x 10
  • Number of impellers 2
  • Rpm 0-400
  • Shaft diameter 1 in.
  • Shaft length 32 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
