Small Batch | Laboratory | High Shear

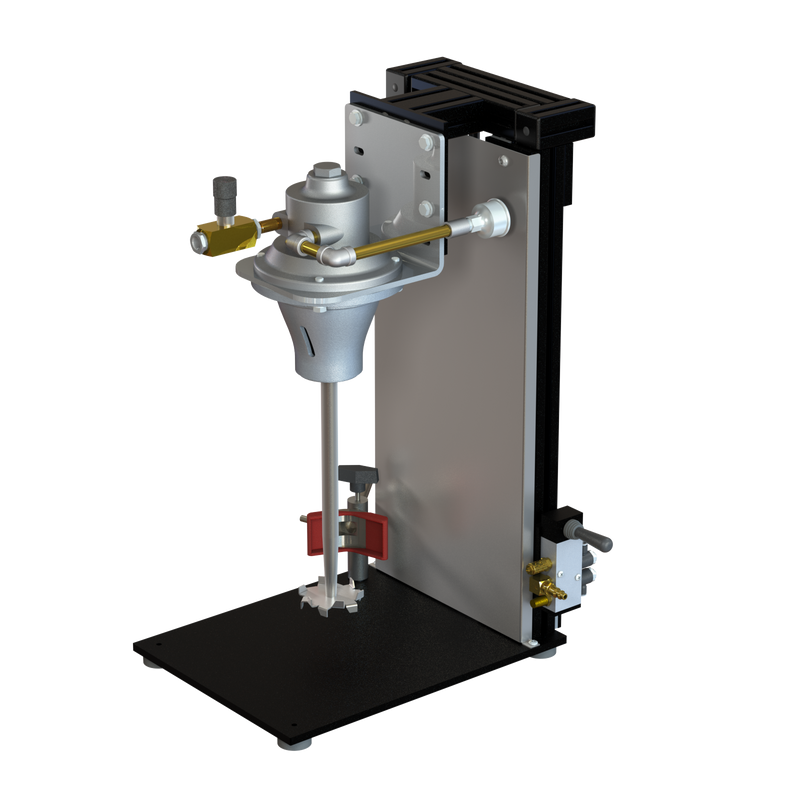

DP1 Air Lab Benchtop Disperser

DP1 Air Lab Benchtop Disperser
Small Batch | Laboratory | High Shear

DP1 Air Lab Benchtop Disperser

Regular price $5,453.00
/
Lead Time: 10 Business Days
This high speed benchtop disperser provides high shear dispersion in small batch or laboratory settings. Easily control mixer speed to precisely optimize your blending processes.
Part Number: DP1008ADA

The DP1 line of bench top dispersers is one of the most economical and full featured disperser lines on the market. This high shear disperser can handle a wide range of volumes from 200 mL up to 5 gals. The unique container holder adjusts to clamp the vessels in place firmly at a wide diameter range. One step dispersion blade change out lets the operator quickly tune in a process, using different size dispersion blades or even different blade geometries that better accommodate the shear level needed for the application. Constructed with a heavy duty air motor, this high speed disperser is safe for use in hazardous environments and requires minimal maintenance. The DP1 high speed disperser line does not just perform well with the process, but is also easy to use. They are equipped with an air lift system that effortlessly moves the dispersion blade in and out of the mix. Controls for the DP Series are simple to operate, with an air needle valve to control speed of dispersion. All the DP1 electric high shear mixers operate from 0-5000 RPM and can accommodate vessels up to 16” in height. If greater height is needed please see the DP2 line of dispersers.

  • Item Number DP1008ADA
  • Air lift requirement 80psi @ 1cfm
  • Air motor requirement 30cfm @ 100psi
  • Horsepower 3/4 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 2 in.u0026 3 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 10 Business Days
  • Lift height 14 in.
  • Lift type Air
  • Max vessel height 16 in.
  • Motor type Air Motor
  • Number of impellers 2
  • Rpm 300-3000
  • Shaft diameter .75 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
  • Total height lowered 26 in.
  • Total height raised 38 in.
  • Volume 200ml - 5 gal.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
