Small Batch | Laboratory | High Shear

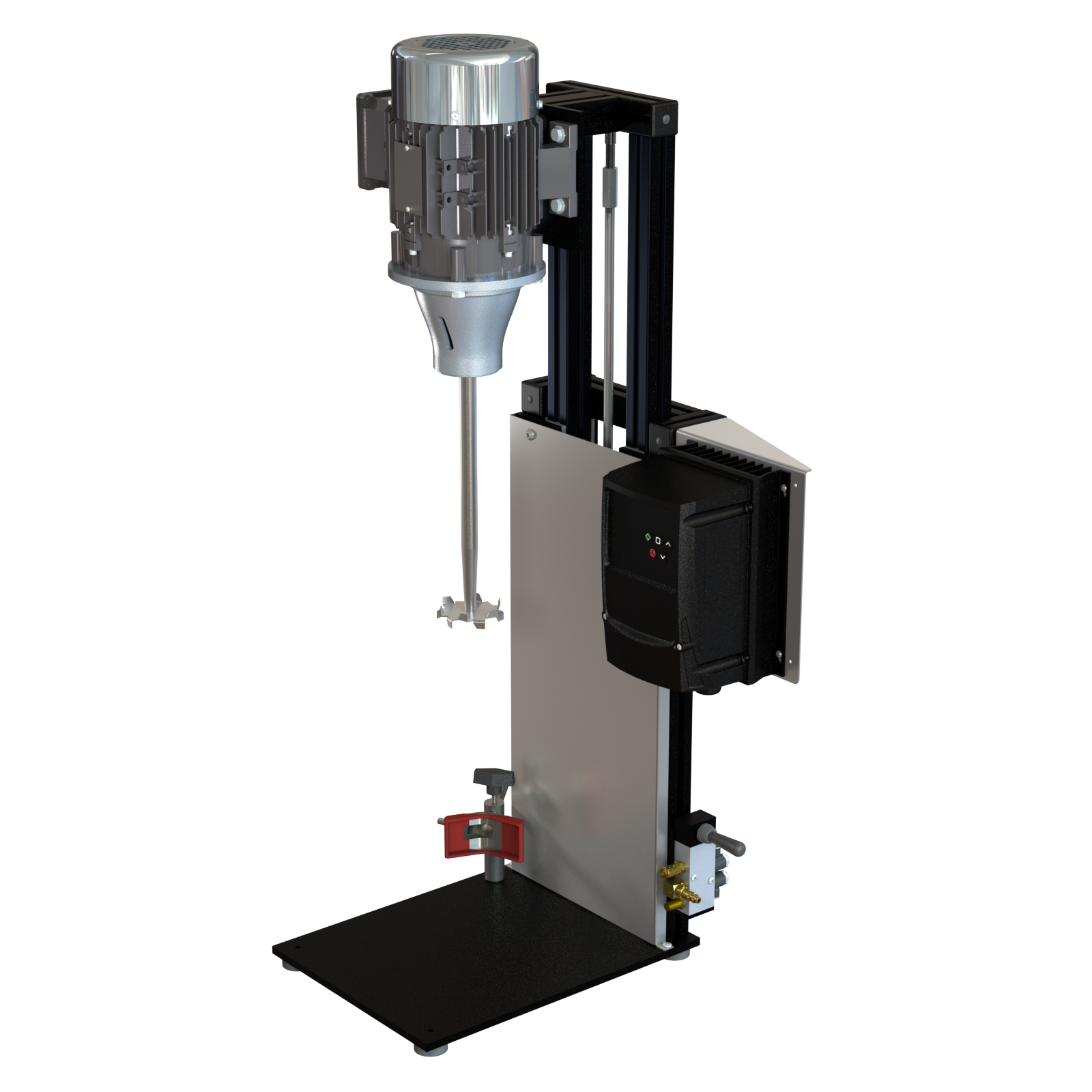

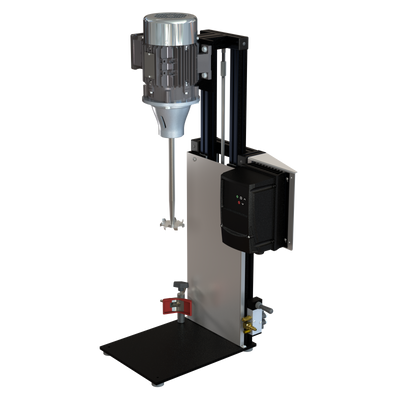

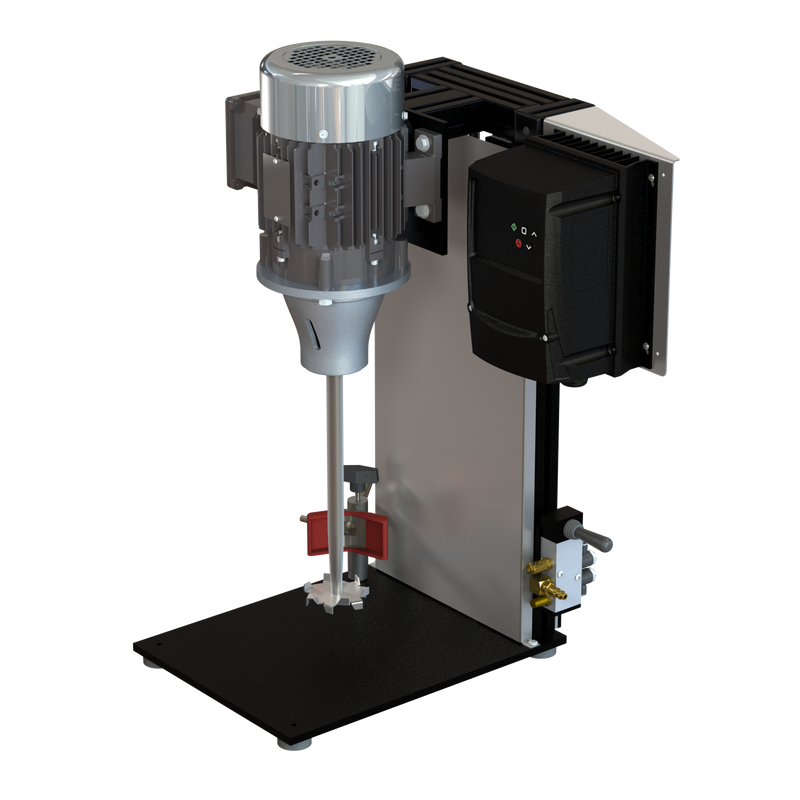

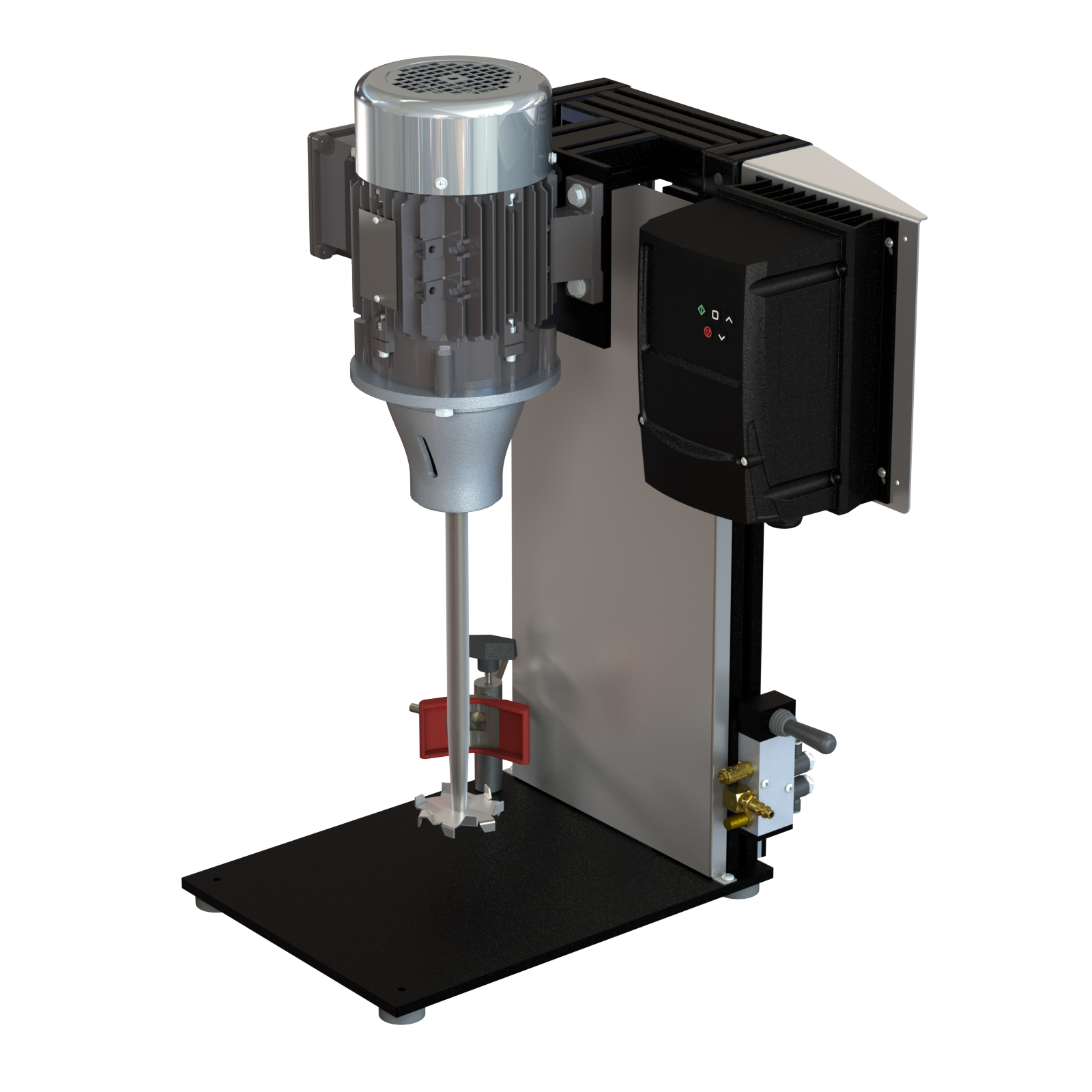

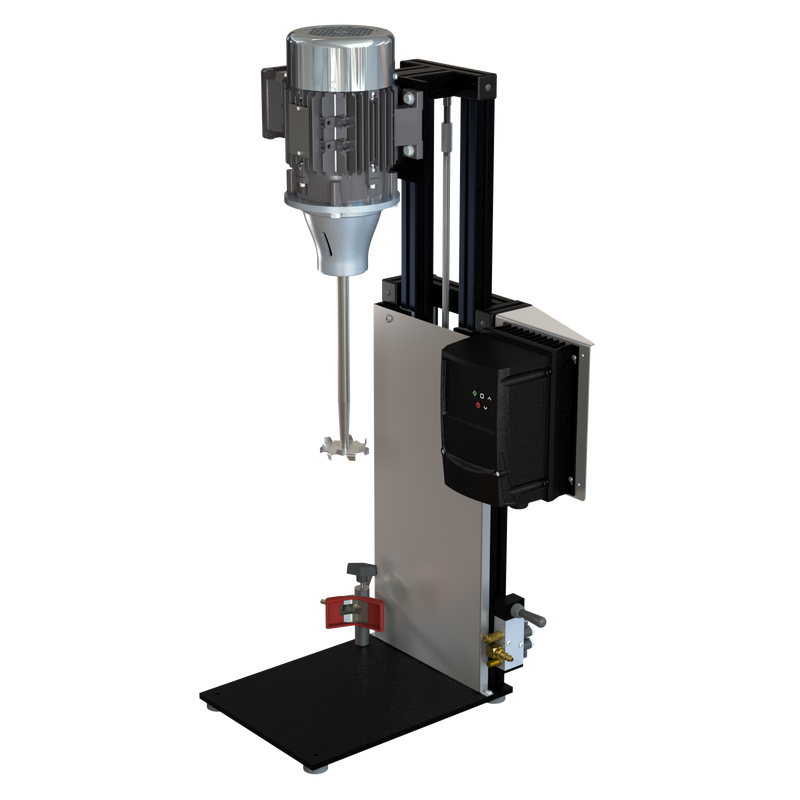

DP1 Electric Lab Benchtop Disperser

DP1 Electric Lab Benchtop Disperser
DP1 Electric Lab Benchtop Disperser
Small Batch | Laboratory | High Shear

DP1 Electric Lab Benchtop Disperser

Regular price $6,046.00
/
Lead Time: 10 Business Days
This high speed benchtop disperser provides high shear dispersion in small batch or laboratory settings. Easily control mixer speed to precisely optimize your blending processes.
Part Number: DP1010VDE

The DP1 line of bench top dispersers is one of the most economical and full featured disperser lines on the market. This high shear disperser can handle a wide range of volumes from 200 mL up to 5 gals. The unique container holder adjusts to clamp the vessels in place firmly at a wide diameter range. One step dispersion blade change out lets the operator quickly tune in a process, using different size dispersion blades or even different blade geometries that better accommodate the shear level needed for the application. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. The DP1 high speed disperser line does not just perform well with the process, but is also easy to use. They are equipped with an air lift system that effortlessly moves the dispersion blade in and out of the mix. Controls for the DP Series are simple to operate, with an RPM readout to ensure you are getting the same dispersion results every time. All the DP1 electric high shear mixers operate from 0-5000 RPM and can accommodate vessels up to 16” in height. If greater height is needed please see the DP2 line of dispersers.

  • Item Number DP1010VDE
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 1 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 2 in.u0026 3 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 10 Business Days
  • Lift height 12 in.
  • Lift type Electric
  • Max vessel height 15 in.
  • Motor type TEFC Electric
  • Number of impellers 2
  • Phase 1 Ph.
  • Rpm 500-5000
  • Shaft diameter .75 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 29 in.
  • Total height raised 41 in.
  • Voltage 115V
  • Volume 200ml - 5 gal.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
