5-20 Gallon | Heavy Duty | High Shear

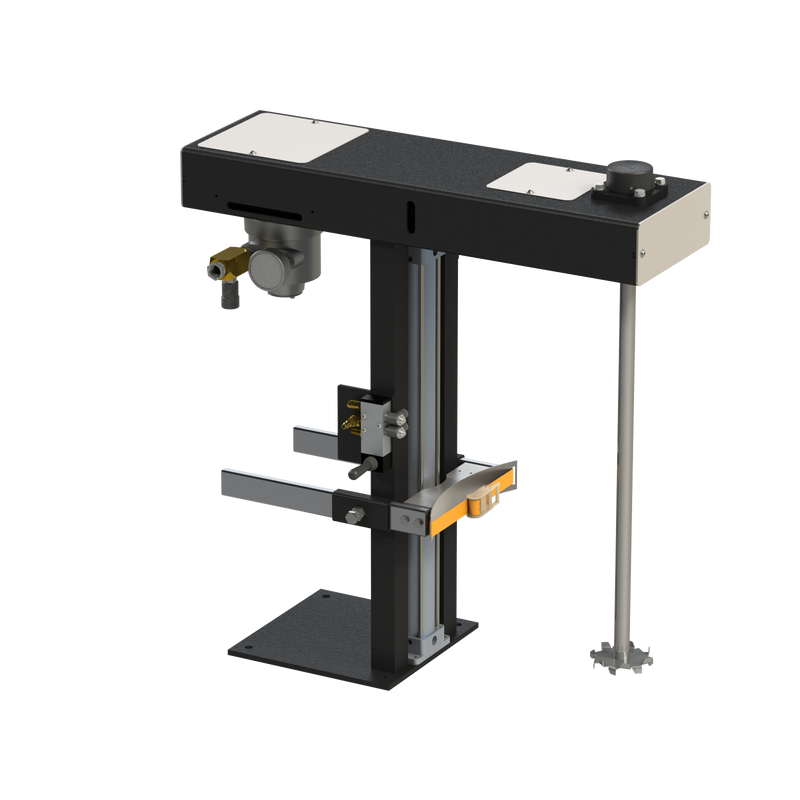

DP2 Air Post Mount Disperser

DP2 Air Post Mount Disperser
5-20 Gallon | Heavy Duty | High Shear

DP2 Air Post Mount Disperser

Regular price $6,217.00
Lead Time: 7 Business Days
Designed for applications of 5-20 gallons, this high speed disperser provides efficient high shear blending in small to medium batch processes. Easily control mixer speed to precisely optimize your dispersion processes.
Part Number: DP2015ABA

DP2 Line of High Shear Dispersers - Perfect for 5-20 Gallon Volumes!

The DP2 Line of high shear dispersers is expertly engineered for efficient mixing in volumes ranging from 5 to 20 gallons. Its unique container holder firmly clamps vessels across a wide diameter range, ensuring utmost stability during the mixing process.

Experience unparalleled versatility with the one-step dispersion blade change-out feature, enabling quick adjustments using different size dispersion blades or blade geometries, tailored to match the shear level required for each application.

Safety and durability are paramount, as this disperser is constructed with a heavy-duty air motor, making it ideal for use in hazardous environments and demanding minimal maintenance.

Equipped with an air lift system, DP2 dispersers effortlessly lift the unit up to 24", facilitating easy blade changes, precise blade positioning, and seamless vessel movement to and from the disperser. Operating from 0 to 5000 RPM, these electric high shear mixers accommodate vessels up to 25" in height, catering to diverse mixing needs. For greater height requirements, explore our DP3 line of dispersers, delivering exceptional performance.

Maximize your mixing efficiency with the DP2 Line of high shear dispersers, meticulously engineered for volumes from 5 to 20 gallons. Experience hassle-free and precise mixing for a wide range of applications!

  • Item Number DP2015ABA
  • Air lift requirement 80psi @ 1cfm
  • Air motor requirement 80cfm @ 100psi
  • Horsepower 1.5 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 3 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 7 Business Days
  • Lift height 24 in.
  • Lift type Air
  • Max vessel height 25 in.
  • Motor type Air Motor
  • Number of impellers 1
  • Rpm 0-4500
  • Shaft diameter 1 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
  • Total height lowered 35 in.
  • Total height raised 59 in.
  • Volume 5-20 gals.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
