5-20 Gallon | Heavy Duty | High Shear

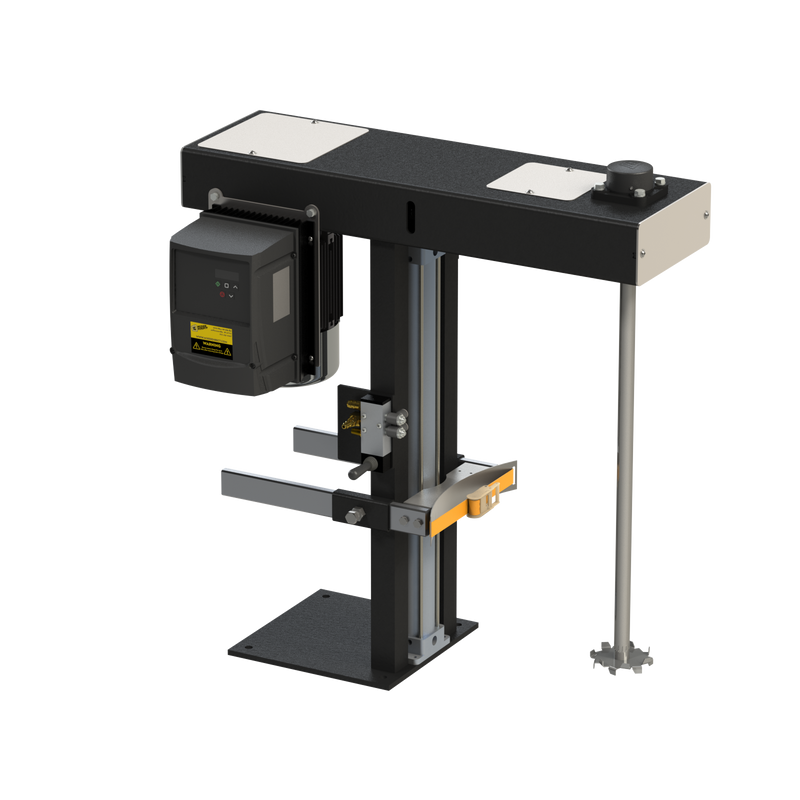

DP2 Electric Post Mount Disperser

DP2 Electric Post Mount Disperser
5-20 Gallon | Heavy Duty | High Shear

DP2 Electric Post Mount Disperser

Regular price $6,626.00
/
Lead Time: 16 Business Days
Designed for applications of 5-20 gallons, this high speed disperser provides efficient high shear blending in small to medium batch processes. Easily control mixer speed to precisely optimize your dispersion processes.
Part Number: DP2010VBA

The DP2 line of high shear dispersers is uniquely engineered for mixing in volumes from 5-20 gallons. The unique container holder adjusts to clamp the vessels in place firmly at a wide diameter range. One step dispersion blade change out lets the operator quickly tune in a process, using different size dispersion blades or even different blade geometries that better accommodate the shear level needed for the application. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. The DP2 dispersers are equipped with an air lift system to quickly lift the unit up to 24" for easy changing of blades, positioning of blade, or moving vessels to and from the disperser. All the DP2 electric high shear mixers operate from 0-5000 RPM and can accomodate vessels up to 25" in height. If greater height is needed please see the DP3 line of dispersers.

  • Item Number DP2010VBA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 1 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 2 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 16 Business Days
  • Lift height 24 in.
  • Lift type Air
  • Max vessel height 25 in.
  • Motor type TEFC Electric
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 500-5000
  • Shaft diameter 1 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 35 in.
  • Total height raised 59 in.
  • Voltage 115V
  • Volume 5-20 gals.
