DP2 Explosion Proof Post Mount Disperser

5-20 Gallon | Heavy Duty | High Shear

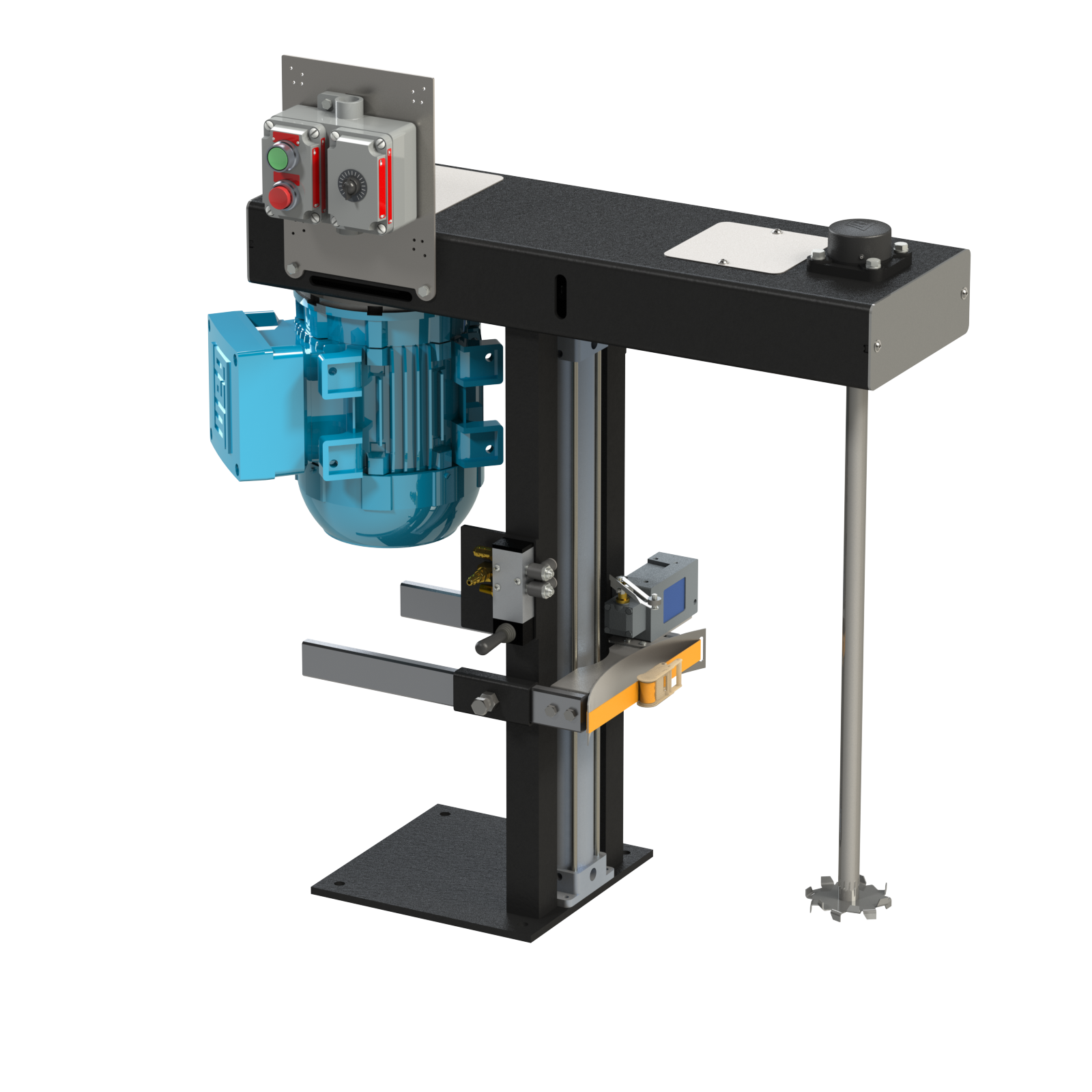

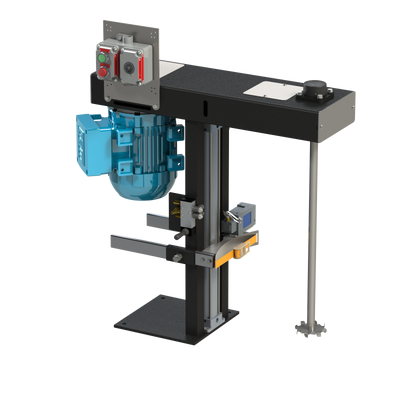

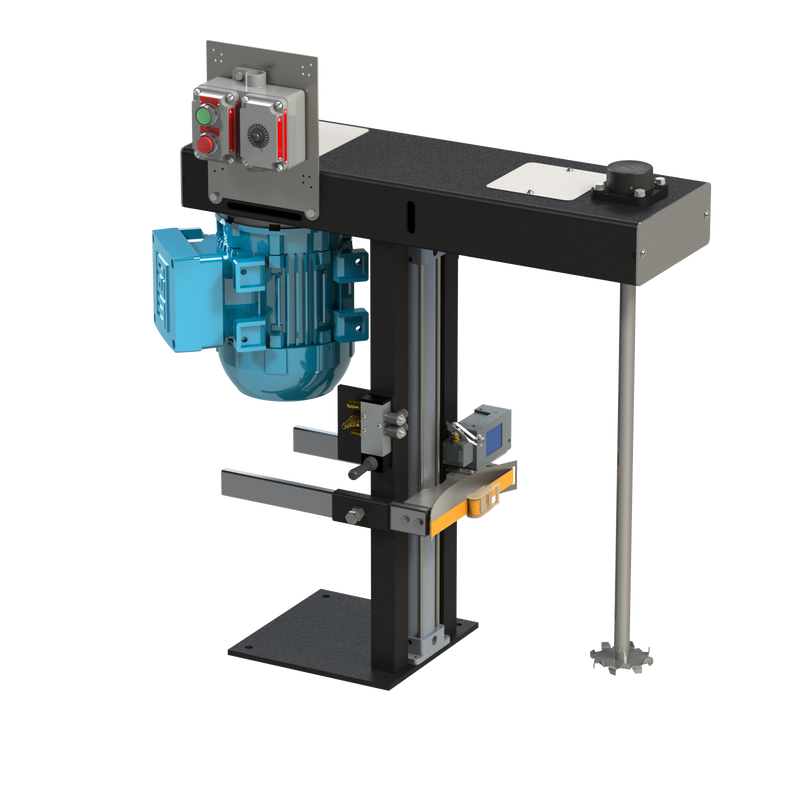

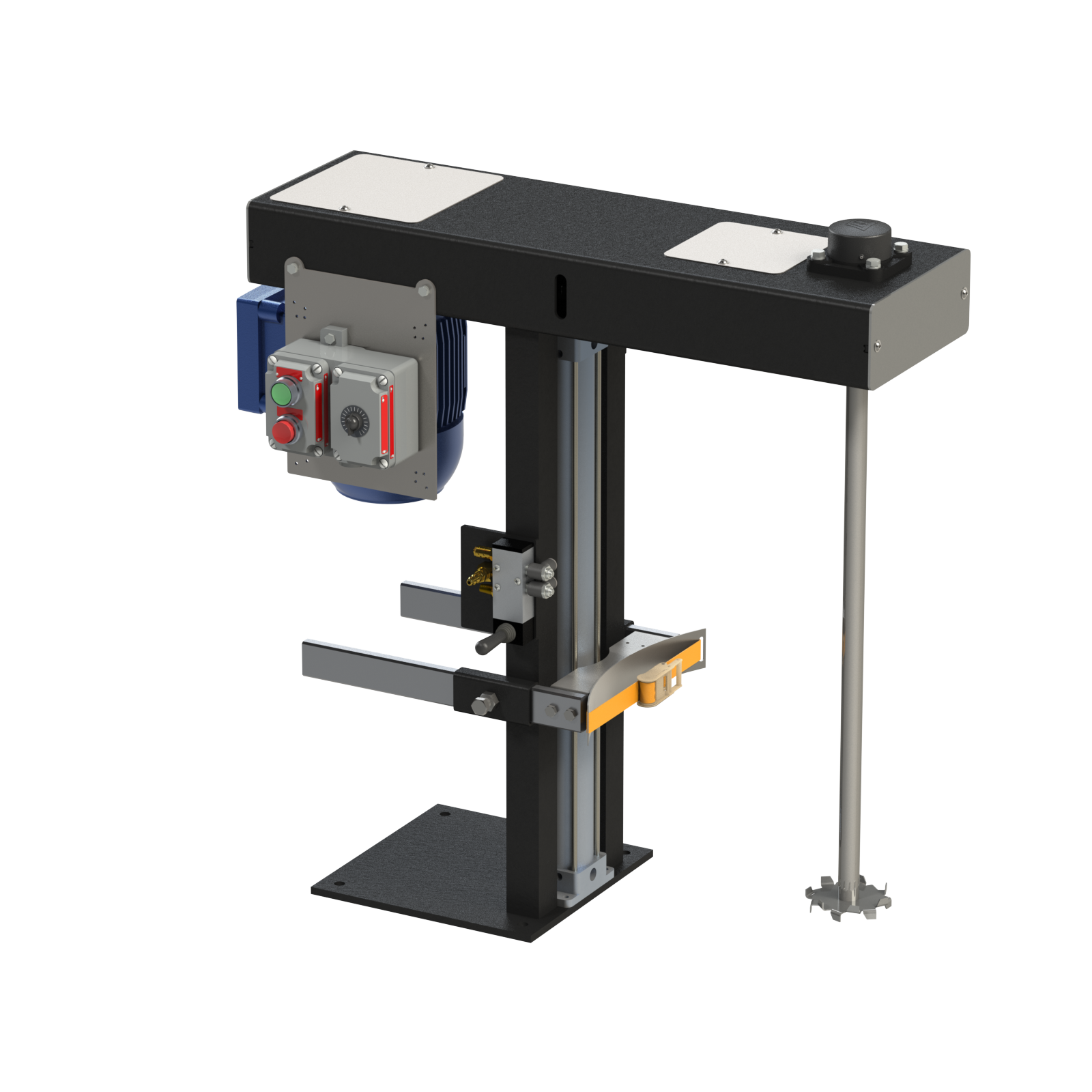

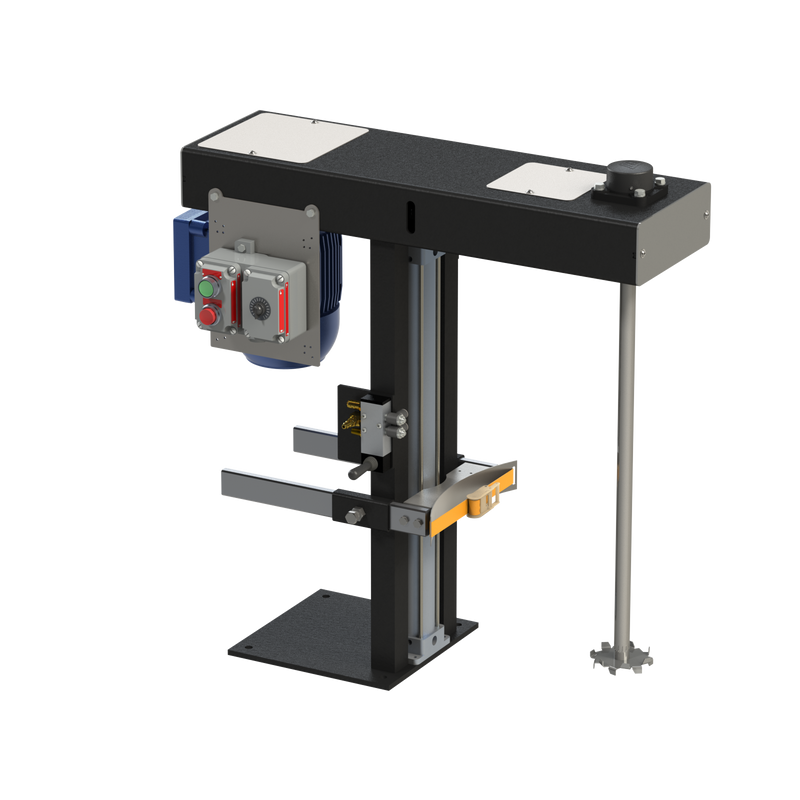

DP2 Explosion Proof Post Mount Disperser

Name: DP2 Explosion Proof Post Mount Disperser
Brand: Mixer Direct
SKU: DP2015XBA
Price: 9913.0 USD
Availability: InStock

Price

Lead Time: 7 Business Days

Designed for applications of 5-20 gallons, this high speed disperser provides efficient high shear blending in small to medium batch processes. Easily control mixer speed to precisely optimize your dispersion processes.

Part Number: DP2015XBA

[{"id":40378937081879,"title":"1.5","option1":"1.5","option2":null,"option3":null,"sku":"DP2015XBA","requires_shipping":true,"taxable":true,"featured_image":{"id":29971904462871,"product_id":6831767420951,"position":1,"created_at":"2022-11-07T13:01:39-05:00","updated_at":"2022-11-07T13:01:39-05:00","alt":null,"width":1600,"height":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/DP2_XP_air_8d71b1fc-08ed-4a50-9b05-51d65d9dc46e.png?v=1667844099","variant_ids":[40378937081879,40378937114647]},"available":true,"name":"DP2 Explosion Proof Post Mount Disperser - 1.5","public_title":"1.5","options":["1.5"],"price":991300,"weight":136078,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":null,"id":22311978958871,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/DP2_XP_air_8d71b1fc-08ed-4a50-9b05-51d65d9dc46e.png?v=1667844099"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378937114647,"title":"2","option1":"2","option2":null,"option3":null,"sku":"DP2020XBA","requires_shipping":true,"taxable":true,"featured_image":{"id":29971904462871,"product_id":6831767420951,"position":1,"created_at":"2022-11-07T13:01:39-05:00","updated_at":"2022-11-07T13:01:39-05:00","alt":null,"width":1600,"height":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/DP2_XP_air_8d71b1fc-08ed-4a50-9b05-51d65d9dc46e.png?v=1667844099","variant_ids":[40378937081879,40378937114647]},"available":true,"name":"DP2 Explosion Proof Post Mount Disperser - 2","public_title":"2","options":["2"],"price":938800,"weight":147418,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":null,"id":22311978958871,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/DP2_XP_air_8d71b1fc-08ed-4a50-9b05-51d65d9dc46e.png?v=1667844099"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378937147415,"title":"3","option1":"3","option2":null,"option3":null,"sku":"DP2030XBA","requires_shipping":true,"taxable":true,"featured_image":{"id":29971904495639,"product_id":6831767420951,"position":2,"created_at":"2022-11-07T13:01:39-05:00","updated_at":"2022-11-07T13:01:39-05:00","alt":null,"width":1600,"height":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/Dp2_XP3HP_air_eb798b8f-a1e7-4ac0-acd9-c48383861b3b.png?v=1667844099","variant_ids":[40378937147415]},"available":true,"name":"DP2 Explosion Proof Post Mount Disperser - 3","public_title":"3","options":["3"],"price":1017200,"weight":136078,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":null,"id":22311978991639,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/2380\/0003\/products\/Dp2_XP3HP_air_eb798b8f-a1e7-4ac0-acd9-c48383861b3b.png?v=1667844099"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The DP2 line of high shear dispersers is uniquely engineered for mixing in volumes from 5-20 gallons. The unique container holder adjusts to clamp the vessels in place firmly at a wide diameter range. One step dispersion blade change out lets the operator quickly tune in a process, using different size dispersion blades or even different blade geometries that better accommodate the shear level needed for the application. Safe for use in hazardous environments, our explosion proof DP2 uses an Inverter Duty Explosion Proof electric motor. The DP2 dispersers are equipped with an air lift system to quickly lift the unit up to 24" for easy changing of blades, positioning of blade, or moving vessels to and from the disperser. All the DP2 electric high shear mixers operate from 0-5000 RPM and can accomodate vessels up to 25" in height. If greater height is needed please see the DP3 line of dispersers.

Item Number DP2015XBA
Air lift requirement 80psi @ 1cfm
Enclosure type IP55
Horsepower 1.5 HP
Impeller attachment Bolted onto internally threaded shaft
Impeller diameter 3 in.
Impeller material 316SS
Impeller type Dispersion Blade
Lead time 7 Business Days
Lift height 24 in.
Lift type Air
Max vessel height 25 in.
Motor type Explosion Proof Inverter Duty
Number of impellers 1
Phase 1 Ph.
Rpm 500-5000
Shaft diameter 1 in.
Shaft material 316SS
Speed controller Variable Frequency Drive (VFD)
Total height lowered 35 in.
Total height raised 59 in.
Voltage 115V
Volume 5-20 gals.
