20-100 Gallon | Heavy Duty | High Shear

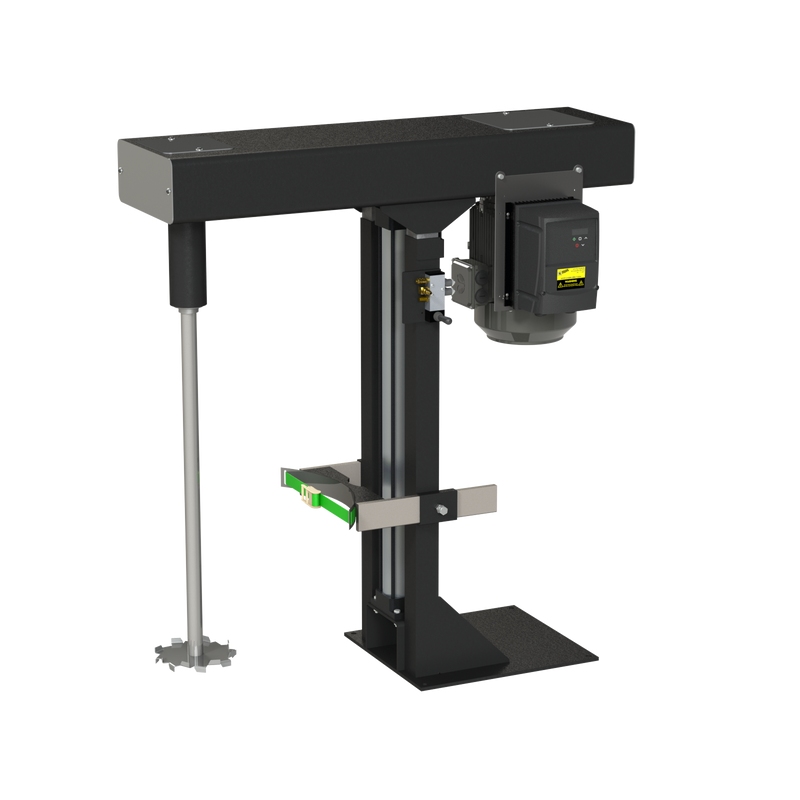

DP3 Electric Post Mount Disperser

DP3 Electric Post Mount Disperser
20-100 Gallon | Heavy Duty | High Shear

DP3 Electric Post Mount Disperser

Regular price $11,634.00
Lead Time: 15 Business Days
Quickly and easily disperse your ingredients with this high speed disperser. Designed for volumes of 20-100 gallons, this high speed disperser provides efficient high shear blending in small to medium batch processes.
Part Number: DP3030VBA

The DP3 series of high speed dispersers is designed to accommodate mixing in volumes from 30-100 gallons. Specially designed to accommodate 55-gallon drums and similary shaped vessels, this high shear disperser utilizes an air lift system allowing for up to 36" additional lift capacity for easy changing of blades, positioning of blade, or moving vessels to and from the disperser. The DP3 series can easily disperse and blend products up to 15,000cps and the one step dispersion blade change out lets the operator quickly tune in a process, using different size dispersion blades or even different blade geometries that better accommodate the shear level needed for the application. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. All the DP3 electric high shear mixers operate from 0-1900 RPM and can accomodate vessels up to 38" in height. If greater height is needed please see the DP4 line of dispersers.

  • Item Number DP3030VBA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 3 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 5 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 15 Business Days
  • Lift height 36 in.
  • Lift type Air
  • Max vessel height 40 in.
  • Motor type TEFC Electric
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 400-4000
  • Shaft diameter 1.5 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 53 in.
  • Total height raised 89 in.
  • Voltage 460V
  • Volume 20-55 gals.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
