100-300 Gallon | Heavy Duty | High Shear

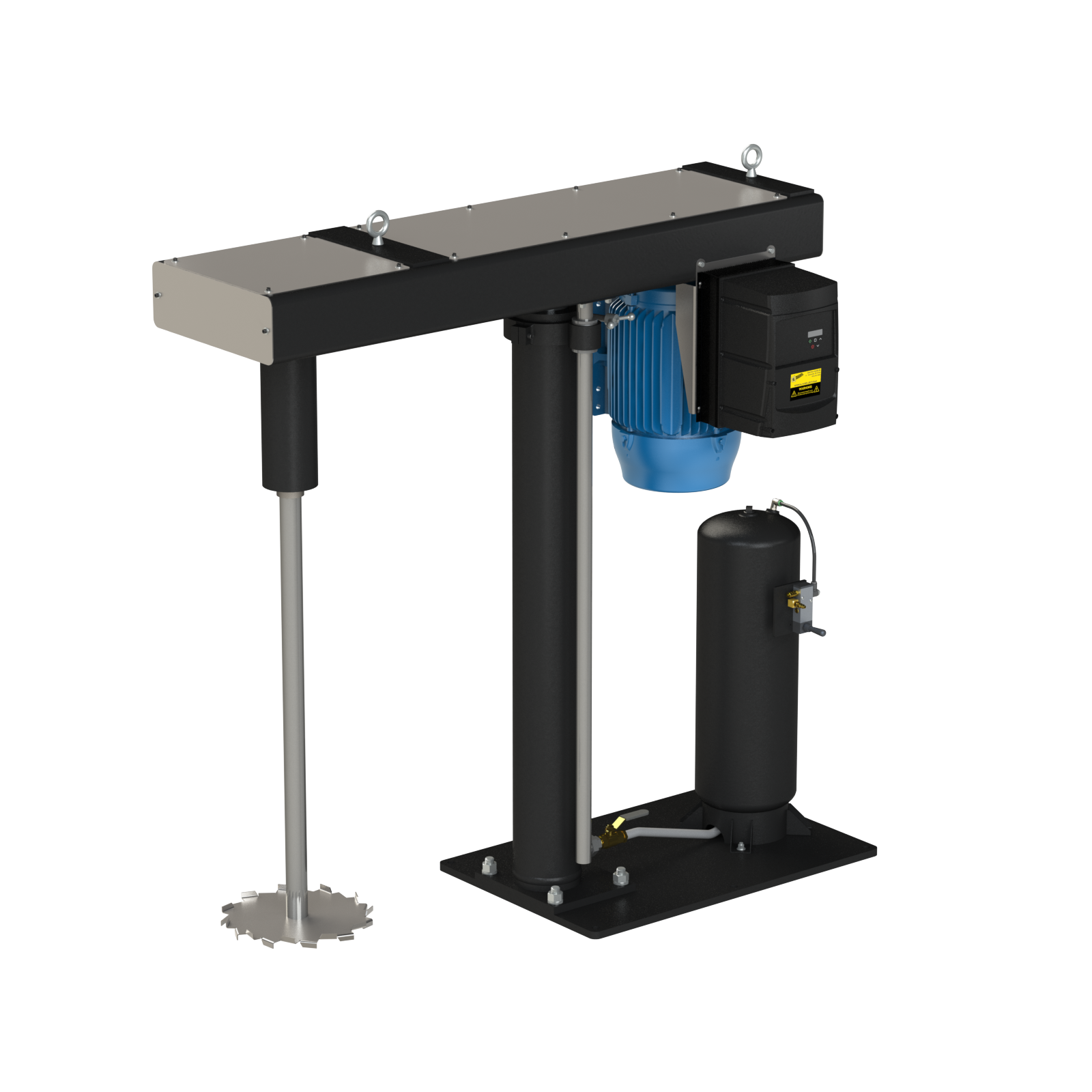

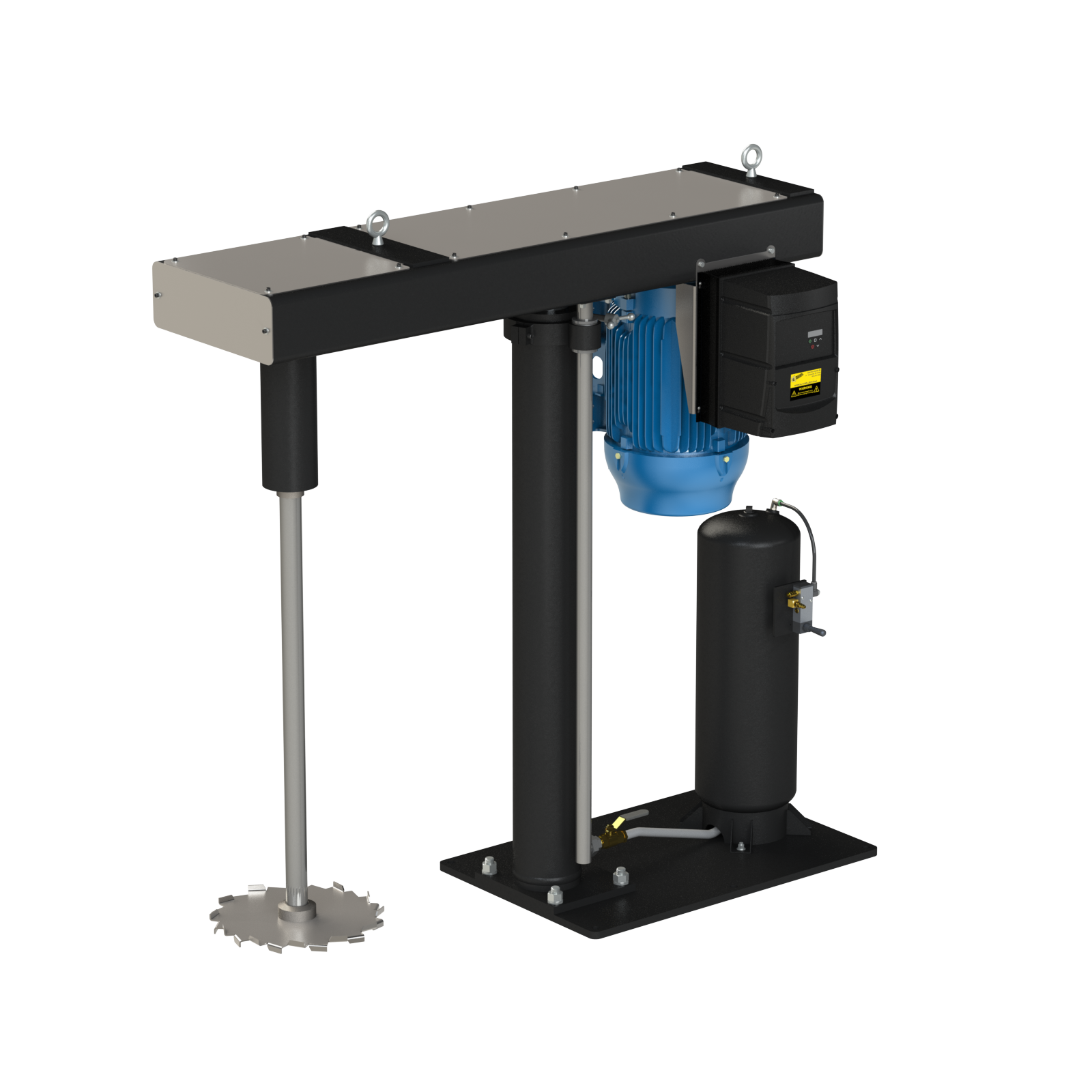

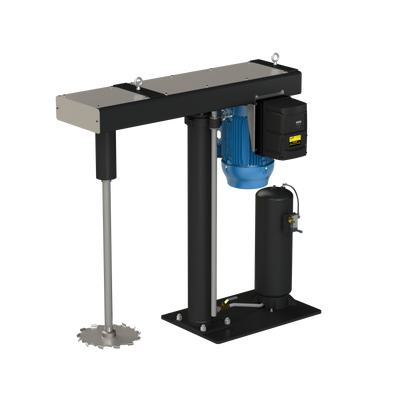

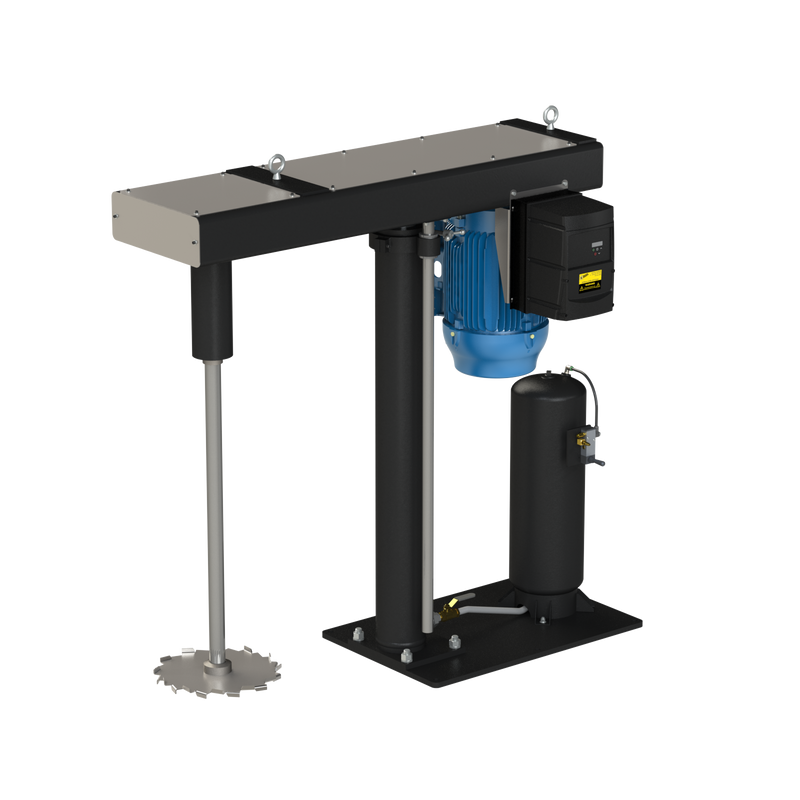

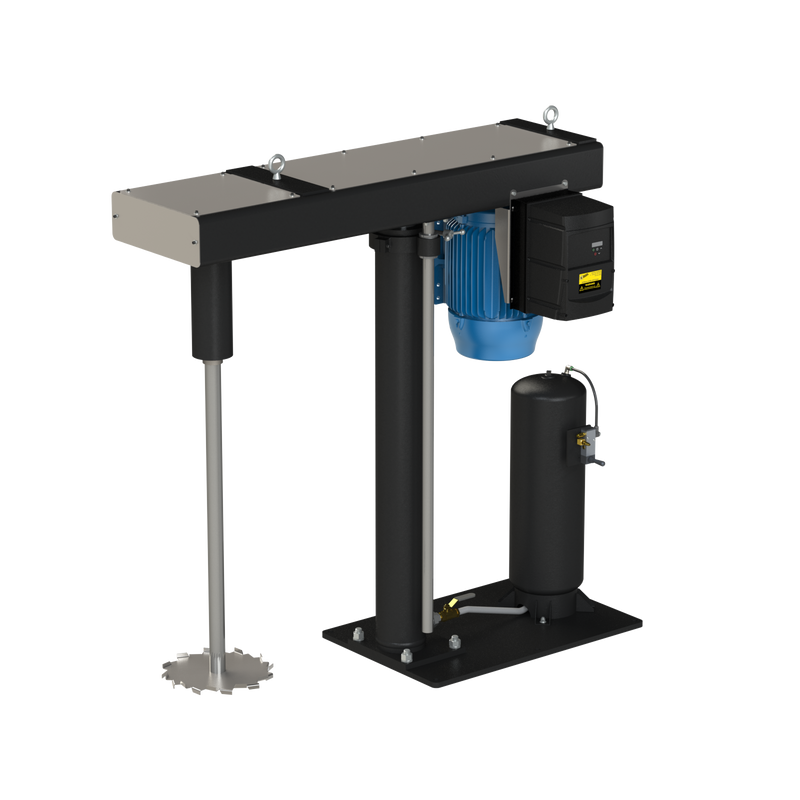

DP4 Electric Post Mount Disperser

DP4 Electric Post Mount Disperser
DP4 Electric Post Mount Disperser
100-300 Gallon | Heavy Duty | High Shear

DP4 Electric Post Mount Disperser

Regular price $24,207.00
/
Lead Time: 25 Business Days
Quickly and easily disperse your ingredients with this high speed disperser. Designed for volumes of 100-300 gallons, this high speed disperser provides efficient high shear blending in higher volume batch processes.
Part Number: DP4100VBO

DP4 Line of High-Speed Dispersers - Ideal for 100-300 Gallon Volumes!

The DP4 Line of high-speed dispersers is expertly designed to accommodate mixing in volumes ranging from 100 to 300 gallons. Crafted to handle high shear applications in large volumes, this disperser features an air over oil lift system, providing up to 48" additional lift capacity for seamless blade changes, precise blade positioning, and effortless vessel movement to and from the disperser.

Experience unmatched blending and dispersing capabilities with the DP4 Line, effortlessly handling products up to 15,000cps. The one-step dispersion blade change-out empowers operators to swiftly fine-tune the process using different size dispersion blades or blade geometries, perfectly accommodating the required shear level for each application.

Safety and durability are paramount - our DP4 Series boasts a Totally Enclosed Fan Cooled (TEFC) electric motor, with an IP55 rating to protect against water spray and dust ingress, ensuring reliable performance even in demanding conditions.

Operating from 0 to 1900 RPM, these electric high shear mixers efficiently accommodate vessels up to 48" in height, catering to diverse mixing needs.

Maximize your mixing efficiency with the DP4 Line of high-speed dispersers, meticulously designed for volumes from 100 to 300 gallons. Experience effortless and precise mixing for a wide range of high shear applications, while enjoying the added convenience of the air over oil lift system!

  • Item Number DP4100VBO
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 10 HP
  • Impeller attachment Bolted onto internally threaded shaft
  • Impeller diameter 10 in.
  • Impeller material 316SS
  • Impeller type Dispersion Blade
  • Lead time 25 Business Days
  • Lift height 48 in.
  • Lift type Air Over Oil
  • Max vessel height 48 in.
  • Motor type TEFC Electric
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 190-1900
  • Shaft diameter 2 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 68 in.
  • Total height raised 116 in.
  • Voltage 460V
  • Volume 100-300 gals.
