20-1000 Gallon | Drum Mounted | Portable

Electric Direct Drive Drum Bracket Mount Mixer

Electric Direct Drive Drum Bracket Mount Mixer
Electric Direct Drive Drum Bracket Mount Mixer
Electric Direct Drive Drum Bracket Mount Mixer
Electric Direct Drive Drum Bracket Mount Mixer
20-1000 Gallon | Drum Mounted | Portable

Electric Direct Drive Drum Bracket Mount Mixer

Regular price $3,261.00
/
Lead Time: 7 Business Days

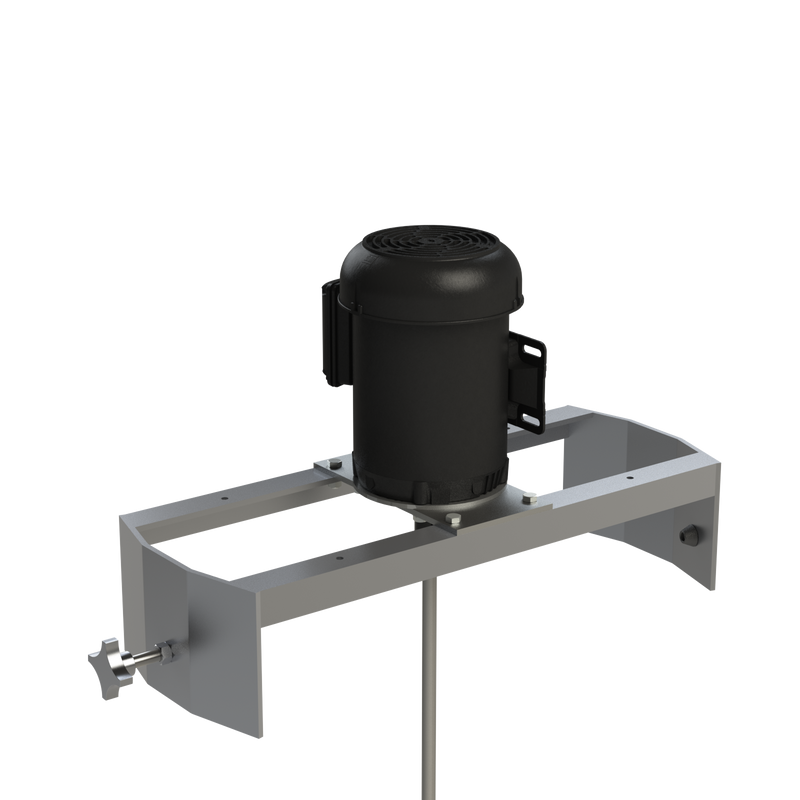

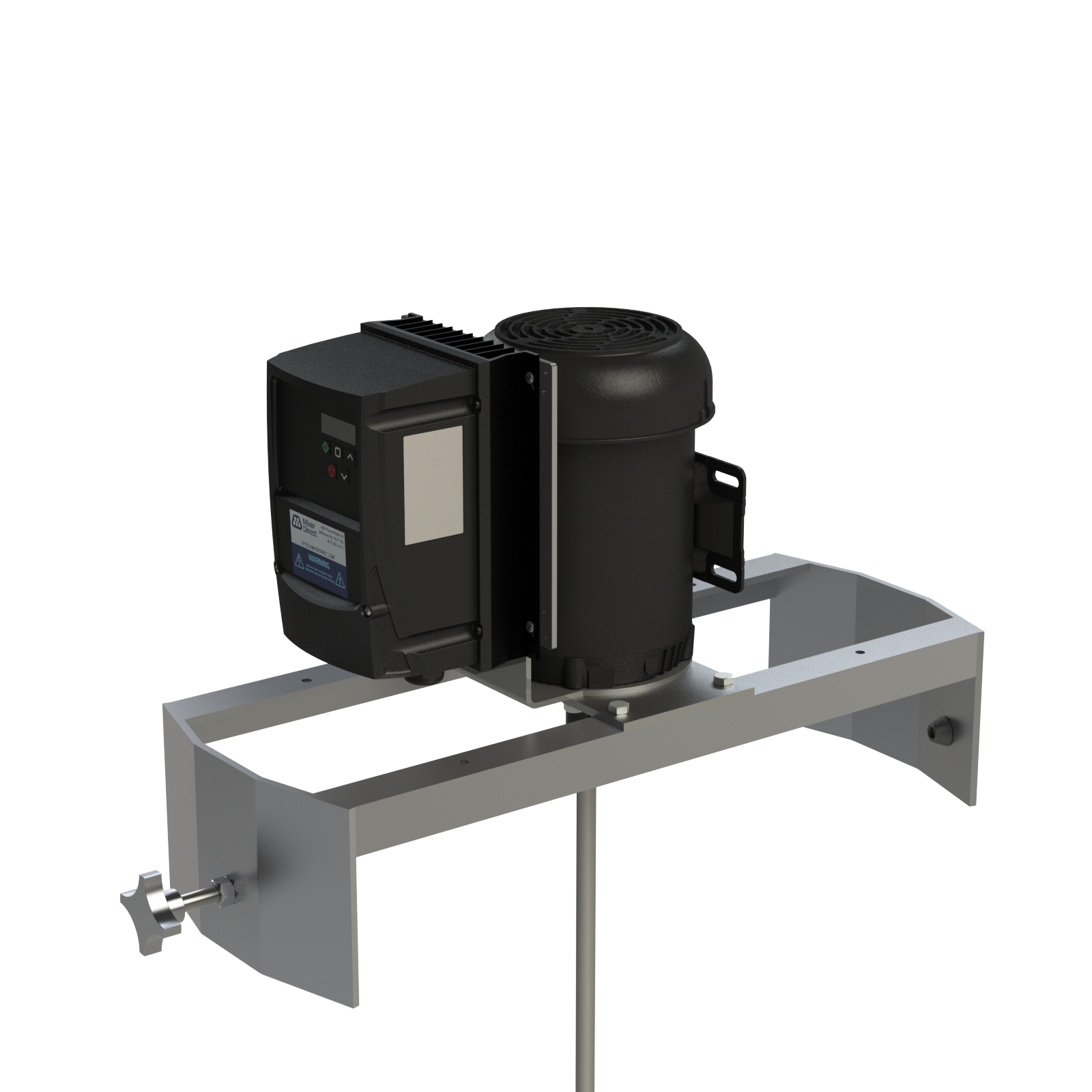

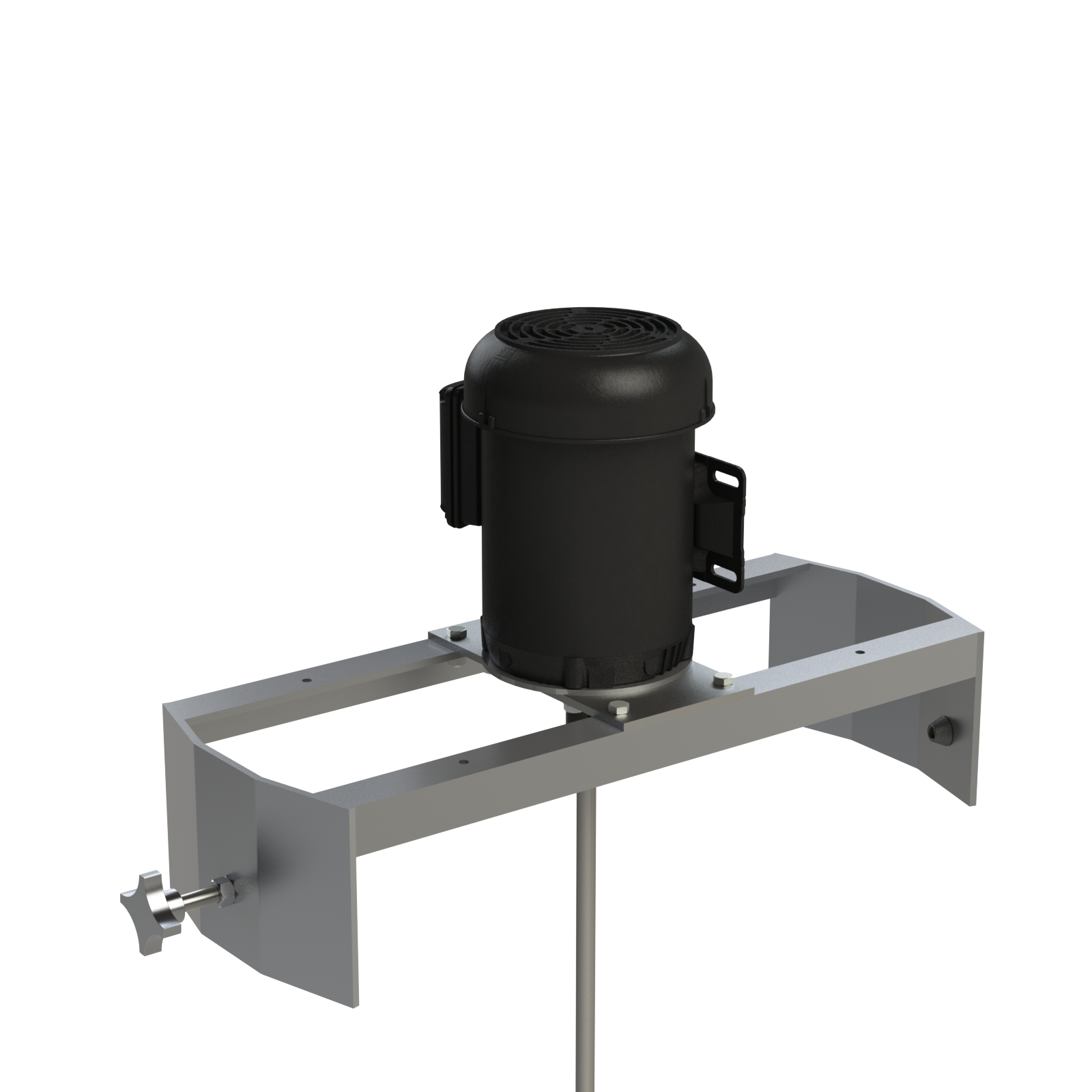

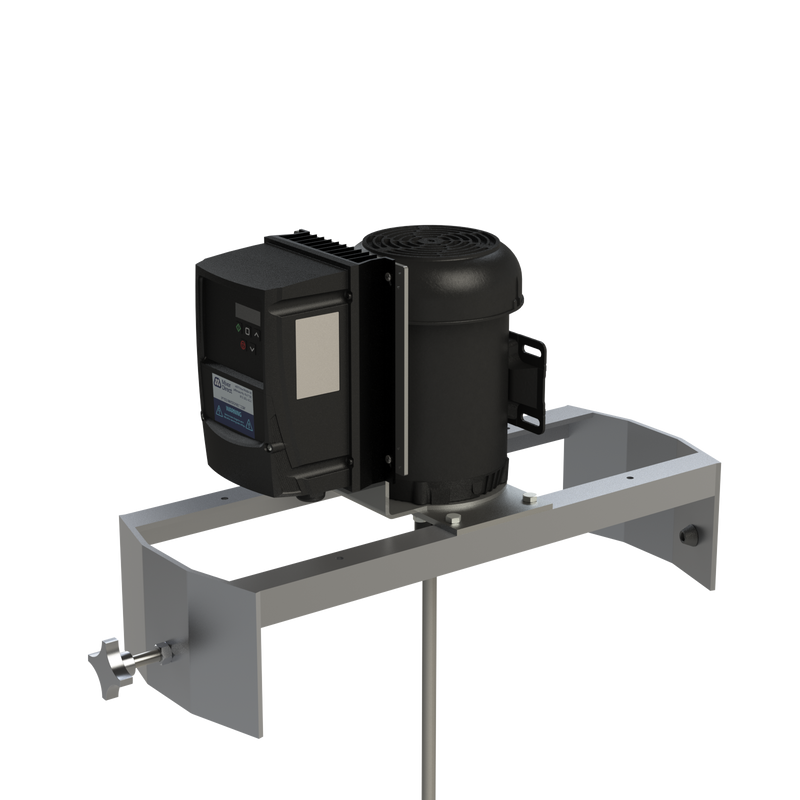

Mix your ingredients in open 55-gallon drums or similary shaped vessels with this drum clamp mixer. The mixer frame securely clamps onto the outside of the drum, allowing for mixing directly in the drum.
Part Number: DBM033VDD

Our drum bracket mount mixers are uniquely designed to attach to standard 55-gallon drums. The mixer brackets angled end plate provides a rigid mount to the 55-gallon drum allowing for more vigorous mixing of materials. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number DBM033VDD
  • Enclosure type IP55
  • Horsepower 1/3 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller material 316SS
  • Impeller type Propeller
  • Lead time 7 Business Days
  • Motor type TEFC Electric
  • Mount Drum Bracket Mount
  • Mount dimension 24-26x10
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 350-1750
  • Shaft diameter .625 in.
  • Shaft length 28 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Voltage 115V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
