20-1000 Gallon | Drum Mounted | Portable

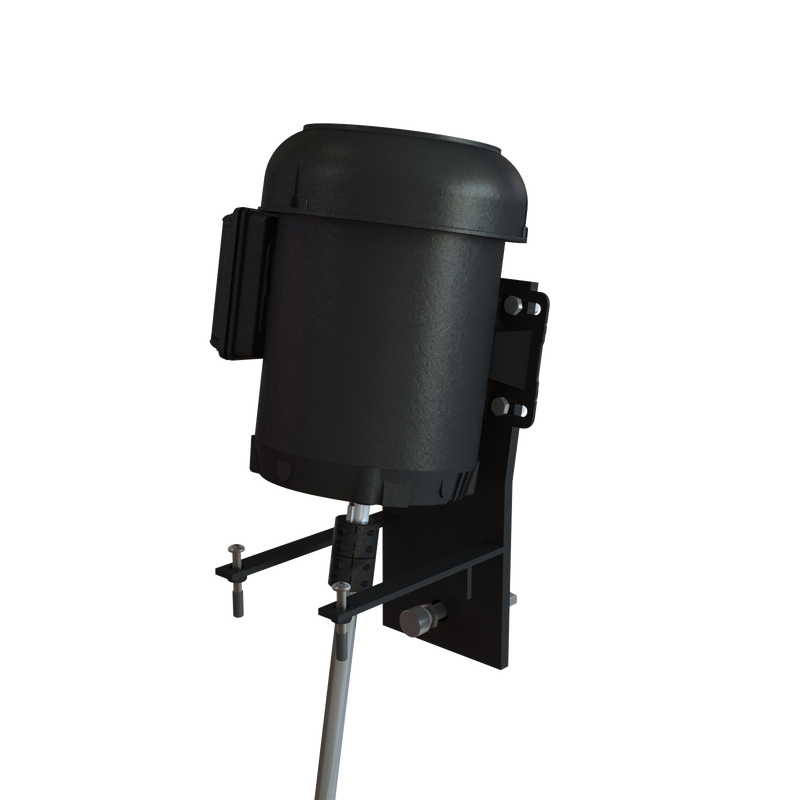

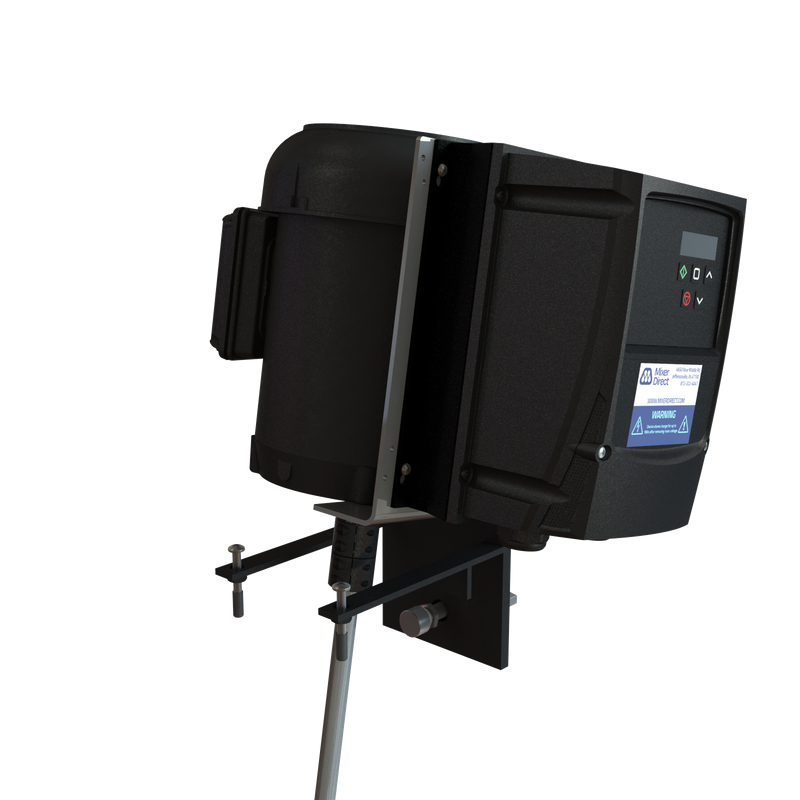

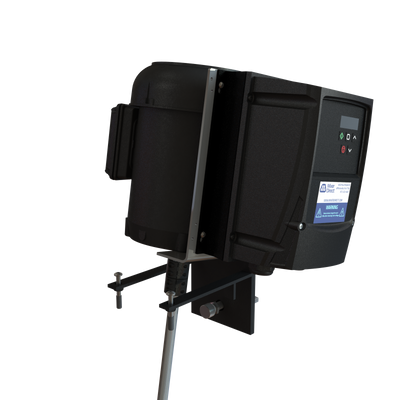

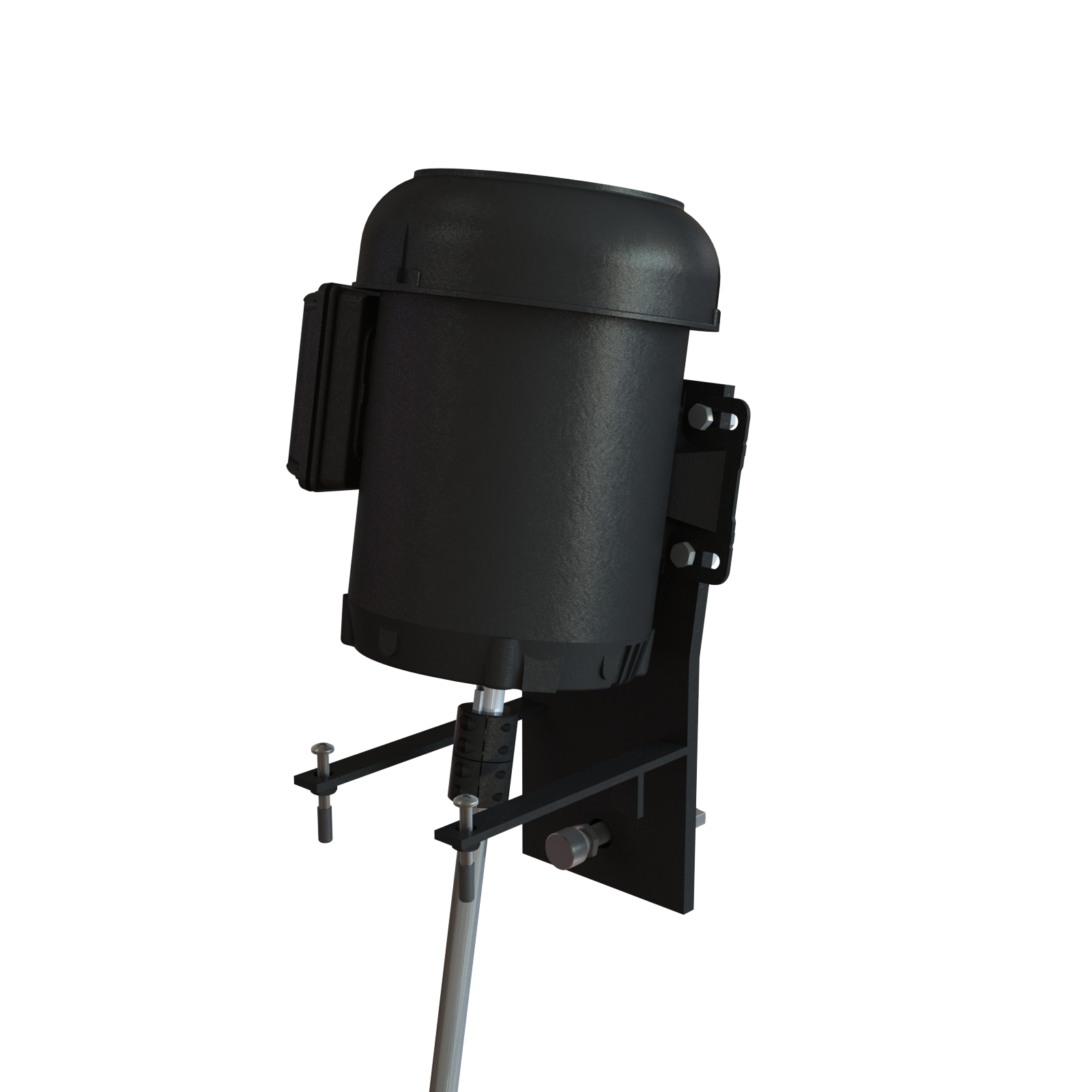

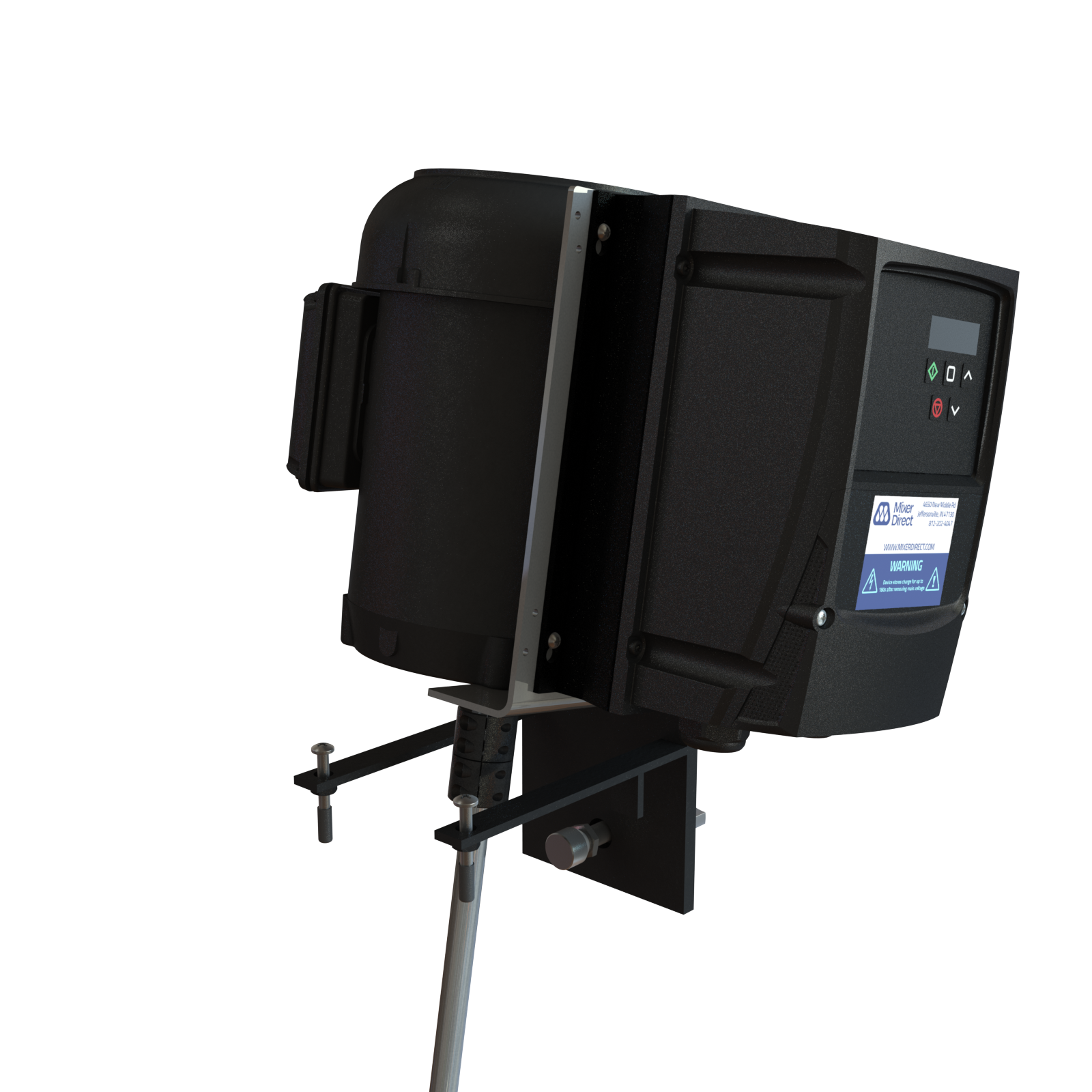

Electric Direct Drive Drum Clamp Mount Mixer

Electric Direct Drive Drum Clamp Mount Mixer
Electric Direct Drive Drum Clamp Mount Mixer
Electric Direct Drive Drum Clamp Mount Mixer
Electric Direct Drive Drum Clamp Mount Mixer
20-1000 Gallon | Drum Mounted | Portable

Electric Direct Drive Drum Clamp Mount Mixer

Regular price $2,576.00
/
Lead Time: 7 Business Days
Mix your ingredients in open 55-gallon drums or similary shaped vessels with this drum clamp mixer. The mixer frame securely clamps onto the outside of the drum, allowing for mixing directly in the drum.
Part Number: DCM050VDD

Drum clamp mixers are a versatile drum mixer, allowing for mixing in open or lidded drums. Mount directly to the side of an open drum or slip the shaft and impeller through standard 2" bung fittings to mix in closed vessels. All drum clamp mount mixers come with a folding impeller, uniquely designed to slip through a bung opening and open once the motor is powered on. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number DCM050VDD
  • Enclosure type IP55
  • Horsepower 1/2 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller material 316SS
  • Impeller type Folding Impeller
  • Lead time 7 Business Days
  • Motor type TEFC Electric
  • Mount Drum Clamp Mount
  • Mount dimension 2 NPT
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 350-1750
  • Shaft diameter .625 in.
  • Shaft length 28 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Voltage 115V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
