20-1000 Gallon | Drum Mounted | Portable

Electric Direct Drive Drum Lid Mount Mixer

Electric Direct Drive Drum Lid Mount Mixer
Electric Direct Drive Drum Lid Mount Mixer
Electric Direct Drive Drum Lid Mount Mixer
Electric Direct Drive Drum Lid Mount Mixer
Electric Direct Drive Drum Lid Mount Mixer
20-1000 Gallon | Drum Mounted | Portable

Electric Direct Drive Drum Lid Mount Mixer

Regular price $2,554.00
/
Lead Time: 7 Business Days

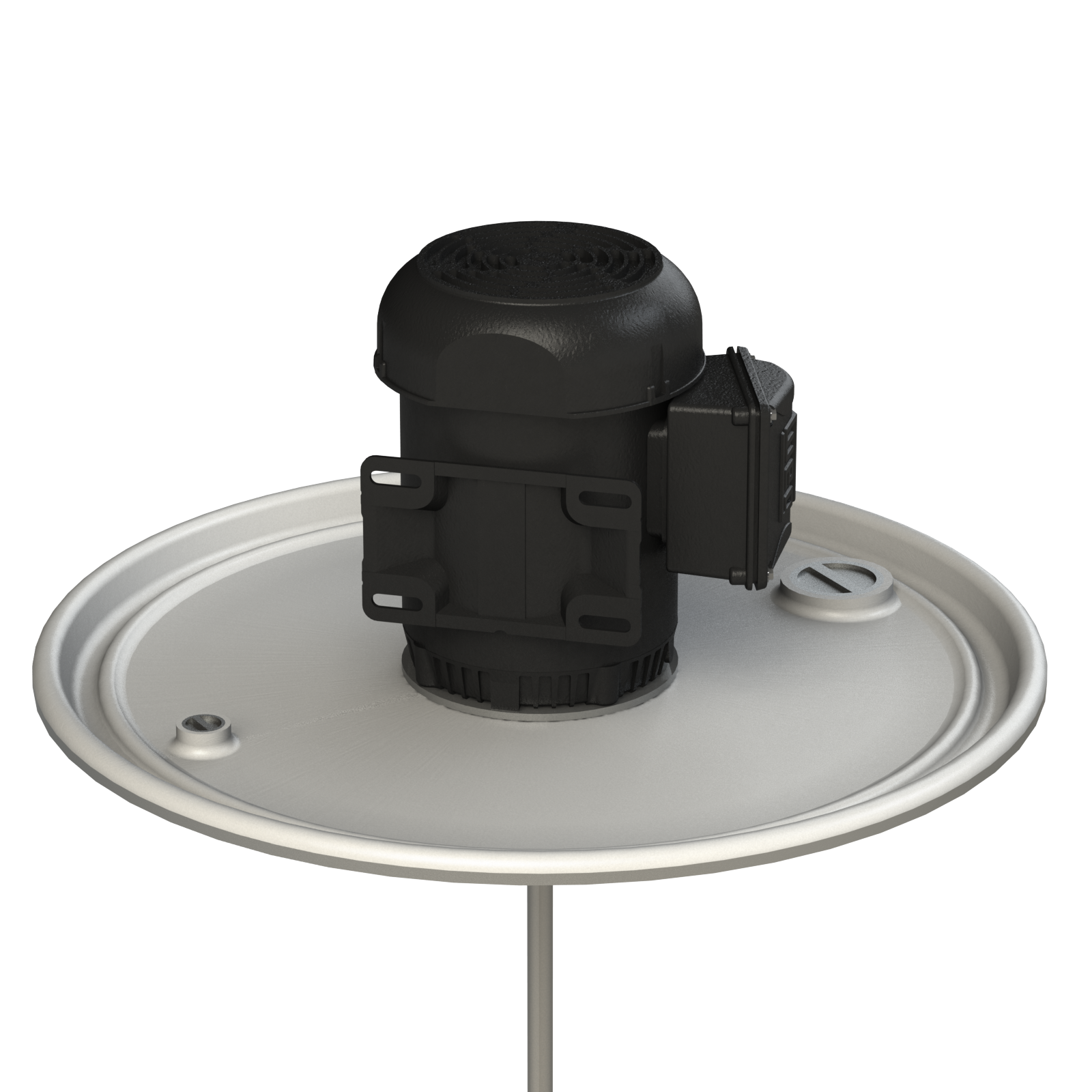

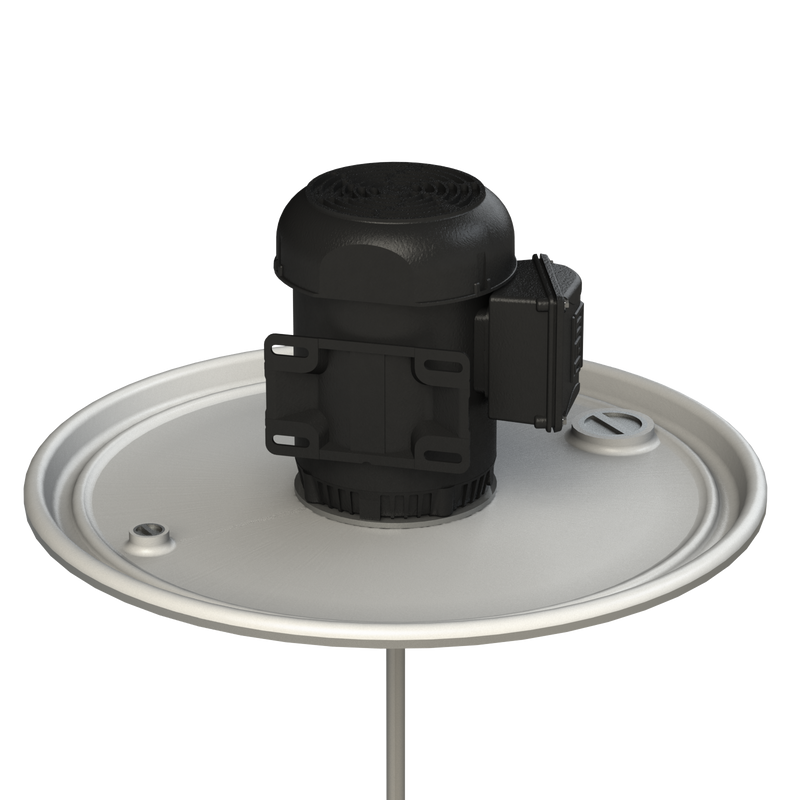

Replace your 55-gallon drum lid with this drum lid mixer to mix your ingredients directly in the vessel. The drum lid mixer clamps securely with a standard clamp ring and reduces spilling of ingredients while processing.
Part Number: DLM033VDD-28

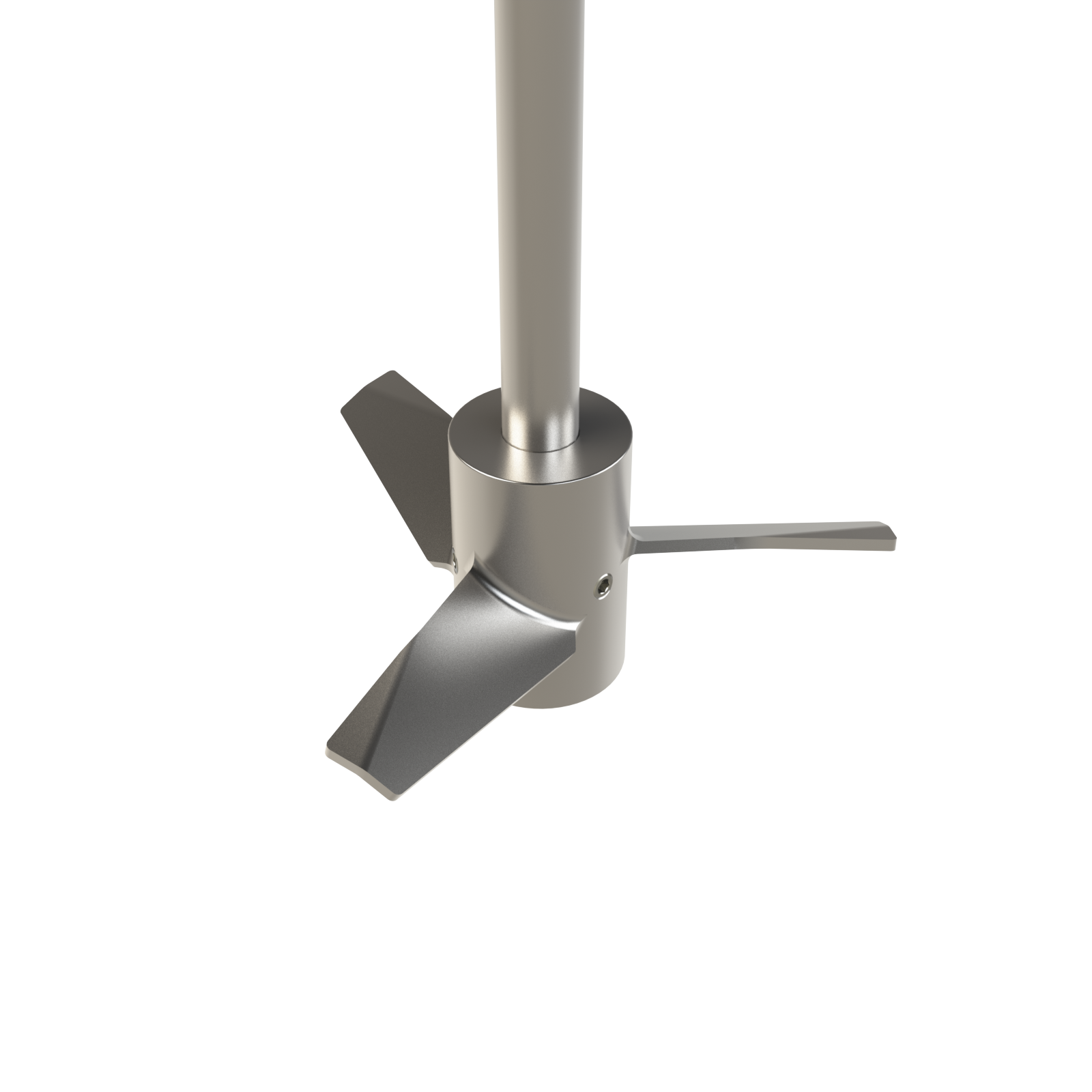

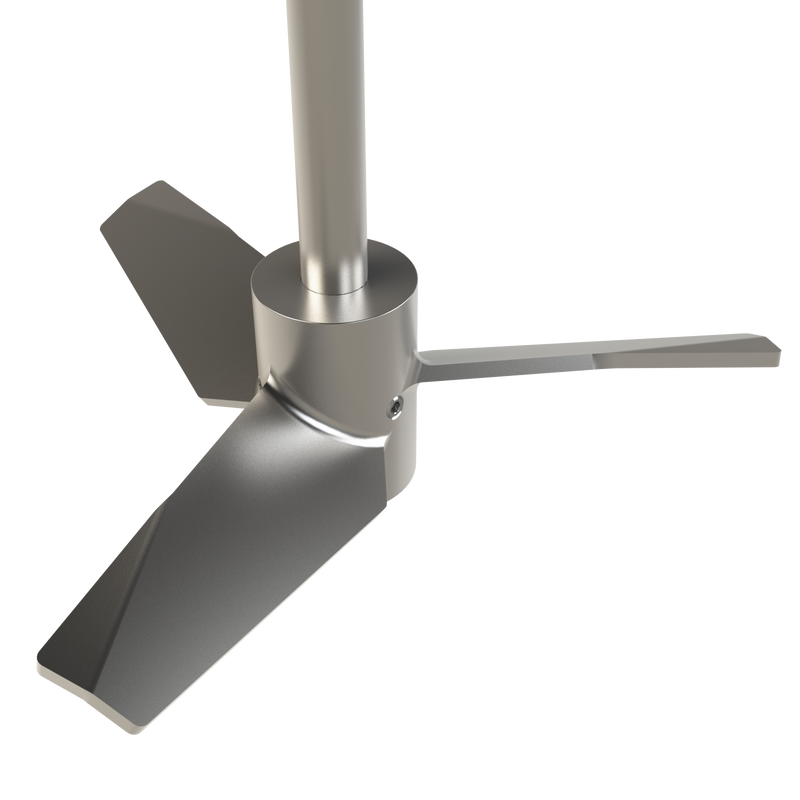

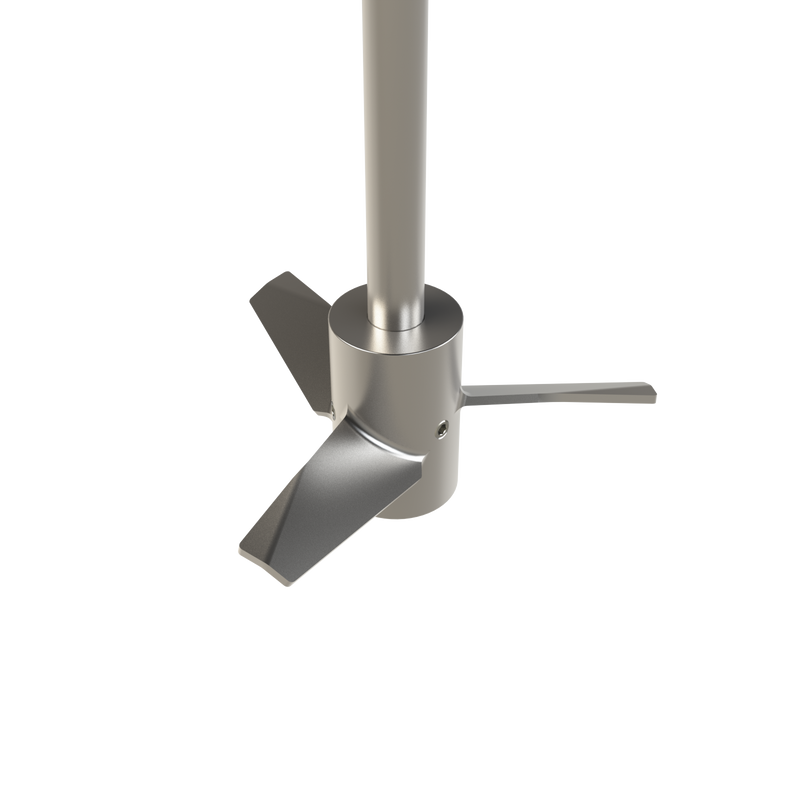

Drum clamp mixers are a versatile drum mixer, allowing for mixing in open or lidded drums. Mount directly to the side of an open drum or slip the shaft and impeller through standard 2" bung fittings to mix in closed vessels. All drum clamp mount mixers come with a folding impeller, uniquely designed to slip through a bung opening and open once the motor is powered on. Constructed with a heavy duty air motor, this drum clamp mounted mixer is safe for use in hazardous environments and requires minimal maintenance. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number DLM033VDD-28
  • Enclosure type IP55
  • Horsepower 1/3 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller material 316SS

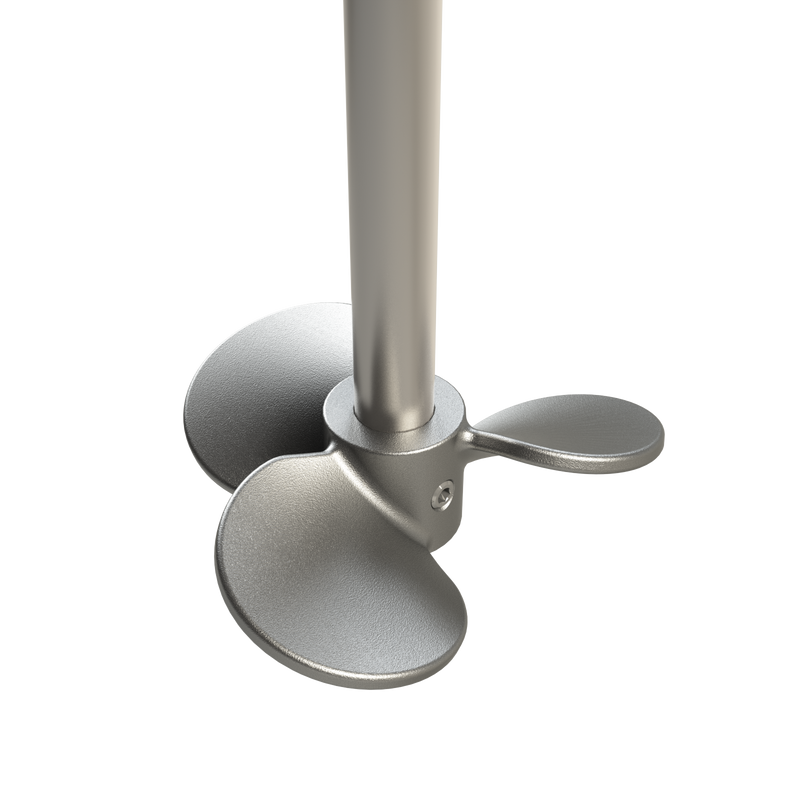

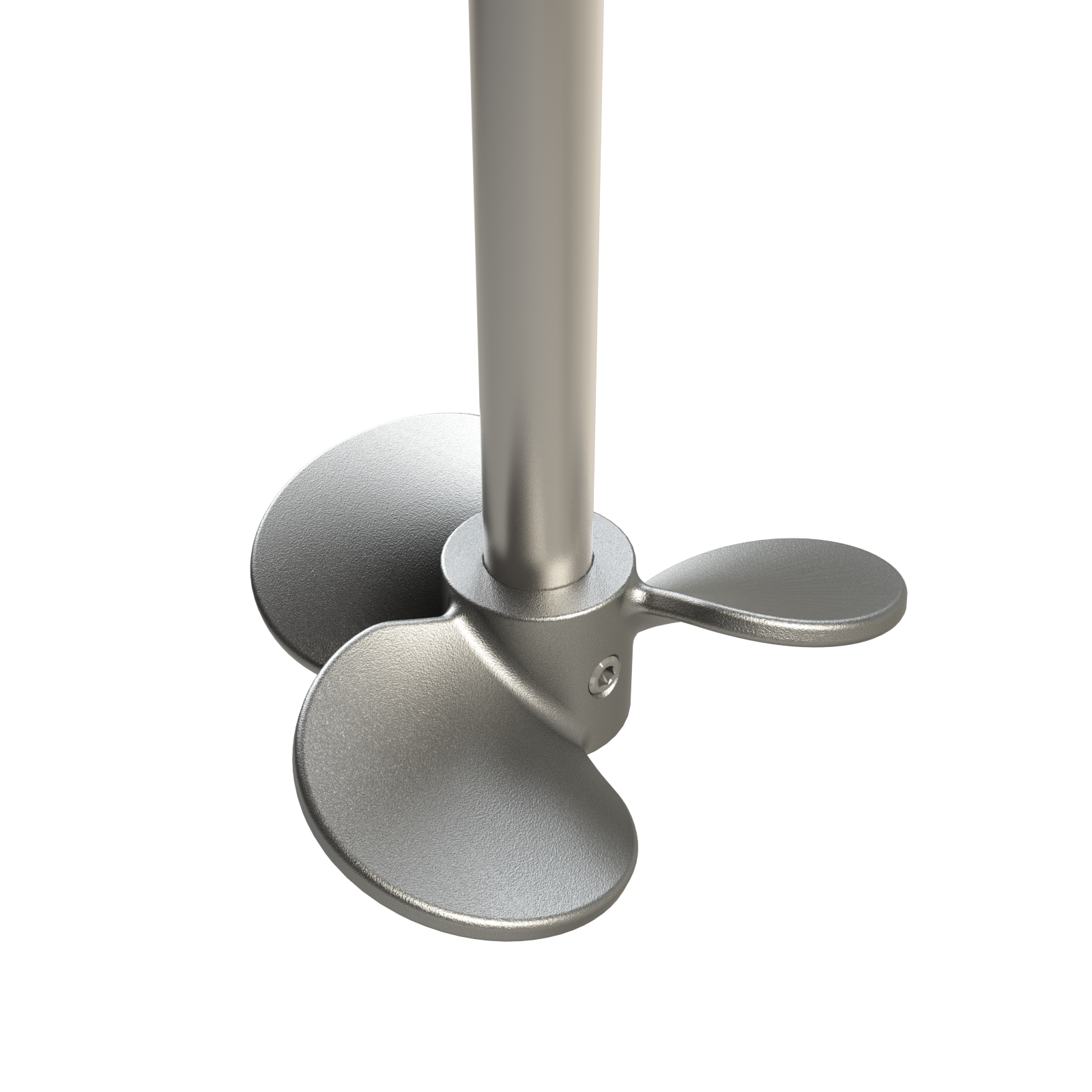

  • Impeller type Propeller
  • Lead time 7 Business Days
  • Motor type TEFC Electric
  • Mount Drum Lid Mount
  • Mount dimension 24 diameter
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 350-1750
  • Shaft diameter .625 in.
  • Shaft length 28 in.
  • Shaft material 316SS

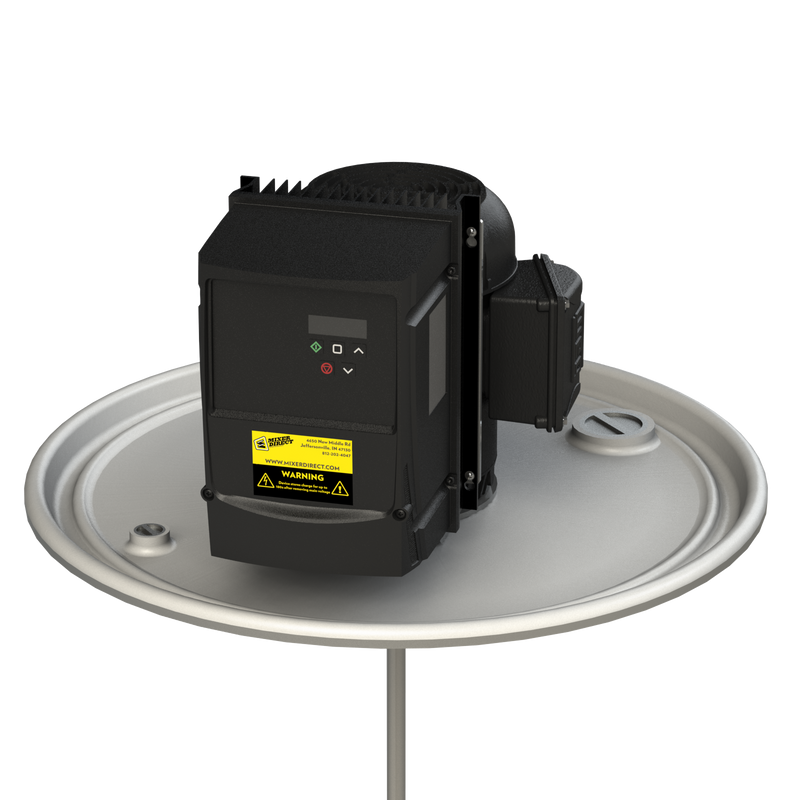

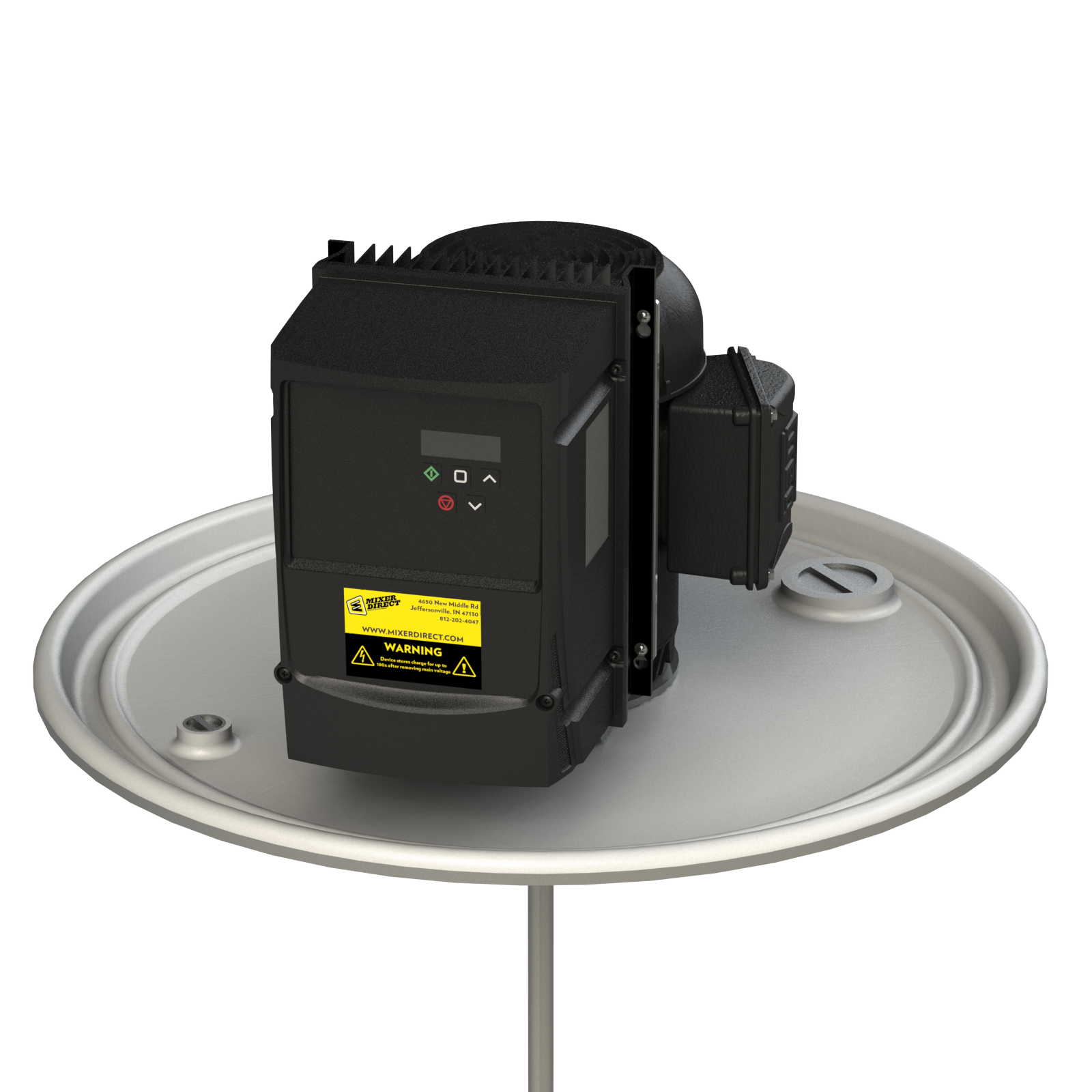

  • Speed controller Variable Frequency Drive (VFD)
  • Voltage 115V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
