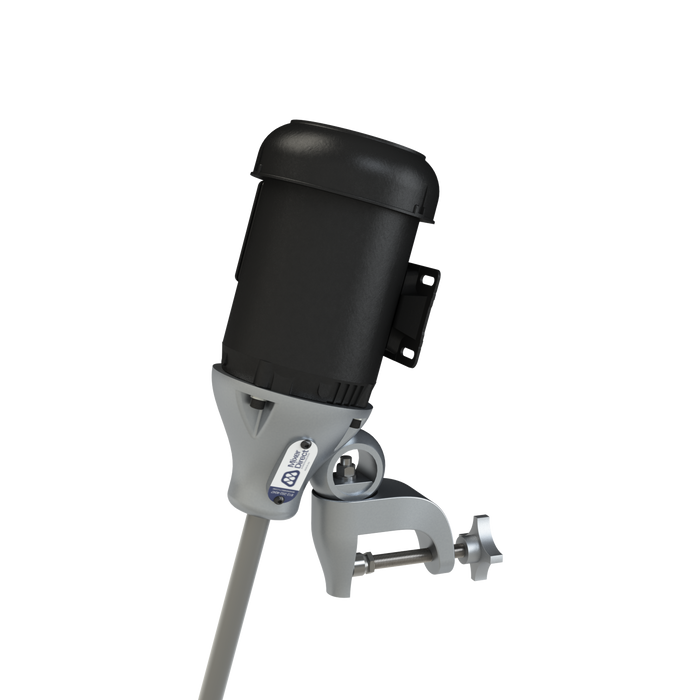

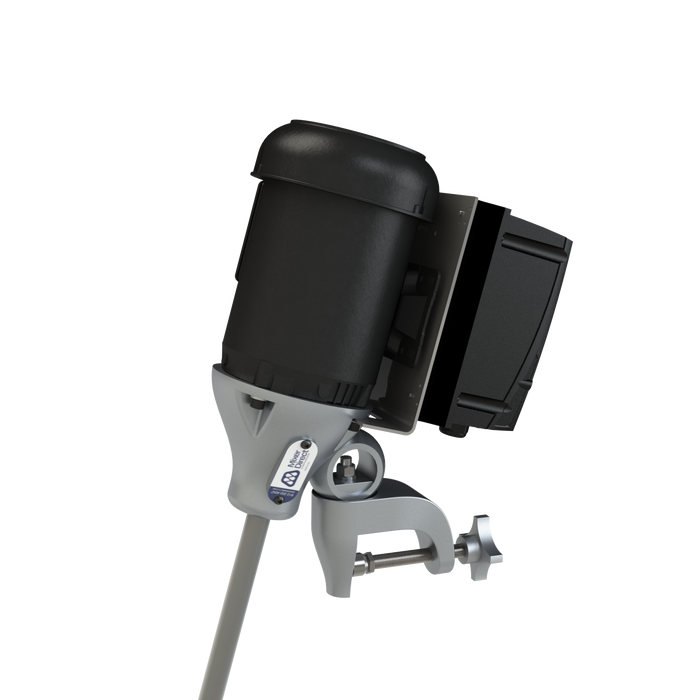

The heavy duty clamp mount mixer is the workhorse of our portable mixer line. A heat treated aluminum housing provide both outstanding durability and lightweight portability. Each heavy duty clamp mount mixer includes a lower support bearing taking the radial shaft load off of the motor extending their longevity. Outstanding adjustability allows shaft positioning on two axis of rotation, giving flexibility for positioning inside the vessel. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. Add a Variable Frequency Drive (VFD) for speed control. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and shaft length and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.
- Item Number HDC033VDD-32
- Enclosure type IP55
- Horsepower 1/3 HP
- Impeller attachment Set screw
- Impeller diameter 4 in.
- Impeller material 316SS
- Impeller type Propeller
- Lead time 3 Business Days
- Motor type TEFC Electric
- Mount Heavy Duty Clamp
- Mount dimension 3.5 in.Max Opening
- Number of impellers 1
- Phase 1 Ph.
- Rpm 350-1750
- Shaft diameter 1 in.
- Shaft length 32 in.
- Shaft material 316SS
- Speed controller Variable Frequency Drive (VFD)
- Voltage 115V
