20-1000 Gallon | Top Entry Mixer

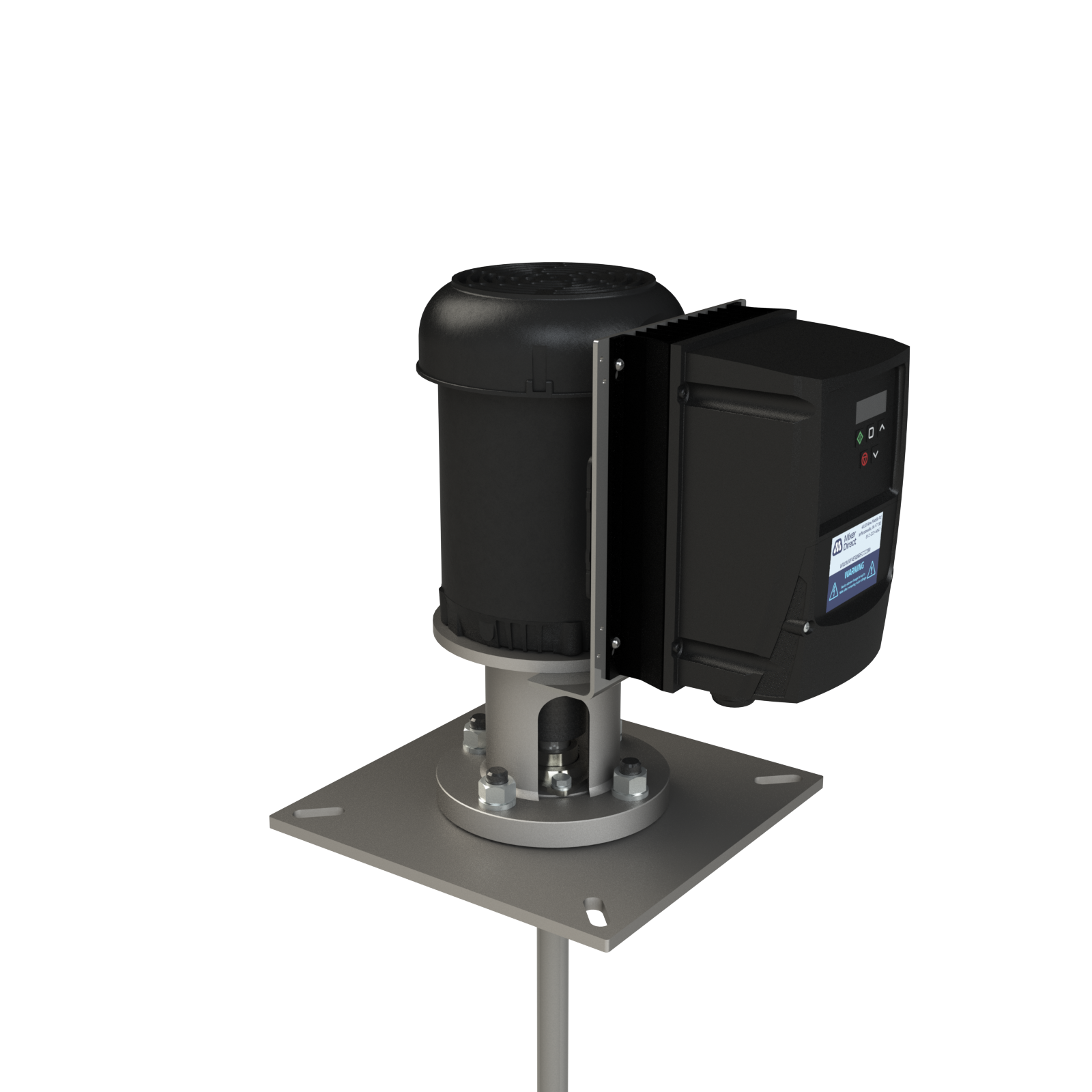

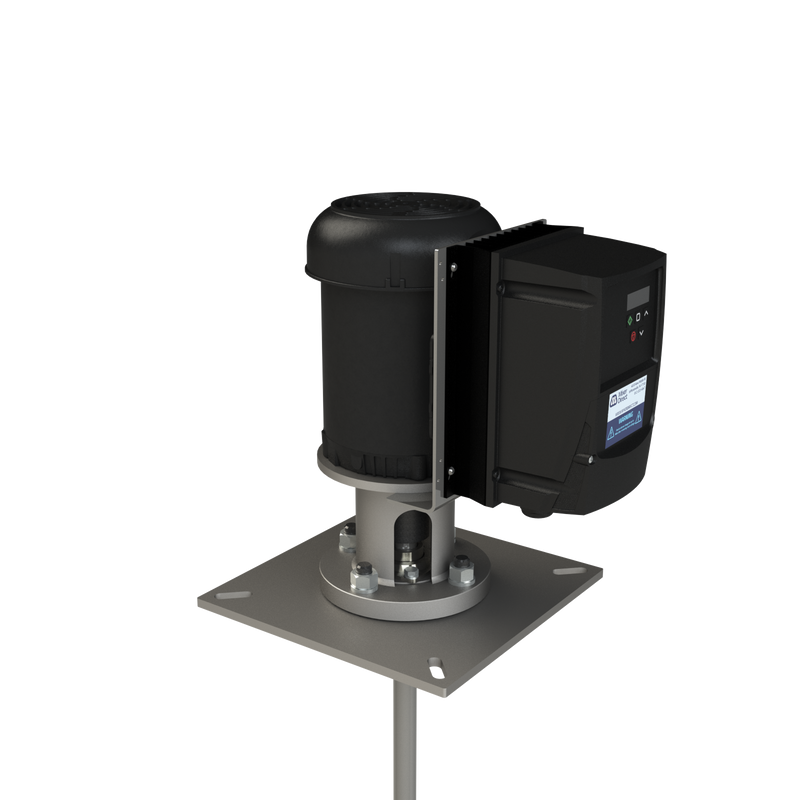

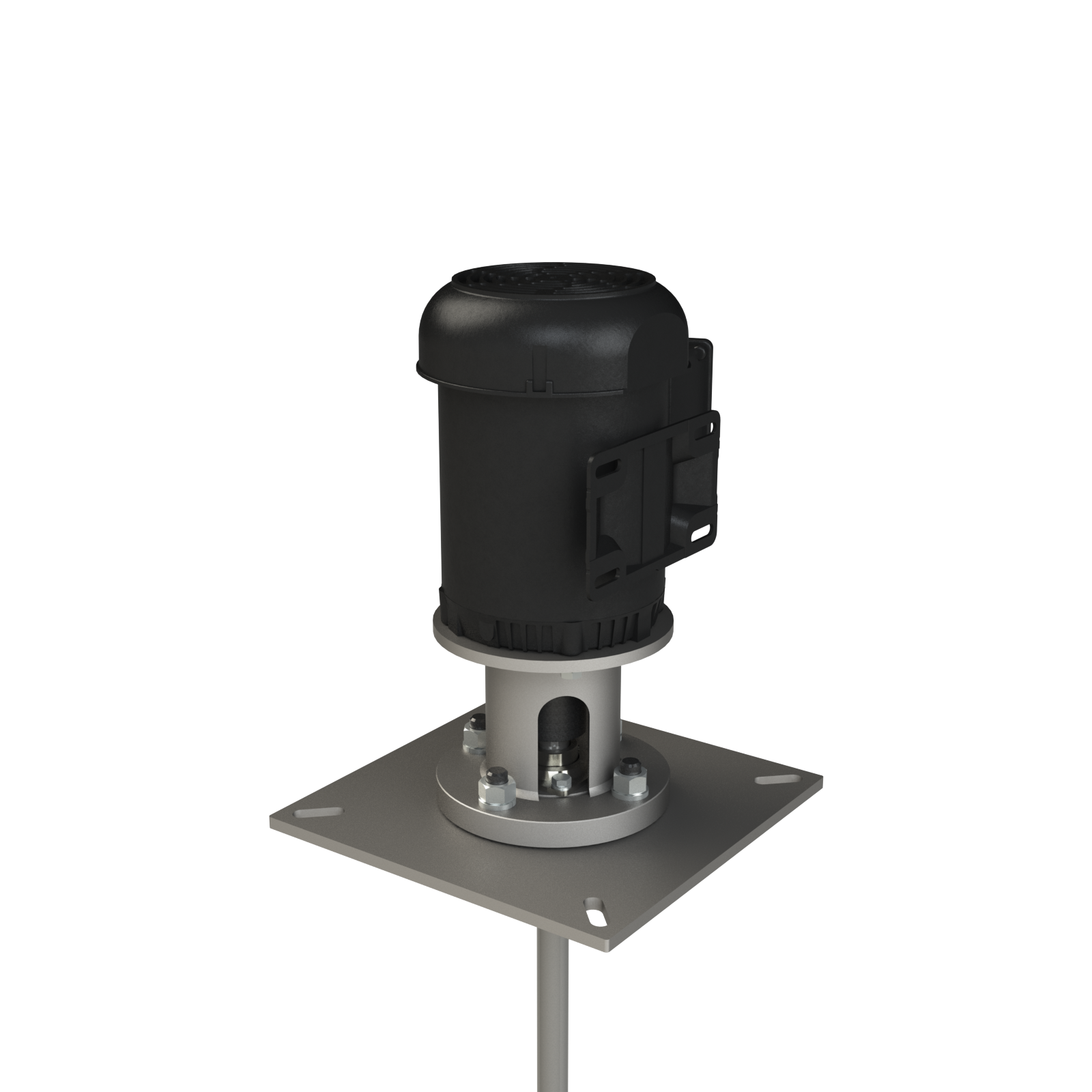

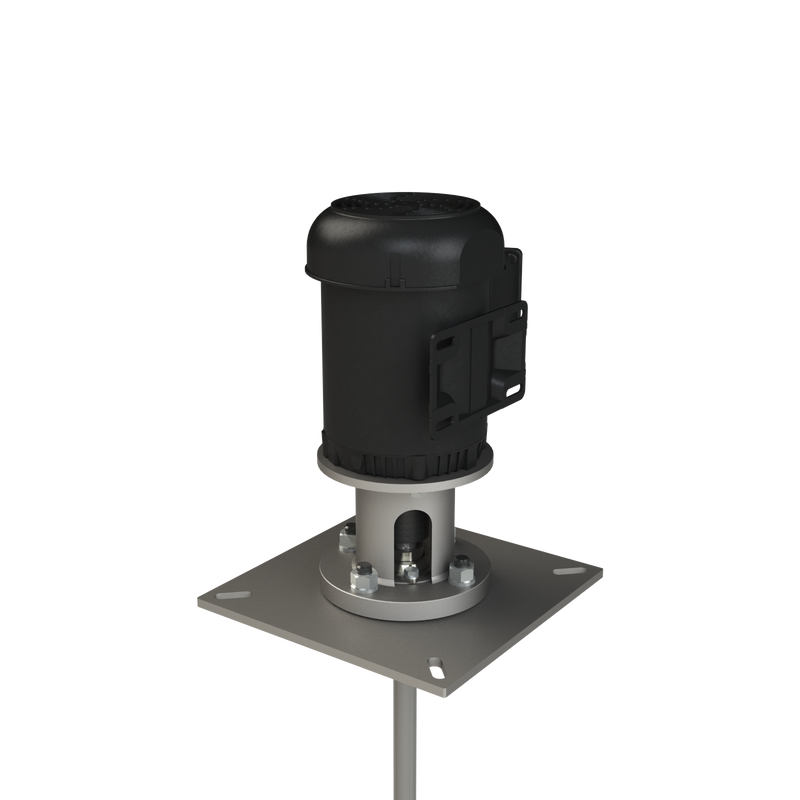

Electric Direct Drive Plate Mount Mixer

Name: Electric Direct Drive Plate Mount Mixer
Brand: Mixer Direct
SKU: PLT033VDD
Price: 3477.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to a bridge on open top vessels. A low maintenance solution to many processing applications.

Part Number: PLT033VDD

[{"id":40378842087447,"title":"1\/3 \/ Yes","option1":"1\/3","option2":"Yes","option3":null,"sku":"PLT033VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1\/3 \/ Yes","public_title":"1\/3 \/ Yes","options":["1\/3","Yes"],"price":347700,"weight":29937,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842120215,"title":"1\/3 \/ No","option1":"1\/3","option2":"No","option3":null,"sku":"PLT033EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1\/3 \/ No","public_title":"1\/3 \/ No","options":["1\/3","No"],"price":253700,"weight":27216,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842152983,"title":"1\/2 \/ Yes","option1":"1\/2","option2":"Yes","option3":null,"sku":"PLT050VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1\/2 \/ Yes","public_title":"1\/2 \/ Yes","options":["1\/2","Yes"],"price":384700,"weight":34019,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842185751,"title":"1\/2 \/ No","option1":"1\/2","option2":"No","option3":null,"sku":"PLT050EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1\/2 \/ No","public_title":"1\/2 \/ No","options":["1\/2","No"],"price":290700,"weight":30391,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842218519,"title":"3\/4 \/ Yes","option1":"3\/4","option2":"Yes","option3":null,"sku":"PLT075VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 3\/4 \/ Yes","public_title":"3\/4 \/ Yes","options":["3\/4","Yes"],"price":369400,"weight":35834,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842251287,"title":"3\/4 \/ No","option1":"3\/4","option2":"No","option3":null,"sku":"PLT075EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 3\/4 \/ No","public_title":"3\/4 \/ No","options":["3\/4","No"],"price":279600,"weight":36741,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842284055,"title":"1 \/ Yes","option1":"1","option2":"Yes","option3":null,"sku":"PLT100VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1 \/ Yes","public_title":"1 \/ Yes","options":["1","Yes"],"price":395400,"weight":38102,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842316823,"title":"1 \/ No","option1":"1","option2":"No","option3":null,"sku":"PLT100EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1 \/ No","public_title":"1 \/ No","options":["1","No"],"price":301400,"weight":39463,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842349591,"title":"1.5 \/ Yes","option1":"1.5","option2":"Yes","option3":null,"sku":"PLT150VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1.5 \/ Yes","public_title":"1.5 \/ Yes","options":["1.5","Yes"],"price":393400,"weight":39463,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842382359,"title":"1.5 \/ No","option1":"1.5","option2":"No","option3":null,"sku":"PLT150EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 1.5 \/ No","public_title":"1.5 \/ No","options":["1.5","No"],"price":293000,"weight":43998,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842415127,"title":"2 \/ Yes","option1":"2","option2":"Yes","option3":null,"sku":"PLT200VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 2 \/ Yes","public_title":"2 \/ Yes","options":["2","Yes"],"price":462200,"weight":40823,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842447895,"title":"2 \/ No","option1":"2","option2":"No","option3":null,"sku":"PLT200EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 2 \/ No","public_title":"2 \/ No","options":["2","No"],"price":341200,"weight":43998,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842480663,"title":"3 \/ Yes","option1":"3","option2":"Yes","option3":null,"sku":"PLT300VDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 3 \/ Yes","public_title":"3 \/ Yes","options":["3","Yes"],"price":478700,"weight":43091,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842513431,"title":"3 \/ No","option1":"3","option2":"No","option3":null,"sku":"PLT300EDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Direct Drive Plate Mount Mixer - 3 \/ No","public_title":"3 \/ No","options":["3","No"],"price":348300,"weight":47174,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Combining properties of portable mixers and top-entry mixers, our plate mounted mixers are an ideal solution for applications that require some versatility in their mixing processses without sacrificing mixing or blending capabilities. It is designed for heavy duty applications with an extra flange mounted support bearing and all welded construction. This mixer mounts easily and securely to a bridge or C-channels across the top of the tank. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Add a Variable Frequency Drive (VFD) for speed control or a Viton Lip Seal for increased protection to the mixer and liquid ingredients. Select your horsepower and an appropriately sized high efficiency impeller will be matched to your mixer.

Item Number PLT033VDD
Enclosure type IP55
Horsepower 1/3 HP
Impeller attachment Set screw
Impeller diameter 4 in.
Impeller material 316SS

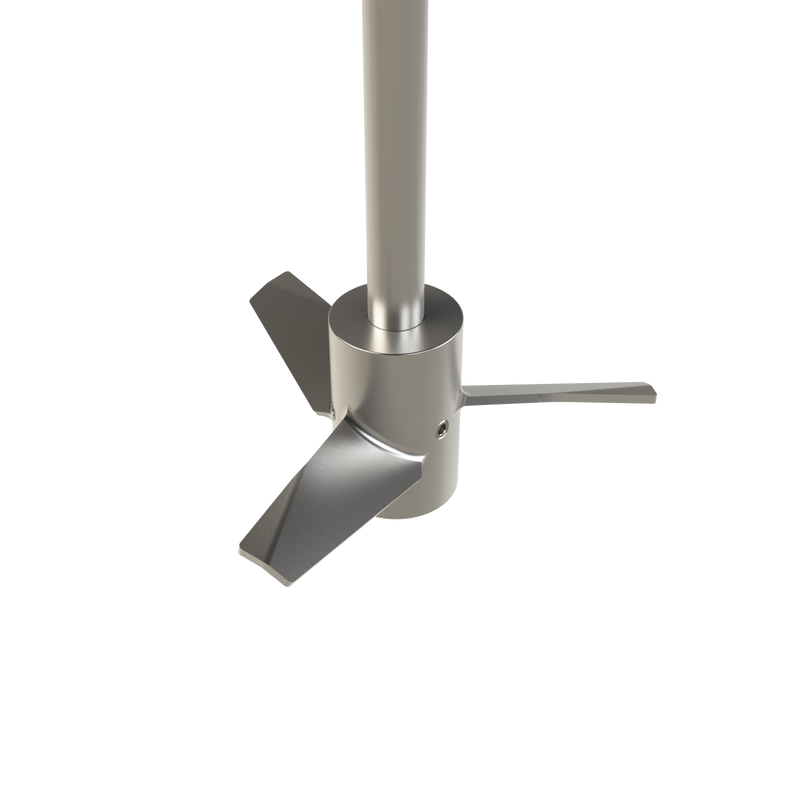

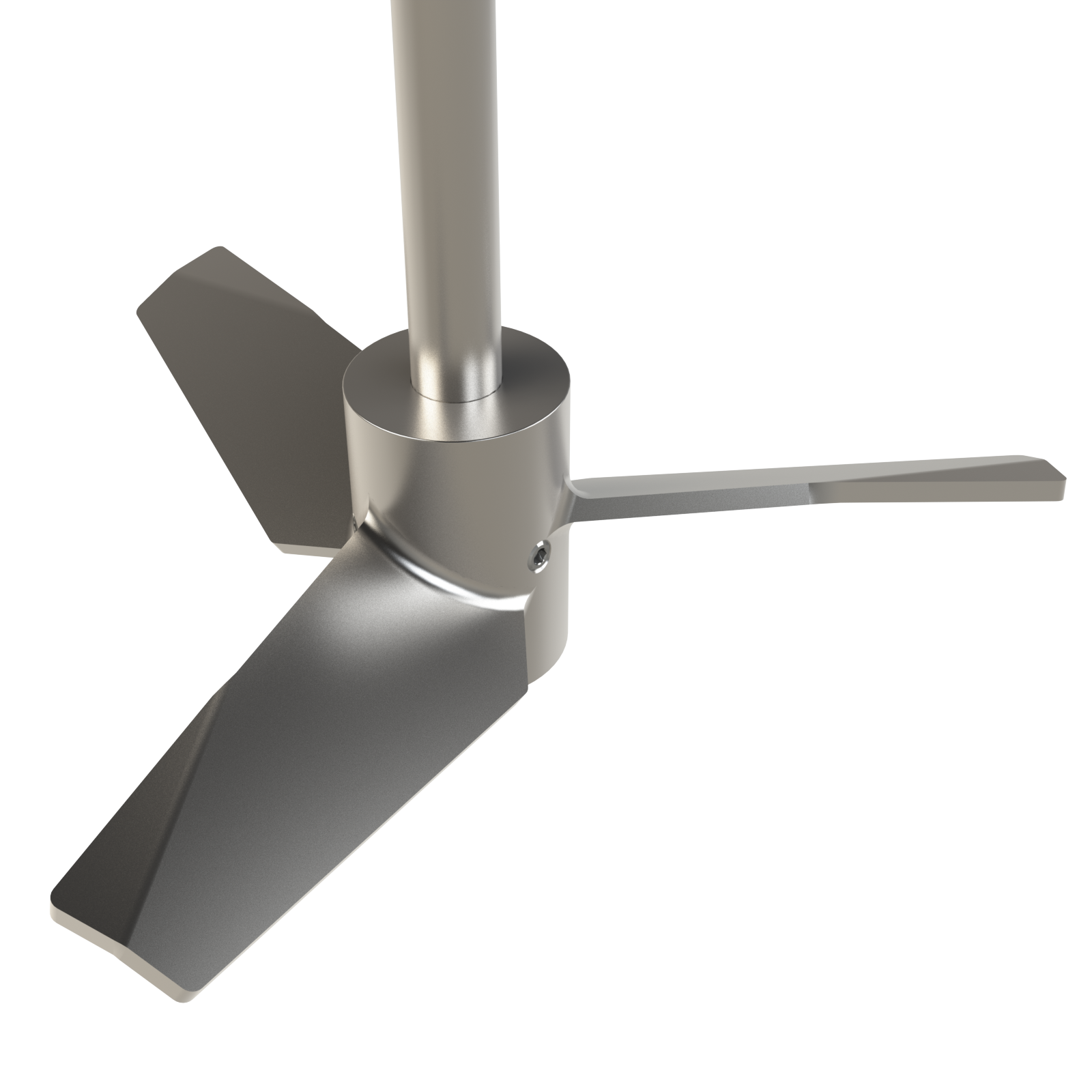

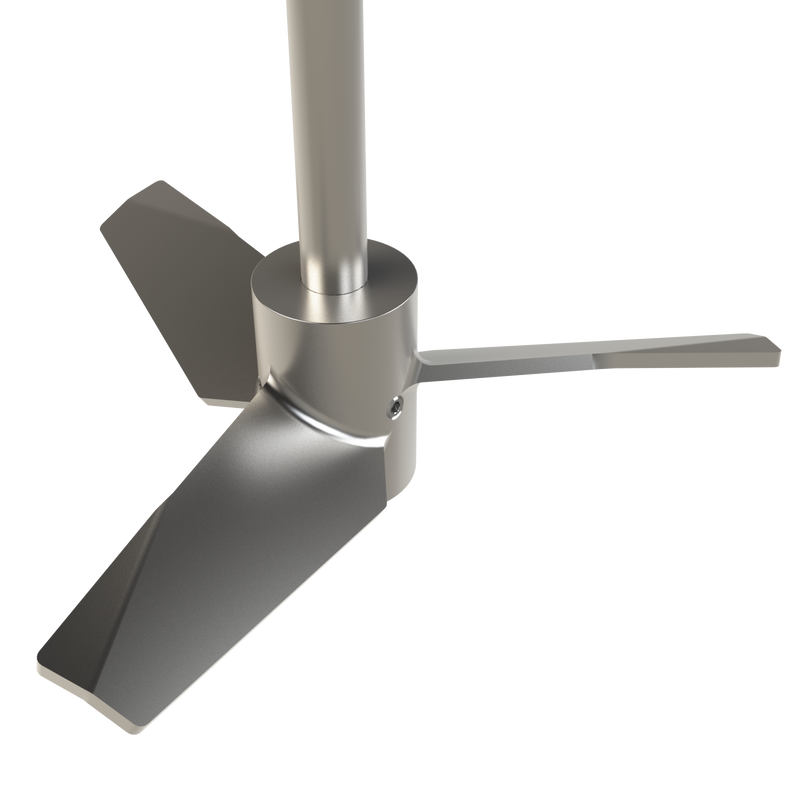

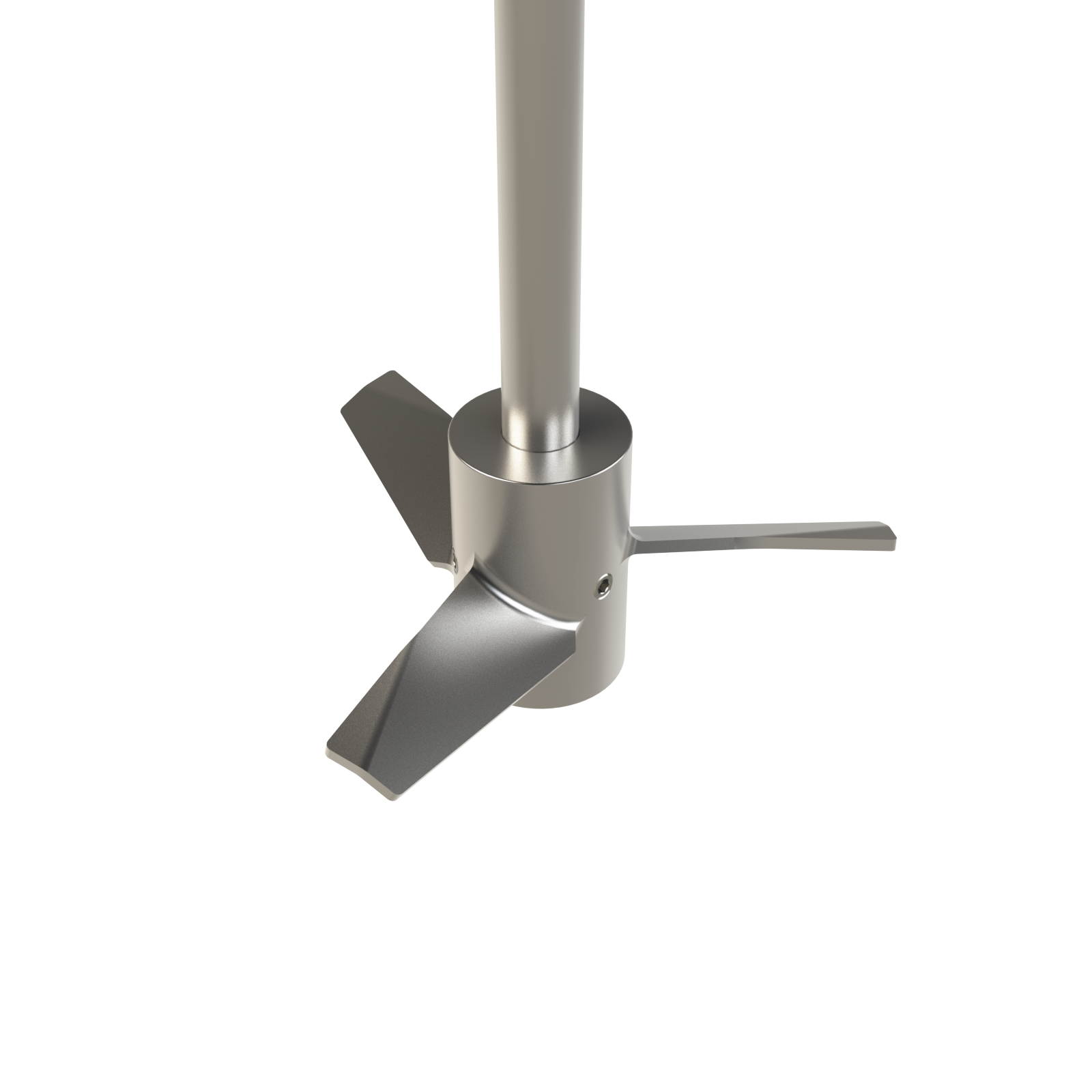

Impeller type Propeller
Lead time 3 Business Days
Motor type TEFC Electric
Mount Plate
Mount dimension 12x12x3/8
Number of impellers 1
Phase 1 Ph.
Rpm 1750
Shaft diameter 1 in.
Shaft length 44 in.
Shaft material 316SS
Speed controller Variable Frequency Drive (VFD)
Voltage 115V

What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
