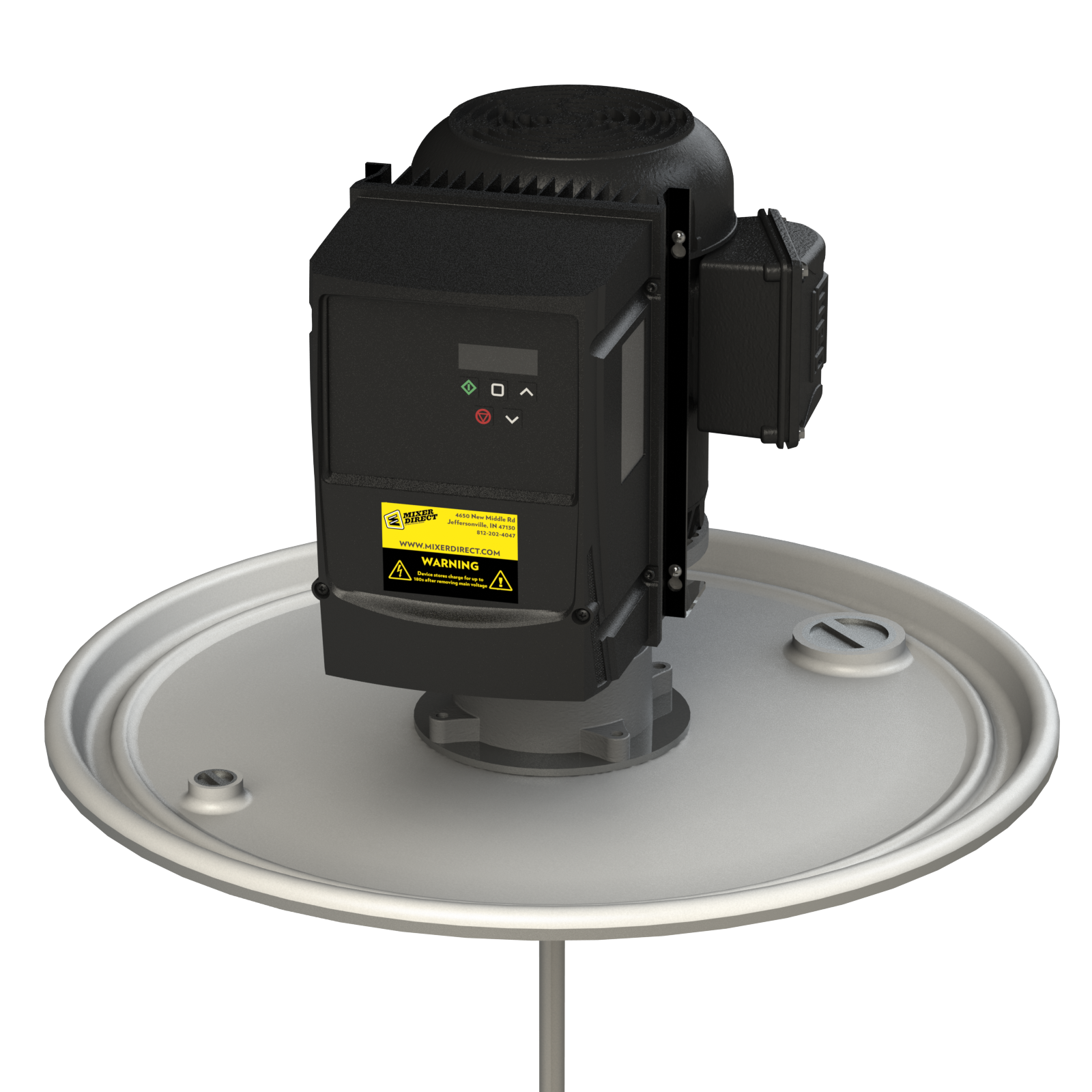

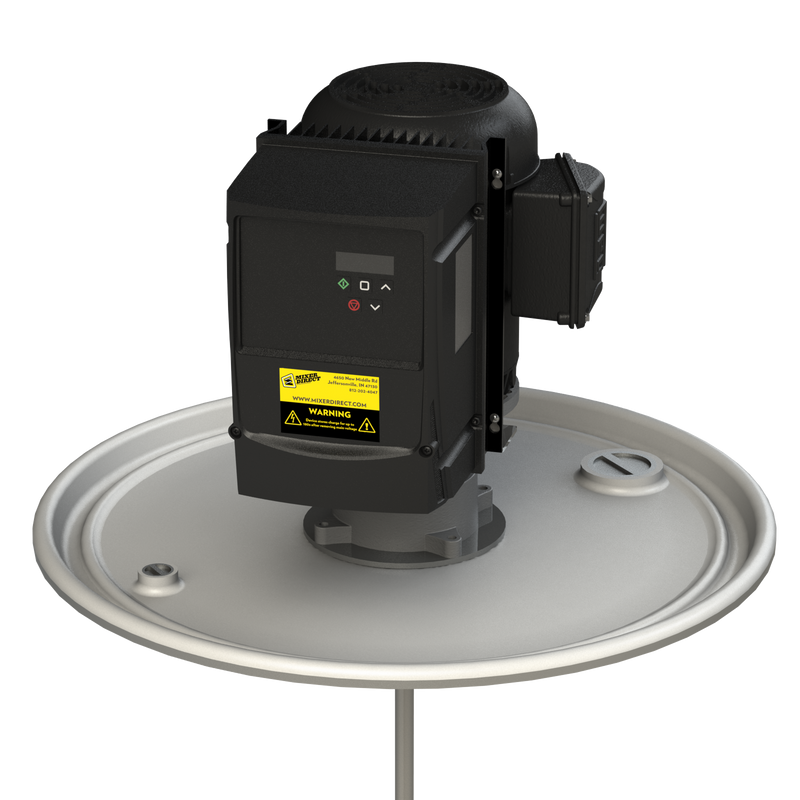

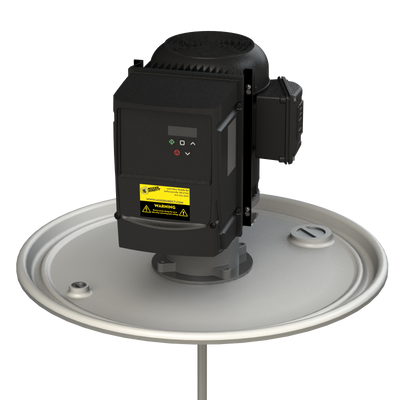

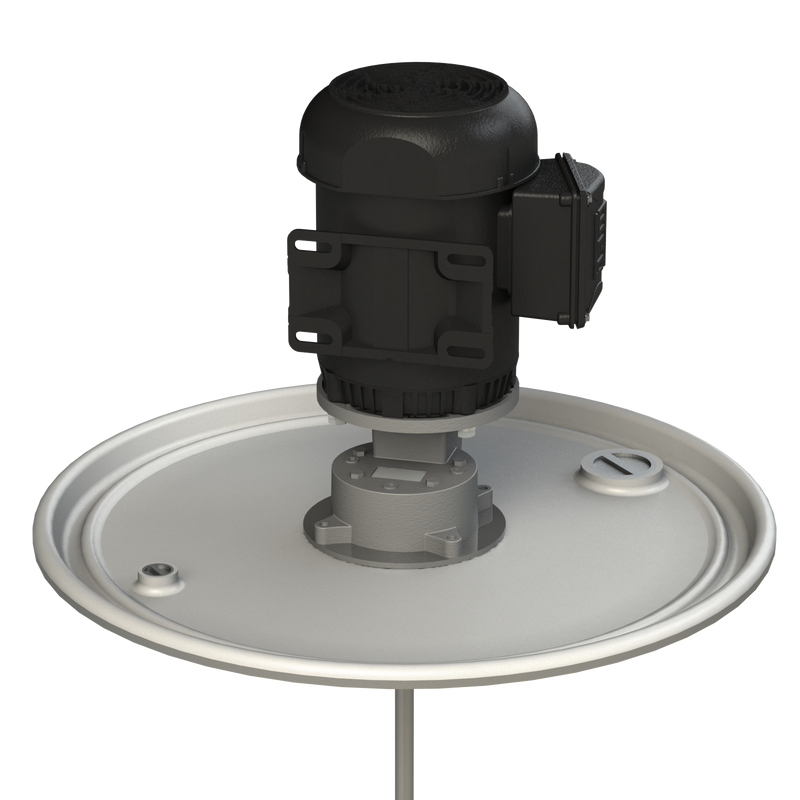

Drum clamp mixers are a versatile drum mixer, allowing for mixing in open or lidded drums. Mount directly to the side of an open drum or slip the shaft and impeller through standard 2" bung fittings to mix in closed vessels. All drum clamp mount mixers come with a folding impeller, uniquely designed to slip through a bung opening and open once the motor is powered on. Constructed with a heavy duty air motor, this drum clamp mounted mixer is safe for use in hazardous environments and requires minimal maintenance. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.
- Item Number DLM033VGD-28
- Enclosure type IP55
- Gearbox ratio 5:1
- Horsepower 1/3 HP
- Impeller attachment Set screw
- Impeller diameter 10 in.
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 3 Business Days
- Motor type TEFC Electric
- Mount Drum Lid Mount
- Mount dimension 24 diameter
- Number of impellers 1
- Phase 1 Ph.
- Rpm 70-350
- Shaft diameter 1 in.
- Shaft length 28 in.
- Shaft material 316SS
- Speed controller Variable Frequency Drive (VFD)
What shipping methods do you offer?
UPS Package, FedEx Package, FedEx Freight
What are your payment options?
Credit Card and Pay Pal
Where are you shipping from?
All products are shipped from our plant in Jeffersonville, Indiana.
What time zone are you in?
Eastern Standard Time (NY)
How do I purchase with a PO?
Contact our sales team at sales@mxdprocess.com
What does lead time mean?
Lead time is the average number of business days until the product ships, it does not include shipping days.
