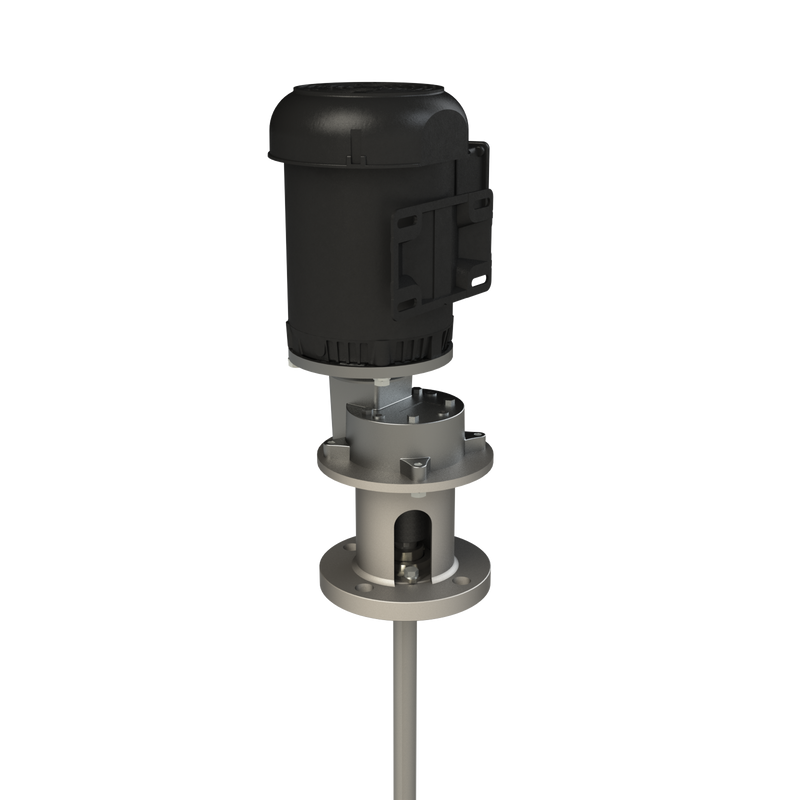

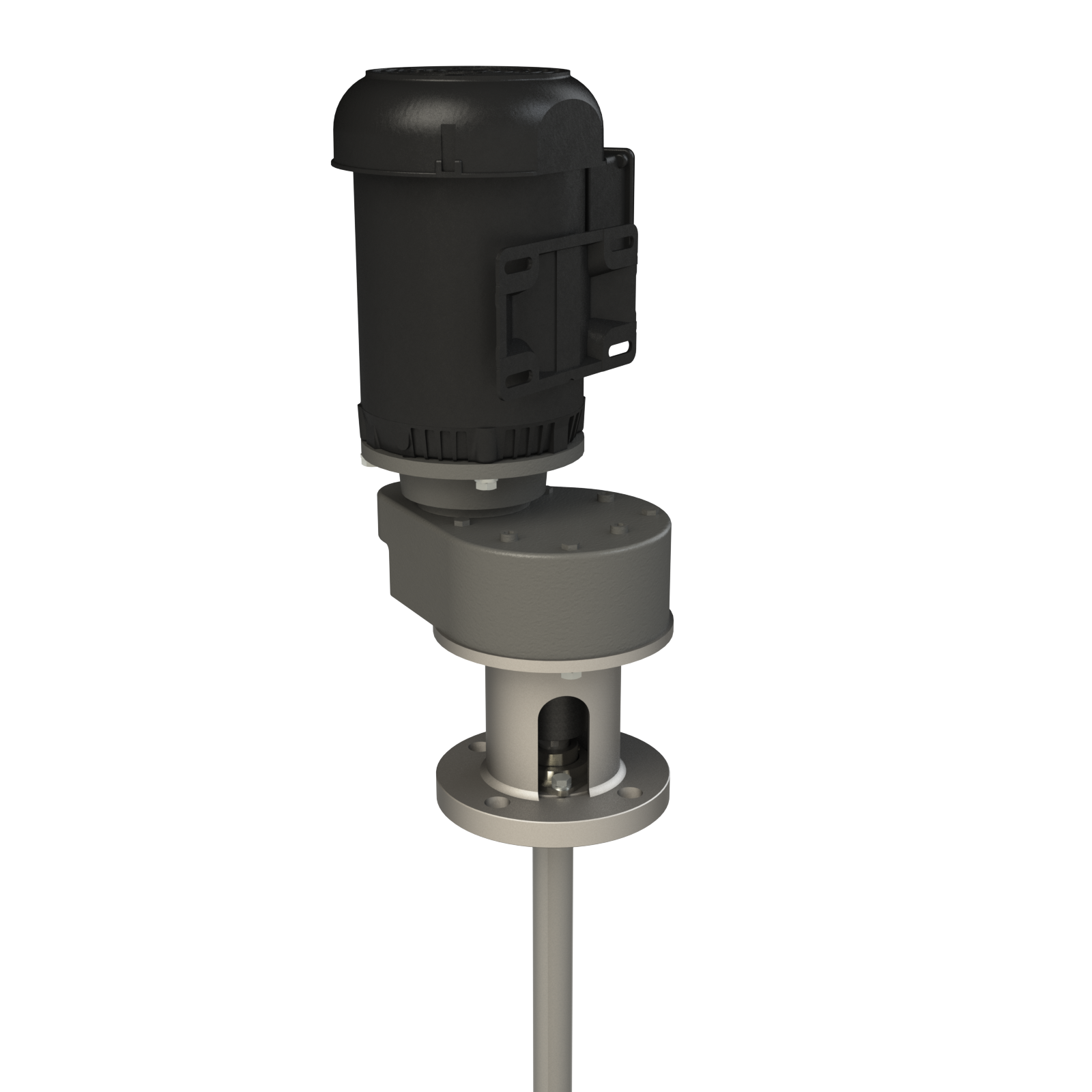

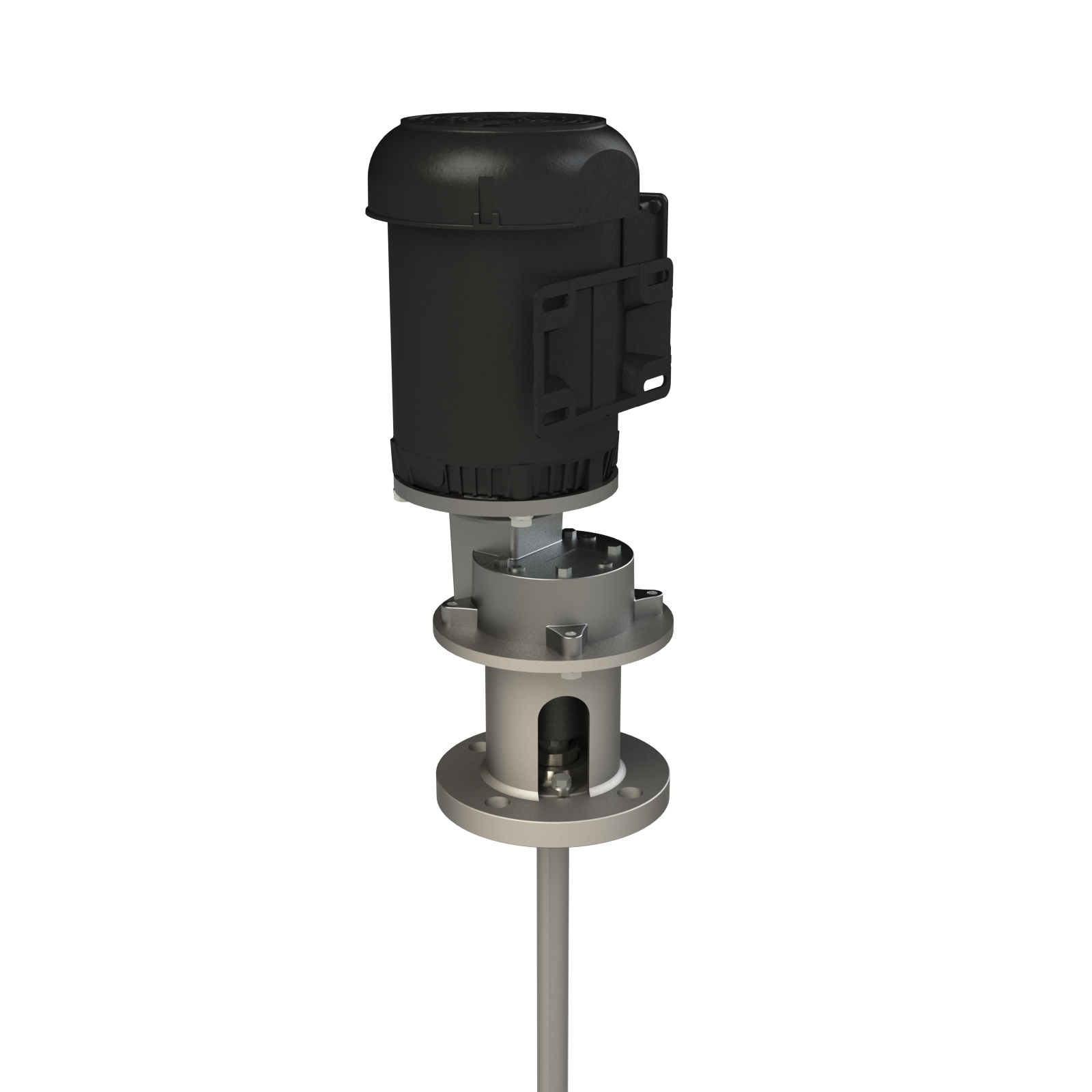

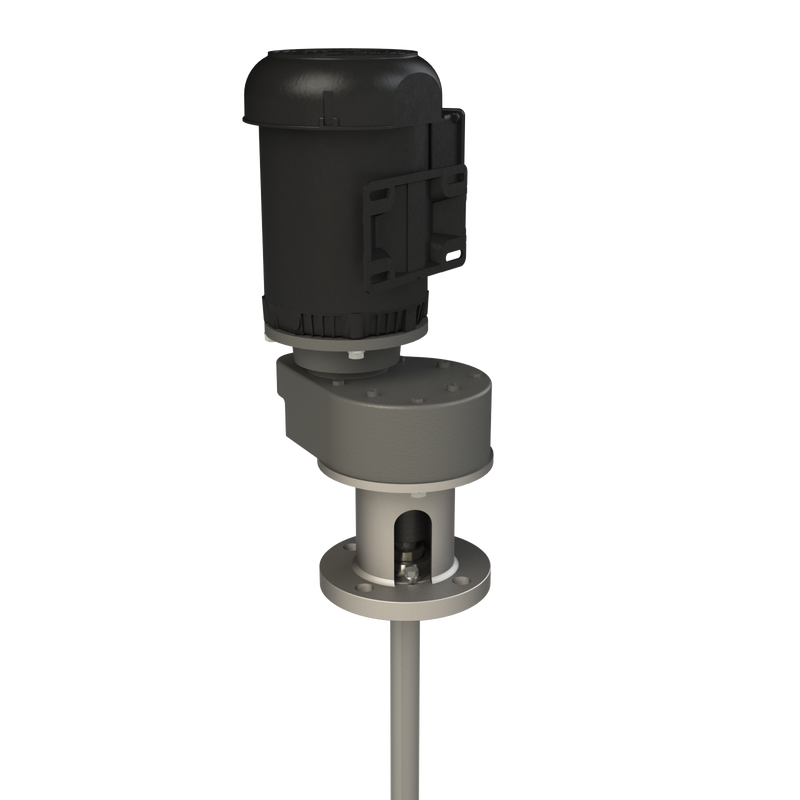

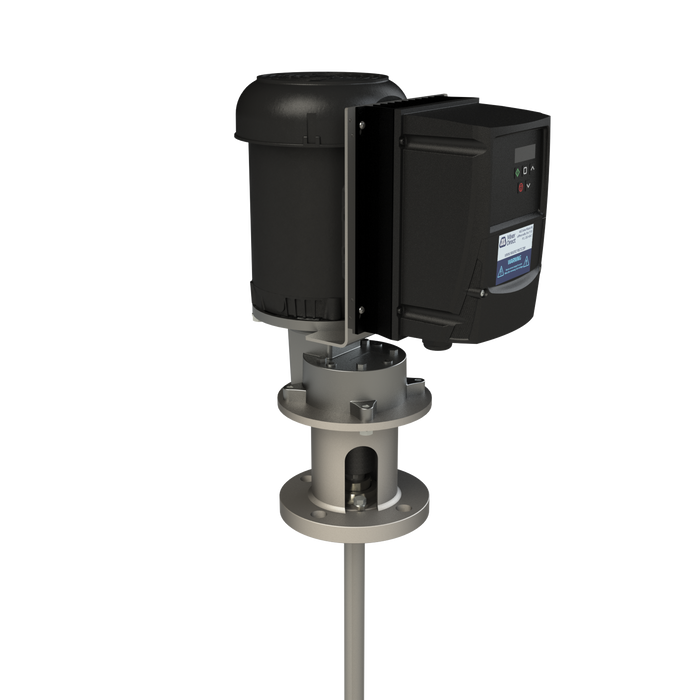

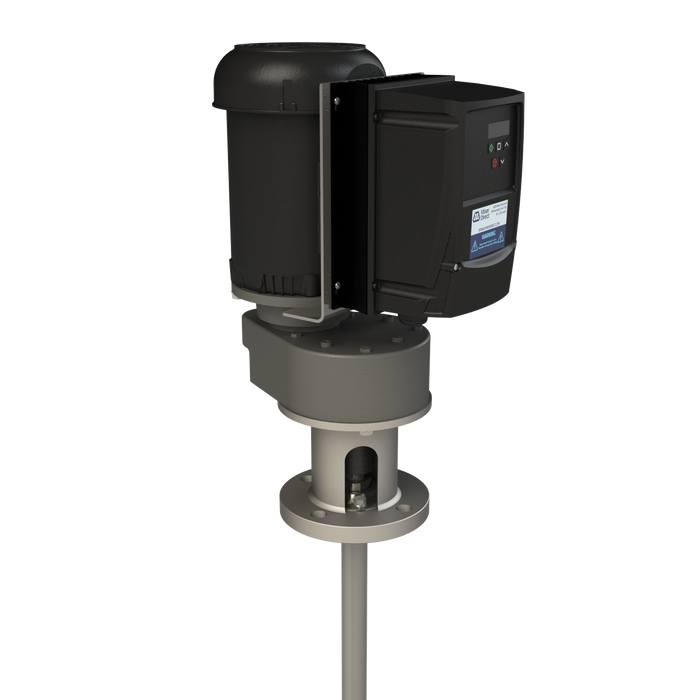

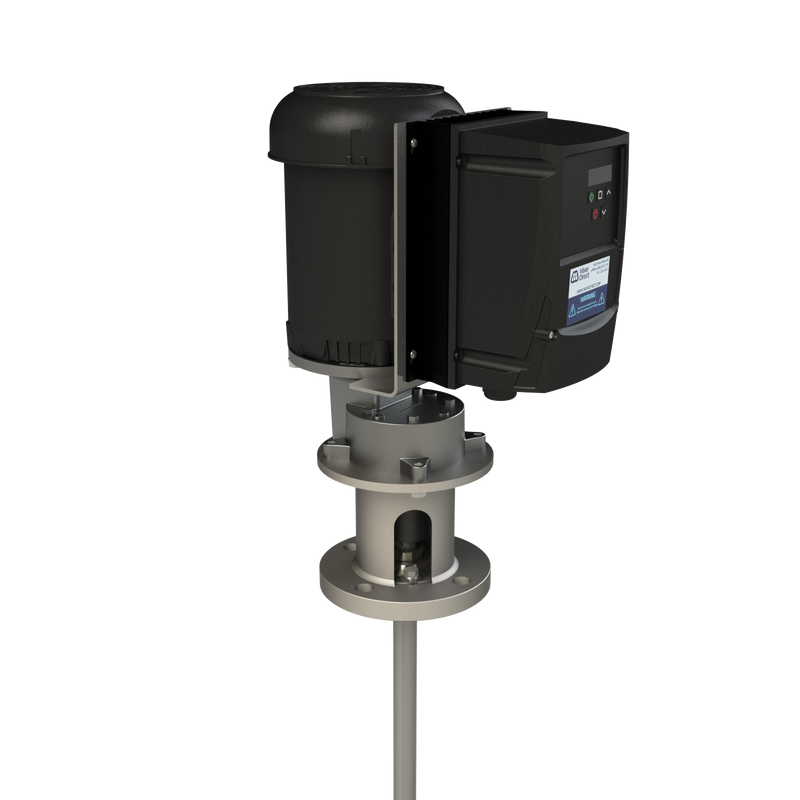

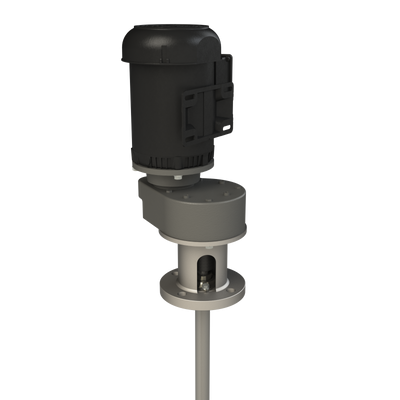

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processes without sacrificing mixing or blending capabilities.
- Extra flange mounted support bearing and all-welded construction
- Heavy-duty electric motor with optional VFD
- Gear driven motor operates at a 5:1 ratio, allowing for lower RPMs and higher torque
- Mounts to a 2.5 inch 150# ANSI flange
- Wetted materials constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
- Optional Viton Lip Seal for increased protection to the mixer and liquid ingredients
- Horsepower selection available, with a matching high-efficiency impeller for optimal performance
- Item Number FLG033VGD
- Enclosure type IP55
- Gearbox ratio 5:1
- Horsepower 1/3 HP
- Impeller attachment Set screw
- Impeller diameter 10 in.
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 3 Business Days
- Motor type TEFC Electric
- Mount 150# ANSI Flange
- Mount dimension 2.5 in.
- Number of impellers 1
- Phase 1 Ph.
- Rpm 70-350
- Shaft diameter 1 in.
- Shaft length 36 in.
- Shaft material 316SS

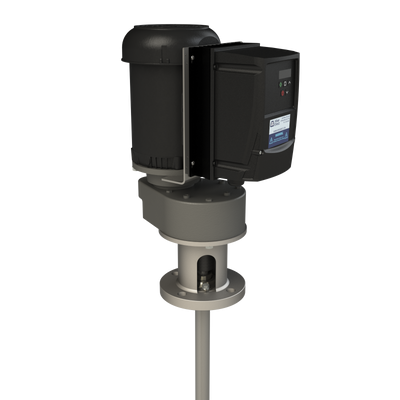

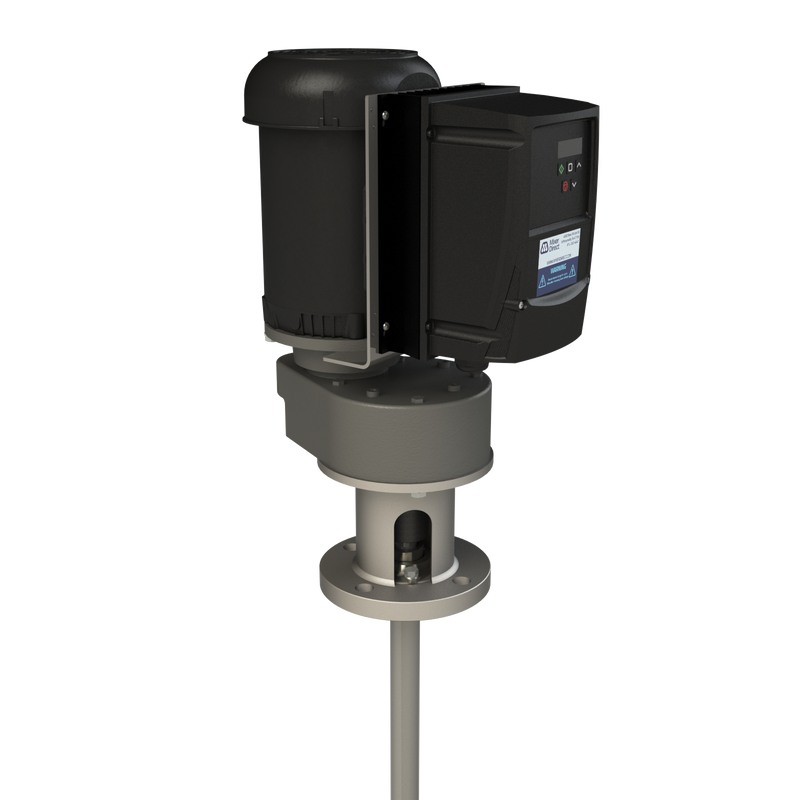

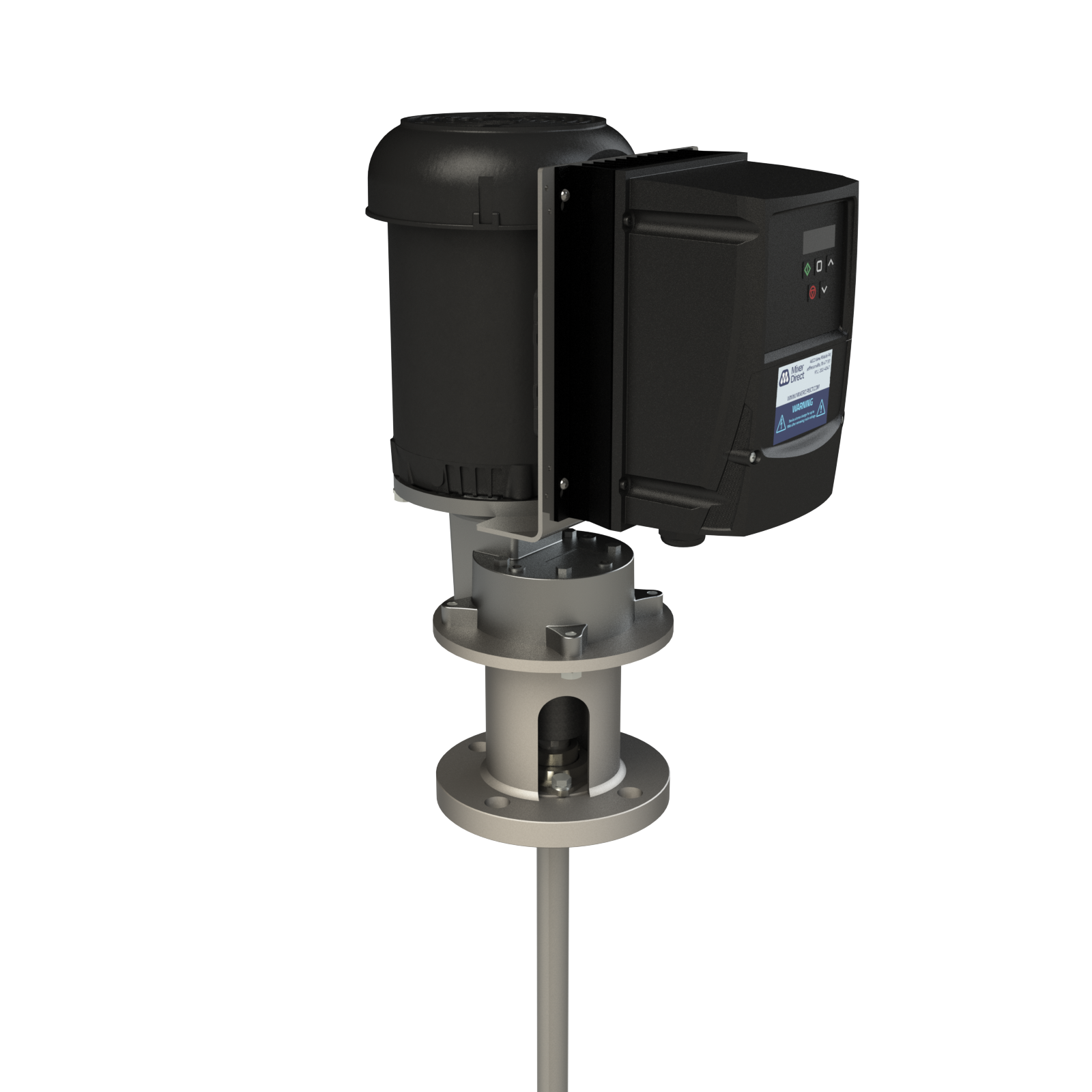

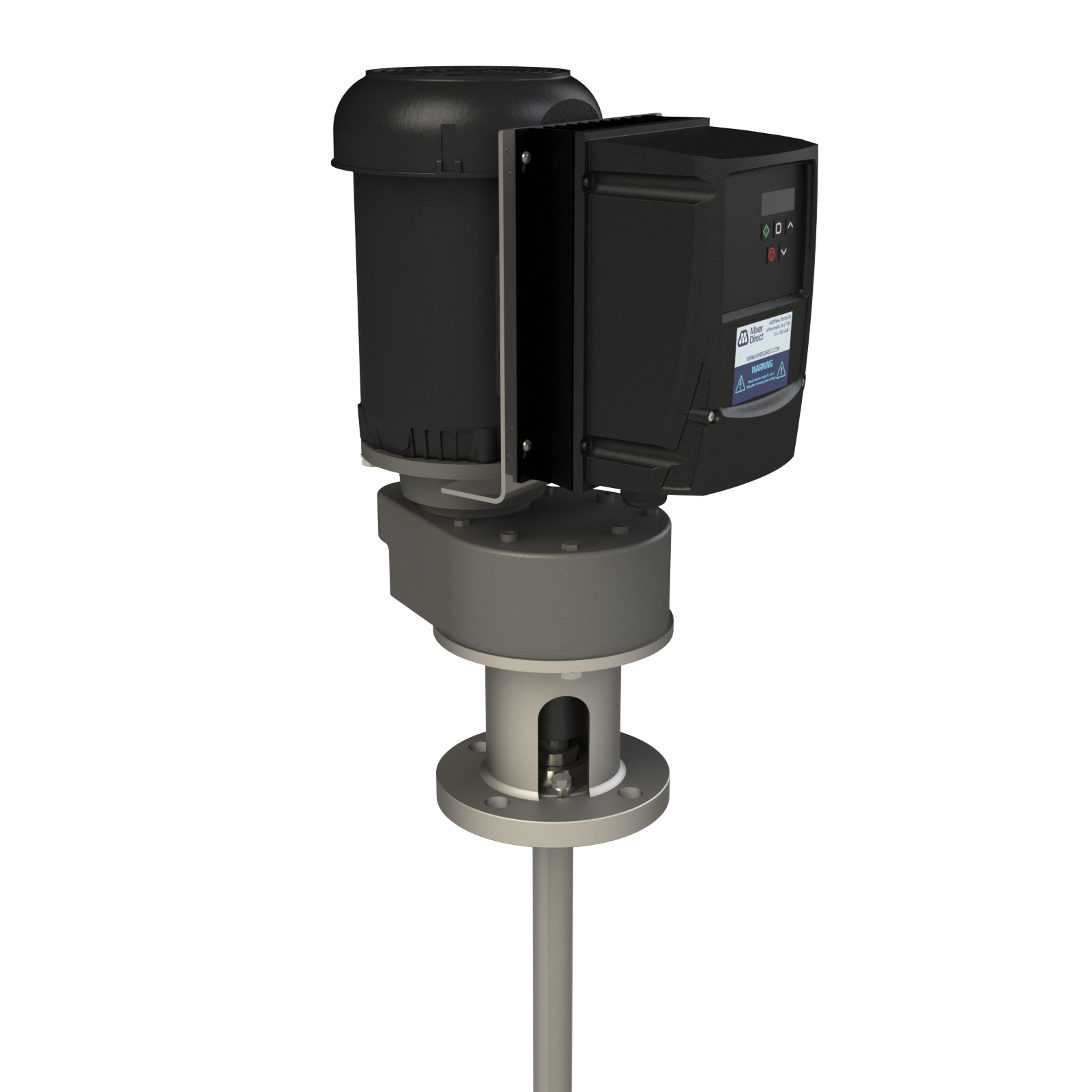

- Speed controller Variable Frequency Drive (VFD)
- Voltage 115V
