20-1000 Gallon | Tank Mounted | Sanitary

Electric Gear Drive Tri-Clamp Mount Mixer

Regular price $4,854.00
/
Lead Time: 5 Business Days
Favored for their sanitary applications, these tri-clamp mounted mixers utilize a shaft seal to prevent contamination of your liquid ingredients while processing. Easily attach this mixer directly to 3" tri-clamp fittings on your vessel.
Part Number: TCM050VGD-24

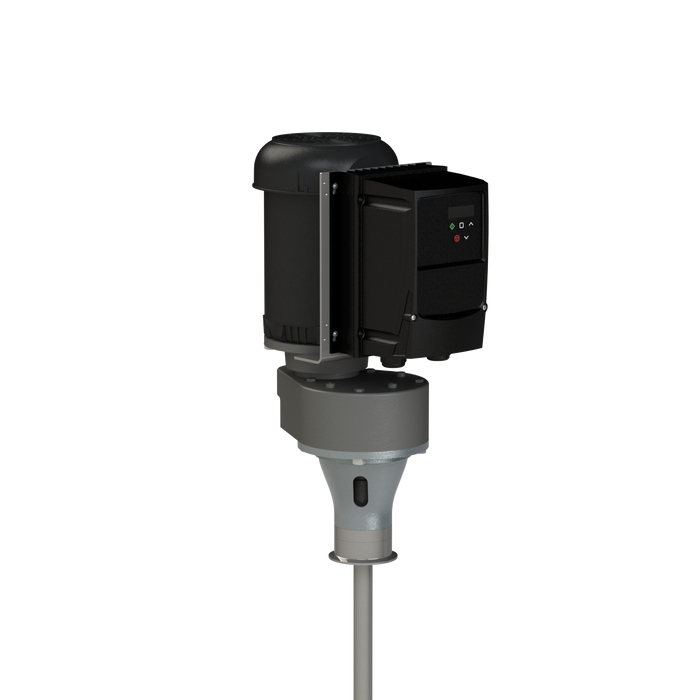

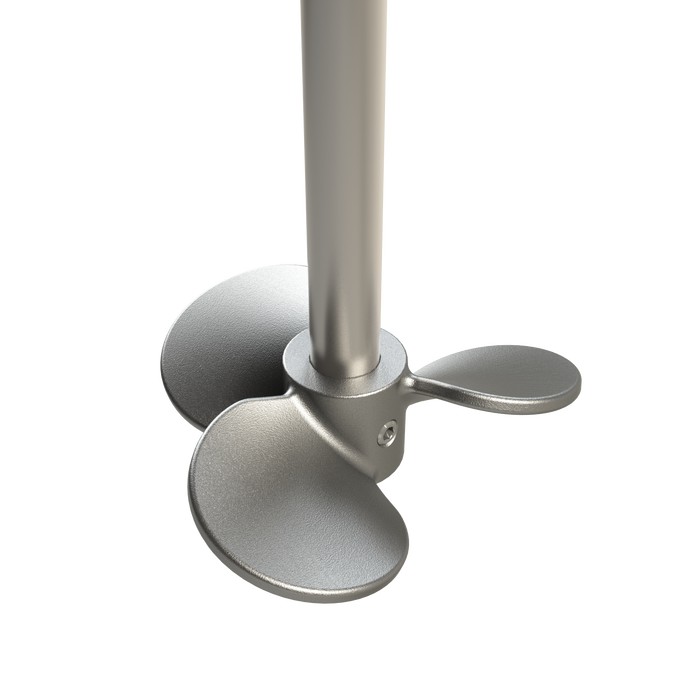

Lightweight, durable, portable and sanitary - our tri-clamp mixers are utilized across numerous processing industries. They are designed to easily attach to a 3 inch tri-clamp fitting and include an FDA lip shaft seal to prevent damage to the mixer and the liquid ingredients. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and shaft length and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number TCM050VGD-24
  • Enclosure type IP55
  • Gearbox ratio 5:1
  • Horsepower 1/2 HP
  • Impeller attachment Set screw
  • Impeller diameter 11 in.
  • Impeller material 316SS

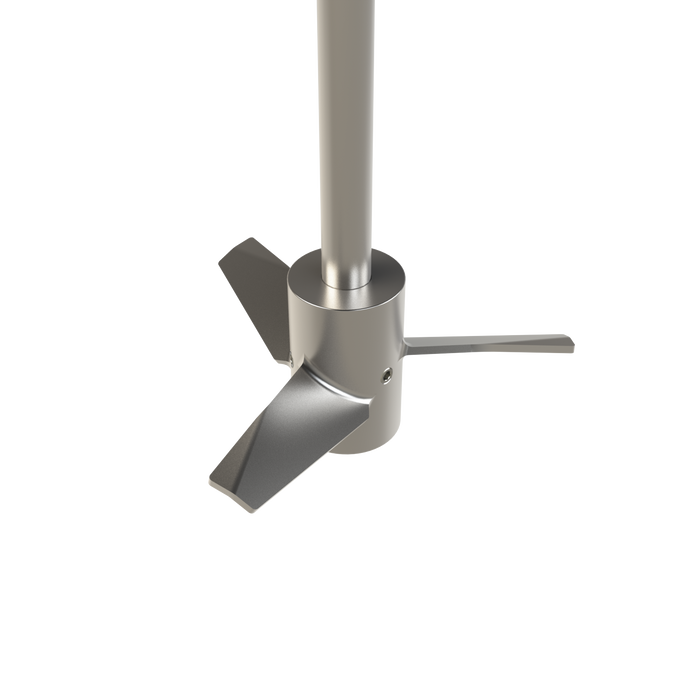

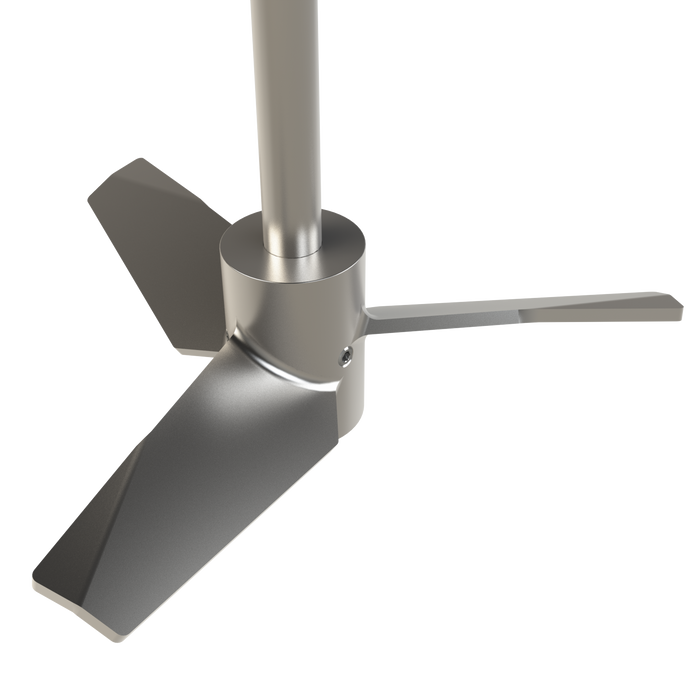

  • Impeller type Hydrofoil
  • Lead time 5 Business Days
  • Motor type TEFC Electric
  • Mount Tri-Clamp
  • Mount dimension 3 in.
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 70-350
  • Seal FDA Lip Seal
  • Shaft diameter 1 in.
  • Shaft length 24 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Voltage 115V
