20-1000 Gallon | Top Entry Mixer

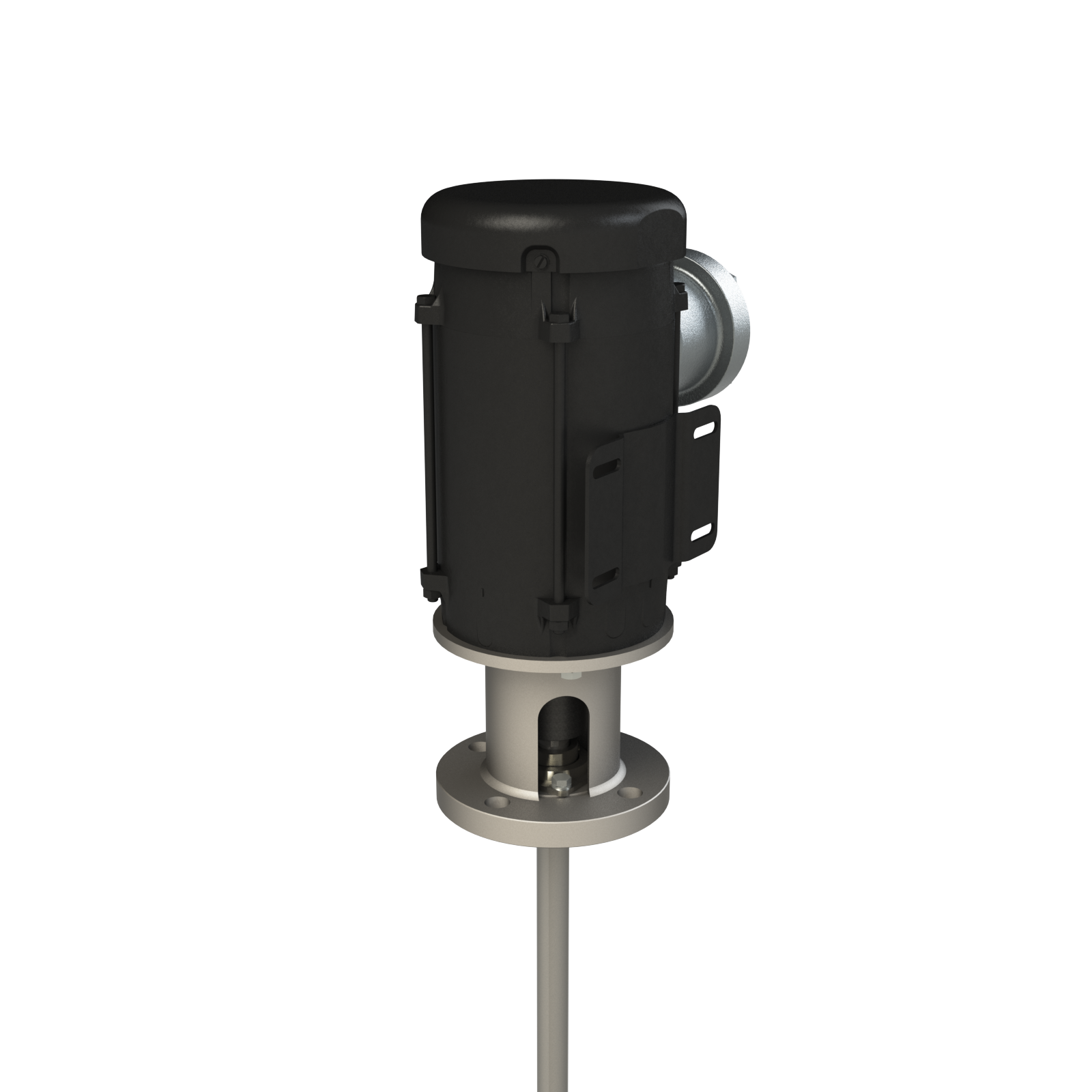

Explosion Proof Direct Drive Flange Mount Mixer

Explosion Proof Direct Drive Flange Mount Mixer
Explosion Proof Direct Drive Flange Mount Mixer
Explosion Proof Direct Drive Flange Mount Mixer
20-1000 Gallon | Top Entry Mixer

Explosion Proof Direct Drive Flange Mount Mixer

Regular price $3,030.00
/
Lead Time: 5 Business Days
Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to standard flange fittings. A low maintenance solution to many processing applications.
Part Number: FLG033XDD

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processses without sacrificing mixing or blending capabilities. It is designed for heavy duty applications with an extra flange mounted support bearing and all welded construction. Safe for use in hazardous environments, our explosion proof mixer uses an Inverter Duty Explosion Proof electric motor. This mixer mounts easily and securely to a 2.5 inch 150# ANSI flange. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Add a Viton Lip Seal for increased protection to the mixer and liquid ingredients. Select your horsepower and an appropriately sized high efficiency impeller will be matched to your mixer.

  • Item Number FLG033XDD
  • Enclosure type IP55
  • Horsepower 1/3 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller material 316SS
  • Impeller type Propeller
  • Lead time 5 Business Days
  • Motor type Explosion Proof Inverter Duty
  • Mount 150# ANSI Flange
  • Mount dimension 2.5 in.
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 1750
  • Shaft diameter 1 in.
  • Shaft length 44 in.
  • Shaft material 316SS
  • Voltage 230/460V
