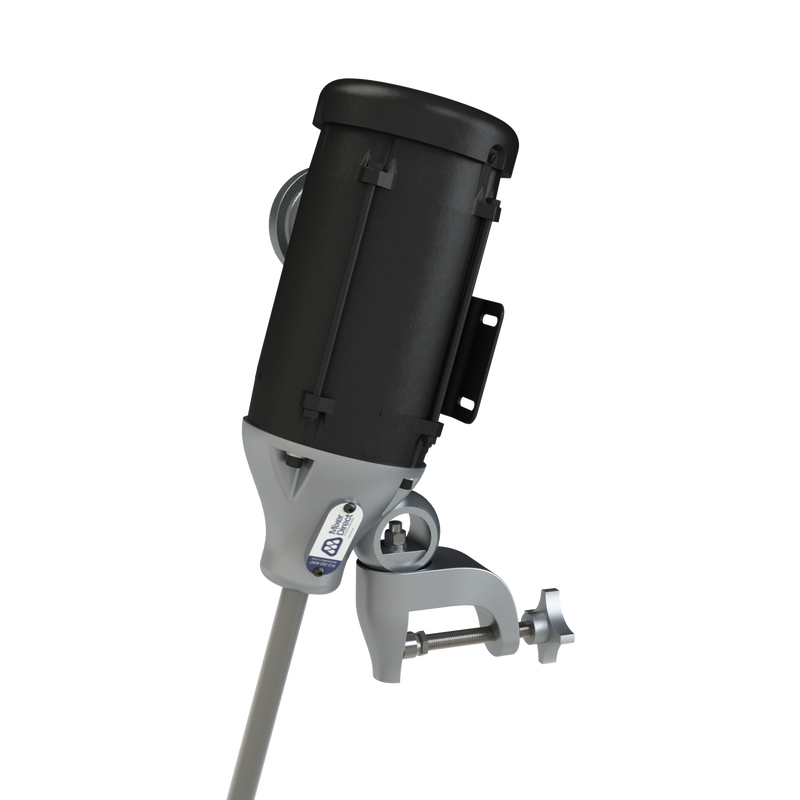

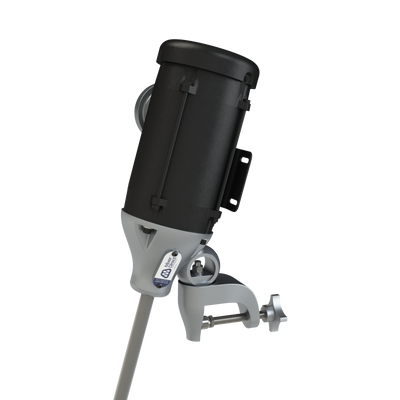

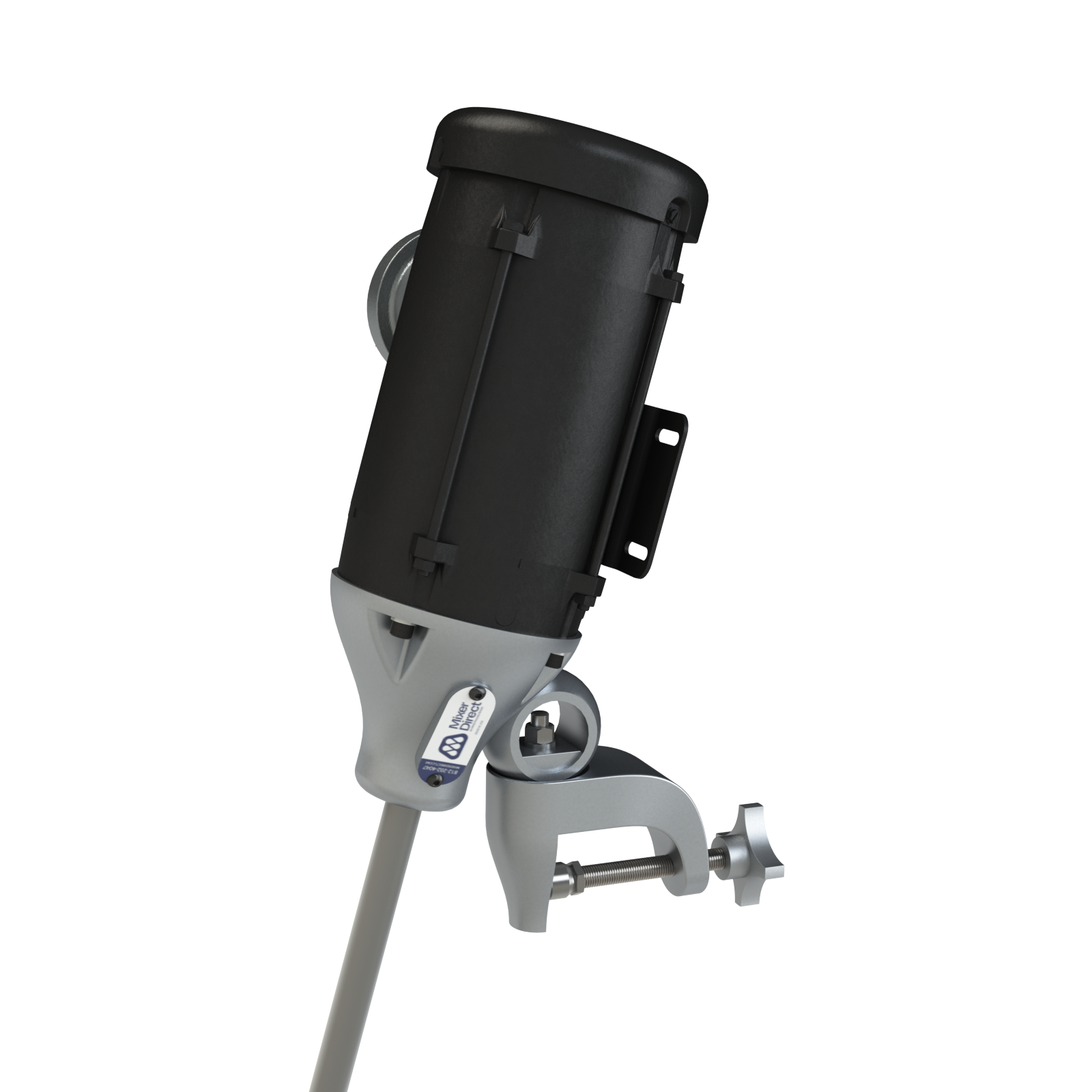

The heavy duty clamp mount mixer is the workhorse of our portable mixer line. A heat treated aluminum housing provide both outstanding durability and lightweight portability.
Our heavy duty clamp mount mixer includes:
- Lower support bearing included to reduce radial shaft load on the motor, extending longevity
- Adjustability for shaft positioning on two axes of rotation
- Constructed with an explosion proof electric motor for safe use in hazardous environments
- Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
- Option to select desired horsepower and shaft length

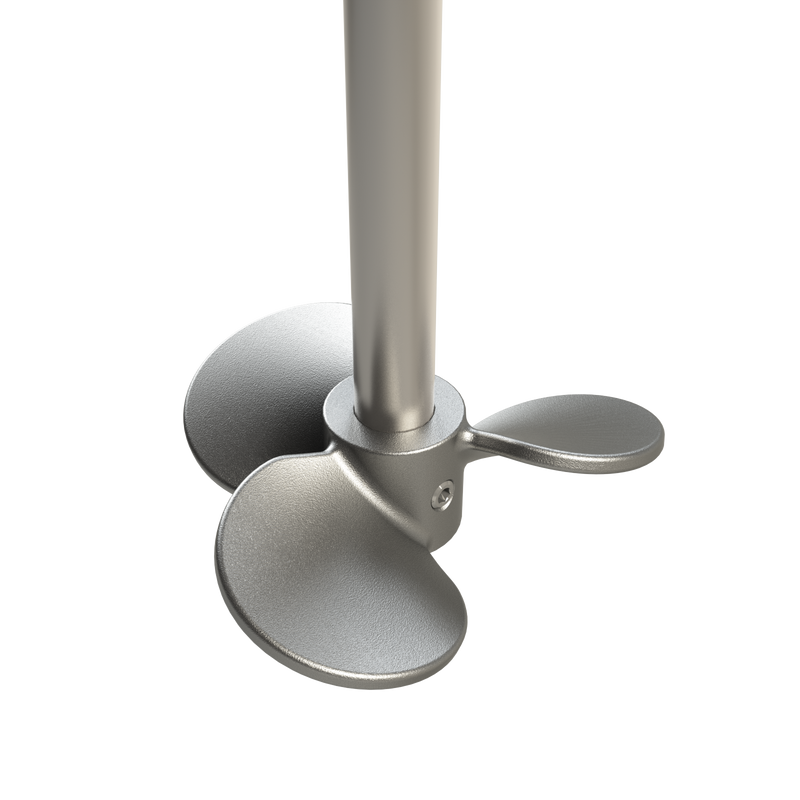

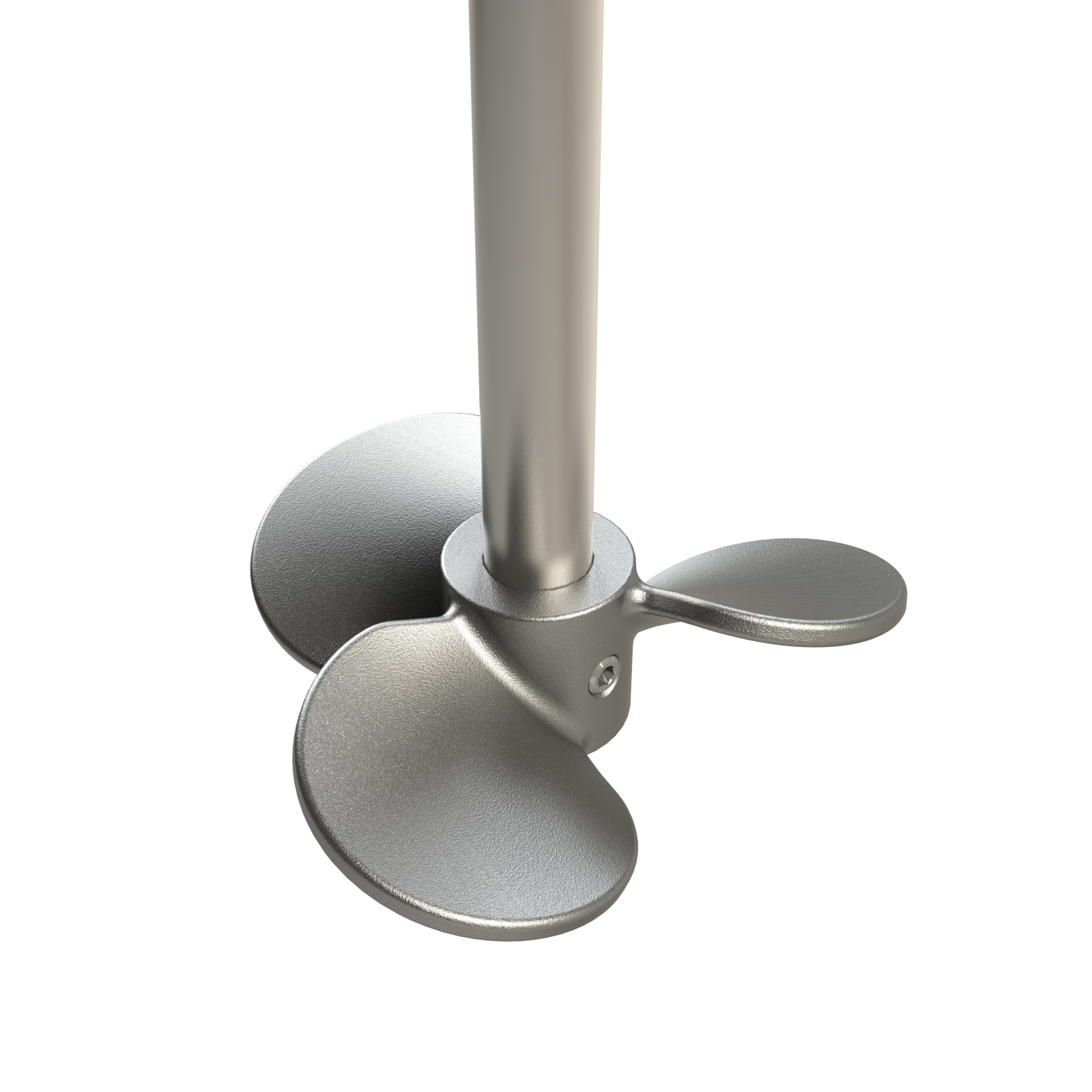

- Appropriate propeller or hydrofoil impeller matched to the selected horsepower and shaft length
- Item Number HDC033XDD-32
- Enclosure type IP55
- Horsepower 1/3 HP
- Impeller attachment Set screw
- Impeller diameter 4 in.
- Impeller material 316SS

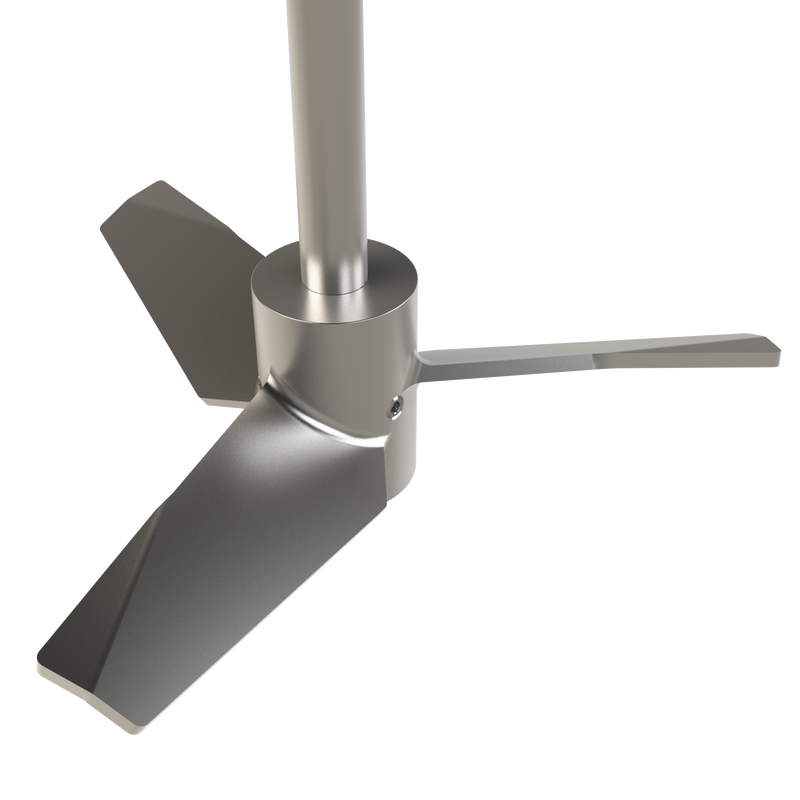

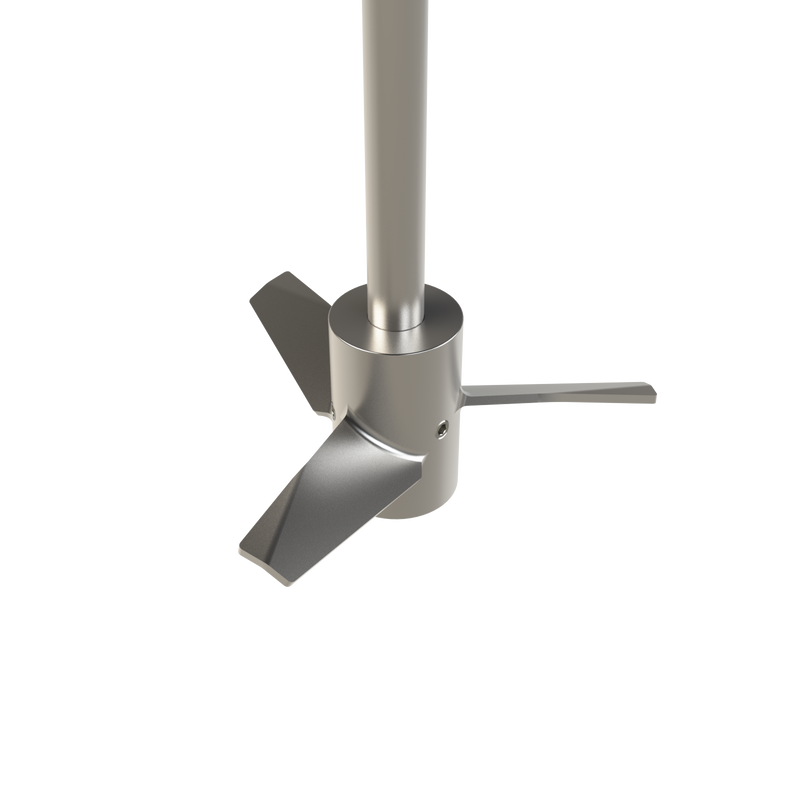

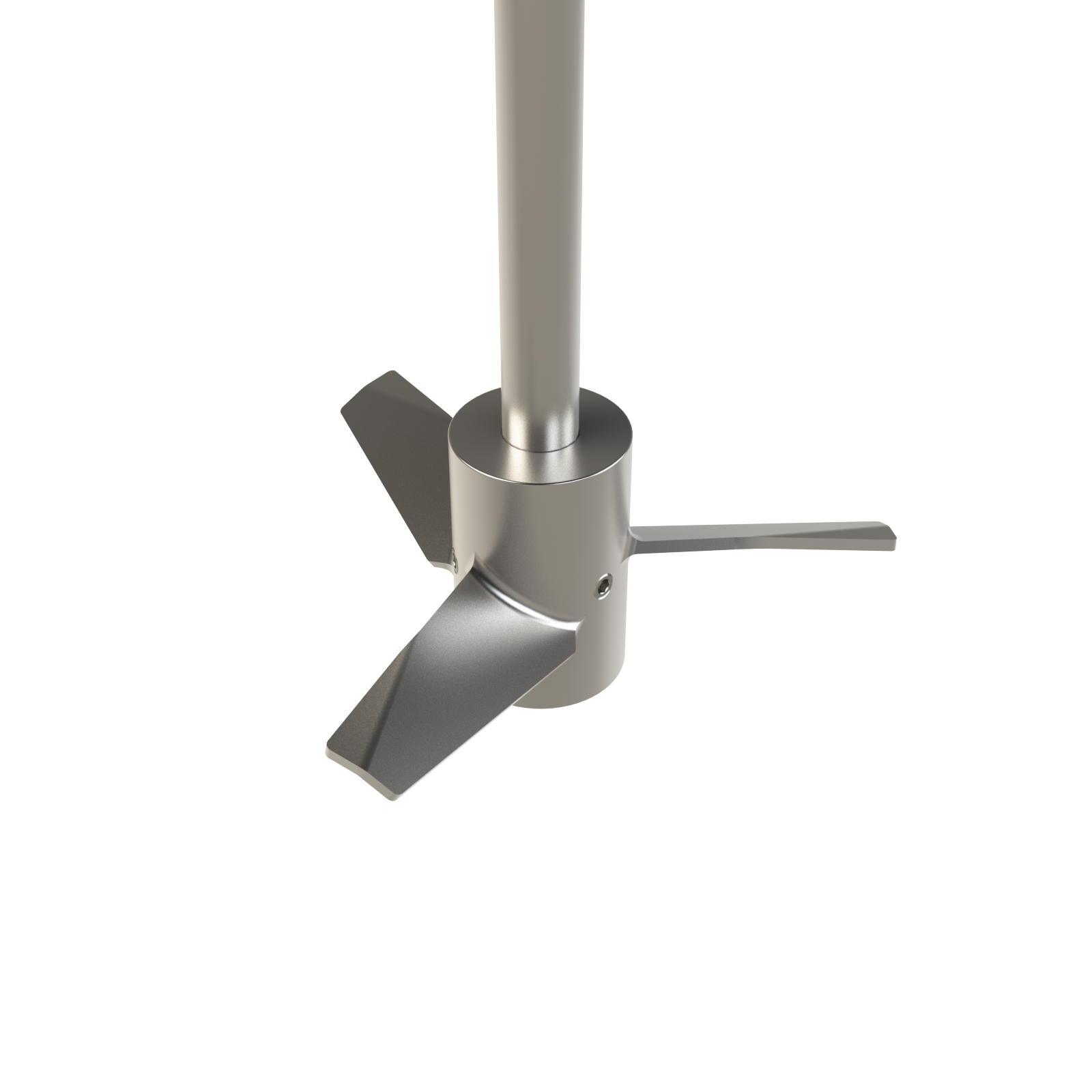

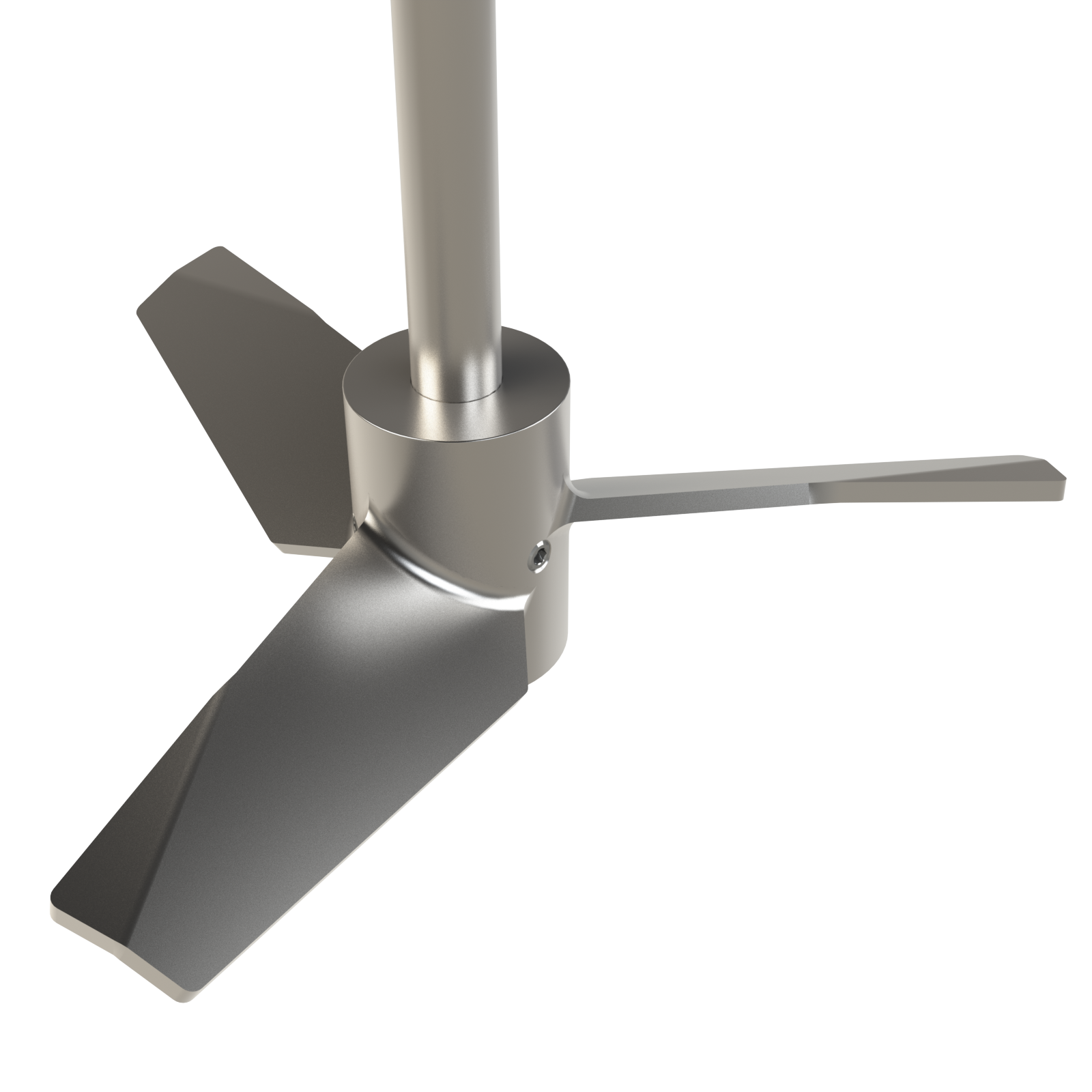

- Impeller type Hydrofoil
- Lead time 3 Business Days
- Motor type Explosion Proof
- Mount Heavy Duty Clamp
- Mount dimension 3.5 in.Max Opening
- Number of impellers 1
- Phase 3 Ph.
- Rpm 1750
- Shaft diameter 1 in.
- Shaft length 32 in.
- Shaft material 316SS
What shipping methods do you offer?
UPS Package, FedEx Package, FedEx Freight
What are your payment options?
Credit Card and Pay Pal
Where are you shipping from?
All products are shipped from our plant in Jeffersonville, Indiana.
What time zone are you in?
Eastern Standard Time (NY)
How do I purchase with a PO?
Contact our sales team at firstname.lastname@example.org
What does lead time mean?
Lead time is the average number of business days until the product ships, it does not include shipping days.
