20-1000 Gallon | Drum Mounted | Portable

Explosion Proof Gear Drive Drum Bracket Mount Mixer

Explosion Proof Gear Drive Drum Bracket Mount Mixer
Explosion Proof Gear Drive Drum Bracket Mount Mixer
20-1000 Gallon | Drum Mounted | Portable

Explosion Proof Gear Drive Drum Bracket Mount Mixer

Regular price $4,265.00
/
Lead Time: 3 Business Days

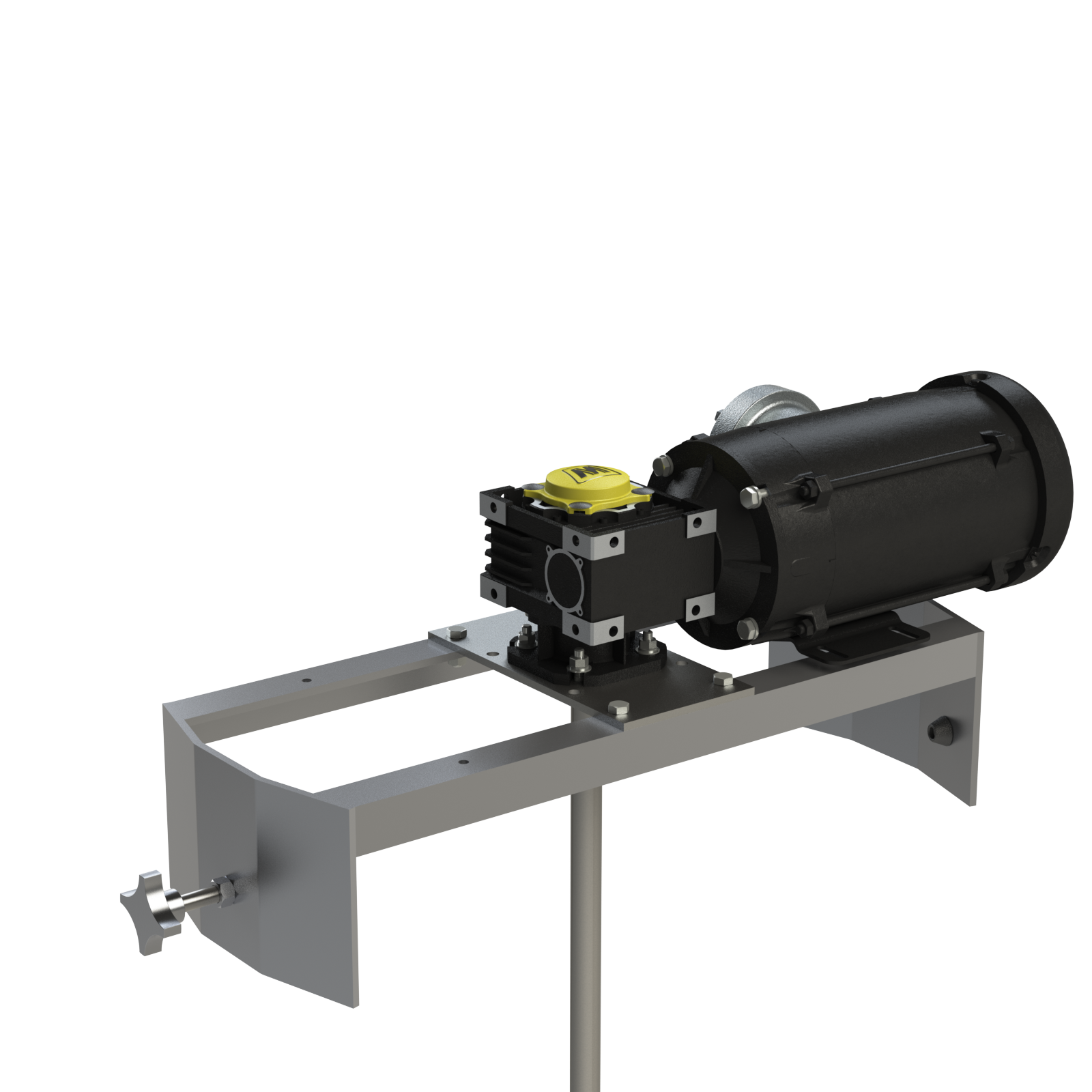

Mix your ingredients in open 55-gallon drums or similary shaped vessels with this drum clamp mixer. The mixer frame securely clamps onto the outside of the drum, allowing for mixing directly in the drum.
Part Number: DBM050XGD

Our drum bracket mount mixers are uniquely designed to attach to standard 55-gallon drums. The mixer brackets angled end plate provides a rigid mount to the 55-gallon drum allowing for more vigorous mixing of materials. Safe for use in hazardous environments, our explosion proof mixer uses an Inverter Duty Explosion Proof electric motor. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number DBM050XGD
  • Enclosure type IP55
  • Gearbox ratio 7.5:1
  • Horsepower 1/2 HP
  • Impeller attachment Set screw

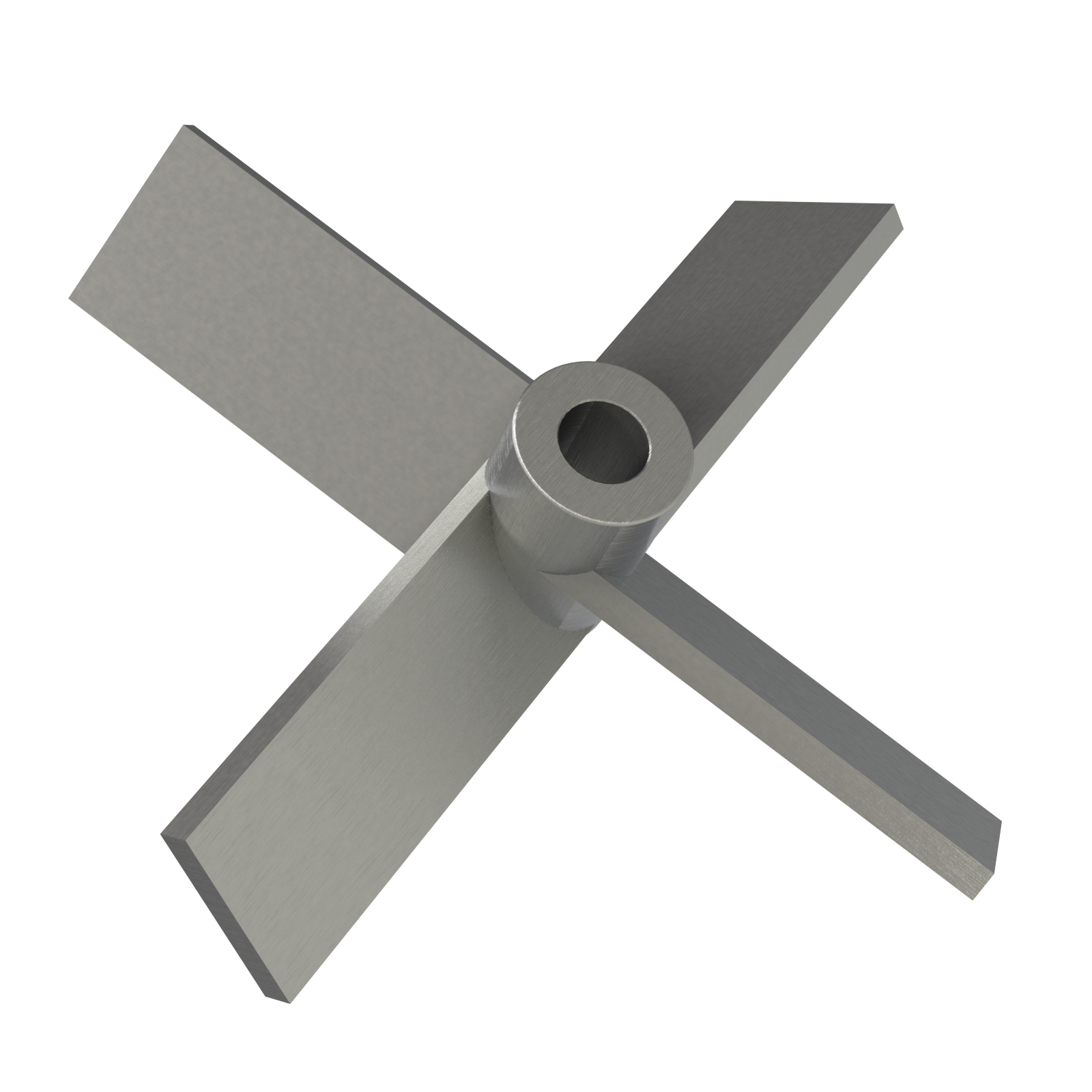

  • Impeller diameter 8 in.
  • Impeller material 316SS
  • Impeller type Axial Flow Turbine
  • Lead time 3 Business Days
  • Motor type Explosion Proof Inverter Duty
  • Mount Drum Bracket Mount
  • Mount dimension 24-26x10
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 233
  • Shaft diameter 1 in.
  • Shaft length 28 in.
  • Shaft material 316SS
  • Voltage 230/460V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
