20-1000 Gallon | Top Entry Mixer

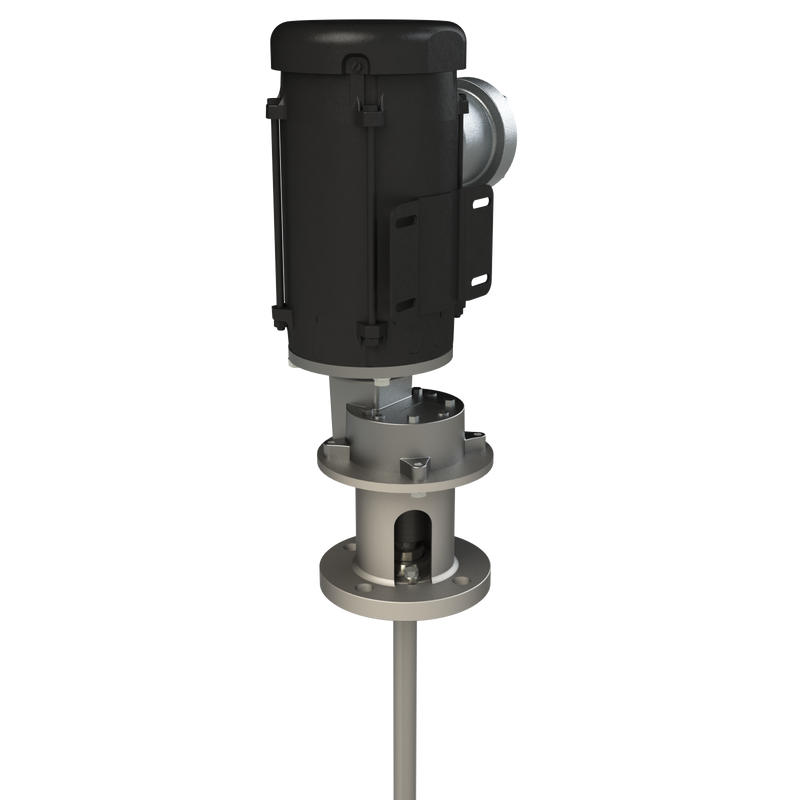

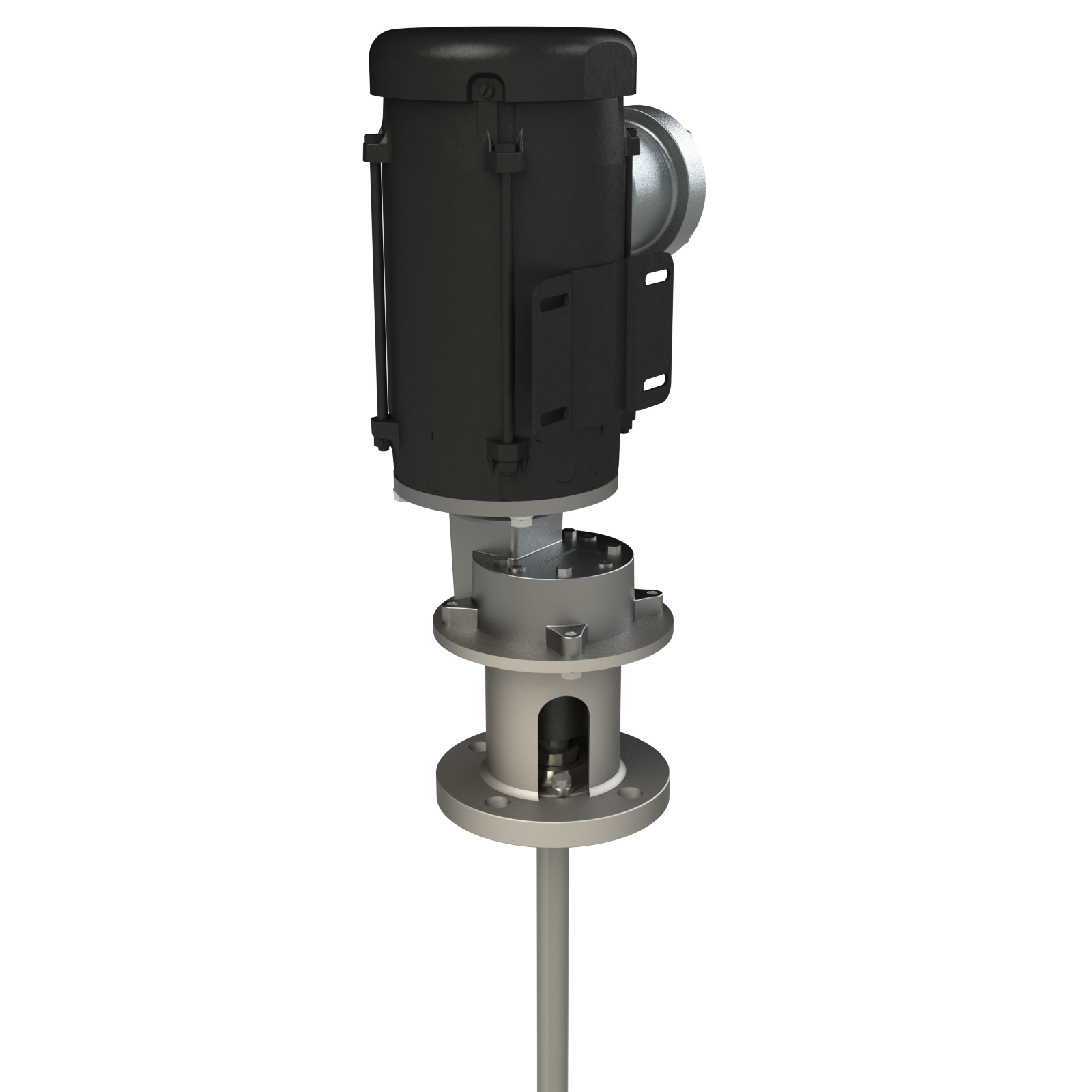

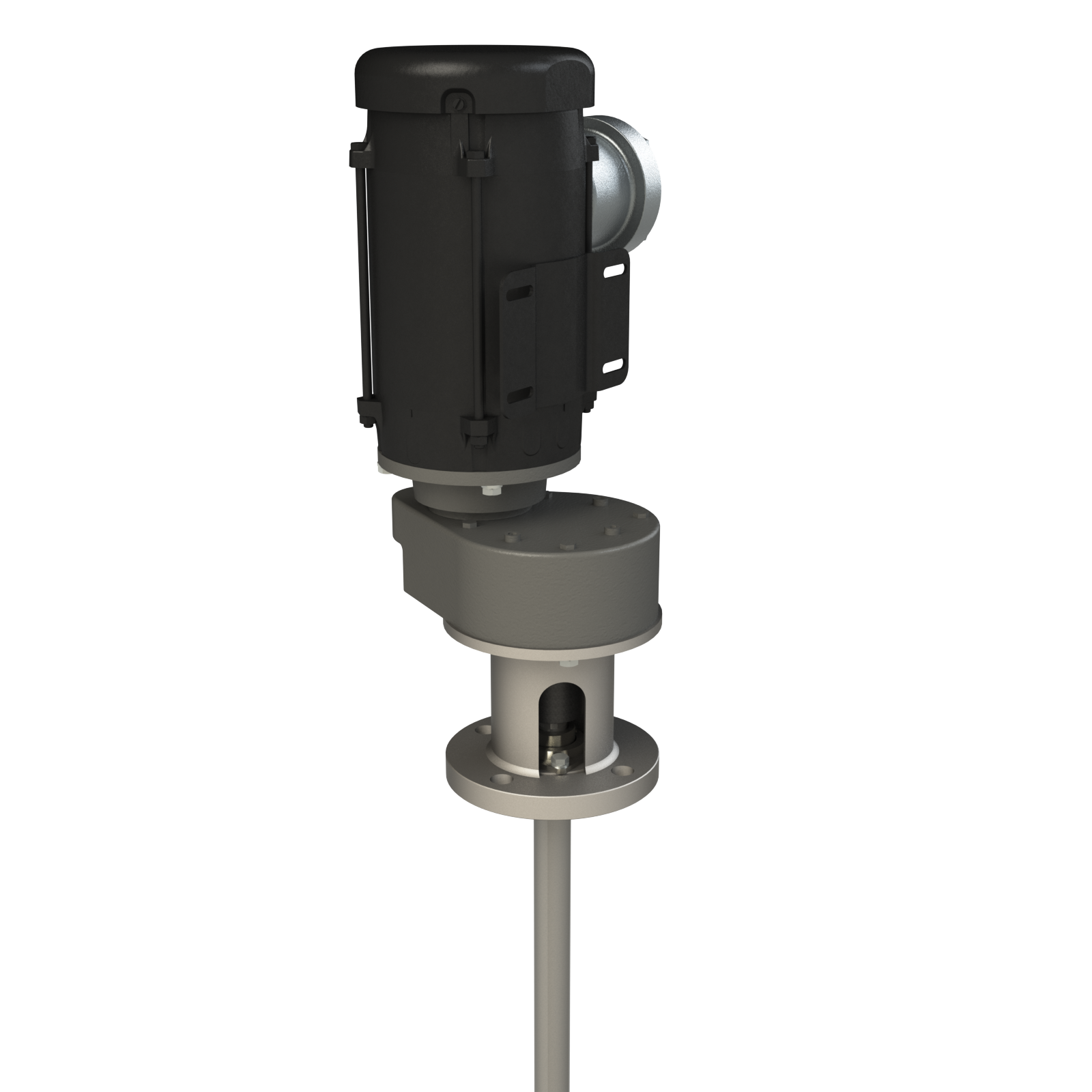

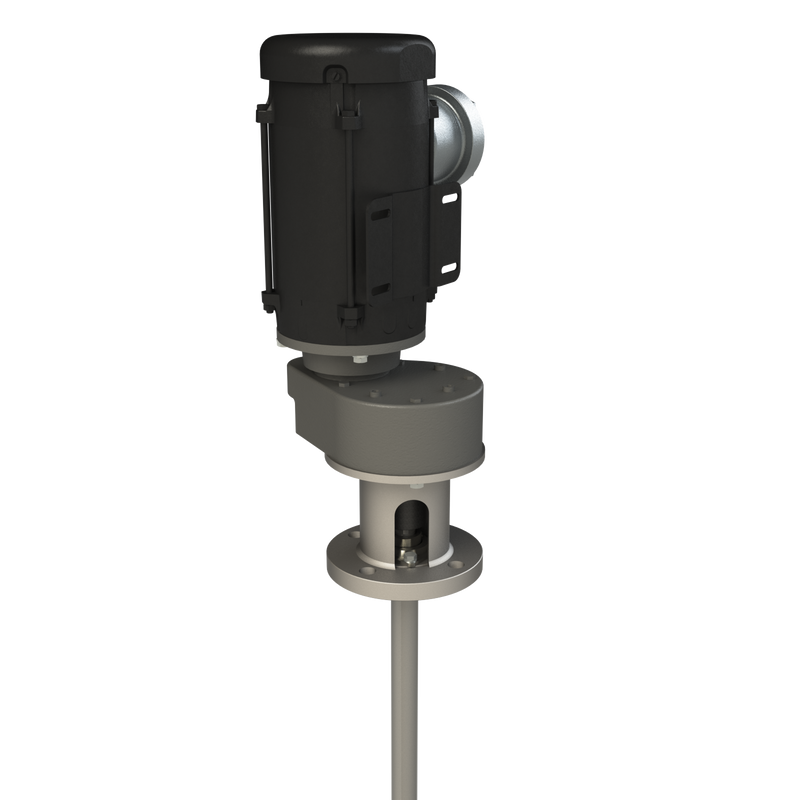

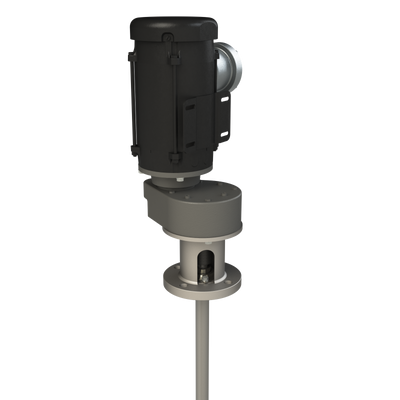

Explosion Proof Gear Drive Flange Mount Mixer

Explosion Proof Gear Drive Flange Mount Mixer
Explosion Proof Gear Drive Flange Mount Mixer
Explosion Proof Gear Drive Flange Mount Mixer
Explosion Proof Gear Drive Flange Mount Mixer
20-1000 Gallon | Top Entry Mixer

Explosion Proof Gear Drive Flange Mount Mixer

Regular price $3,593.00
/
Lead Time: 5 Business Days
Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to standard flange fittings. A low maintenance solution to many processing applications.
Part Number: FLG033XGD

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processses without sacrificing mixing or blending capabilities. It is designed for heavy duty applications with an extra flange mounted support bearing and all welded construction. Safe for use in hazardous environments, our explosion proof mixer uses an Inverter Duty Explosion Proof electric motor. The gear driven motor operates at a 5:1 ratio, allowing for lower RPMs and higher torque for even the most challenging applications. This mixer mounts easily and securely to a 2.5 inch 150# ANSI flange. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Add a Viton Lip Seal for increased protection to the mixer and liquid ingredients. Select your horsepower and an appropriately sized high efficiency impeller will be matched to your mixer.

  • Item Number FLG033XGD
  • Enclosure type IP55
  • Gearbox ratio 5:1
  • Horsepower 1/3 HP
  • Impeller attachment Set screw
  • Impeller diameter 10 in.
  • Impeller material 316SS

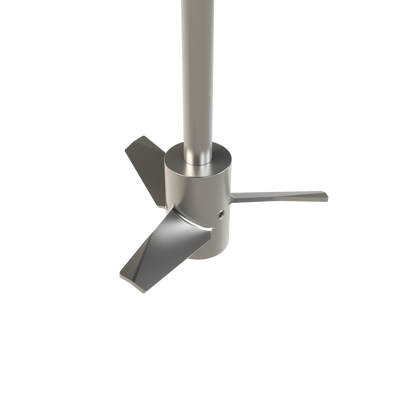

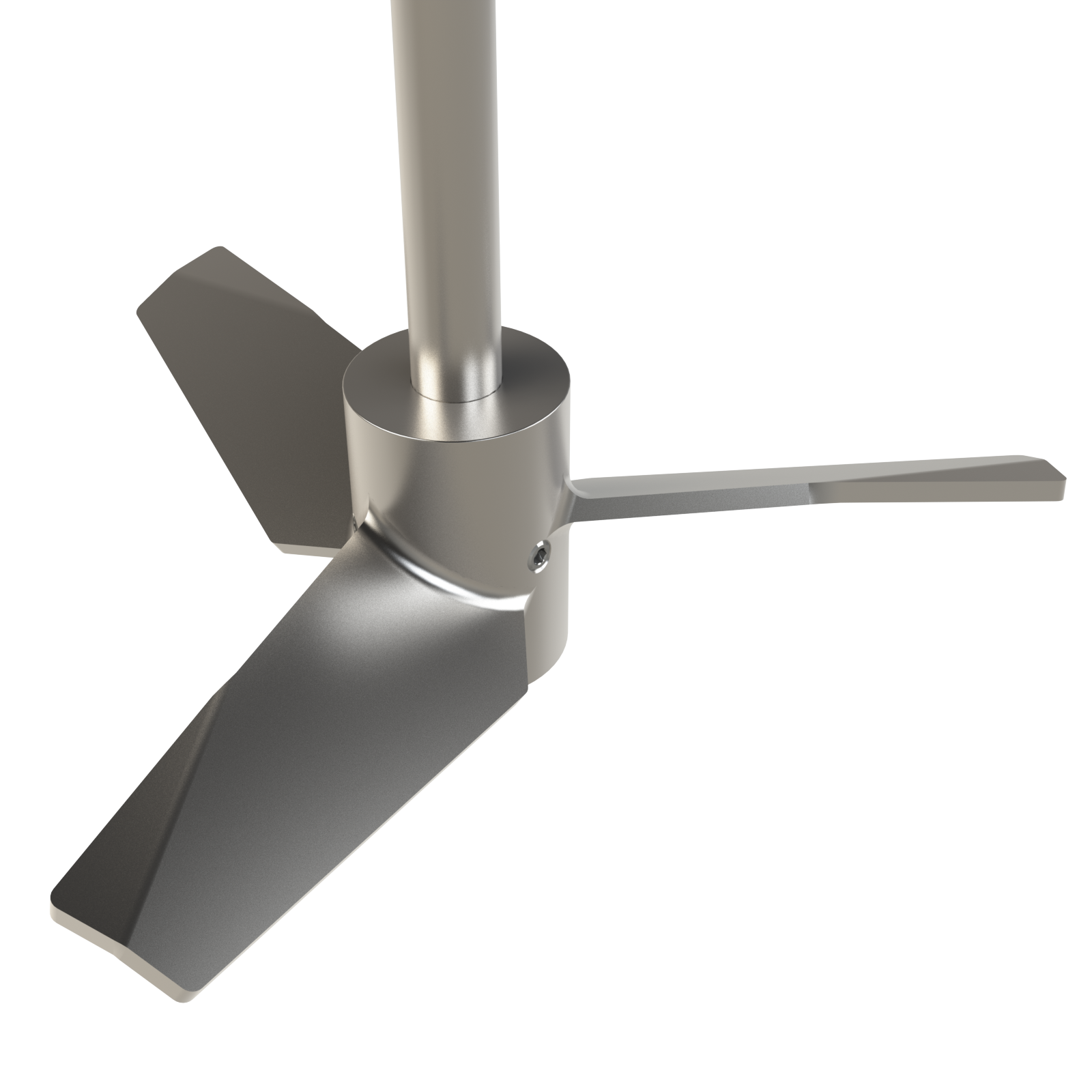

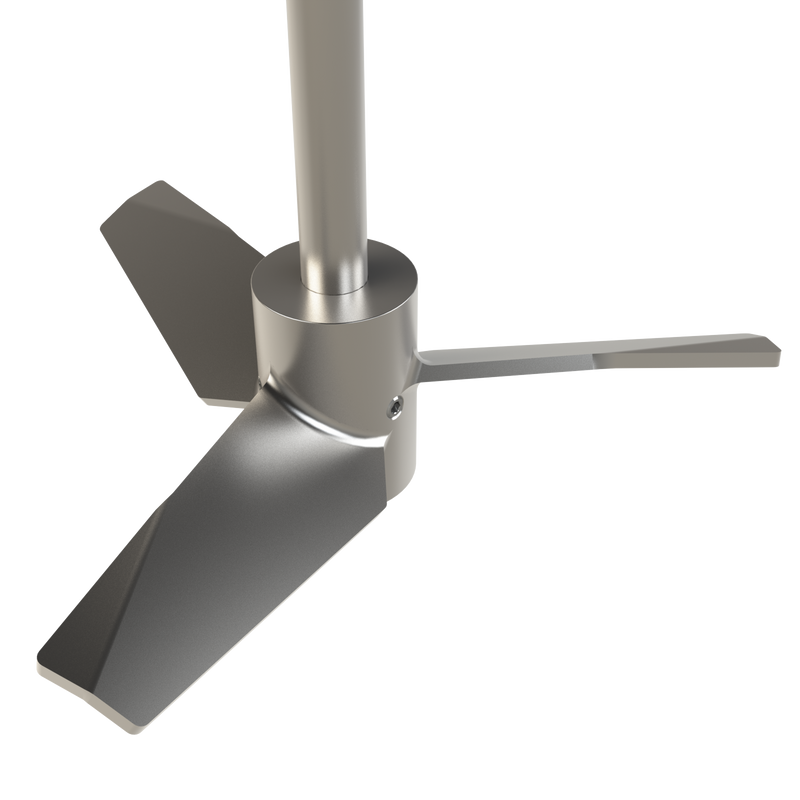

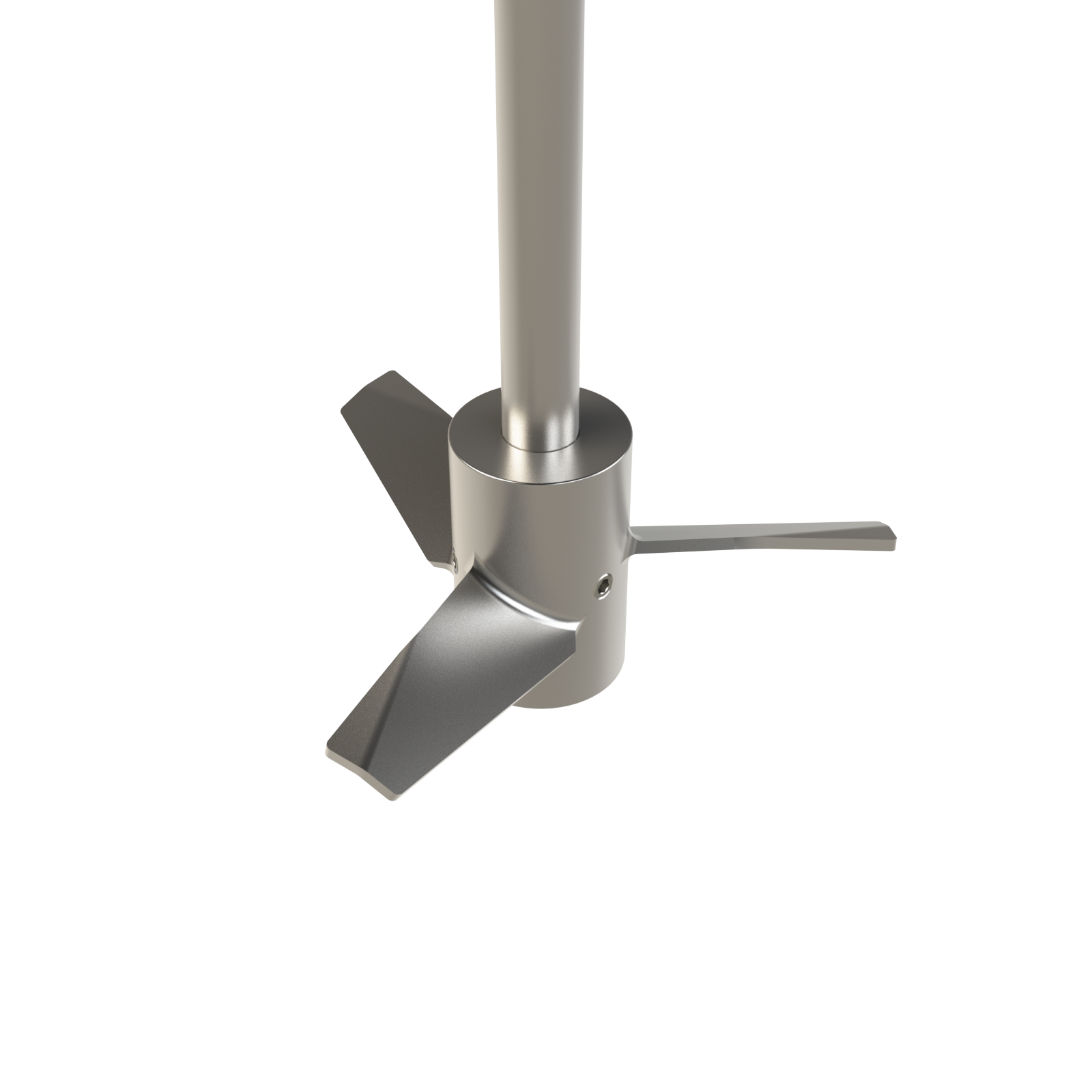

  • Impeller type Hydrofoil
  • Lead time 5 Business Days
  • Motor type Explosion Proof Inverter Duty
  • Mount 150# ANSI Flange
  • Mount dimension 2.5 in.
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 350
  • Shaft diameter 1 in.
  • Shaft length 36 in.
  • Shaft material 316SS
  • Voltage 230/460V
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
