20-1000 Gallon | Variable Width Bracket

Explosion Proof Gear Drive Tote Bracket Mount Mixer

Regular price $4,364.00
/
Lead Time: 4 Business Days
Uniquely designed to quickly and easily attach to a standard IBC tote or other open top vessel, this tote mixer provides a portable solution to mixing ingredients directly in their shipping or storage vessel. Easily adjust the width of the bracket to securely attach to a variety of vessels.
Part Number: TBM050XGD

Our tote bracket mount mixers provide a simple mixing solution for IBC totes and open top vessels. The unique tote bracket frame is designed to accommodate widths from 36"- 48" while maintaining stability and strength to support the mixer motor. Safe for use in hazardous environments, our explosion proof mixer uses an Inverter Duty Explosion Proof electric motor. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller, hydrofoil impeller, or folding impeller will be matched to your mixer.

  • Item Number TBM050XGD
  • Enclosure type IP55
  • Gearbox ratio 7.5:1
  • Horsepower 1/2 HP
  • Impeller attachment Set screw
  • Impeller diameter 10 in.
  • Impeller material 316SS
  • Impeller type Folding Impeller
  • Lead time 4 Business Days
  • Motor type Explosion Proof Inverter Duty
  • Mount Tote Bracket
  • Mount dimension 36-48 x 10

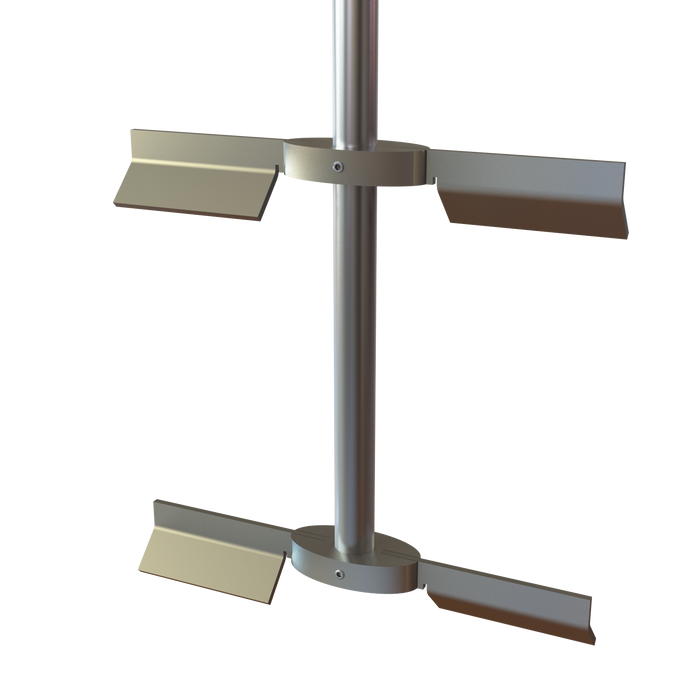

  • Number of impellers 2
  • Phase 3 Ph.
  • Rpm 233
  • Shaft diameter 1 in.
  • Shaft length 32 in.
  • Shaft material 316SS
  • Voltage 230/460V
