Small Batch | Laboratory | High Shear

RP1 Explosion Proof Lab Benchtop Rotor Stator

RP1 Explosion Proof Lab Benchtop Rotor Stator
Small Batch | Laboratory | High Shear

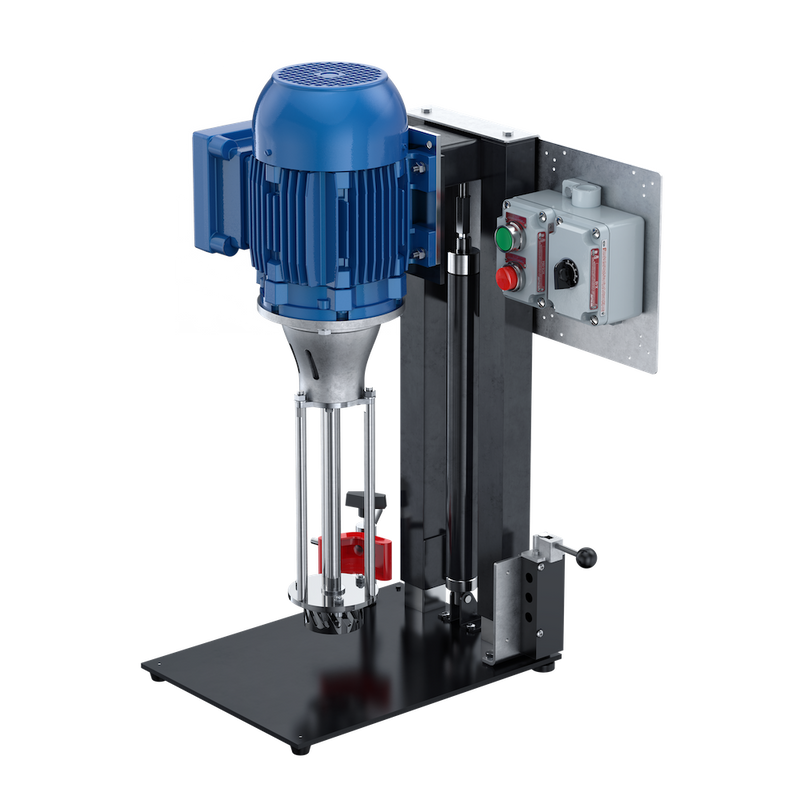

RP1 Explosion Proof Lab Benchtop Rotor Stator

Regular price $11,066.00
/
Lead Time: 16 Business Days
This high speed benchtop rotor stator mixer provides ultra high shear dispersion in small batch or laboratory settings. Easily control mixer speed to precisely optimize your processes.
Part Number: RP1020XDA

The RP1 line of high shear rotor stator mixers are a cost-effective and full featured benchtop mixer for use in laboratory or small batch settings. This high shear mixer can handle a wide range of liquid volumes up to 5 gallons. Designed for low to medium viscosity, these rotor stator mixers provide ultra high shear capabilites, such as emulsification, particle reduction, and homogenization. The unique container holder is adjustable to clamp vessels of various diameters firmly in place. The RP1 comes standard with an angle slotted stator but can be quickly and easily replaced with a general purpose stator or an emulser stator for added variability. Adjust the height of the rotor stator with an air or electric lift option, allowing you greater versatility on vessel height. Safe for use in hazardous environments, our explosion proof mixer uses an Inverter Duty Explosion Proof electric motor. The RP1 operates at mixing speeds from 500-5000 RPM and accommodates vessels up to 16” in height. If a taller height is needed, consider the RP2 line of post mount rotor stators.

  • Item Number RP1020XDA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 2 HP
  • Impeller diameter 2.5 in.
  • Impeller material 316SS
  • Impeller type Angle Slot Rotor Stator
  • Lead time 16 Business Days
  • Lift height 14 in.
  • Lift type Air
  • Max vessel height 16 in.
  • Motor type Explosion Proof Inverter Duty
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 500-5000
  • Shaft diameter .75 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 29 in.
  • Total height raised 41 in.
  • Voltage 230V
  • Volume 200ml - 5 gal.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
