5-20 Gallon | Heavy Duty | High Shear

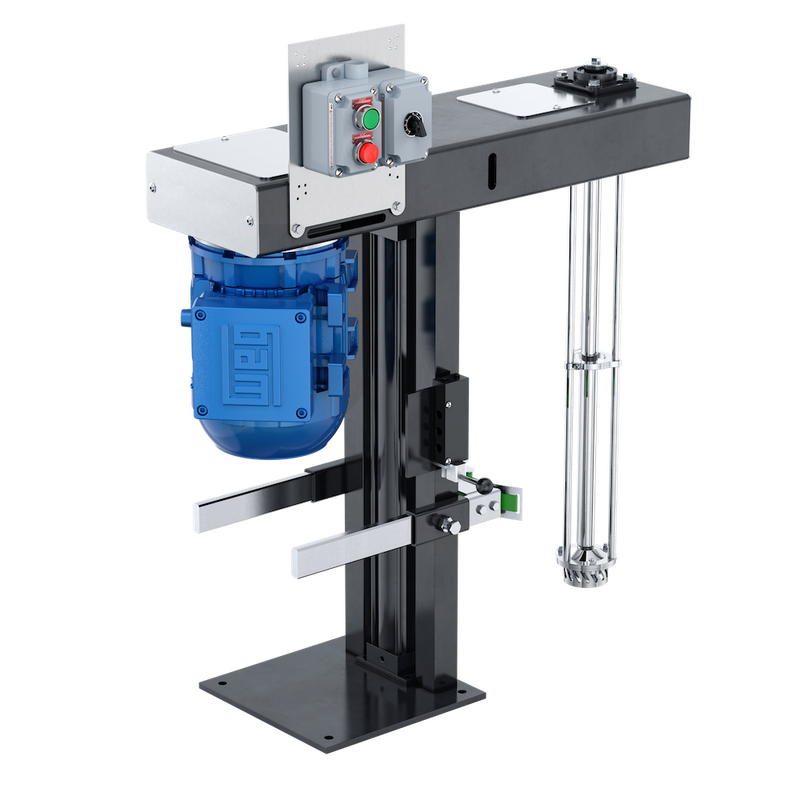

RP2 Explosion Proof Post Mount Rotor Stator

RP2 Explosion Proof Post Mount Rotor Stator
5-20 Gallon | Heavy Duty | High Shear

RP2 Explosion Proof Post Mount Rotor Stator

Regular price $11,496.00
/
Lead Time: Available 2/29
Designed for applications of 5-20 gallons, this high speed rotor stator mixer provides efficient ultra high shear blending in small to medium batch processes. Easily control mixer speed to precisely optimize your dispersion processes.
Part Number: RP2030XBA

RP2 Post Mount Rotor Stator - Your Ultimate High Shear Mixing Solution for 5-20 Gallon Volumes!

The RP2 Post Mount Rotor Stator is your go-to choice for all high shear mixing needs, tailored to volumes ranging from 5 to 20 gallons. With a generous 24" lift, the RP2 rotor stator effortlessly accommodates a variety of mixing vessels, providing unmatched versatility.

Experience seamless and precise positioning with the air lift, smoothly controlled using a 3-way air valve, allowing you to position the rotor stator at any height within the mixing vessel. This exceptional feature is particularly valuable when dealing with products of varying viscosities, ensuring consistent and reliable mixing results.

Adapt the RP2 to your specific mixing requirements with ease, thanks to the quick and simple stator change-out option. The RP2 comes standard with an angle slotted stator, but offers added flexibility by allowing you to replace it swiftly with a general-purpose stator or an emulser stator.

Safety is our top priority - our explosion-proof mixer utilizes an Inverter Duty Explosion Proof electric motor, ensuring safe operations even in hazardous environments.

Achieve optimal mixing speeds with the RP2's operating range from 0 to 5000 RPM, catering to various mixing needs. Accommodating vessels up to 25" in height, the RP2 provides exceptional performance. If you require taller height capacity, explore our RP3 line of post-mount rotor stators, designed to meet your specific mixing demands.

Embrace the power of precision mixing with the RP2 Post Mount Rotor Stator, purpose-built to handle high shear mixing requirements for volumes from 5 to 20 gallons. Experience unparalleled mixing capabilities and achieve remarkable results effortlessly!

  • Item Number RP2030XBA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 3 HP
  • Impeller diameter 2.5 in.
  • Impeller material 316SS
  • Impeller type Angle Slot Rotor Stator
  • Lead time Available 2/29
  • Lift height 24 in.
  • Lift type Air
  • Max vessel height 26 in.
  • Motor type Explosion Proof Inverter Duty
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 500-5000
  • Shaft diameter 1 in.
  • Shaft material 316SS
  • Total height lowered 35 in.
  • Total height raised 59 in.
  • Voltage 230V
  • Volume 5-20 gals.
