20-100 Gallon | Heavy Duty | High Shear

RP3 Electric Post Mount Rotor Stator

RP3 Electric Post Mount Rotor Stator
RP3 Electric Post Mount Rotor Stator
20-100 Gallon | Heavy Duty | High Shear

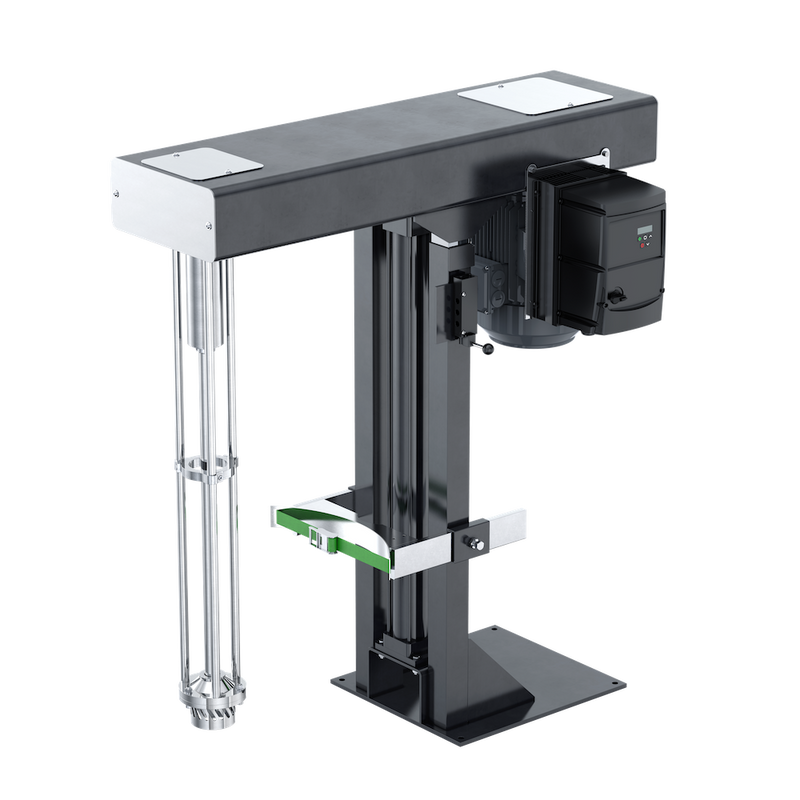

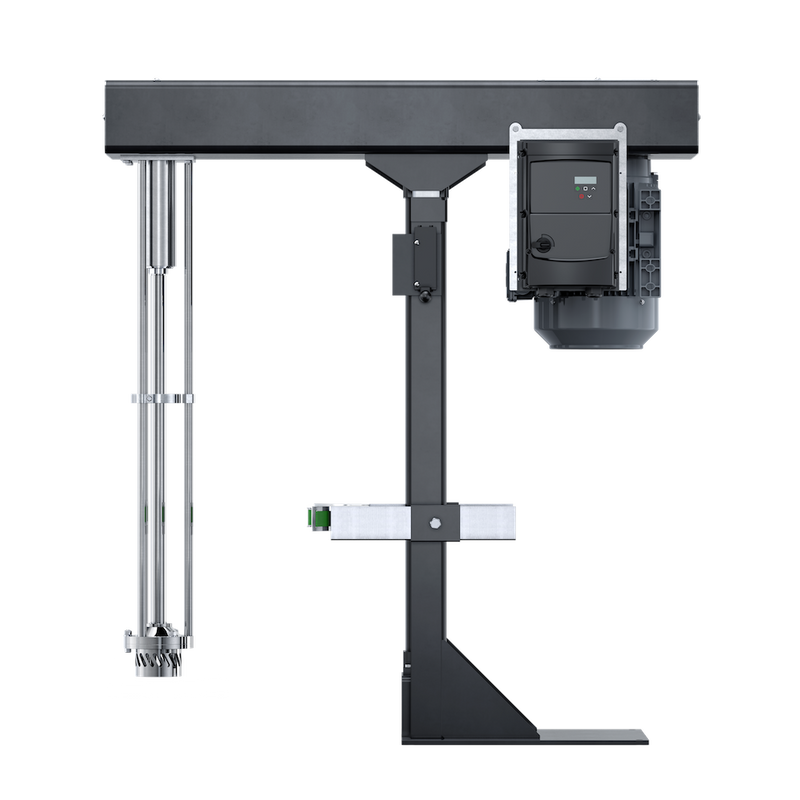

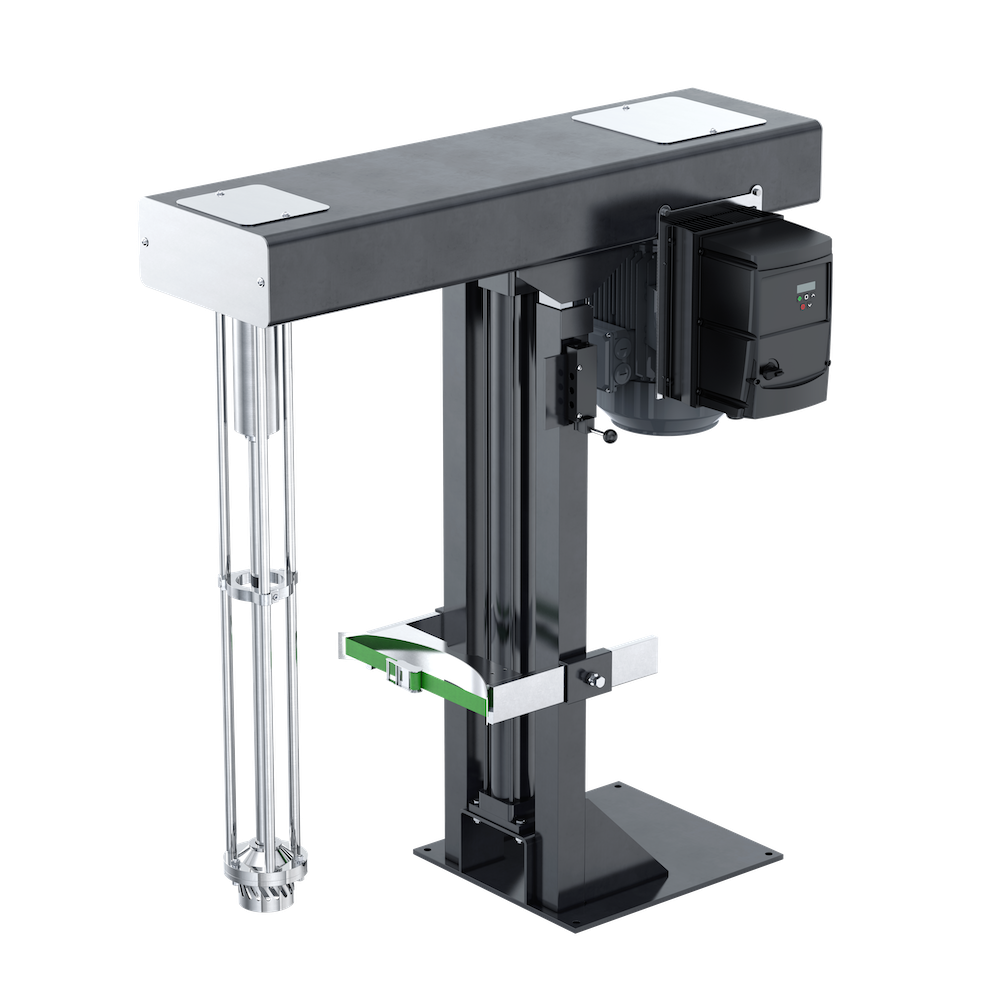

RP3 Electric Post Mount Rotor Stator

Regular price $16,842.00
/
Lead Time: 16 Business Days
Quickly and easily disperse your ingredients with this high speed rotor stator mixer. Designed for volumes of 20-100 gallons, this rotor stator mixer provides efficient ultra high shear blending in small to medium batch processes.
Part Number: RP3050VBA

For efficient high shear mixing in a 55-gallon drum, there is no better value than the RP3 post mount rotor stator. Whether you are mixing coatings, cosmetics, or just need extra shear to achieve a proper final solution, the RP3 rotor stator has the power you need to get the job done. Available in 5HP or 10HP TEFC or XPFC the RP3 can quickly achieve your process goals. With a 36” lift, the RP3 can handle a 40” diameter vessel. The air lift moves smoothly in and out of position using a 3-way air valve, allowing the rotor stator to be placed at any position inside the mixing container. This is valuable if you will be mixing products of varying viscosities. The RP3 comes standard with an angle slotted stator but can be quickly and easily replaced with a general purpose stator or an emulser stator for added variability.The speed of the RP3 is easily controlled with a VFD with a digital readout to ensure proper operating speeds for your process. The RP3 operates at speeds from 0-3600 RPM.

  • Item Number RP3050VBA
  • Air lift requirement 80psi @ 1cfm
  • Enclosure type IP55
  • Horsepower 5 HP
  • Impeller diameter 3.5 in.
  • Impeller material 316SS
  • Impeller type Angle Slot Rotor Stator
  • Lead time 16 Business Days
  • Lift height 36 in.
  • Lift type Air
  • Max vessel height 40 in.
  • Motor type TEFC Electric
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 360-3600
  • Shaft diameter 1.25 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Total height lowered 53 in.
  • Total height raised 89 in.
  • Voltage 460V
  • Volume 20-55 gals.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
