20-1000 Gallon | Sanitary | Portable

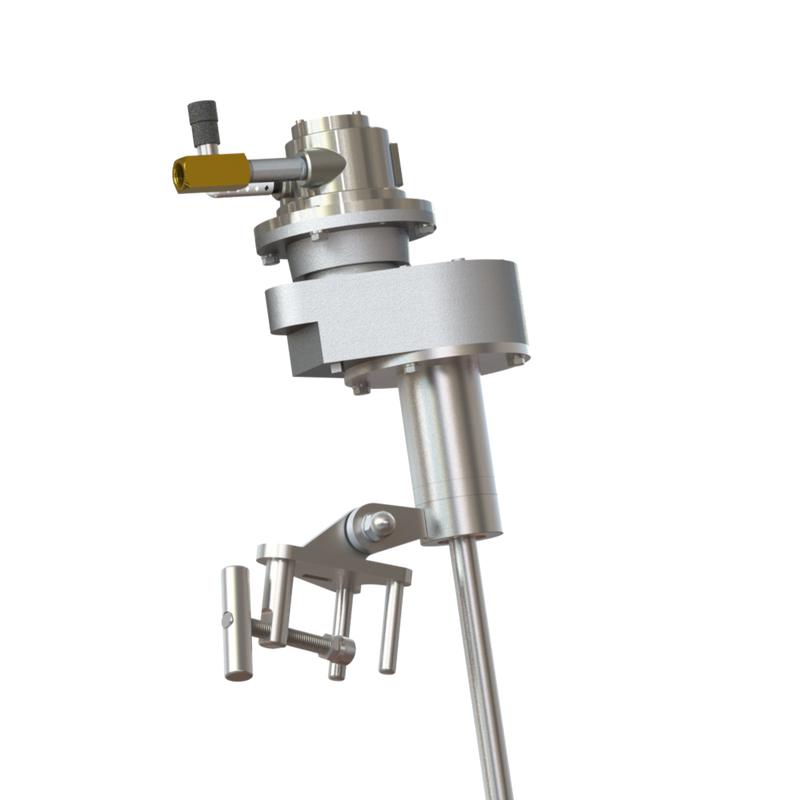

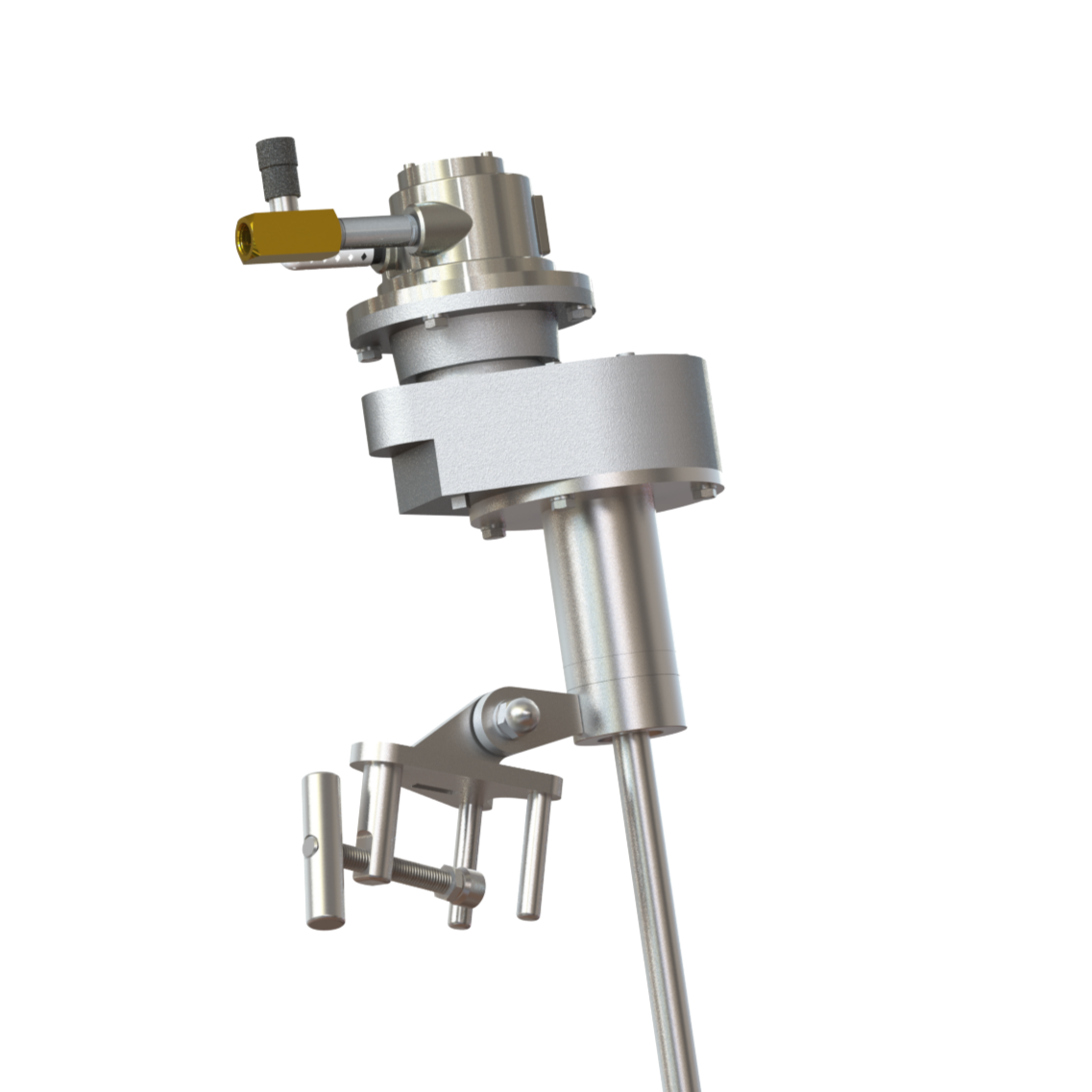

Stainless Steel Air Gear Drive Clamp Mount Mixer

Stainless Steel Air Gear Drive Clamp Mount Mixer
Stainless Steel Air Gear Drive Clamp Mount Mixer
Stainless Steel Air Gear Drive Clamp Mount Mixer
20-1000 Gallon | Sanitary | Portable

Stainless Steel Air Gear Drive Clamp Mount Mixer

Regular price $9,348.00
/
Lead Time: 15 Business Days
Favored for their sanitary applications, these stainless steel clamp mounted mixers are constructed with high quality stainless steel for increased cleanliness and corrosion resistance. This portable mixer is designed to mix volumes under 1000 gallons.
Part Number: SSC150AGD-24

With easy to clean components, lightweight portability, and intelligent design, the stainless steel clamp mount mixer is an excellent choice for your food and pharmaceutical applications as well as your harsh chemical environment applications. This mixer line features adjustable vertical movement and a fixed Tri-Post 15° offset mount for ideal mixing performance. This unique Tri-Post mount feature creates the perfect offset to ensure your mixer benefits from the natural baffling effect of properly placed agitation. The Tri-Post mount can be clamped onto any vertical surface or can be mounted to a dedicated mixing stand. Constructed with a heavy duty air motor, this clamp mounted mixer is safe for use in hazardous environments and requires minimal maintenance. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. Built with high quality 316 grade stainless steel, these clamp mixers provide a high level of chemical and abrasion resistance.

  • Item Number SSC150AGD-24
  • Gearbox ratio 5:1
  • Horsepower 1.5 HP
  • Impeller attachment Set screw
  • Impeller diameter 12 in.
  • Impeller finish Mill Finish
  • Impeller material 316SS

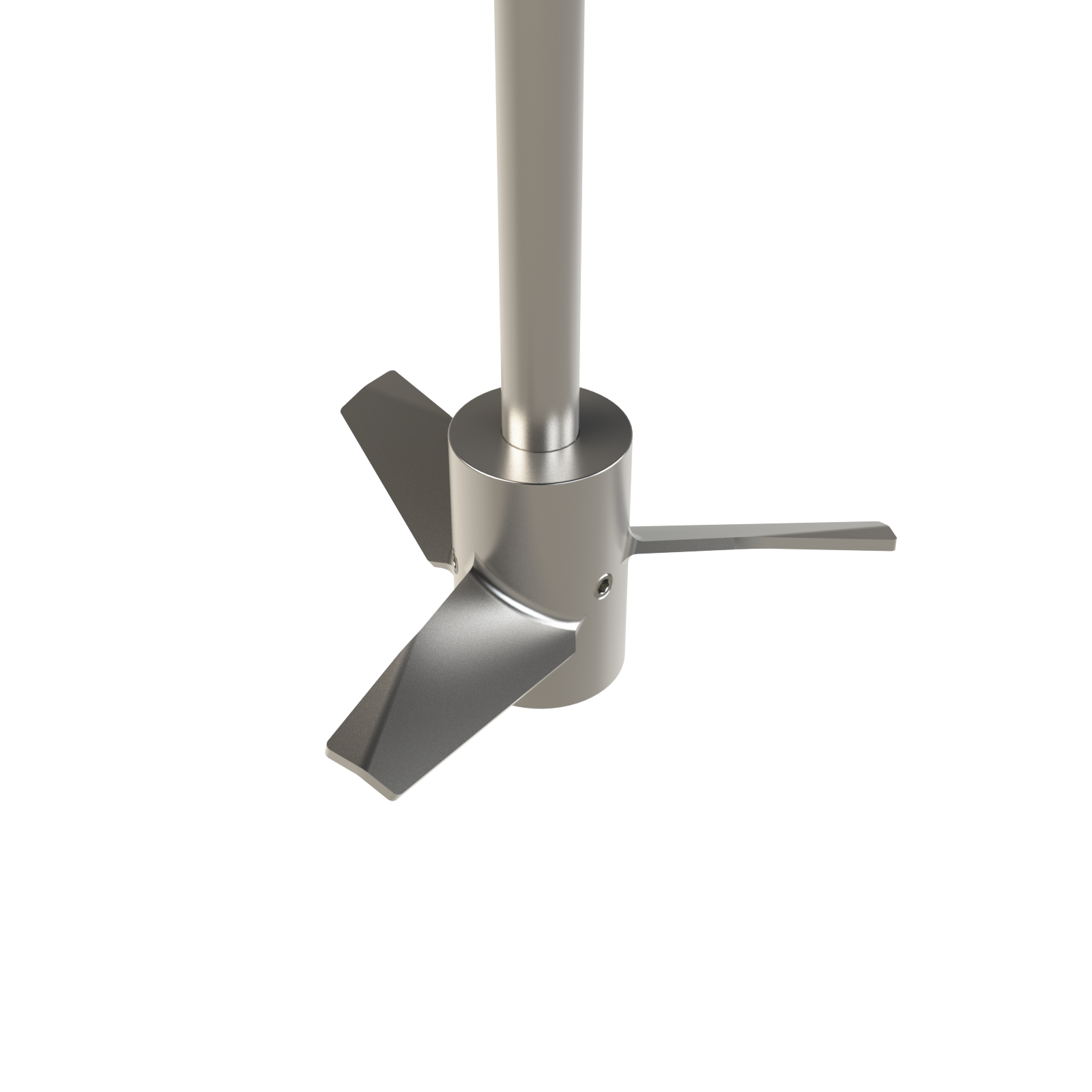

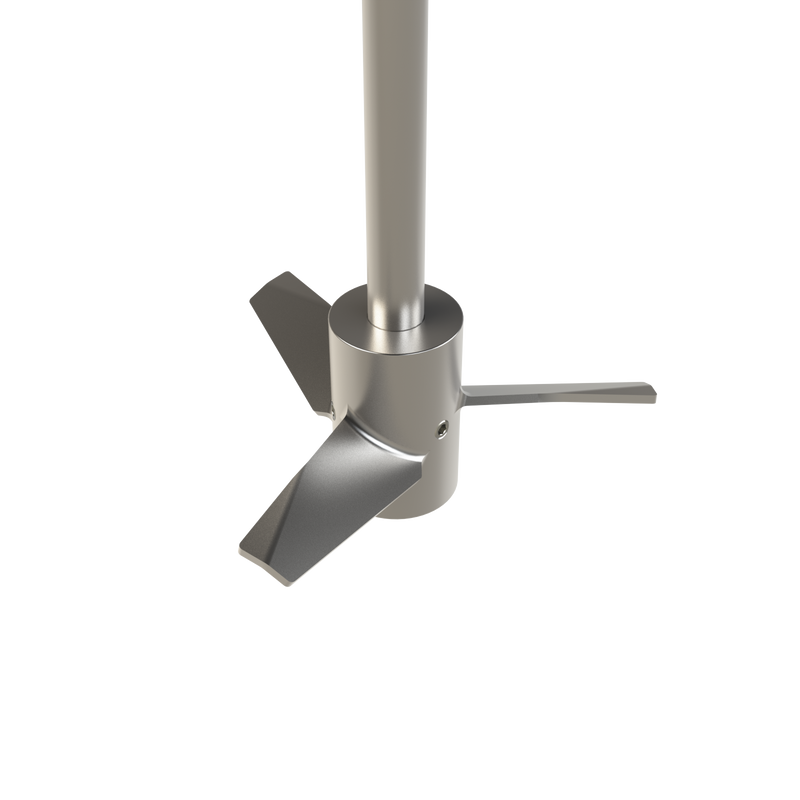

  • Impeller type Hydrofoil
  • Lead time 15 Business Days
  • Motor type Stainless Steel Air Motor
  • Mount Stainless Steel Clamp Mount
  • Number of impellers 1
  • Rpm 0-800
  • Shaft diameter 1 in.
  • Shaft length 24 in.
  • Shaft material 316SS
  • Speed controller Brass Precision Needle Valve
  • Weight 59 lbs.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
