20-1000 Gallon | Sanitary | Portable

Stainless Steel Electric Direct Drive Clamp Mount Mixer

Stainless Steel Electric Direct Drive Clamp Mount Mixer
Stainless Steel Electric Direct Drive Clamp Mount Mixer
Stainless Steel Electric Direct Drive Clamp Mount Mixer
20-1000 Gallon | Sanitary | Portable

Stainless Steel Electric Direct Drive Clamp Mount Mixer

Regular price $4,342.00
/
Lead Time: 20 Business Days
Favored for their sanitary applications, these stainless steel clamp mounted mixers are constructed with high quality stainless steel for increased cleanliness and corrosion resistance. This portable mixer is designed to mix volumes under 1000 gallons.
Part Number: SSC033EDD-28

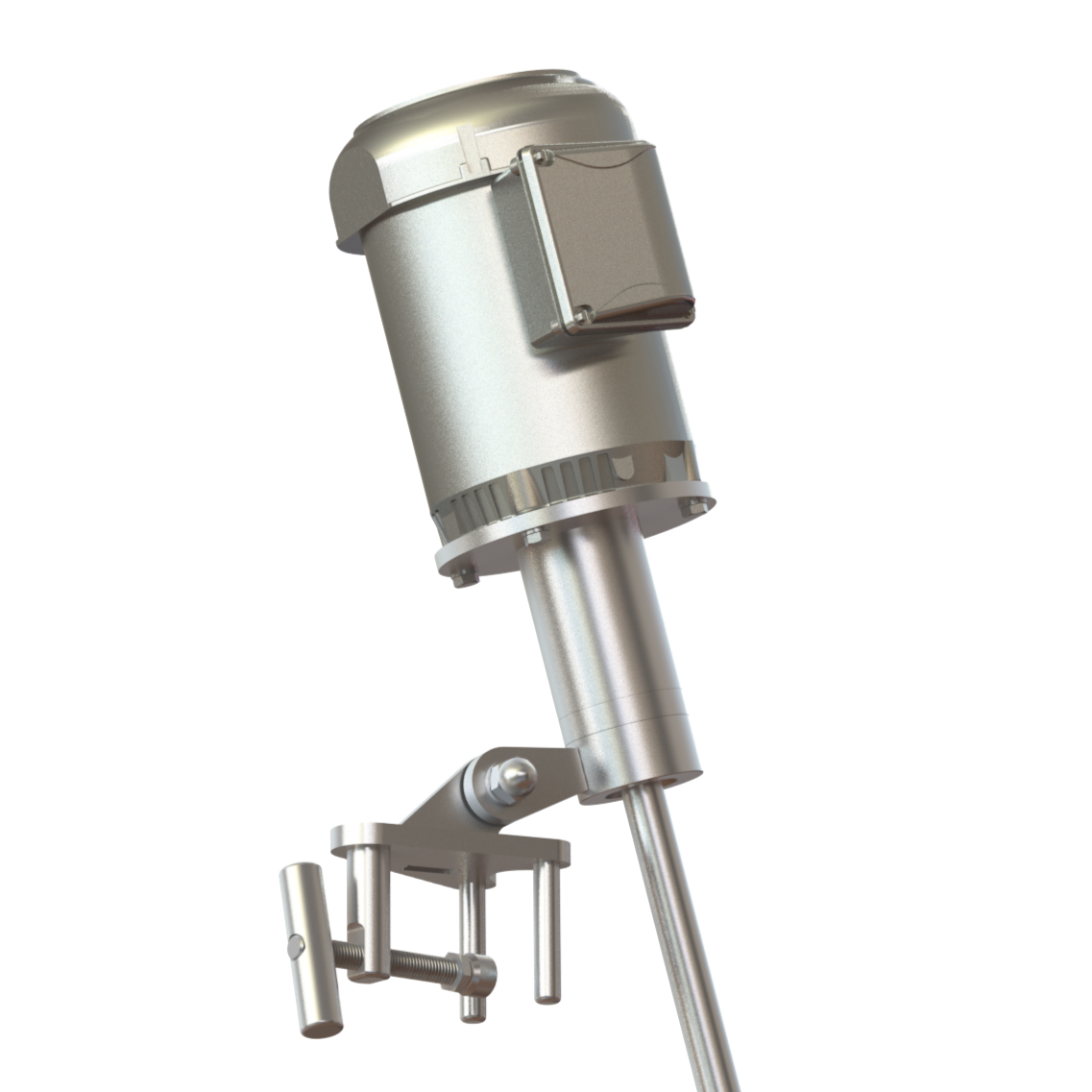

With easy to clean components, lightweight portability, and intelligent design, the stainless steel clamp mount mixer is an excellent choice for your food and pharmaceutical applications as well as your harsh chemical environment applications. This mixer line features adjustable vertical movement and a fixed Tri-Post 15° offset mount for ideal mixing performance. This unique Tri-Post mount feature creates the perfect offset to ensure your mixer benefits from the natural baffling effect of properly placed agitation. The Tri-Post mount can be clamped onto any vertical surface or can be mounted to a dedicated mixing stand. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. Constructed with high quality 316 grade stainless steel, these clamp mixers provide a high level of chemical and abrasion resistance. Select your horsepower and shaft length and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number SSC033EDD-28
  • Enclosure type IP65
  • Horsepower 1/3 HP
  • Impeller attachment Set screw
  • Impeller diameter 4 in.
  • Impeller finish Mill Finish
  • Impeller material 316SS

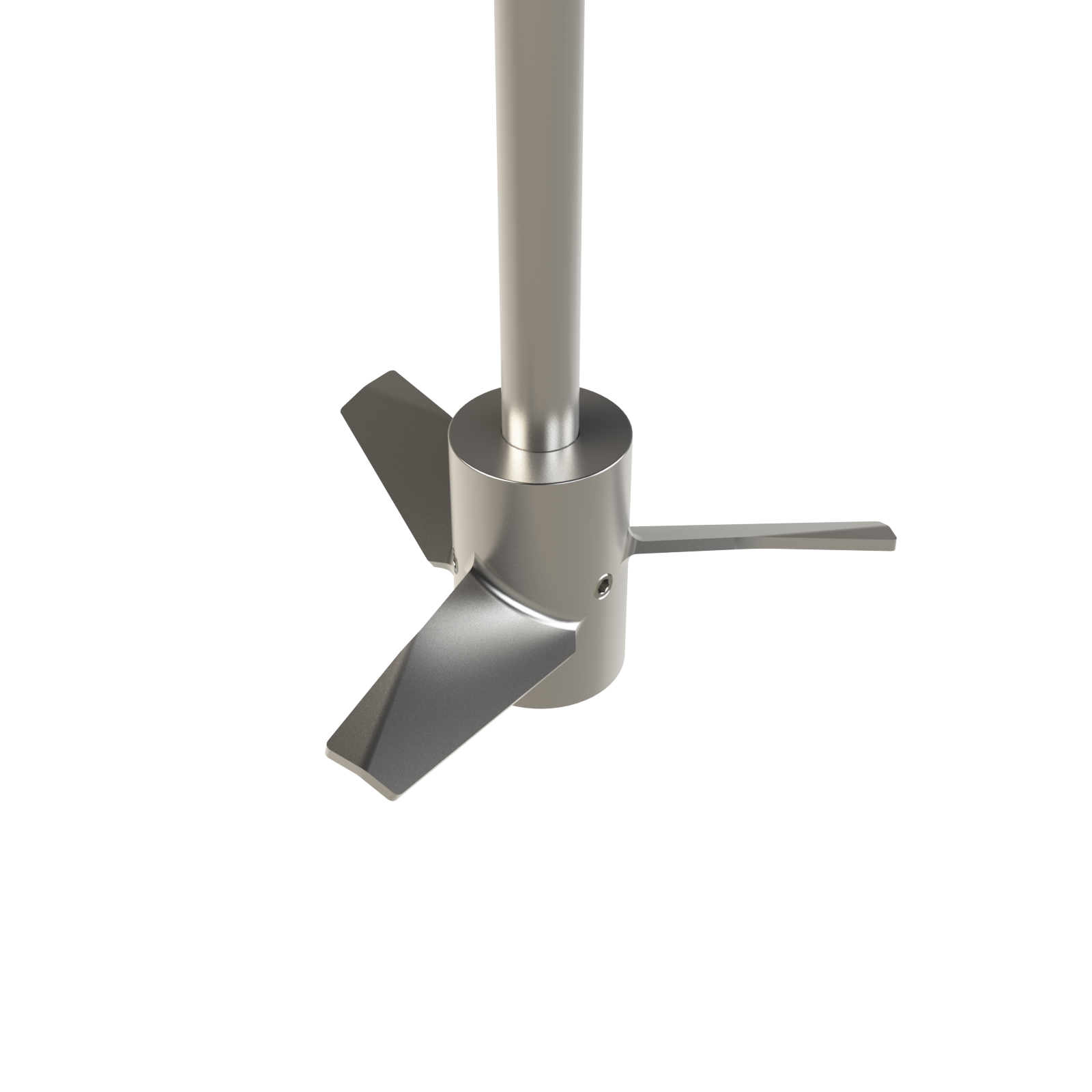

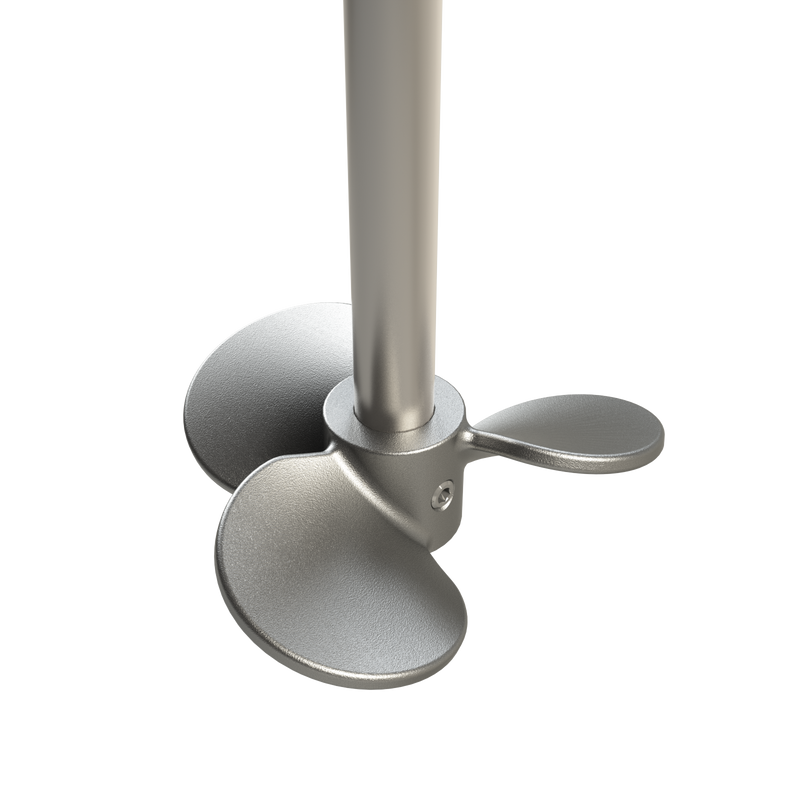

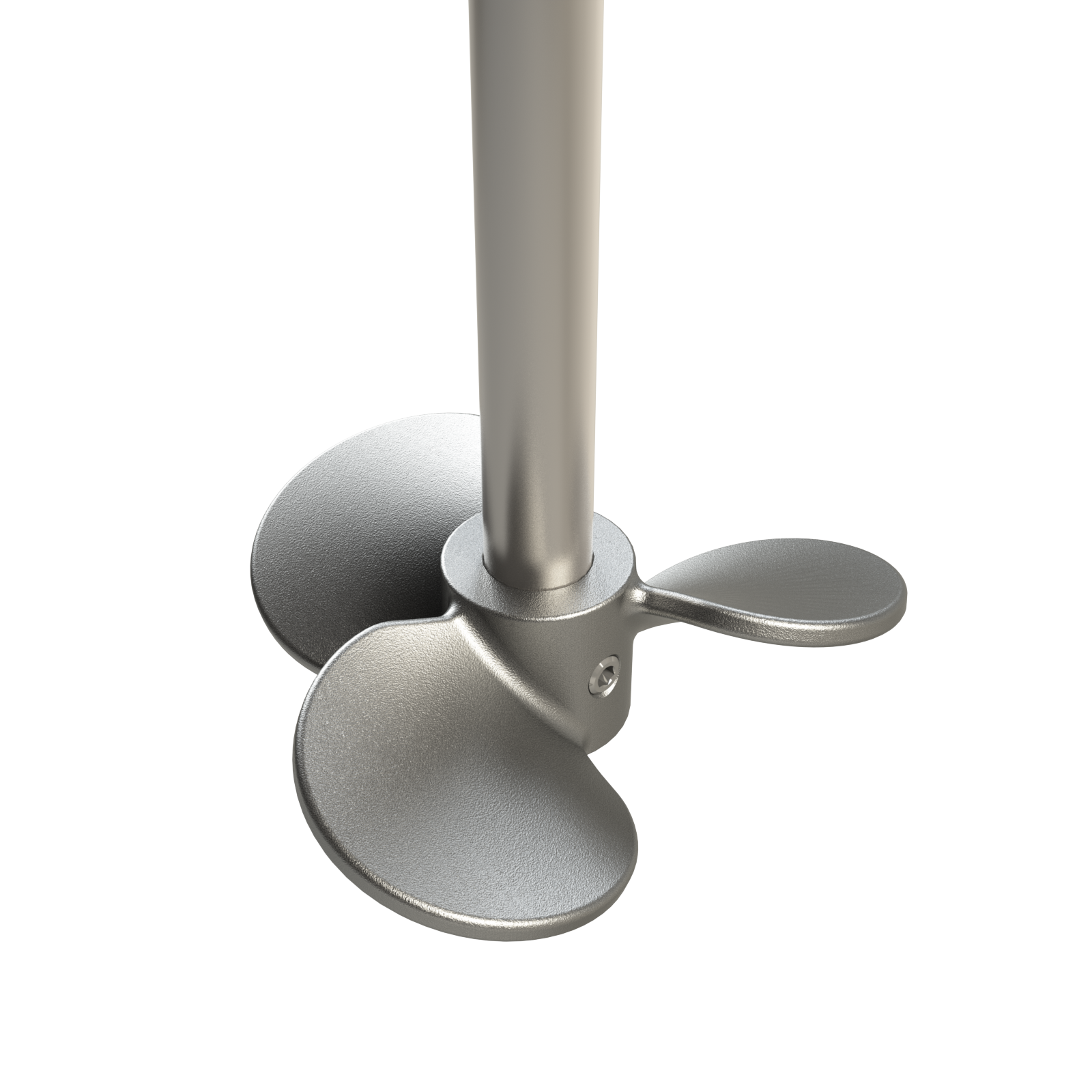

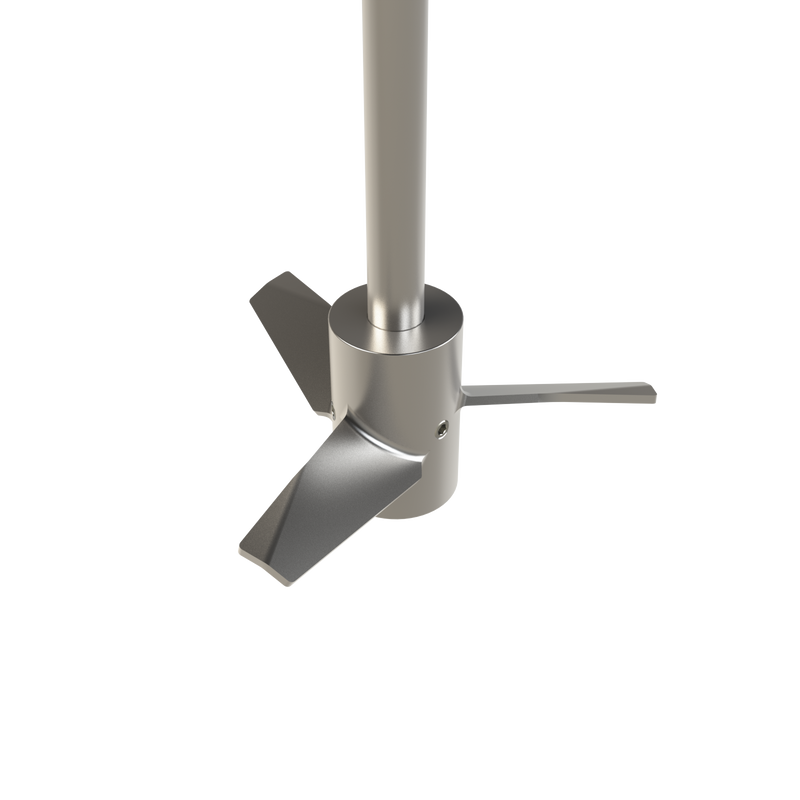

  • Impeller type Propeller
  • Lead time 20 Business Days
  • Motor type Stainless Steel TEFC Electric
  • Mount Stainless Steel Clamp Mount
  • Number of impellers 1
  • Phase 3 Ph.
  • Rpm 1750
  • Shaft diameter 1 in.
  • Shaft length 28 in.
  • Shaft material 316SS
  • Voltage 230/460V
  • Weight 55 lbs.
What shipping methods do you offer?

UPS Package, FedEx Package, FedEx Freight

What are your payment options?

Credit Card and Pay Pal

Where are you shipping from?

All products are shipped from our plant in Jeffersonville, Indiana.

What time zone are you in?

Eastern Standard Time (NY)

How do I purchase with a PO?

Contact our sales team at sales@mxdprocess.com

What does lead time mean?

Lead time is the average number of business days until the product ships, it does not include shipping days.
