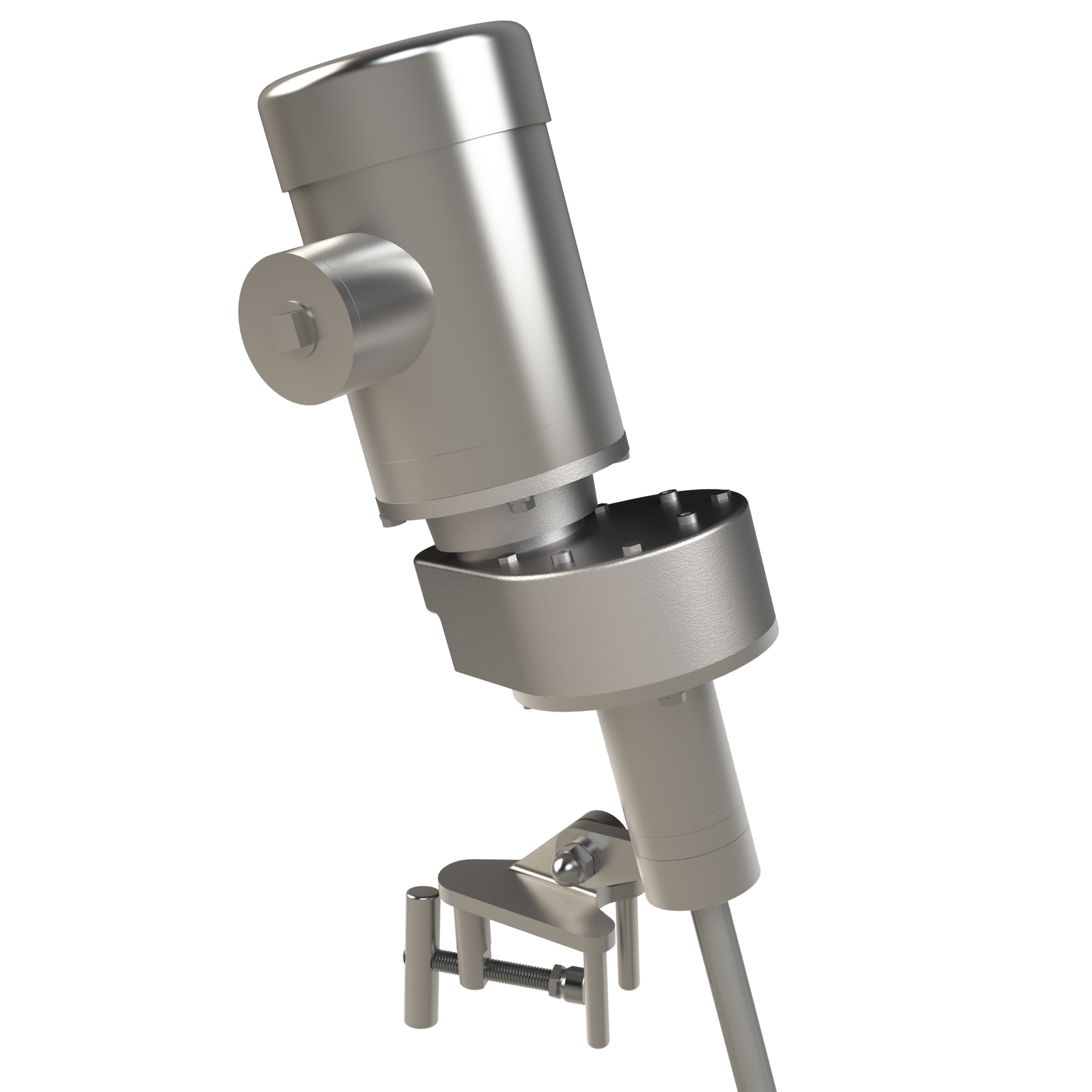

With easy to clean components, lightweight portability, and intelligent design, the stainless steel clamp mount mixer is an excellent choice for your food and pharmaceutical applications as well as your harsh chemical environment applications. This mixer line features adjustable vertical movement and a fixed Tri-Post 15° offset mount for ideal mixing performance. This unique Tri-Post mount feature creates the perfect offset to ensure your mixer benefits from the natural baffling effect of properly placed agitation. The Tri-Post mount can be clamped onto any vertical surface or can be mounted to a dedicated mixing stand. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. Constructed with high quality 316 grade stainless steel, these clamp mixers provide a high level of chemical and abrasion resistance. Select your horsepower and shaft length and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.
- Item Number SSC033EGD-28
- Enclosure type IP65
- Gearbox ratio 5:1
- Horsepower 1/3 HP
- Impeller attachment Set screw
- Impeller diameter 10 in.
- Impeller finish Mill Finish
- Impeller material 316SS
- Impeller type Hydrofoil
- Lead time 30 Business Days
- Motor type Stainless Steel TEFC Electric
- Mount Stainless Steel Clamp Mount
- Number of impellers 1
- Phase 3 Ph.
- Rpm 350
- Shaft diameter 1 in.
- Shaft length 28 in.
- Shaft material 316SS
- Voltage 230/460V
- Weight 77 lbs.
